B0386 12V 70A Alternator Fits VW Golf, VW New Beetle, Audi A3
Price range: £90.57 through £121.23

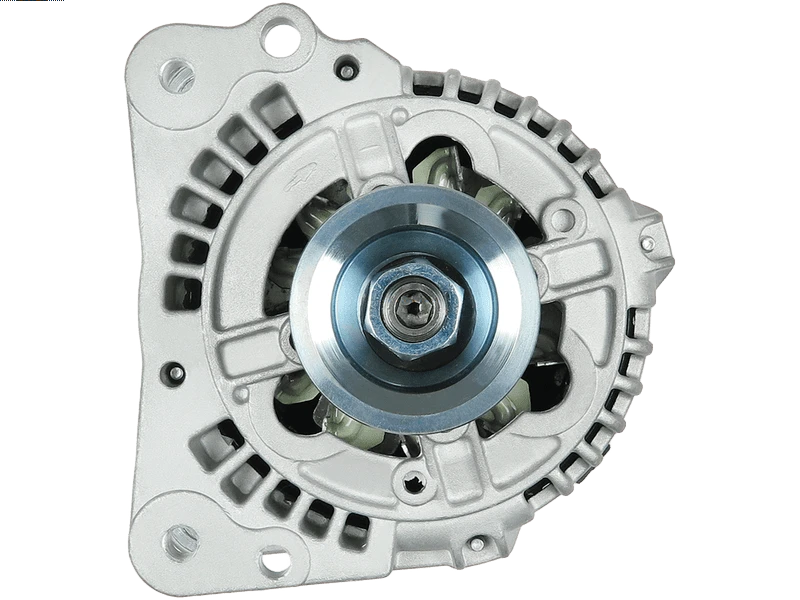

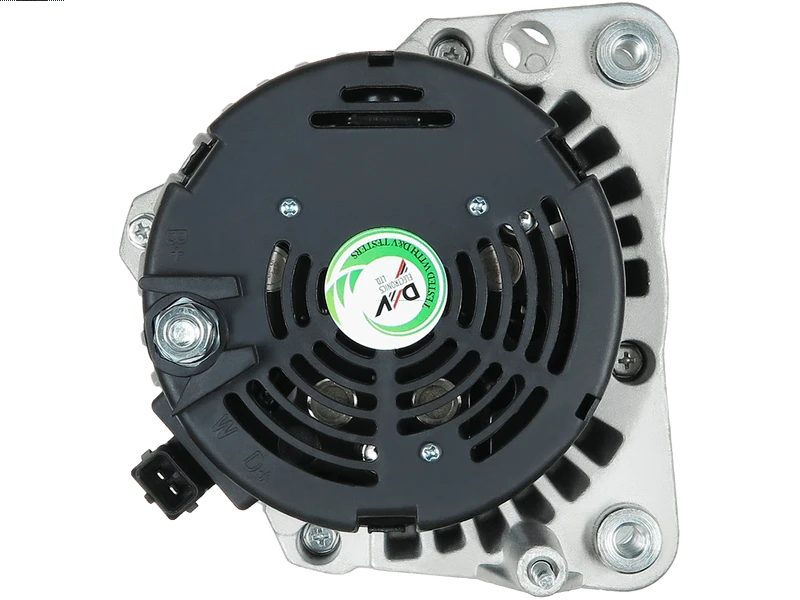

Sahibs B0386 is a replacement alternator with a listed 12V 70A rating. Listed applications include selected VW Golf, VW New Beetle, Audi A3, Skoda Octavia models. Identification references include Lucas LRB00386, Bosch 123310037, Valeo 437479. Its listed 12V 70A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0386 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 70 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 56 mm |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0386 | Dyno Electrics |
| 401442371 | Euro Car Part |
| UD20699A | AS-PL |
| 123310037 | BOSCH |
| 986040870 | BOSCH |
| RAA21981 | DELCO |
| 8EL012428-001 | HELLA |
| 8EL737434-001 | HELLA |
| 11.203.076 | ISKRA / LETRIKA |
| AAK5347 | ISKRA / LETRIKA |
| IA1062 | ISKRA / LETRIKA |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| Mar-97 | MAGNETI MARELLI |
| MRA40870 | MAGNETI MARELLI |
| 72735242 | MAHLE |
| MG 243 | MAHLE |
| 437479 | VALEO |
| 037903025B | VW |
| ALTE570 | 3EFFE |
| ALTL151B | 3EFFE |
| ALTL151NE | 3EFFE |
| ALTL151V | 3EFFE |
| PRAL151 | 3EFFE |
| PRAL151B | 3EFFE |
| PRAL151V | 3EFFE |
| CAL10530AS | CASCO |
| CAL48104GS | CASCO |
| 4584 | CEVAM |
| 56691 | EAI |
| ALT79257 | ELECTROLOG |
| 28-2970 | ELSTOCK |
| CA1267IR | HC PARTS |
| 32038390 | HERTH+BUSS |
| ALB1267 | KRAUF |
| 301267RI | KUHNER |
| 441414 | LOGISTIK |
| LRB00386 | LUCAS |
| LRB386 | LUCAS |
| 89212597 | POWERMAX |
| 305.502.070 | PSH |
| 305.502.070.395 | PSH |
| 20101035 | REAL |
| 20101035BN | REAL |
| 20108401 | REAL |
| 20108401OE | REAL |
| 310732 | RHIAG |
| 310734 | RHIAG |
| 311296 | RHIAG |
| 2010530 | SANDO |
| 2048104.1 | SANDO |
| ALT3190 | SIOM |
| ALT4670 | SIOM |
| ALT501040 | SIOM |
| STX100246 | STARDAX |
| STX100246R | STARDAX |
| 24183R | WAI / TRANSPO |
| 90-15-6563 | WILSON |
| MAHMG243 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2735 | 70A | 120A | Yes |
| B0387 | 70A | 90A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| AUDI | A3 | 1.6 (1595ccm) Petrol | AEH/AKL/APF | 8L1 | 1996 - 1998 | ||
| AUDI | A3 | 1.8 (1781ccm) Petrol | AGN/APG | 8L1 | 1996 - 1998 | ||
| AUDI | A3 | 1.8 (1781ccm) Petrol | AGU/AQA/ARZ/AUM | 8L1 | 1996 - 1998 | ||
| AUDI | A3 | 1.8 (1781ccm) Petrol | AGU/AQA/ARX | Quattro | 8L1 | 1997 - 1998 | |
| SKODA | Octavia | 1.6 (1595ccm) Petrol | AEH/AKL | I | 1U2 | 1997 - 1998 | |
| SKODA | Octavia | 1.6 (1595ccm) Petrol | AEH/AKL | I | Combi | 1U5 | 1997 - 1998 |
| SKODA | Octavia | 1.6 (1598ccm) Petrol | AEE | I | Combi | 1U5 | 1996 - 1998 |
| SKODA | Octavia | 1.6 (1598ccm) Petrol | AEE | I | 1U2 | 1996 - 1998 | |
| SKODA | Octavia | 1.8 (1781ccm) Petrol | AGN | I | 1U2 | 1996 - 1998 | |
| SKODA | Octavia | 1.8 (1781ccm) Petrol | AGU/ARX/ARZ/AUM | I | 1U2 | 1997 - 1999 | |
| SKODA | Octavia | 1.8 (1781ccm) Petrol | AGU/ARX/ARZ/AUM | I | Combi | 1U5 | 1998 - 1999 |
| SKODA | Octavia | 1.8 (1781ccm) Petrol | AGN | I | Combi | 1U5 | 1998 - 1998 |
| VW | Golf | 1.4 (1390ccm) Petrol | AHW/AKQ/APE/AXP/BCA | IV | 1J1 | 1997 - 1998 | |
| VW | Golf | 1.6 (1595ccm) Petrol | AEH/AKL/APF | IV | 1J1 | 1997 - 1998 | |
| VW | Golf | 1.8 (1781ccm) Petrol | AGN | IV | 1J1 | 1997 - 1998 | |
| VW | Golf | 1.8 (1781ccm) Petrol | AGU/AQA/ARZ/AUM/AWD | IV | 1J1 | 1997 - 1998 | |
| VW | Golf | 1.8 (1781ccm) Petrol | AGN | IV | 4Motion | 1J1 | 1998 - 1998 |
| VW | New Beetle | 2.0 (1984ccm) Petrol | AEG/APK/AQY/AVH/AZG/AZJ/BEJ/BER/BEV/BHP/CBPA | 1C1/9C1 | 1998 - 2010 |
Description
B0386 Replacement Alternator
Start your B0386 alternator comparison with the linked Lucas reference LRB00386 and the specifications shown on this page. The listed electrical rating is 12V 70A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected VW Golf 1.4 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 70A output: compare the listed rating with the original alternator.

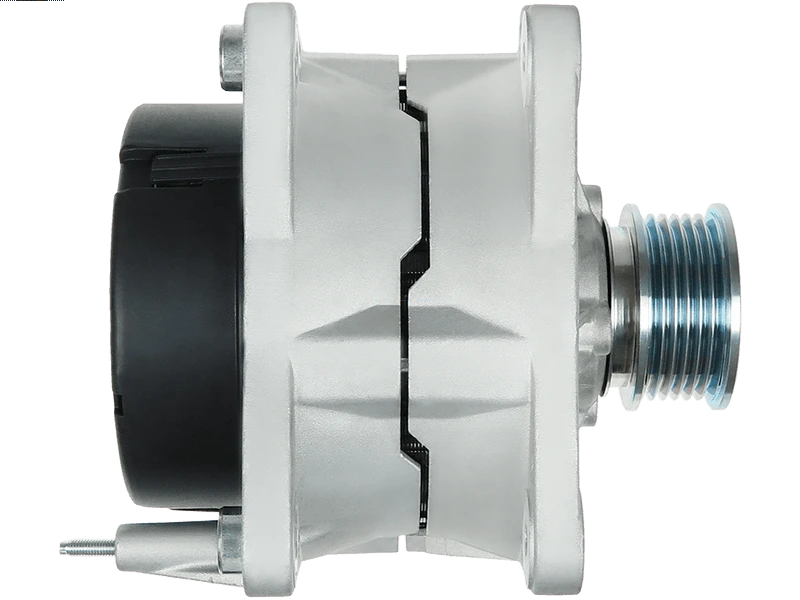

- 6-groove pulley: check belt profile and alignment against the existing unit.
- Lucas LRB00386 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- VW Golf 1.4 Petrol – selected applications 1997–1998 (engine code AHW/AKQ/APE/AXP/BCA).
- VW New Beetle 2.0 Petrol – selected applications 1998–2010 (engine code AEG/APK/AQY/AVH/AZG/AZJ/BEJ/BER/BEV/BHP/CBPA).
- Audi A3 1.6 Petrol – selected applications 1996–1998 (engine code AEH/AKL/APF).
- Skoda Octavia 1.6 Petrol – selected applications 1997–1998 (engine code AEH/AKL).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0386. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
123310037, 986040870, 437479, LRB00386, LRB386, RAA21981, 72735242, MG 243, MG243, 11.203.076, AAK5347, IA1062
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0386 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0386 fit my VW Golf?
VW Golf 1.4 Petrol (1997–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0386 replace Lucas LRB00386?
Lucas LRB00386 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0386?
The listed details include 12V, 70A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0386 new or remanufactured?
Check the current product condition selection for B0386. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0386?
Compare 12V compatibility, 70A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
