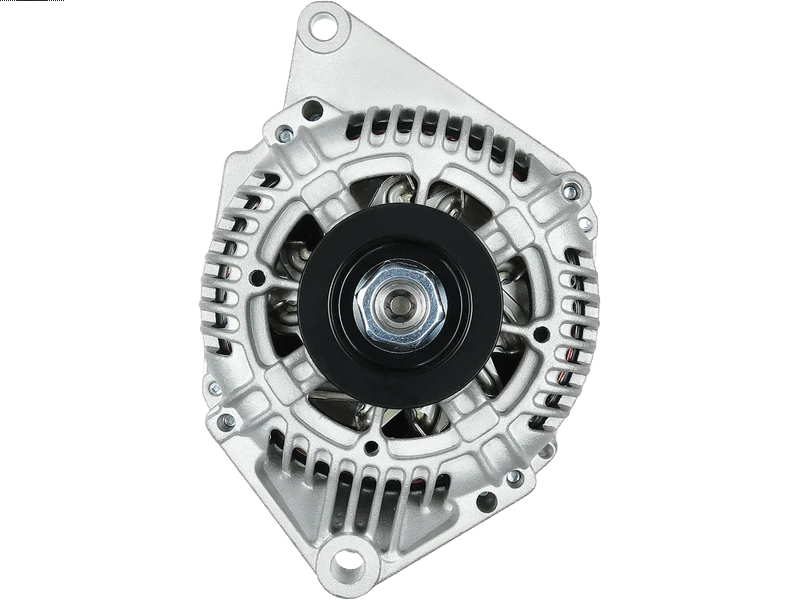

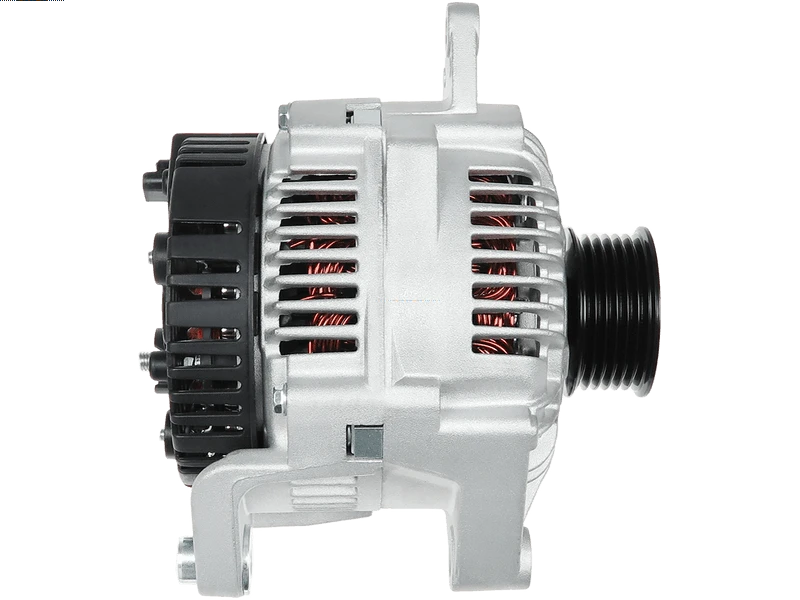

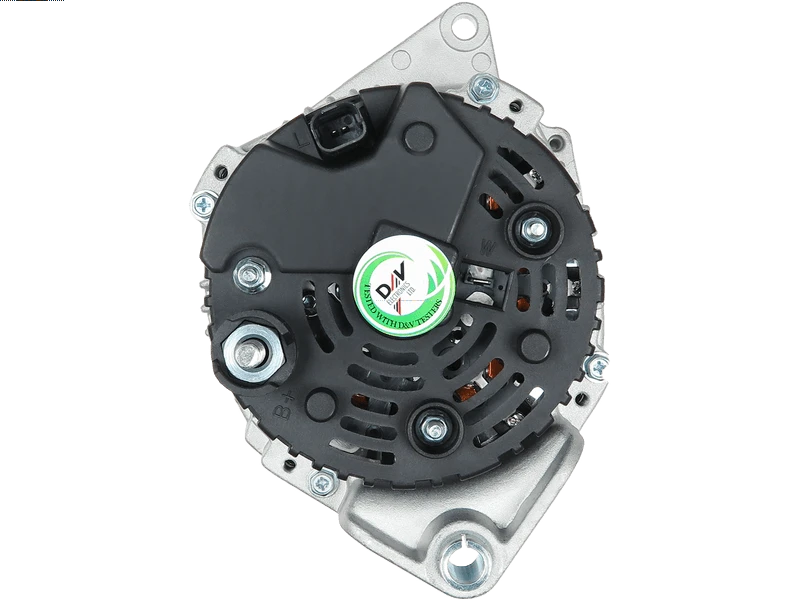

B0401 12V 110A Alternator Fits Renault Clio, Renault Clio Symbol
Price range: £88.31 through £118.20
Sahibs B0401 is a replacement alternator with a listed 12V 110A rating. Listed applications include selected Renault Clio, Renault Clio Symbol, Renault Clio Van, Renault Kangoo models. Identification references include Lucas LRB00401, Bosch 986042181, Valeo 2541954. Its listed 12V 110A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0401 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 110 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 55 mm |
| Mounting holes | 3 qty |
| Position | -26° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0401 | Dyno Electrics |
| 401746861 | Euro Car Part |
| A3281 | AS-PL |
| 986042181 | BOSCH |
| 112059 | CARGO |
| F032112059 | CARGO |
| DA4827 | DELCO |
| DRA3717 | DELCO |
| RAA14828 | DELCO |
| 8EL011710-371 | HELLA |
| 8EL737642-001 | HELLA |
| 63310509010 | MAGNETI MARELLI |
| 63731444010 | MAGNETI MARELLI |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| Mar-76 | MAGNETI MARELLI |
| MQA1444 | MAGNETI MARELLI |
| MRA42181 | MAGNETI MARELLI |
| 7700105539 | RENAULT |
| 7711134267 | RENAULT |
| 2541954 | VALEO |
| 2541954B | VALEO |
| 436748 | VALEO |
| 439302 | VALEO |
| 746071 | VALEO |
| 746871 | VALEO |
| A13VI195 | VALEO |
| 8111921 | VOLVO |
| ALTL242 | 3EFFE |
| PRAL242 | 3EFFE |
| CGB-14046 | AINDE |
| ANM35937X | ANDEL |
| CAL15146AS | CASCO |
| CAL15146GS | CASCO |
| CAL15146RS | CASCO |
| 4947 | CEVAM |
| 56627 | EAI |
| ALT00677 | ELECTROLOG |
| 28-3802 | ELSTOCK |
| 210222 | ERA |
| AG0525 | GHIBAUDI |
| CA1444IR | HC PARTS |
| 32042181 | HERTH+BUSS |
| ALV1444 | KRAUF |
| 301444RI | KUHNER |
| 301444RIV | KUHNER |
| 441591 | LOGISTIK |
| LRB00401 | LUCAS |
| LRB401 | LUCAS |
| 5515190 | MEAT & DORIA |
| 89212598 | POWERMAX |
| 575.548.110 | PSH |
| 575.548.110.460 | PSH |
| 20179641BN | REAL |
| 20179641OE | REAL |
| 20179641RC | REAL |
| RNL4218 | RNL |
| ALT228 | ROLLCO |
| 2015146 | SANDO |
| 2015146.1 | SANDO |
| 2015146.2 | SANDO |
| ALT171690 | SIOM |
| ALT7940 | SIOM |
| STX100410 | STARDAX |
| STX100410R | STARDAX |
| 21401N | WAI / TRANSPO |
| ALT14003 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2100 | 110A Without M10 thread in ce bracket | 110A With M10 thread in ce bracket | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| RENAULT | Clio | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE II | BB02/BB0E/BB0J/CB0E | 1998 - 2001 | |
| RENAULT | Clio | 1.9 (1870ccm) Diesel | F8Q632 | PHASE II | BB0J/CB0J | 2000 - 2001 | |
| RENAULT | Clio | 2.0 (1998ccm) Petrol | F4R738 | PHASE II | CB20/CB21/CB22/CB2P | 2003 - 2006 | |
| RENAULT | Clio Symbol | 1.9 (1870ccm) Diesel | F8Q630 | PHASE II | LB02 | 1998 - 2001 | |
| RENAULT | Clio Van | 1.9 (1870ccm) Diesel | F8Q630 | PHASE II | Societe | SB0E | 1998 - 2003 |
| RENAULT | Clio Van | 1.9 (1870ccm) Diesel | F8Q662 | PHASE II | Societe | SB0R | 1998 - 2001 |
| RENAULT | Clio Van | 1.9 (1870ccm) Diesel | F8Q632 | PHASE II | Societe | SB0J | 2000 - 2001 |
| RENAULT | Kangoo | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE I | KC02/KC0E/KC0N | 1997 - 2005 | |
| RENAULT | Kangoo | 1.9 (1870ccm) Diesel | F8Q662 | PHASE I | KC0D | 1997 - 2001 | |
| RENAULT | Kangoo | 1.9 (1870ccm) Diesel | F8Q632 | PHASE I | KC0J | 1999 - 2001 | |
| RENAULT | Kangoo | 1.9 (1870ccm) Diesel | F9Q780/F9Q782 | PHASE I | KC0U/KC0V | 1999 - 2003 | |
| RENAULT | Kangoo Express | 1.9 (1870ccm) Diesel | F8Q662 | PHASE I | FC0D | 1997 - 2003 | |
| RENAULT | Kangoo Express | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE I | FC02/FC0E/FC0J | 1997 - 2006 | |
| RENAULT | Kangoo Express | 1.9 (1870ccm) Diesel | F8Q632 | PHASE I | FC0J/FC0N | 1999 - 2009 | |
| RENAULT | Kangoo Rapid | 1.9 (1870ccm) Diesel | F8Q662 | PHASE I | FC0D | 1997 - 2003 | |
| RENAULT | Kangoo Rapid | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE I | FC0E/FC0J | 1997 - 2006 | |
| RENAULT | Kangoo Rapid | 1.9 (1870ccm) Diesel | F8Q632 | PHASE I | FC0J | 1999 - 2003 | |
| RENAULT | Megane | 2.0 (1998ccm) Petrol | F5R740 | PHASE I | EA03/EA0P/EA14 | 1999 - 2003 | |
| RENAULT | Megane Coupe | 2.0 (1998ccm) Petrol | F4R746/F5R740 | PHASE I | DA03/DA0C/DA0P/DA13/DA14 | 1999 - 2003 | |
| RENAULT | Megane Estate/Break | 1.9 (1870ccm) Diesel | F9Q738/F9Q744 | PHASE I | Grandtour | KA01/KA1U | 2001 - 2003 |
| RENAULT | Scenic RX4 | 1.9 (1870ccm) Diesel | F9Q740 | PHASE I | Monospace | JA05/JA1F | 2000 - 2003 |
| RENAULT | Scenic RX4 | 1.9 (1870ccm) Diesel | F9Q732/F9Q748/F9Q796 | PHASE I | Monospace | JA05 | 2002 - 2003 |
Description
B0401 Replacement Alternator
Choose a replacement by comparing the B0401 alternator and its Lucas reference, LRB00401, with your existing unit. The listed electrical rating is 12V 110A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Renault Clio 1.9 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 110A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Renault Clio 1.9 Diesel – selected applications 1998–2001 (engine code F8Q630/F8Q632).
- Renault Clio Symbol 1.9 Diesel – selected applications 1998–2001 (engine code F8Q630).
- Renault Clio Van 1.9 Diesel – selected applications 1998–2003 (engine code F8Q630).
- Renault Kangoo 1.9 Diesel – selected applications 1997–2005 (engine code F8Q630/F8Q632).
- Renault Kangoo Express 1.9 Diesel – selected applications 1997–2003 (engine code F8Q662).
- Renault Kangoo Rapid 1.9 Diesel – selected applications 1997–2003 (engine code F8Q662).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0401. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986042181, 2541954, 2541954B, 436748, 439302, 746071, 746871, A13VI195, LRB00401, LRB401, DA4827, DRA3717, RAA14828, 7700105539, 7711134267
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0401 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0401 fit my Renault Clio?
Renault Clio 1.9 Diesel (1998–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0401 replace Lucas LRB00401?
Lucas LRB00401 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0401?
The listed details include 12V, 110A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0401 new or remanufactured?
Check the current product condition selection for B0401. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0401?
Compare 12V compatibility, 110A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
