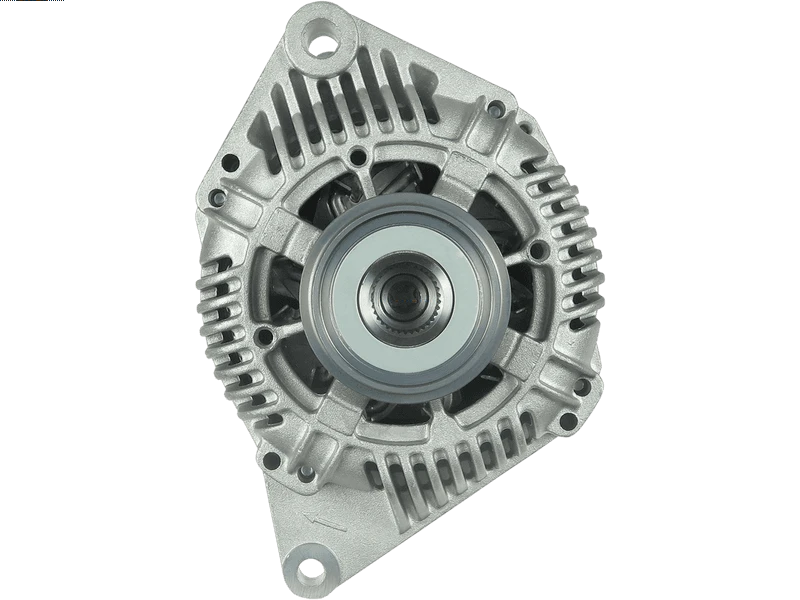

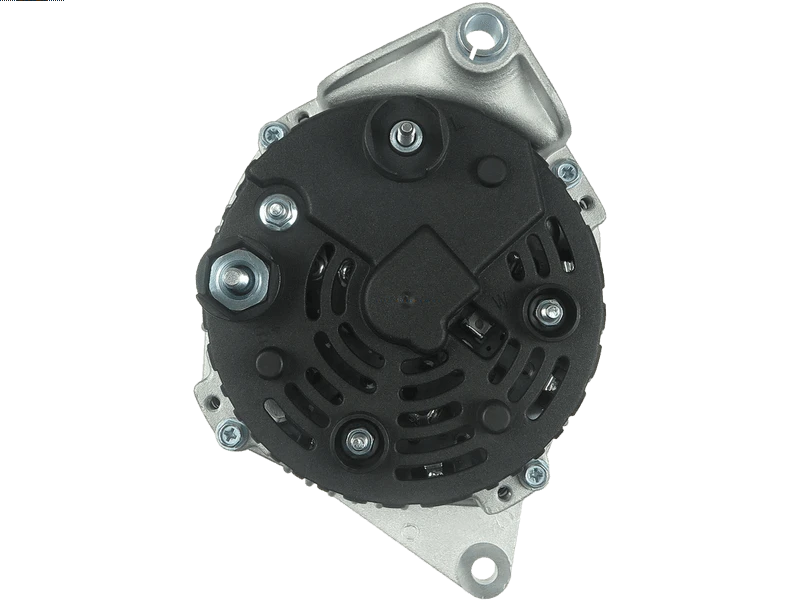

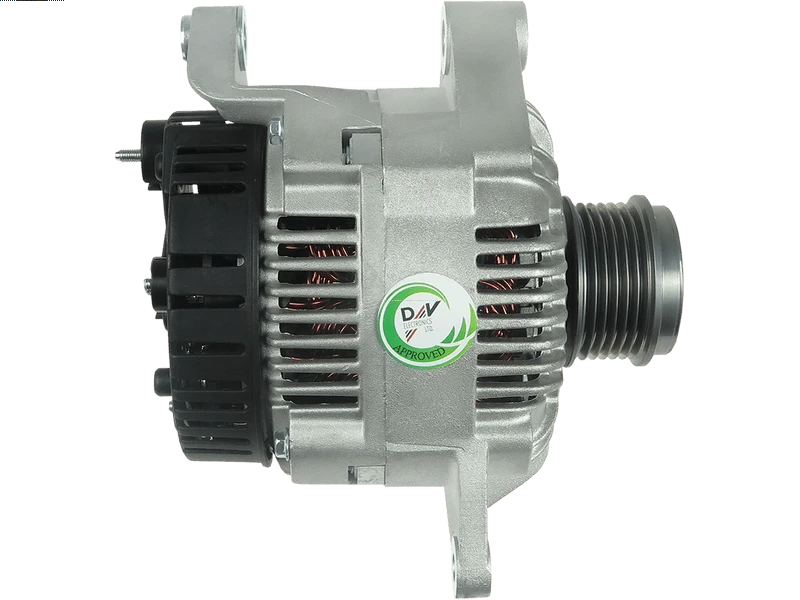

B0463 12V 120A Alternator Fits Renault Espace, Renault Laguna
Price range: £99.42 through £133.07
Identify a replacement alternator using Sahibs B0463, listed at 12V 120A. Listed applications include selected Renault Espace, Renault Laguna, Renault Laguna Estate/Break, Renault Megane models. Identification references include Lucas LRB00463, Bosch 986042141, Valeo 2541976. Its listed 12V 120A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0463 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 120 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 56 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0463 | Dyno Electrics |
| 401746911 | Euro Car Part |
| A3092 | AS-PL |
| 986042141 | BOSCH |
| 111719 | CARGO |
| F032111719 | CARGO |
| DRA0167 | DELCO |
| DRA3783 | DELCO |
| 8EL737444-001 | HELLA |
| 20110462 | PRESTOLITE |
| 7700104209 | RENAULT |
| 7700106501 | RENAULT |
| 7700422143 | RENAULT |
| 7700431945 | RENAULT |
| 7711134258 | RENAULT |
| 8200121413 | RENAULT |
| 2541976 | VALEO |
| 2542315 | VALEO |
| 2542603 | VALEO |
| 436735 | VALEO |
| 437198 | VALEO |
| 439208 | VALEO |
| 439282 | VALEO |
| A13VI207 | VALEO |
| A13VI254 | VALEO |
| A13VI292 | VALEO |
| 8111906 | VOLVO |
| 8251635 | VOLVO |
| 8601644 | VOLVO |
| ALTL805 | 3EFFE |
| ALTL805V | 3EFFE |
| PRAL805 | 3EFFE |
| PRAL805V | 3EFFE |
| AI-90278 | AINDE |
| CGB-83857 | AINDE |
| ANM32387X | ANDEL |
| AEA4263 | AUTOELECTRO |
| STA0328R | BOVEZ |
| CAL15129AS | CASCO |
| CAL15129GS | CASCO |
| CAL15129RS | CASCO |
| 4930 | CEVAM |
| 56608 | EAI |
| 56646 | EAI |
| 57059 | EAI |
| ALT01082 | ELECTROLOG |
| ALT01084 | ELECTROLOG |
| 28-3857 | ELSTOCK |
| NA546 | ELSTOCK |
| 210490 | ERA |
| CA1303IR | HC PARTS |
| 301303RI | KUHNER |
| 11.1303 | LAUBER |
| 11.1303M | LAUBER |
| 441450 | LOGISTIK |
| LRB00463 | LUCAS |
| LRB463 | LUCAS |
| 9213457 | POWERMAX |
| 20179921BN | REAL |
| 20179921OE | REAL |
| 310745 | RHIAG |
| 2015129 | SANDO |
| A12VA1174A2 | SIDAT |
| ALT4690 | SIOM |
| SA330 | SOVEREIGN |
| STX100324 | STARDAX |
| STX100324R | STARDAX |
| STX100487 | STARDAX |
| 21199R | WAI / TRANSPO |
| 21200N | WAI / TRANSPO |
| ALT14065 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0462 | 120A Clutch pulley PV6/55 | 110A Pulley without clutch PV6/55 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| RENAULT | Espace | 1.9 (1870ccm) Diesel | F9Q722 | PHASE III | Monospace | JE0M | 1999 - 2001 |
| RENAULT | Laguna | 1.9 (1870ccm) Diesel | F9Q710/F9Q716/F9Q717 | PHASE I | B56J | 1997 - 1999 | |
| RENAULT | Laguna Estate/Break | 1.9 (1870ccm) Diesel | F9Q710/F9Q716/F9Q717 | PHASE I | Grandtour/Nevada/Sport Tourer | K56J | 1997 - 1999 |
| RENAULT | Megane | 1.9 (1870ccm) Diesel | F8Q784/F8Q786/F9Q731/F9Q734/F9Q736/F9Q738 | PHASE I | BA01/BA09/BA0K/BA0N/BA0Y | 1996 - 1999 | |
| RENAULT | Megane Classic | 1.9 (1870ccm) Diesel | F8Q784/F8Q786/F9Q731/F9Q734/F9Q736 | PHASE I | LA0K/LA0N | 1997 - 1999 | |
| RENAULT | Megane Coupe | 1.9 (1870ccm) Diesel | F9Q731/F9Q734/F9Q736 | PHASE I | DA0N | 1997 - 1999 | |
| RENAULT | Megane Estate/Break | 1.9 (1870ccm) Diesel | F9Q731/F9Q736 | PHASE I | Grandtour | KA0N | 1999 - 1999 |
| RENAULT | Megane Scénic | 1.9 (1870ccm) Diesel | F9Q734/F9Q736 | PHASE I | Monospace | JA0N | 1997 - 1999 |
| RENAULT | Scenic | 1.9 (1870ccm) Diesel | F9Q731/F9Q734/F9Q736 | PHASE I | Monospace | FA0N/JA0N | 1999 - 1999 |
| VOLVO | S40 | 1.9 (1870ccm) Diesel | D4192T2 | I | 644 | 1996 - 2000 |
Description
B0463 Replacement Alternator
Start your B0463 alternator comparison with the linked Lucas reference LRB00463 and the specifications shown on this page. The listed electrical rating is 12V 120A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Renault Espace 1.9 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 120A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Renault Espace 1.9 Diesel – selected applications 1999–2001 (engine code F9Q722).
- Renault Laguna 1.9 Diesel – selected applications 1997–1999 (engine code F9Q710/F9Q716/F9Q717).
- Renault Laguna Estate/Break 1.9 Diesel – selected applications 1997–1999 (engine code F9Q710/F9Q716/F9Q717).
- Renault Megane 1.9 Diesel – selected applications 1996–1999 (engine code F8Q784/F8Q786/F9Q731/F9Q734/F9Q736/F9Q738).
- Renault Megane Classic 1.9 Diesel – selected applications 1997–1999 (engine code F8Q784/F8Q786/F9Q731/F9Q734/F9Q736).
- Renault Megane Coupe 1.9 Diesel – selected applications 1997–1999 (engine code F9Q731/F9Q734/F9Q736).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0463. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986042141, 2541976, 2542315, 2542603, 436735, 437198, 439208, 439282, A13VI207, A13VI254, A13VI292, LRB00463, LRB463, DRA0167, DRA3783, 20110462, 7700104209, 7700106501, 7700422143, 7700431945, 7711134258, 8200121413
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0463 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0463 fit my Renault Espace?
Renault Espace 1.9 Diesel (1999–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0463 replace Lucas LRB00463?
Lucas LRB00463 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0463?
The listed details include 12V, 120A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0463 new or remanufactured?
Check the current product condition selection for B0463. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0463?
Compare 12V compatibility, 120A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
