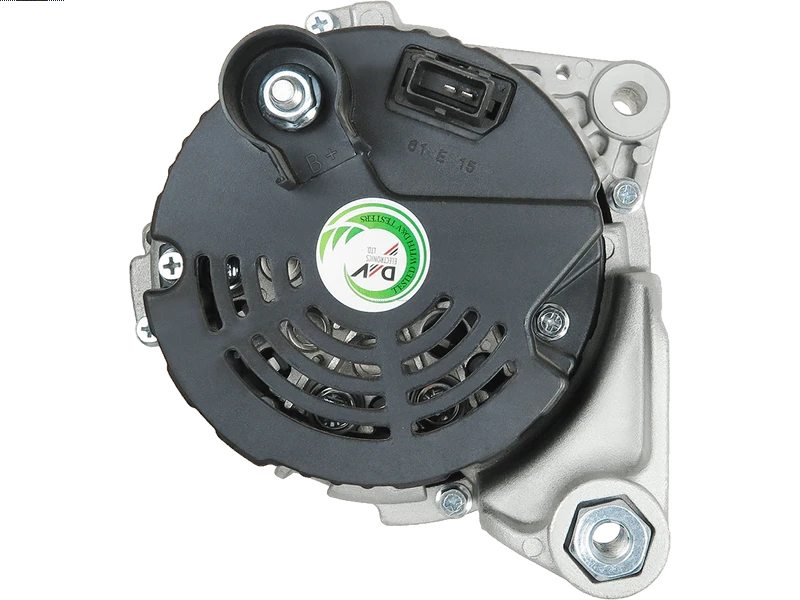

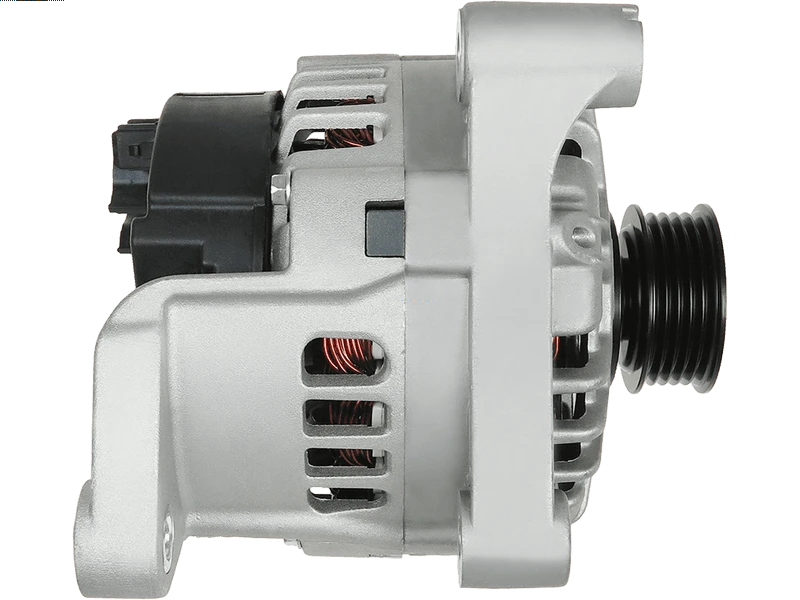

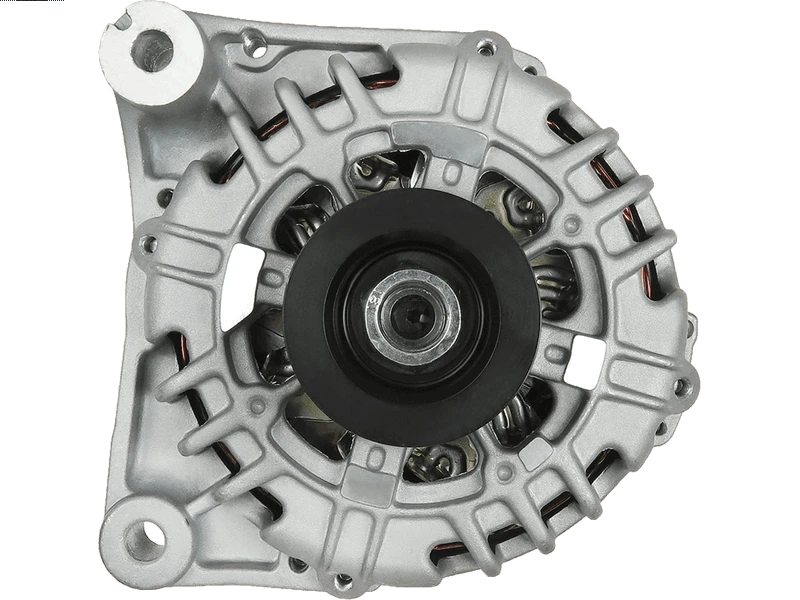

B0470 12V 100A Alternator Fits Land Rover Freelander, Rover 75, MG ZT
Price range: £107.22 through £146.20
Compare the B0470 12V 100A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Land Rover Freelander, Rover 75, Rover 75 Tourer, MG ZT models. Identification references include Lucas LRB00470, Bosch 986049430, Valeo 2542265. Its listed 12V 100A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0470 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 100 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 54 mm |
| Mounting holes | 3 qty |
| Position | -35° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0470 | Dyno Electrics |
| 401750981 | Euro Car Part |
| A3072 | AS-PL |
| 986049430 | BOSCH |
| 112472 | CARGO |
| F032112472 | CARGO |
| DRA4033 | DELCO |
| GNU2562 | ROVER |
| YLE000260 | ROVER |
| YLE000260E | ROVER |
| YLE000260L | ROVER |
| YLE000261 | ROVER |
| YLE102020 | ROVER |
| YLE102500 | ROVER |
| YLE102500L | ROVER |
| YLE102500LE | ROVER |
| 2542265 | VALEO |
| 2542265A | VALEO |
| 2542265B | VALEO |
| 2542797A | VALEO |
| 2542797B | VALEO |
| 437227 | VALEO |
| 439301 | VALEO |
| A13VI234 | VALEO |
| SG12B080 | VALEO |
| ALTS233 | 3EFFE |
| CGB-84500 | AINDE |
| ANM36253X | ANDEL |
| AEA4270 | AUTOELECTRO |
| STA0490R | BOVEZ |
| CAL15168AS | CASCO |
| CAL15168GS | CASCO |
| CAL15168RS | CASCO |
| 4633 | CEVAM |
| 56839 | EAI |
| ALT00099 | ELECTROLOG |
| ALT01144 | ELECTROLOG |
| 28-4500 | ELSTOCK |
| 210571 | ERA |
| GA439301-A | GPARTS |
| CA1631IR | HC PARTS |
| 301631RI | KUHNER |
| 301631RIV | KUHNER |
| 11.1631 | LAUBER |
| 441778 | LOGISTIK |
| LRB00470 | LUCAS |
| LRB470 | LUCAS |
| 5515261 | MEAT & DORIA |
| 89212145 | POWERMAX |
| 9212145 | POWERMAX |
| 20179861BN | REAL |
| 20179861OE | REAL |
| 20179861RC | REAL |
| 310894 | RHIAG |
| RNLA13VI234 | RNL |
| 2015168 | SANDO |
| A12VA0079A2 | SIDAT |
| ALT7690 | SIOM |
| SA235 | SOVEREIGN |
| STX100033 | STARDAX |
| STX100033R | STARDAX |
| STX100249 | STARDAX |
| STX100249R | STARDAX |
| AX 1339 | STARLINE |
| 21470N | WAI / TRANSPO |
| ALT14133 | WOODAUTO |
| VAL439301 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1955 | 100A | 120A | Yes |
| A1965 | 100A Pulley PV5/54 | 120A Pulley PV6/53 | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LAND ROVER | Freelander | 2.0 (1951ccm) Diesel | M47 | MK I | Commercial | L314 | 2000 - 2006 |
| LAND ROVER | Freelander | 2.0 (1951ccm) Diesel | M47 | MK I | L314 | 2000 - 2006 | |
| LAND ROVER | Freelander | 2.0 (1951ccm) Diesel | M47 | MK I | L314 | 2001 - 2006 | |
| MG | ZT | 2.0 (1951ccm) Diesel | 204D2 | RJ | 2002 - 2003 | ||
| MG | ZT | 2.0 (1951ccm) Diesel | 204D2 | RJ | 2002 - 2005 | ||
| MG | ZT-T | 2.0 (1951ccm) Diesel | 204D2 | RJ | 2002 - 2003 | ||
| MG | ZT-T | 2.0 (1951ccm) Diesel | 204D2 | RJ | 2002 - 2005 | ||
| ROVER | 75 | 2.0 (1951ccm) Diesel | 204D2 | MK I | RJ | 1999 - 2005 | |
| ROVER | 75 | 2.0 (1951ccm) Diesel | 204D2 | MK I | RJ | 2002 - 2005 | |
| ROVER | 75 Tourer | 2.0 (1951ccm) Diesel | 204D2 | MK I | RJ | 2001 - 2005 | |
| ROVER | 75 Tourer | 2.0 (1951ccm) Diesel | 204D2 | MK I | RJ | 2002 - 2005 |
Description
B0470 Replacement Alternator
Start your B0470 alternator comparison with the linked Lucas reference LRB00470 and the specifications shown on this page. The listed electrical rating is 12V 100A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Land Rover Freelander 2.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 100A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Land Rover Freelander 2.0 Diesel – selected applications 2000–2006 (engine code M47).
- Rover 75 2.0 Diesel – selected applications 1999–2005 (engine code 204D2).
- Rover 75 Tourer 2.0 Diesel – selected applications 2001–2005 (engine code 204D2).
- MG ZT 2.0 Diesel – selected applications 2002–2003 (engine code 204D2).
- MG ZT-T 2.0 Diesel – selected applications 2002–2003 (engine code 204D2).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0470. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986049430, 2542265, 2542265A, 2542265B, 2542797A, 2542797B, 437227, 439301, A13VI234, SG12B080, LRB00470, LRB470, DRA4033, GNU2562, YLE000260, YLE000260E, YLE000260L, YLE000261, YLE102020, YLE102500, YLE102500L, YLE102500LE
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0470 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0470 fit my Land Rover Freelander?
Land Rover Freelander 2.0 Diesel (2000–2006) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0470 replace Lucas LRB00470?
Lucas LRB00470 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0470?
The listed details include 12V, 100A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0470 new or remanufactured?
Check the current product condition selection for B0470. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0470?
Compare 12V compatibility, 100A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
