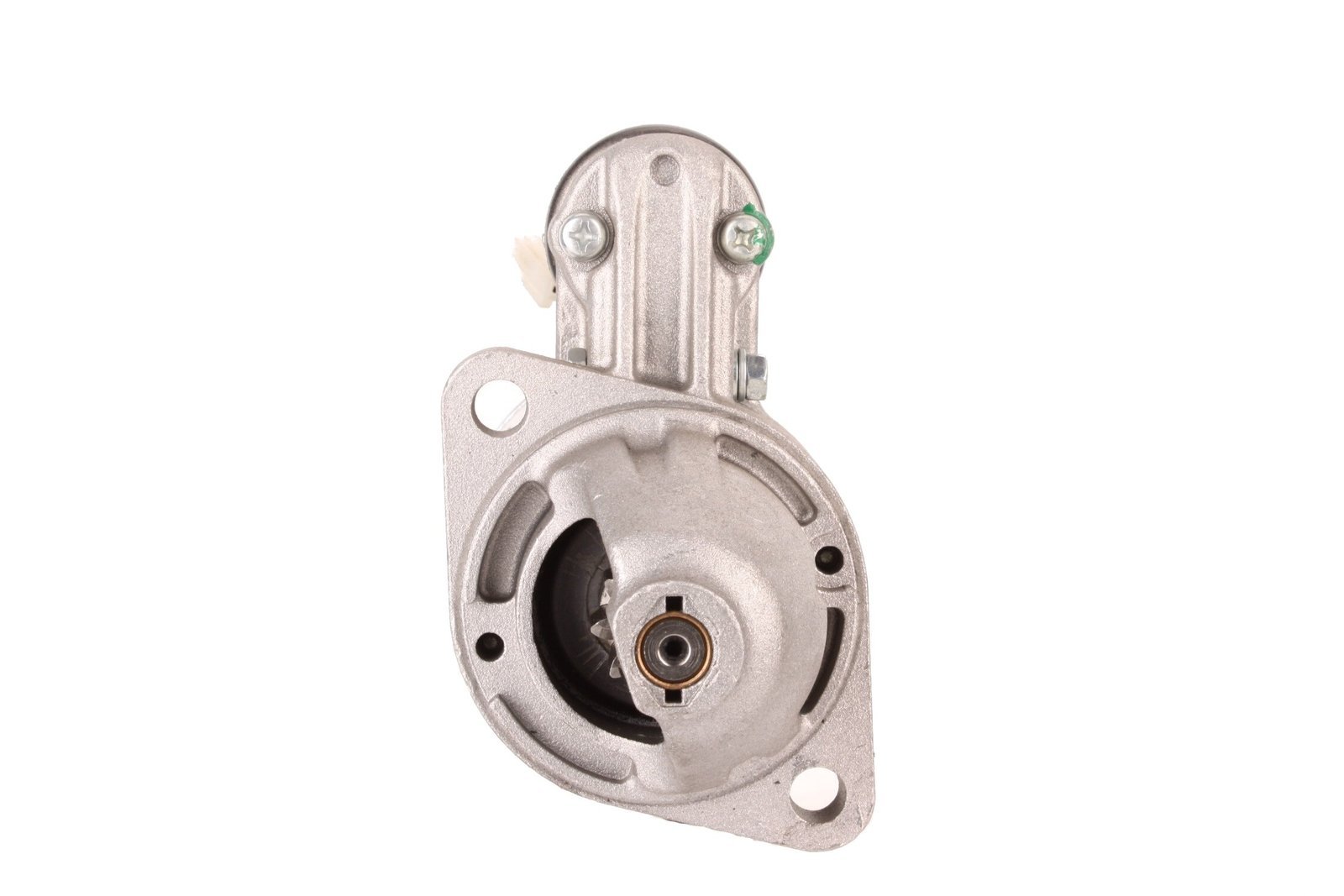

S0250 12V 0.8kW Starter Motor Fits Toyota Hiace, Toyota Hilux
Price range: £103.67 through £124.28
The S0250 12V 0.8kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Toyota Hiace, Toyota Hilux models. Identification references include Lucas LRS00250, Bosch F042001131, Valeo 455585. Its listed 12V 0.8kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0250 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.8 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0250 | Dyno Electrics |
| 280000197 | Denso |
| 280001010 | Denso |
| 280001011 | Denso |
| 280001013 | Denso |
| 280001080 | Denso |
| 280001081 | Denso |
| 280001082 | Denso |
| 280001083 | Denso |
| 28000197 | Denso |
| 280001970 | Denso |
| 280001971 | Denso |
| 280001972 | Denso |
| 280001973 | Denso |
| 280001974 | Denso |
| 280001975 | Denso |
| 280001976 | Denso |
| 28000481 | Denso |
| 280004810 | Denso |
| 280004811 | Denso |
| 280004812 | Denso |
| 28000682 | Denso |
| 280006820 | Denso |
| 280006821 | Denso |
| 280006822 | Denso |
| 280006823 | Denso |
| 28000752 | Denso |
| 280007520 | Denso |
| 280007521 | Denso |
| 28000901 | Denso |
| 280009010 | Denso |
| 986012060 | Bosch Exchange |
| 986012061 | Bosch Exchange |
| 110154 | HC-Cargo |
| 116800 | HC-Cargo |
| 16223N | WAI |
| 16223R | WAI |
| 16231R | WAI |
| 17278N | WAI |
| 190002092 | PSH |
| 2810014014 | Toyota |
| 2810023010 | Toyota |
| 2810023011 | Toyota |
| 2810023011R | Toyota |
| 2810031020 | Toyota |
| 2.81003E+11 | Toyota |
| 2810031021 | Toyota |
| 2810031022 | Toyota |
| 2810031030 | Toyota |
| 2810040010 | Toyota |
| 2810040011 | Toyota |
| 2810040012 | Toyota |
| 2810040013 | Toyota |
| 2810040014 | Toyota |
| 2810040015 | Toyota |
| 2.81004E+12 | Daihatsu |
| 2810040015R | Toyota |
| 2810040020 | Toyota |
| 2810040030 | Toyota |
| 2810040110 | Toyota |
| 2810040140 | Toyota |
| 3004571 | Hyster |
| 455585 | Valeo |
| 455611 | Valeo |
| 91295058 | Wilson |
| 91295227 | Wilson |
| ATS172 | ATK |
| ATS173 | ATK |
| DRS2061 | Delco Remy |
| F042001131 | Bosch |
| F042512588 | Bosch |
| HJS336 | HC-Parts |
| JS334 | HC-Parts |
| JS336 | HC-Parts |
| LRS00236 | Lucas |
| LRS00250 | Lucas |
| LRS236 | Lucas |
| LRS250 | Lucas |
| S24006 | Hitachi |
| S8018 | Dixie |
| STR3573 | Wood Auto |
| STR70092 | Wood Auto |
| TRS077 | TWA |
| WOOSTR3573 | Wood Auto |
| WOOSTR70092 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA | Hiace | 1.6 (1588ccm) Petrol | 12R | MK I | RH10 | 1972 - 1977 | |
| TOYOTA | Hiace | 1.6 (1588ccm) Petrol | 12R | MK II | RH30 | 1977 - 1982 | |
| TOYOTA | Hiace | 1.6 (1588ccm) Petrol | 12R | MK II | Commuter | RH20 | 1979 - 1982 |
| TOYOTA | Hilux | 1.6 (1588ccm) Petrol | 12R | MK I | RN20 | 1971 - 1973 | |
| TOYOTA | Hilux | 1.6 (1588ccm) Petrol | 12R | MK II | RN20 | 1972 - 1978 | |
| TOYOTA | Hilux | 1.6 (1588ccm) Petrol | 12R | MK III | RN30/RN40 | 1978 - 1983 |
Description
S0250 Replacement Starter Motor
The Sahibs S0250 starter motor is associated with Lucas reference LRS00250 for replacement identification. The listed electrical rating is 12V 0.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Toyota Hiace 1.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.8kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Hiace 1.6 Petrol – selected applications 1972–1977 (engine code 12R).
- Toyota Hilux 1.6 Petrol – selected applications 1971–1973 (engine code 12R).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0250. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986012060, 986012061, F042001131, F042512588, 455585, 455611, 280000197, 280001010, 280001011, 280001013, 280001080, 280001081, 280001082, 280001083, 28000197, 280001970, 280001971, 280001972, 280001973, 280001974, 280001975, 280001976, 28000481, 280004810, 280004811, 280004812, 28000682, 280006820, 280006821, 280006822, 280006823, 28000752, 280007520, 280007521, 28000901, 280009010, LRS00250, LRS00236, LRS236, LRS250, S24006, DRS2061
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0250 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0250 fit my Toyota Hiace?
Toyota Hiace 1.6 Petrol (1972–1977) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0250 replace Lucas LRS00250?
Lucas LRS00250 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0250?
The listed details include 12V, 0.8kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0250 new or remanufactured?
Check the current product condition selection for S0250. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0250?
Compare 12V compatibility, 0.8kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
