S0439 12V 2.0kW Starter Motor Fits Hyundai Galloper, Hyundai H1

Description

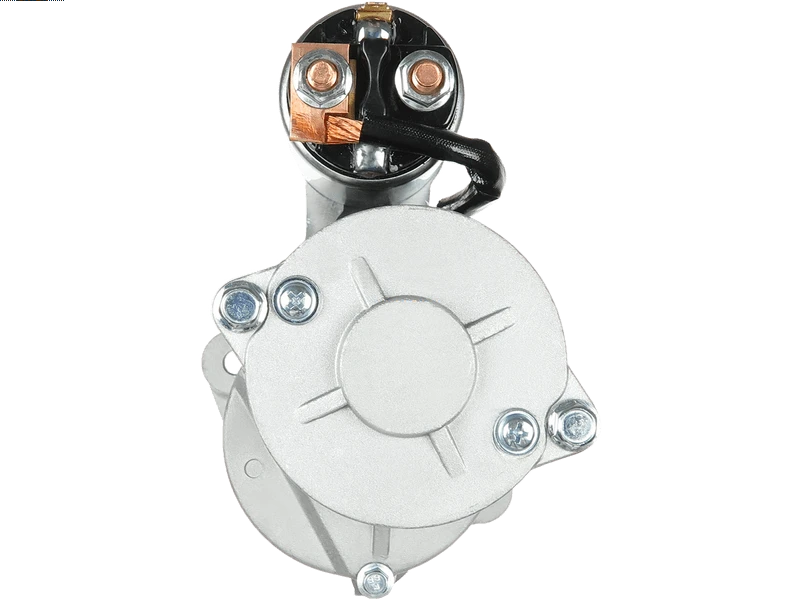

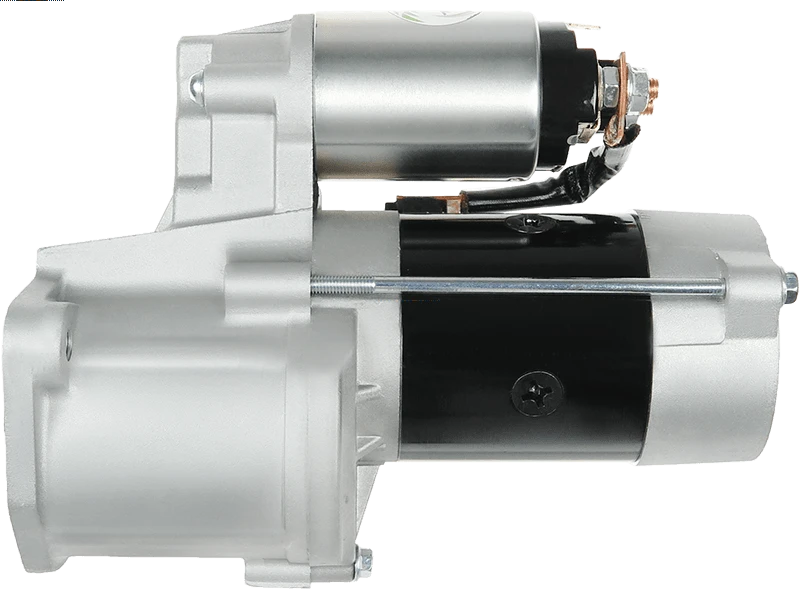

S0439 Replacement Starter Motor

The Sahibs S0439 starter motor is associated with Lucas reference LRS00439 for replacement identification. The listed electrical rating is 12V 2.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Hyundai Galloper 2.5 Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 2.0kW power: compare the listed rating with the original starter motor.

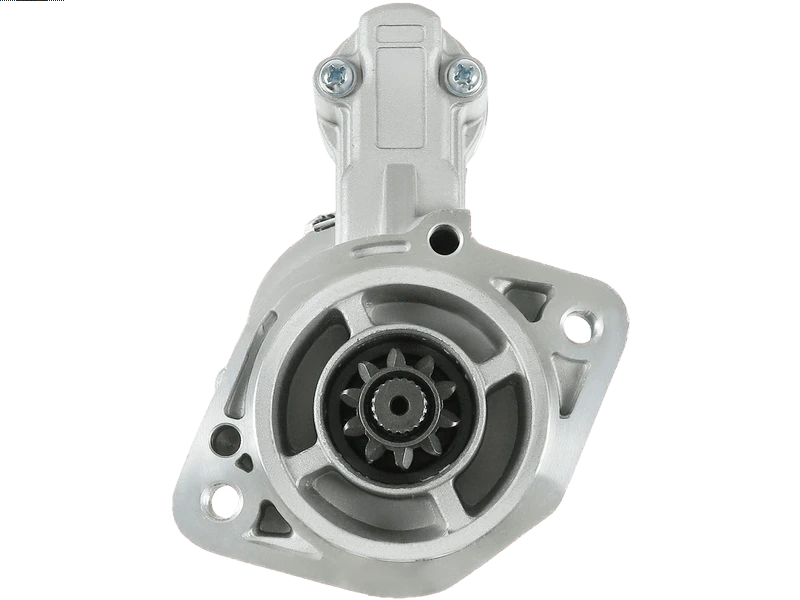

• 10/12|||10/12-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• M8 connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Hyundai Galloper 2.5 Diesel – selected applications 1997–2003 (engine code D4BA).
• Hyundai H1 2.5 Diesel – selected applications 1997–2001 (engine code D4BH).
• Hyundai H100 AU Truck 2.5 Diesel – selected applications 1996–1997 (engine code D4BF).
• Hyundai H200 2.5 Diesel – selected applications 1997–2002 (engine code D4BF).
• Hyundai Porter 2.5 Diesel – selected applications 1994–2013 (engine code D4BA).
• Hyundai Starex 2.5 Diesel – selected applications 1997–2000 (engine code D4BF).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S0439. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

986014140, 986014141, 1986S01263, 438123, 455905, LRS00439, LRS0439, M002T51685, M002T56171, M002T5618, M002T56181, M002T56182, M002T56185, M002T57271, M002T57273, M002T57771, M002T60172, M003T61071, M2T51685, M2T56171, M2T5618, M2T56181, M2T56182, M2T56185, M2T57271, M2T57273, M2T57771, M2T60172, M3T61071, MD050200, MD050205, MD061154, MD069166, MD070934, MD072654, MD084414, MD156986, MD162975, MD164975, MD191433, MD191433R, MD191435, DRS3343, DRS3343N, 20513019, 1516954R

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0439 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S0439 fit my Hyundai Galloper?

Hyundai Galloper 2.5 Diesel (1997–2003) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S0439 replace Lucas LRS00439?

Lucas LRS00439 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S0439?

The listed details include 12V, 2.0kW power, 10/12|||10/12 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S0439 new or remanufactured?

Check the current product condition selection for S0439. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S0439?

Compare 12V compatibility, 2.0kW power, 10/12|||10/12 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
