S0476 12V 1.7kW Starter Motor Fits Peugeot 205, Peugeot 206

Description

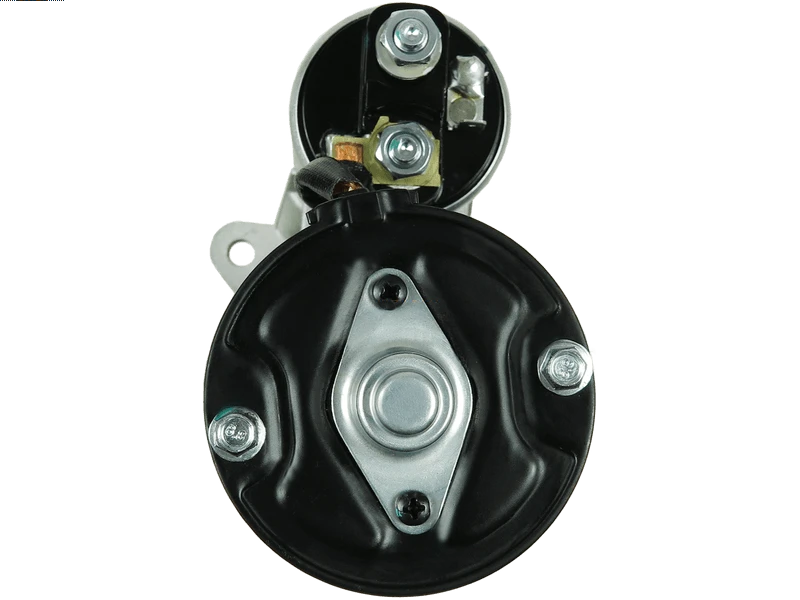

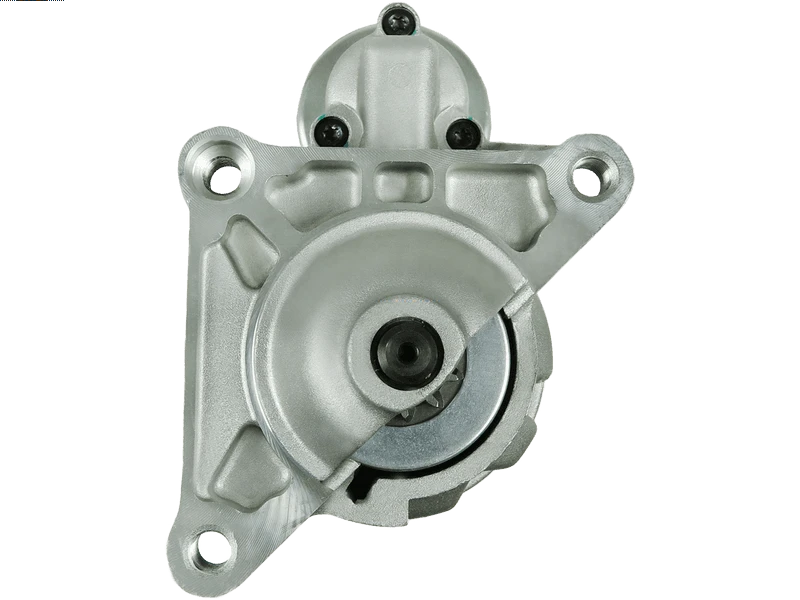

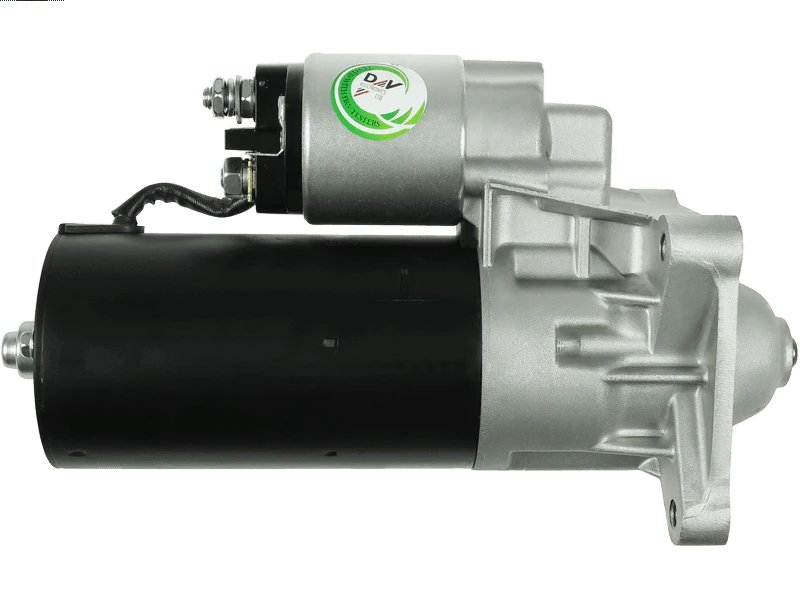

S0476 Replacement Starter Motor

Start your S0476 starter motor comparison with the linked Lucas reference LRS00476 and the specifications shown on this page. The listed electrical rating is 12V 1.7kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Peugeot 205 1.8 Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 1.7kW power: compare the listed rating with the original starter motor.
• 10/11|||10/11-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• M8 connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Peugeot 205 1.8 Diesel – selected applications 1983–1987 (engine code XUD7).
• Peugeot 206 1.9 Diesel – selected applications 1998–2004 (engine code DW8/DW8B).
• Peugeot 206 SW 2.0 Diesel – selected applications 2002–2007 (engine code DW10TD).
• Peugeot 305 1.9 Diesel – selected applications 1982–1988 (engine code XUD9).
• Peugeot 306 1.8 Diesel – selected applications 1993–1999 (engine code XUD7).
• Peugeot 307 2.0 Diesel – selected applications 2000–2007 (engine code DW10ATED).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S0476. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

1109010, 1109026, 1110017, 1314034, 986012400, 986012401, 986013240, 1986S00716, 201028, 201075, 432561, 432595, 432630, 433305, 433324, 438068, 438069, 455928, D7R8, D9R121, D9R84, ND053, ND123, ND138, VS140, VS283, VS285, LRS00476, LRS476, M000T80082, M001T50171, M001T50172, M001T80071, M001T80381, M001T80481, M001T90281, M002T90071, M0T80082, M1T50171, M1T50172, M1T80071, M1T80081, M1T80082, M1T80381, M1T80481, M1T80841, M1T90281, M2T90071, 72735778, MS150, 11.130.642, AZE2521, IS0642, 1320921080, 1332419080, 555836, 555838, 5802-35, 5802-F2, 5802-H8, 5802-J4, 5802-M3, 5802-M7, 5802-S3, 5802-V5, 5802-V6, 580235, 580236, 580250, 580292, 5802A6, 5802C3, 5802C4, 5802CJ, 5802CP, 5802CQ, 580000, 5802EQ, 5802F2, 5802G0, 5802G9, 5802H7, 5802H8, 5802J4, 5802L4, 5802M3, 5802M4, 5802M7, 5802Q5, 5802S3, 5802V5, 5802V6, 5802W7, 582036, 71716564, 71719595, 71719598, 71719604, 71719605, 71719606, 71722374, 71722375, 9101009880, 91040098, 9104009880, 91514125, 9151412580, 9151431280, 91536044, 95125288, 95514125, 95607234, 95607234R, 95656489R, 96035035, 9603503580, 96035035R, 96035036, 9603503680, 96035036R, 96054384, 96125588R, 9624291480, 9625382780, 9625383280, 96356597, 96365597, 96398467, 9947830, K1320921080, K1332419080, K9603503580, K9603503680, K9624291480, K9625382780, K9625383280, 1516680R, 1516741R, 1516753R

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0476 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S0476 fit my Peugeot 205?

Peugeot 205 1.8 Diesel (1983–1987) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S0476 replace Lucas LRS00476?

Lucas LRS00476 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S0476?

The listed details include 12V, 1.7kW power, 10/11|||10/11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S0476 new or remanufactured?

Check the current product condition selection for S0476. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S0476?

Compare 12V compatibility, 1.7kW power, 10/11|||10/11 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
