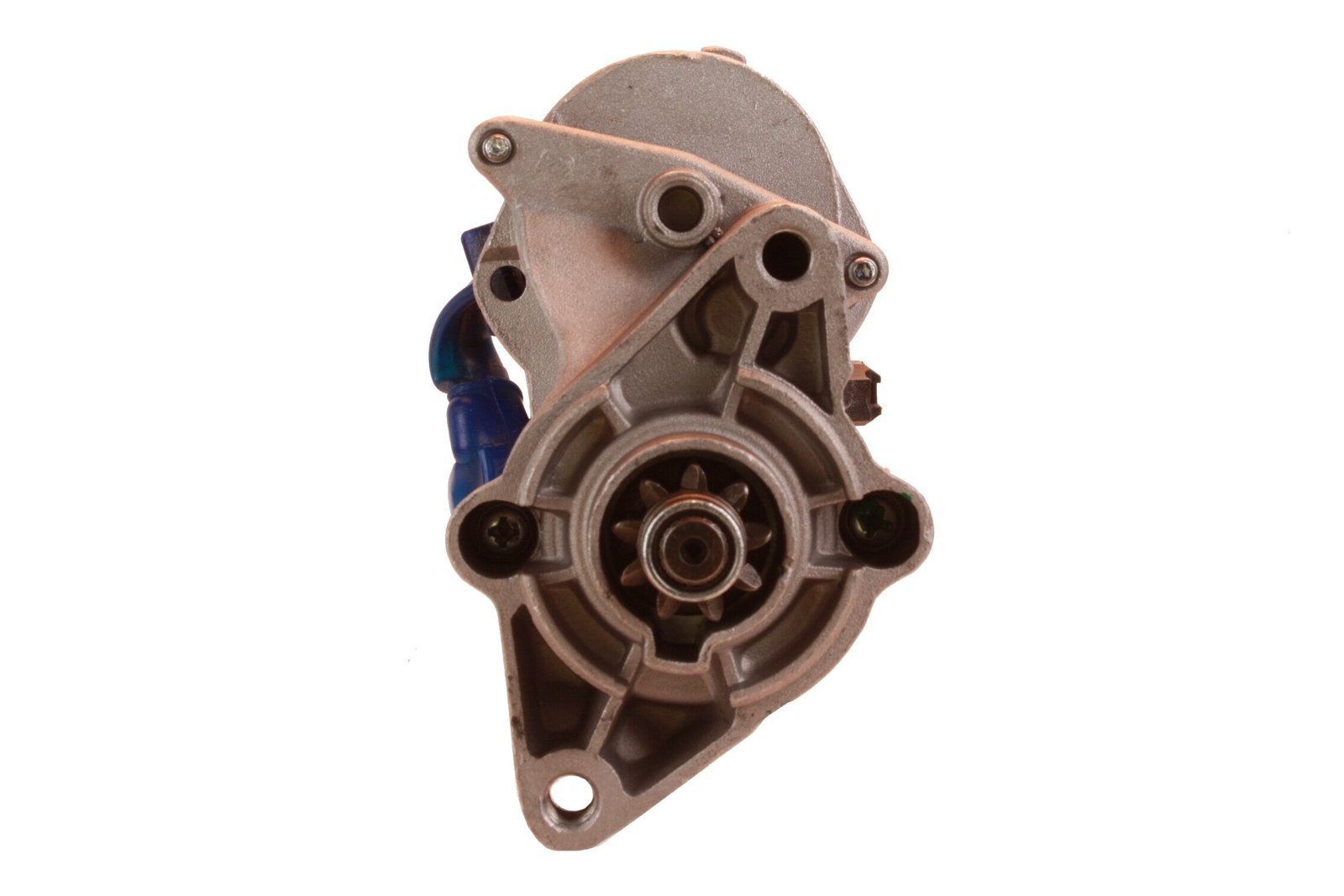

S0496 12V 0.8kW Starter Motor Fits Toyota Corolla, Toyota Liteace
Price range: £115.58 through £136.49
Compare the S0496 12V 0.8kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Toyota Corolla, Toyota Corolla Estate/Wagon, Toyota Liteace, Daihatsu Charmant models. Identification references include Lucas LRS00496, Denso 28000591, Hitachi S27316. Its listed 12V 0.8kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0496 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.8 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0496 | Dyno Electrics |
| 402820271 | Euro Car Part |
| 28000591 | Denso |
| 280005910 | Denso |
| 280005911 | Denso |
| 280005912 | Denso |
| 28000844 | Denso |
| 280008440 | Denso |
| 986013541 | Bosch Exchange |
| 110293 | HC-Cargo |
| 1280002610 | Denso |
| 1280002611 | Denso |
| 1280006720 | Denso |
| 1280006721 | Denso |
| 16786R | WAI |
| 190505092 | PSH |
| 2810006010 | Toyota |
| 2810013010 | Toyota |
| 2.81001E+12 | Daihatsu |
| 2810013050 | Toyota |
| 2810013061 | Toyota |
| 2810013080 | Toyota |
| 91295053 | Wilson |
| ATS183 | ATK |
| DRS3541 | Delco Remy |
| JS371 | HC-Parts |
| LRS00496 | Lucas |
| LRS496 | Lucas |
| S27316 | Hitachi |
| STR70035 | Wood Auto |
| WOOSTR70035 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DAIHATSU | Charmant | 1.3 (1290ccm) Petrol | 4K | A35 | 1981 - 1987 | ||
| TOYOTA | Corolla | 1.3 (1290ccm) Petrol | 4K | KE70 | 1979 - 1981 | ||
| TOYOTA | Corolla | 1.3 (1290ccm) Petrol | 4K | KE70 | 1979 - 1983 | ||
| TOYOTA | Corolla | 1.3 (1290ccm) Petrol | 4K | KE70 | 1982 - 1983 | ||
| TOYOTA | Corolla Estate/Wagon | 1.3 (1290ccm) Petrol | 4KC | KE70 | 1979 - 1982 | ||
| TOYOTA | Corolla Estate/Wagon | 1.3 (1290ccm) Petrol | 4K | KE70 | 1982 - 1987 | ||
| TOYOTA | Liteace | 1.5 (1486ccm) Petrol | 5K | KM30 | 1985 - 1989 | ||
| TOYOTA | Liteace | 1.5 (1486ccm) Petrol | 5K/5KC/5KJ | KM31/KM31V/KM36 | 1986 - 1992 | ||
| TOYOTA | Liteace | 1.5 (1486ccm) Petrol | 5K | KM30 | 1989 - 1998 | ||
| TOYOTA | Liteace | 1.5 (1486ccm) Petrol | 5K | KR27 | 1992 - 1995 | ||
| TOYOTA | Liteace | 1.5 (1486ccm) Petrol | 5K | KR21/KR27 | 1992 - 1995 |
Description
S0496 Replacement Starter Motor
For a S0496 starter motor enquiry, use Lucas reference LRS00496 alongside the vehicle and original unit details. The listed electrical rating is 12V 0.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Toyota Corolla 1.3 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.8kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Corolla 1.3 Petrol – selected applications 1979–1981 (engine code 4K).
- Toyota Corolla Estate/Wagon 1.3 Petrol – selected applications 1979–1982 (engine code 4KC).
- Toyota Liteace 1.5 Petrol – selected applications 1985–1989 (engine code 5K).
- Daihatsu Charmant 1.3 Petrol – selected applications 1981–1987 (engine code 4K).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0496. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986013541, 28000591, 280005910, 280005911, 280005912, 28000844, 280008440, 1280002610, 1280002611, 1280006720, 1280006721, LRS00496, LRS496, S27316, DRS3541
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0496 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0496 fit my Toyota Corolla?
Toyota Corolla 1.3 Petrol (1979–1981) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0496 replace Lucas LRS00496?
Lucas LRS00496 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0496?
The listed details include 12V, 0.8kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0496 new or remanufactured?
Check the current product condition selection for S0496. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0496?
Compare 12V compatibility, 0.8kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
