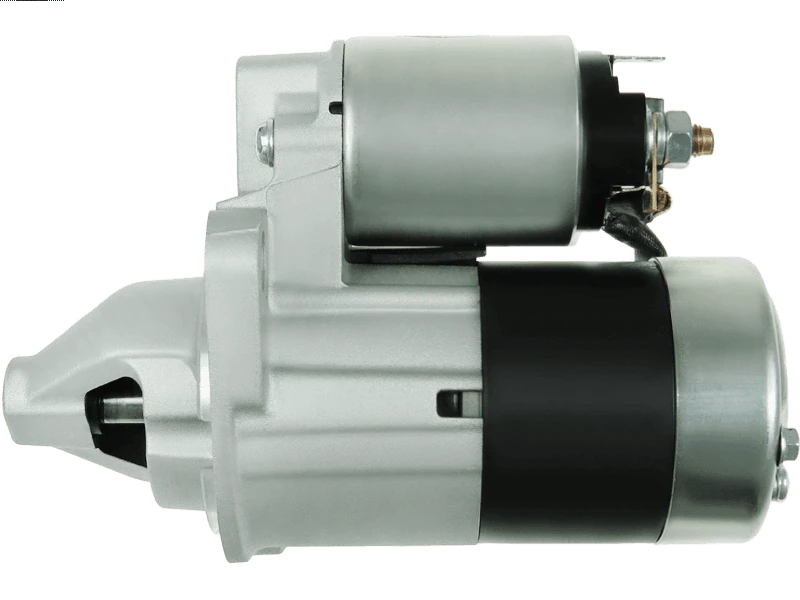

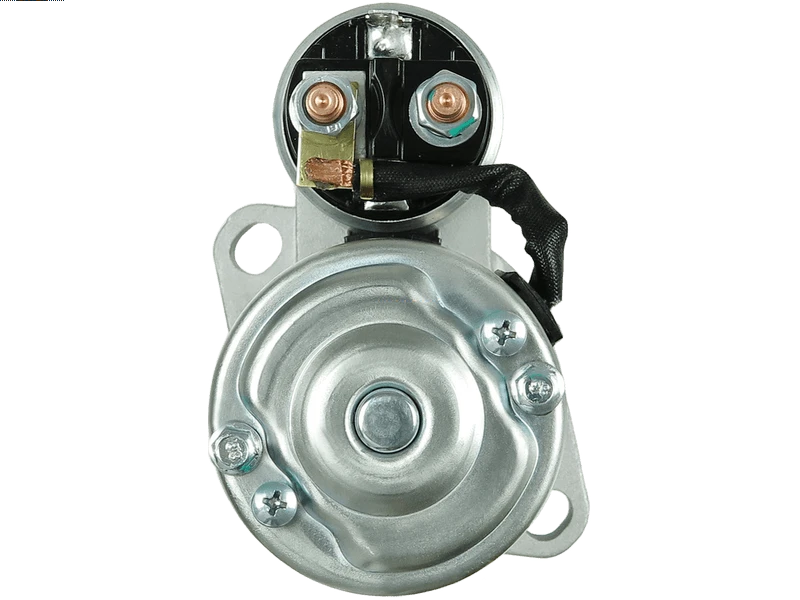

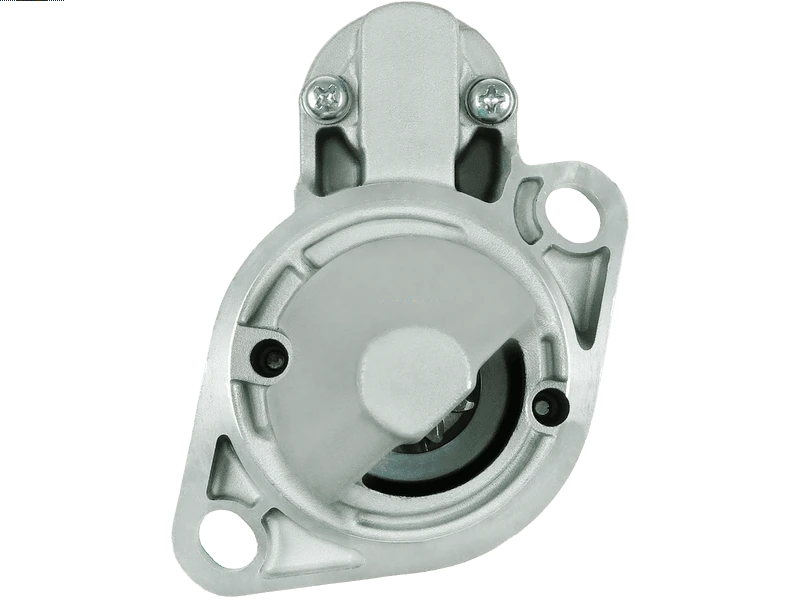

S0500 12V 0.9kW Starter Motor Fits Hyster Fork Lift H2.00XM
Price range: £113.04 through £127.04
The S0500 12V 0.9kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Hyster Fork Lift H2.00XM, Hyster Fork Lift H-25XL, Mitsubishi Industrial FG25, Yale Fork Lift GLP050 models. Identification references include Lucas LRS00500, Bosch 986012831, Mitsubishi Electric M000T34381. Its listed 12V 0.9kW rating provides an electrical matching point for your existing unit. Check the 8/11|||8/11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0500 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.9 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 2.78 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0500 | Dyno Electrics |
| 402990941 | Euro Car Part |
| S5261S | AS-PL |
| UD14312S | AS-PL |
| UD18233S | AS-PL |
| 986012831 | BOSCH |
| 110182 | CARGO |
| 111494 | CARGO |
| F032110182 | CARGO |
| F032111494 | CARGO |
| 8EA730262-001 | HELLA |
| 4893-18-400 | MAZDA |
| 4893-18-400A | MAZDA |
| 4893-18-400B | MAZDA |
| 4893-18-400C | MAZDA |
| 4893-18-400D | MAZDA |
| 4893-18-400E | MAZDA |
| FESE-18-400 | MAZDA |
| FFSC-18-400 | MAZDA |
| FFSC-18-400A | MAZDA |
| FFSN-18-400 | MAZDA |
| M000T34381 | MITSUBISHI |
| M000T84381 | MITSUBISHI |
| M000T84381A | MITSUBISHI |
| M000T84381AM | MITSUBISHI |
| M000T92581 | MITSUBISHI |
| M003T10471 | MITSUBISHI |
| M003T10473 | MITSUBISHI |
| M003T10475 | MITSUBISHI |
| M003T10476 | MITSUBISHI |
| M003T10476D | MITSUBISHI |
| M0T34381 | MITSUBISHI |
| M0T84381 | MITSUBISHI |
| M0T84381A | MITSUBISHI |
| M0T84381AM | MITSUBISHI |
| M0T92581 | MITSUBISHI |
| M3T10473 | MITSUBISHI |
| M3T10475 | MITSUBISHI |
| M3T10476 | MITSUBISHI |
| M3T10476D | MITSUBISHI |
| MT92581 | MITSUBISHI |
| S1140M | PRESTOLITE |
| PRSL621 | 3EFFE |
| STRL621 | 3EFFE |
| CGB-21476 | AINDE |
| AES5100 | AUTOELECTRO |
| CST35126 | CASCO |
| CST35126AS | CASCO |
| CST35126ES | CASCO |
| CST35126GS | CASCO |
| CST35126OS | CASCO |
| CST35126RS | CASCO |
| 8673 | CEVAM |
| 3114995 | CLARK |
| 243-10111 | DIXIE |
| S-8818 | DIXIE |
| 33901 | EAI |
| STR5235 | ELECTROLOG |
| 25-1157 | ELSTOCK |
| SG0312 | GHIBAUDI |
| JS674 | HC PARTS |
| J5215011 | HERTH+BUSS |
| 011007-53002S | HYSTER |
| 1362069 | HYSTER |
| 1534424 | HYSTER |
| 2314322 | HYSTER |
| 3003784 | HYSTER |
| 3021367 | HYSTER |
| 3125892 | HYSTER |
| 326875 | HYSTER |
| 388040 | HYSTER |
| STM0674 | KRAUF |
| STM9674 | KRAUF |
| 20674 | KUHNER |
| LRS00500 | LUCAS |
| LRS500 | LUCAS |
| 88212749 | POWERMAX |
| 140.014.082 | PSH |
| 140.014.082.415 | PSH |
| 140.014.082.460 | PSH |
| 20437621 | REAL |
| RNLM0T84381 | RNL |
| 6035126 | SANDO |
| S12MH0555A2 | SIDAT |
| MAV371260 | SIOM |
| STX200344 | STARDAX |
| STX200344R | STARDAX |
| 16795N | WAI / TRANSPO |
| 18096N | WAI / TRANSPO |
| 18096R | WAI / TRANSPO |
| 91-27-3300 | WILSON |
| 91-27-3300N | WILSON |
| MITM0T84381 | WOODAUTO |
| STR71099 | WOODAUTO |
| 220052112 | YALE |
| 580040914 | YALE |
| 900540849 | YALE |
| 900540857 | YALE |
| 918139600 | YALE |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| HYSTER FORK LIFT | H2.00XM | 1998ccm Diesel | Mazda M4.2.0G | 2002 - | |||
| HYSTER FORK LIFT | H-25XL | 0ccm Petrol | 1985 - | ||||
| MITSUBISHI INDUSTRIAL | FG25 | 0ccm Diesel | 1985 - | ||||
| YALE FORK LIFT | GLP050 | 0ccm Diesel | 1985 - |
Description
S0500 Replacement Starter Motor
Start your S0500 starter motor comparison with the linked Lucas reference LRS00500 and the specifications shown on this page. The listed electrical rating is 12V 0.9kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Hyster Fork Lift H2.00XM 1998ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.9kW power: compare the listed rating with the original starter motor.
- 8/11|||8/11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Hyster Fork Lift H2.00XM 1998ccm Diesel – selected applications 2002 – (engine code Mazda M4.2.0G).
- Hyster Fork Lift H-25XL – selected applications 1985 -.
- Mitsubishi Industrial FG25 – selected applications 1985 -.
- Yale Fork Lift GLP050 – selected applications 1985 -.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0500. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986012831, LRS00500, LRS500, M000T34381, M000T84381, M000T84381A, M000T84381AM, M000T92581, M003T10471, M003T10473, M003T10475, M003T10476, M003T10476D, M0T34381, M0T84381, M0T84381A, M0T84381AM, M0T92581, M3T10473, M3T10475, M3T10476, M3T10476D, MT92581, S1140M
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0500 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0500 fit my Hyster Fork Lift H2.00XM?
Hyster Fork Lift H2.00XM 1998ccm Diesel (2002 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0500 replace Lucas LRS00500?
Lucas LRS00500 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0500?
The listed details include 12V, 0.9kW power, 8/11|||8/11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0500 new or remanufactured?
Check the current product condition selection for S0500. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0500?
Compare 12V compatibility, 0.9kW power, 8/11|||8/11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
