S0514 12V 0.8kW Starter Motor Fits Vauxhall Rascal, Suzuki Carry
Price range: £115.98 through £129.77
Compare the S0514 12V 0.8kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Vauxhall Rascal, Suzuki Carry, Suzuki Super Carry models. Identification references include Lucas LRS00514, Valeo 455902, Denso 028000-1861. Its listed 12V 0.8kW rating provides an electrical matching point for your existing unit. Check the 8/9|||8/9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0514 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.8 kW |
| Volt | 12 V |
| Plug | M8 |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0514 | Dyno Electrics |
| 402720561 | Euro Car Part |
| S5170 | AS-PL |
| UD02212S | AS-PL |
| 110402 | CARGO |
| F032110402 | CARGO |
| DRS3098 | DELCO |
| DS4208 | DELCO |
| 028000-1861 | DENSO |
| 028000-3730 | DENSO |
| 028000-6510 | DENSO |
| 028000-6511 | DENSO |
| 028000-8387 | DENSO |
| 028000-8730 | DENSO |
| 028000-9090 | DENSO |
| 028000-9091 | DENSO |
| 128000-1861 | DENSO |
| 128000-1862 | DENSO |
| 128000-1863 | DENSO |
| 128000-3641 | DENSO |
| M002T40271 | MITSUBISHI |
| M2T40271 | MITSUBISHI |
| 20500514 | PRESTOLITE |
| 31100-78611 | SUZUKI |
| 31100-79610 | SUZUKI |
| 31100-79611 | SUZUKI |
| 31100-79620 | SUZUKI |
| 31100-79621 | SUZUKI |
| 31100-79630 | SUZUKI |
| 31100-79631 | SUZUKI |
| 31100-79650 | SUZUKI |
| 31100-7966 | SUZUKI |
| 31100-79660 | SUZUKI |
| 31100-79661 | SUZUKI |
| 31100-79680 | SUZUKI |
| 31100-79X50 | SUZUKI |
| 31100-85010 | SUZUKI |
| 31100-85020 | SUZUKI |
| 31100-85291 | SUZUKI |
| 3110079610L | SUZUKI |
| 3110079628 | SUZUKI |
| 3110079X50000 | SUZUKI |
| 3110085021 | SUZUKI |
| 455902 | VALEO |
| PRSS070 | 3EFFE |
| STRS070 | 3EFFE |
| CGB-23098 | AINDE |
| ANM15318X | ANDEL |
| 003-Z216 | ASHIKA |
| AES5114 | AUTOELECTRO |
| CST40102 | CASCO |
| CST40102AS | CASCO |
| CST40102ES | CASCO |
| CST40102GS | CASCO |
| CST40102OS | CASCO |
| CST40102RS | CASCO |
| 9751 | CEVAM |
| 3.70801E+11 | DONGFENG |
| QD1226CG | DONGFENG |
| 11782 | EAI |
| 26-1125 | ELSTOCK |
| JS387 | HC PARTS |
| J5218002 | HERTH+BUSS |
| MTZ216 | JAPANPARTS |
| 3Z216 | JAPKO |
| STN2387 | KRAUF |
| 20387 | KUHNER |
| 20758 | KUHNER |
| 335237 | LOGISTIK |
| LRS00514 | LUCAS |
| LRS514 | LUCAS |
| 88212835 | POWERMAX |
| 180.008.092 | PSH |
| 6040102 | SANDO |
| ALT131110 | SIOM |
| MAV5900 | SIOM |
| 30514R | WAI / TRANSPO |
| STR70008 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | Carry | 0.8 (797ccm) Petrol | F8A | ST80V/ST90V | 1979 - 1985 | ||
| SUZUKI | Carry | 1.0 (970ccm) Petrol | F10A | SK410DA21V | 1996 - 1999 | ||
| SUZUKI | Super Carry | 1.0 (970ccm) Petrol | F10A | SK410DA21V | 1985 - 1999 | ||
| SUZUKI | Super Carry | 1.0 (970ccm) Petrol | F10A | SK410DA21V | 1992 - 1999 | ||
| SUZUKI | Super Carry | 1.0 (970ccm) Petrol | F10A | SK410DA21V | 1994 - 1999 | ||
| VAUXHALL | Rascal | 1.0 (970ccm) Petrol | F10A | 1990 - 1993 |
Description

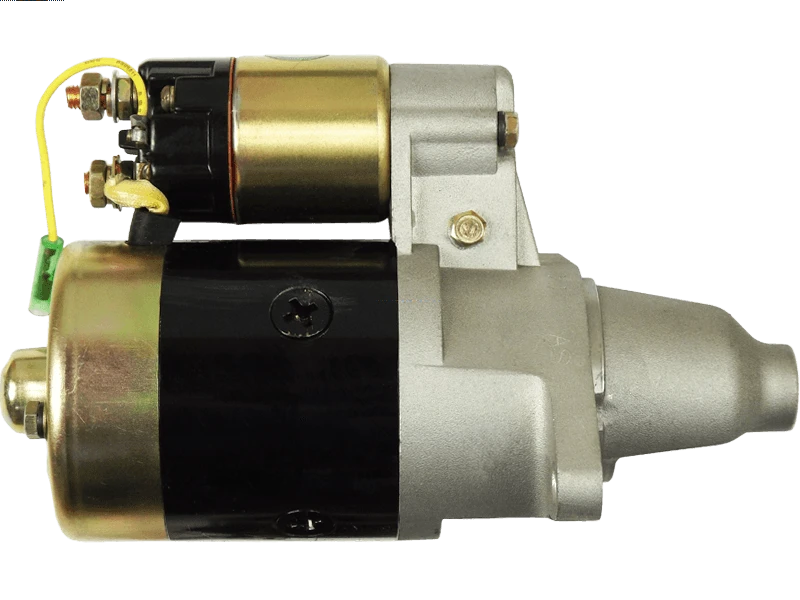

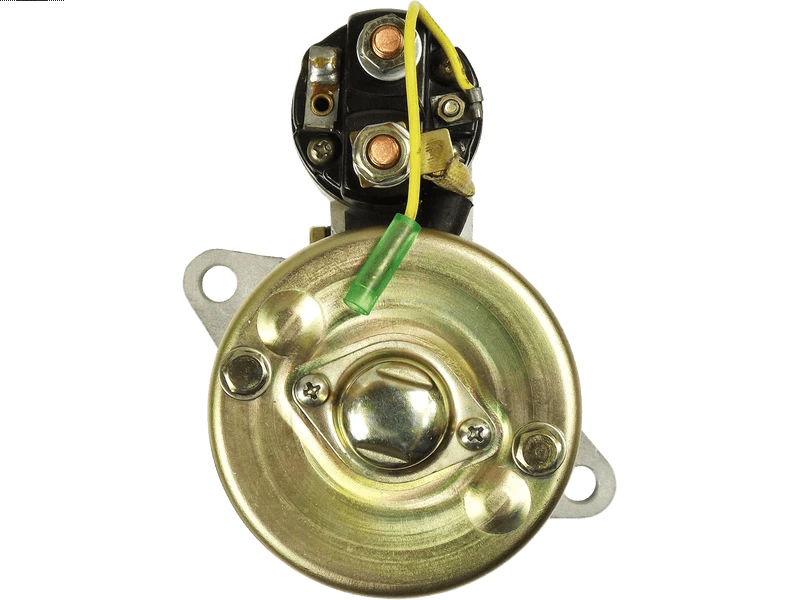

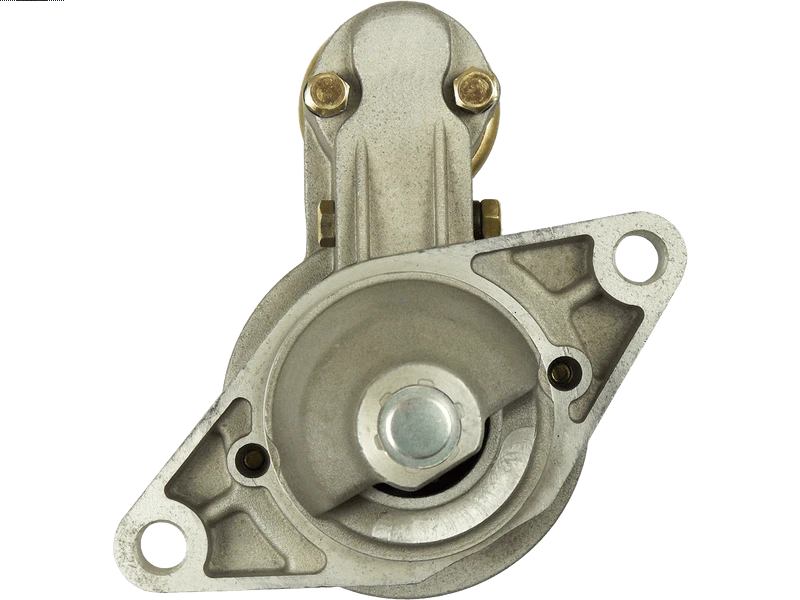

S0514 Replacement Starter Motor
The S0514 starter motor is a replacement unit identified by Lucas reference LRS00514. The listed electrical rating is 12V 0.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Vauxhall Rascal 1.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.8kW power: compare the listed rating with the original starter motor.
- 8/9|||8/9-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Vauxhall Rascal 1.0 Petrol – selected applications 1990–1993 (engine code F10A).
- Suzuki Carry 0.8 Petrol – selected applications 1979–1985 (engine code F8A).
- Suzuki Super Carry 1.0 Petrol – selected applications 1985–1999 (engine code F10A).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0514. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
455902, 028000-1861, 028000-3730, 028000-6510, 028000-6511, 028000-8387, 028000-8730, 028000-9090, 028000-9091, 128000-1861, 128000-1862, 128000-1863, 128000-3641, LRS00514, LRS514, M002T40271, M2T40271, DRS3098, DS4208, 20500514
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0514 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0514 fit my Vauxhall Rascal?
Vauxhall Rascal 1.0 Petrol (1990–1993) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0514 replace Lucas LRS00514?
Lucas LRS00514 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0514?
The listed details include 12V, 0.8kW power, 8/9|||8/9 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0514 new or remanufactured?
Check the current product condition selection for S0514. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0514?
Compare 12V compatibility, 0.8kW power, 8/9|||8/9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
