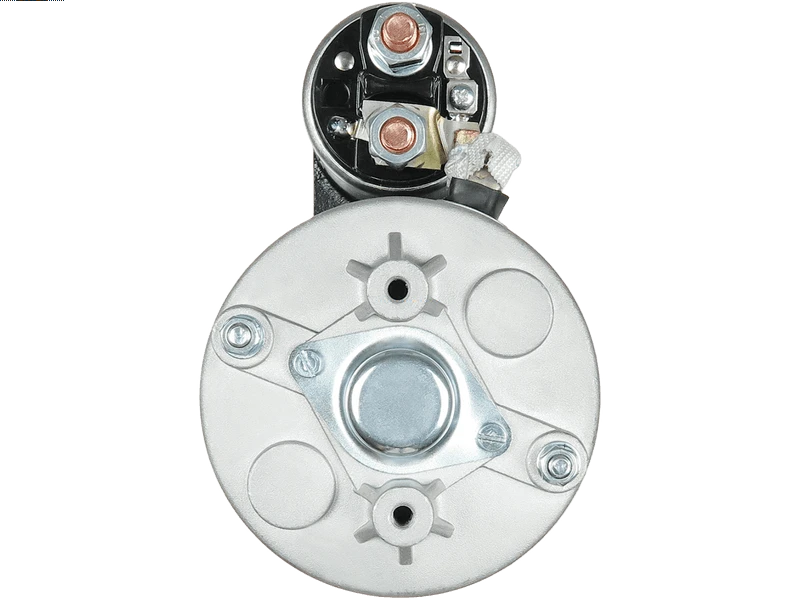

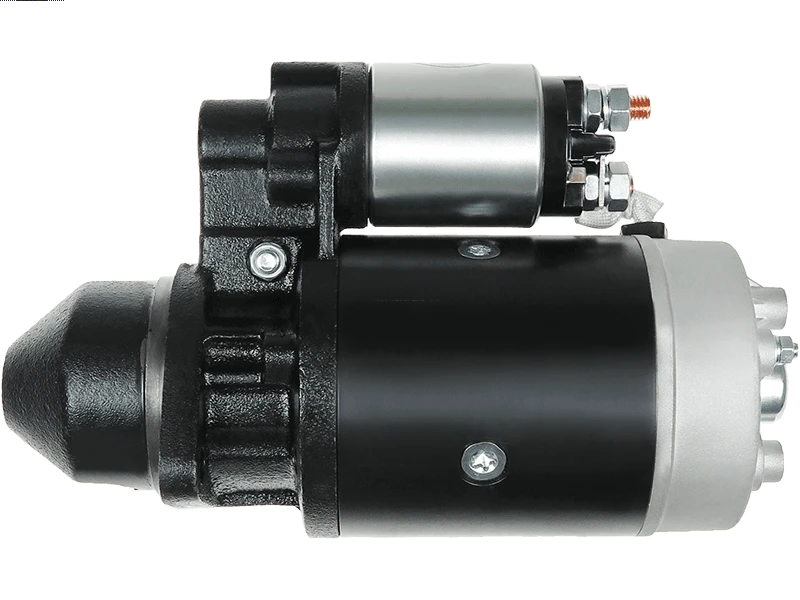

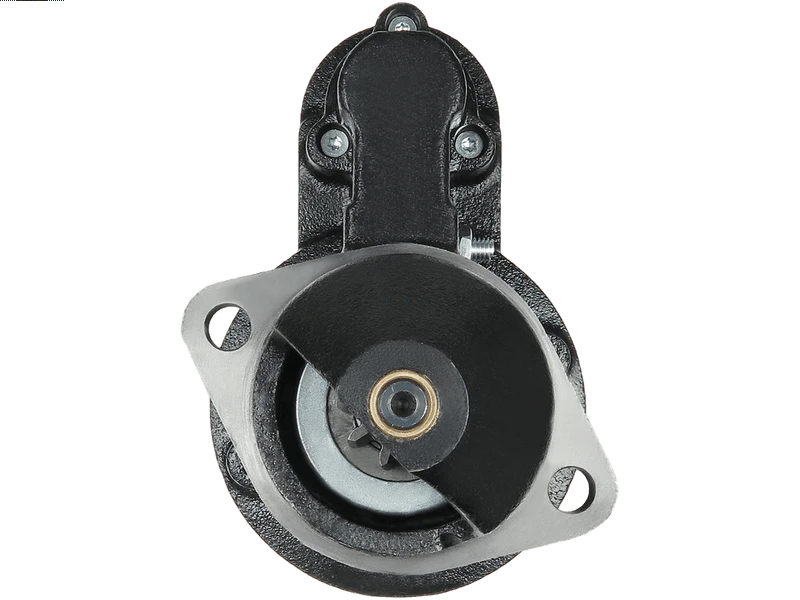

S0569 12V 2.4kW Starter Motor Fits Khd Engines F1L410
Price range: £148.24 through £173.78
The S0569 12V 2.4kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Khd Engines F1L410, Khd Engines F2L411D models. Identification references include Lucas LRS00569, Bosch 1358047, Delco Remy 19024247. Its listed 12V 2.4kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0569 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.4 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 11.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0569 | Dyno Electrics |
| S0758S | AS-PL |
| UD16571S | AS-PL |
| 1358047 | BOSCH |
| 1362046 | BOSCH |
| 986011040 | BOSCH |
| 111004 | CARGO |
| F032111004 | CARGO |
| 19024247 | DELCO |
| 8EA732891-001 | HELLA |
| 1161890 | KHD |
| 1171481 | KHD |
| B20R12X3H7622 | KHD |
| 859980Z | PRESTOLITE |
| STRL094 | 3EFFE |
| CST10231 | CASCO |
| CST10231AS | CASCO |
| CST10231ES | CASCO |
| CST10231GS | CASCO |
| CST10231OS | CASCO |
| CST10231RS | CASCO |
| 8029 | CEVAM |
| 260-62110 | DIXIE |
| 33370 | EAI |
| 12960 | EFEL |
| STR10257 | ELECTROLOG |
| 25-1051 | ELSTOCK |
| 220240 | ERA |
| SG0590 | GHIBAUDI |
| CS804 | HC PARTS |
| STB0804 | KRAUF |
| 10804 | KUHNER |
| LRS00569 | LUCAS |
| LRS569 | LUCAS |
| 520.004.092 | PSH |
| 20401132 | REAL |
| 6010231 | SANDO |
| S12BH0354A2 | SIDAT |
| MAV122310 | SIOM |
| 17112N | WAI / TRANSPO |
| 17112R | WAI / TRANSPO |
| 91-15-6871 | WILSON |
| STR50000 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| KHD ENGINES | F1L410 | 0ccm Diesel | 1969 - 1973 | ||||
| KHD ENGINES | F2L411D | 0ccm Diesel | 1973 - 1975 |
Description
S0569 Replacement Starter Motor
Start your S0569 starter motor comparison with the linked Lucas reference LRS00569 and the specifications shown on this page. The listed electrical rating is 12V 2.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Khd Engines F1L410 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.4kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Khd Engines F1L410 – selected applications 1969–1973.
- Khd Engines F2L411D – selected applications 1973–1975.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0569. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1358047, 1362046, 986011040, LRS00569, LRS569, 19024247, 859980Z
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0569 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0569 fit my Khd Engines F1L410?
Khd Engines F1L410 (1969–1973) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0569 replace Lucas LRS00569?
Lucas LRS00569 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0569?
The listed details include 12V, 2.4kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0569 new or remanufactured?
Check the current product condition selection for S0569. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0569?
Compare 12V compatibility, 2.4kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
