S0615 12V 2.0kW Starter Motor Fits Isuzu Campo, Isuzu Faster
Price range: £115.78 through £134.94
Identify a replacement starter motor using Sahibs S0615, listed at 12V 2.0kW. Listed applications include selected Isuzu Campo, Isuzu Faster, Isuzu Trooper, Opel Campo models. Identification references include Lucas LRS00615, Bosch F042000004, Denso 028000-7000. Its listed 12V 2.0kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0615 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0615 | Dyno Electrics |
| 402620111 | Euro Car Part |
| S6004 | AS-PL |
| UD11123S | AS-PL |
| F042000004 | BOSCH |
| F042000027 | BOSCH |
| 111683 | CARGO |
| F032111683 | CARGO |
| 65.26201-7039 | DAEWOO |
| 65.26201-7059 | DAEWOO |
| 112473 | DELCO |
| 028000-7000 | DENSO |
| 028000-7001 | DENSO |
| 028000-7002 | DENSO |
| 028000-7003 | DENSO |
| 028000-7004 | DENSO |
| 028000-7790 | DENSO |
| 028000-7791 | DENSO |
| 028000-7792 | DENSO |
| 128000-0020 | DENSO |
| 128000-0960 | DENSO |
| 128000-2881 | DENSO |
| 128000-4660 | DENSO |
| 128000-4661 | DENSO |
| 128000-4662 | DENSO |
| 128000-4663 | DENSO |
| 228000-3850 | DENSO |
| 228000-3851 | DENSO |
| 228000-3852 | DENSO |
| 228000-4290 | DENSO |
| 228000-4291 | DENSO |
| 228000-4292 | DENSO |
| 228000-4293 | DENSO |
| 228000-4295 | DENSO |
| 228000-5382 | DENSO |
| DSN2063 | DENSO |
| S13-136 | HITACHI |
| 2912559140 | ISUZU |
| 5811000800 | ISUZU |
| 5811001550 | ISUZU |
| 5811001660 | ISUZU |
| 5811001661 | ISUZU |
| 5811001662 | ISUZU |
| 5811001663 | ISUZU |
| 5811001664 | ISUZU |
| 5811001830 | ISUZU |
| 5811001831 | ISUZU |
| 5811001860 | ISUZU |
| 8944127301 | ISUZU |
| 8944489590 | ISUZU |
| 8944489591 | ISUZU |
| 8944489592 | ISUZU |
| 8944489593 | ISUZU |
| 8970489650 | ISUZU |
| 8970489660 | ISUZU |
| 8970489661 | ISUZU |
| 8970489662 | ISUZU |
| 8970489672 | ISUZU |
| 8970489673 | ISUZU |
| 8970848770 | ISUZU |
| 8971128650 | ISUZU |
| 8971128651 | ISUZU |
| 8971128652 | ISUZU |
| 8971353431 | ISUZU |
| 8971353432 | ISUZU |
| 9821006070 | ISUZU |
| 9821006170 | ISUZU |
| 94448959 | OPEL |
| 03101-3030 | POONGSUNG |
| 03101-3031 | POONGSUNG |
| STRL277 | 3EFFE |
| CGB-23245 | AINDE |
| AES6115 | AUTOELECTRO |
| CST40109 | CASCO |
| CST40109AS | CASCO |
| CST40109ES | CASCO |
| CST40109GS | CASCO |
| CST40109OS | CASCO |
| CST40109RS | CASCO |
| 8857 | CEVAM |
| 8023898 | CLARK |
| 246-20105 | DIXIE |
| S-8152-1 | DIXIE |
| 11593 | EAI |
| STR6016 | ELECTROLOG |
| 25-1050 | ELSTOCK |
| 220577 | ERA |
| JS552 | HC PARTS |
| J5219001 | HERTH+BUSS |
| 323812 | HYSTER |
| 6281-100-010-1E | ISEKI |
| 6281-100-010-2F | ISEKI |
| 6281-100-010-2H | ISEKI |
| 62811000023 | ISEKI |
| STH0552 | KRAUF |
| STH8552 | KRAUF |
| STH9552 | KRAUF |
| STN0552 | KRAUF |
| STY0552 | KRAUF |
| 20552 | KUHNER |
| 20552V | KUHNER |
| 254526 | KUHNER |
| 254746D | KUHNER |
| 254824 | KUHNER |
| 335402 | LOGISTIK |
| 336294 | LOGISTIK |
| LRS00615 | LUCAS |
| LRS615 | LUCAS |
| 130.502.092.050 | PSH |
| 130.502.092.056 | PSH |
| 130.502.092.058 | PSH |
| 20432901BN | REAL |
| RNL552JS | RNL |
| 6040109 | SANDO |
| MAV221140 | SIOM |
| MAV221430 | SIOM |
| MAV421580 | SIOM |
| MAV5000 | SIOM |
| STX200239 | STARDAX |
| STX200820 | STARDAX |
| 16739N | WAI / TRANSPO |
| 16739R | WAI / TRANSPO |
| 91-29-5317 | WILSON |
| DENDSN2063 | WOODAUTO |
| STR70026 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1163 | 2.0KW | 2.2KW | No |
| S1142 | Connection 50 spade terminal | Connection 50 screw terminal | No |
| S1299 | 2.0KW Connection 50 Spade Terminal | 1.4KW Connection 50 M5 | No |
| S1105 | 2.0KW G/R | 2.2KW Conventionel | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| ISUZU | Campo | 2.2 (2238ccm) Diesel | C223T | KB27 | 1983 - 1988 | ||
| ISUZU | Campo | 2.2 (2238ccm) Diesel | C223 | TFS | 1988 - 1989 | ||
| ISUZU | Faster | 2.2 (2238ccm) Diesel | C223T | KB27 | 1983 - 1988 | ||
| ISUZU | Trooper | 2.2 (2238ccm) Diesel | C223T | I | UBS | 1984 - 1988 | |
| ISUZU | Trooper | 2.2 (2238ccm) Diesel | C223 | I | UBS | 1984 - 1989 | |
| OPEL | Campo | 2.2 (2189ccm) Diesel | 4FD1 | TFR52 | 1990 - 1992 | ||
| OPEL | Campo | 2.2 (2189ccm) Diesel | 4FD1 | TFS52 | 1990 - 1992 | ||
| SSANGYONG | Korando | 2.2 (2238ccm) Diesel | DC23 | K4 | 1988 - 1996 |
Description
S0615 Replacement Starter Motor
The S0615 starter motor is a replacement unit identified by Lucas reference LRS00615. The listed electrical rating is 12V 2.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Isuzu Campo 2.2 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.0kW power: compare the listed rating with the original starter motor.

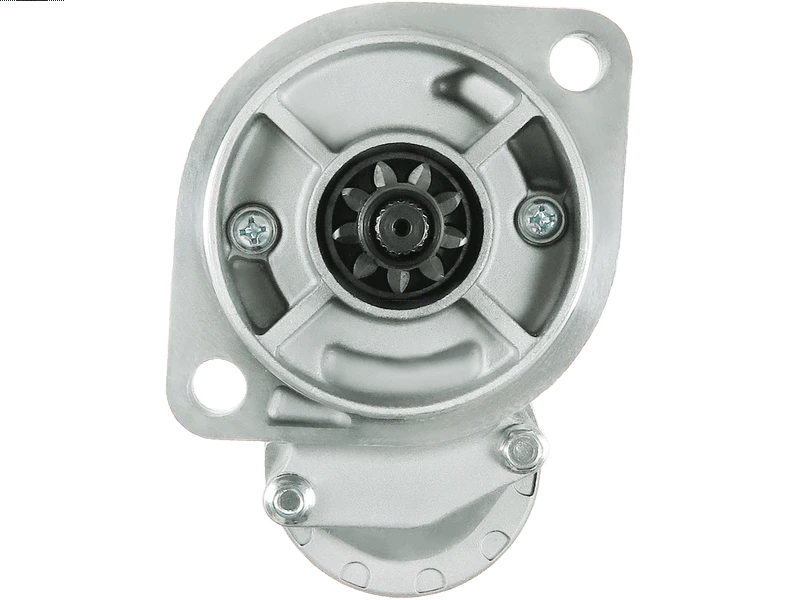

- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Isuzu Campo 2.2 Diesel – selected applications 1983–1988 (engine code C223T).
- Isuzu Faster 2.2 Diesel – selected applications 1983–1988 (engine code C223T).
- Isuzu Trooper 2.2 Diesel – selected applications 1984–1988 (engine code C223T).
- Opel Campo 2.2 Diesel – selected applications 1990–1992 (engine code 4FD1).
- Ssangyong Korando 2.2 Diesel – selected applications 1988–1996 (engine code DC23).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0615. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
F042000004, F042000027, 028000-7000, 028000-7001, 028000-7002, 028000-7003, 028000-7004, 028000-7790, 028000-7791, 028000-7792, 128000-0020, 128000-0960, 128000-2881, 128000-4660, 128000-4661, 128000-4662, 128000-4663, 228000-3850, 228000-3851, 228000-3852, 228000-4290, 228000-4291, 228000-4292, 228000-4293, 228000-4295, 228000-5382, DSN2063, LRS00615, LRS615, S13-136, 112473
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0615 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0615 fit my Isuzu Campo?
Isuzu Campo 2.2 Diesel (1983–1988) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0615 replace Lucas LRS00615?
Lucas LRS00615 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0615?
The listed details include 12V, 2.0kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0615 new or remanufactured?
Check the current product condition selection for S0615. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0615?
Compare 12V compatibility, 2.0kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
