S0617 12V 2.2kW Starter Motor Fits Hyundai Galloper, Hyundai Grace

Description

S0617 Replacement Starter Motor

Choose a replacement by comparing the S0617 starter motor and its Lucas reference, LRS00617, with your existing unit. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Hyundai Galloper 2.5 Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 2.2kW power: compare the listed rating with the original starter motor.

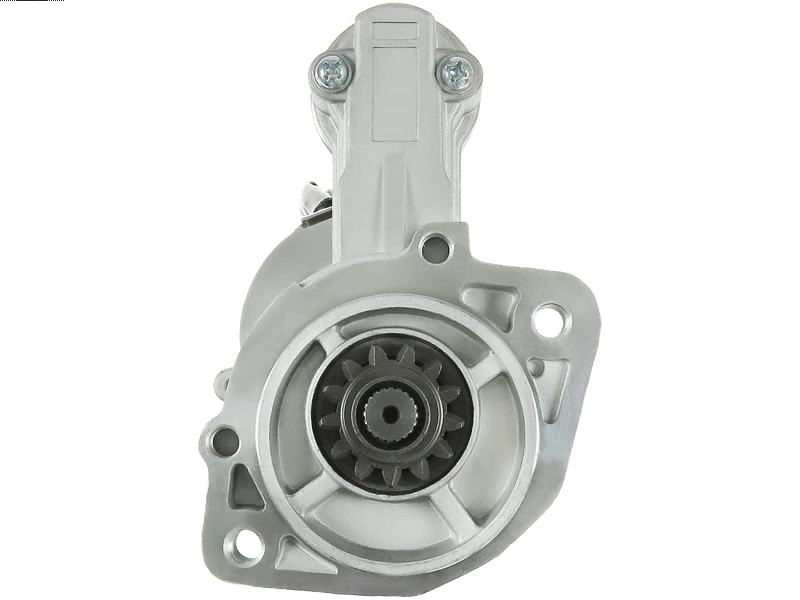

• 13-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• M8 B+ connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Hyundai Galloper 2.5 Diesel – selected applications 1997–2003 (engine code D4BH).
• Hyundai Grace 2.5 Diesel – selected applications 1998–2003 (engine code D4BF).
• Hyundai H1 2.5 Diesel – selected applications 2000–2000 (engine code D4BF).
• Hyundai H100 2.5 Diesel – selected applications 1993–2000 (engine code D4BF).
• Hyundai H100 AU Truck 2.5 Diesel – selected applications 1996–1997 (engine code D4BF).
• Hyundai H100 Truck 2.5 Diesel – selected applications 1993–1997 (engine code D4BA).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S0617. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

438121, 458572, 458579, 600262, MG122433, LRS00617, LRS02035, LRS0617, LRS2035, M002T60171, M002T61072, M002T62971, M003T61071, M2T60171, M2T60172, M2T62971, M3T61071, MD095865, MD156987, MD156989, MD164977, DRS3339, MS233, 11.139.413, IS9407

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0617 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S0617 fit my Hyundai Galloper?

Hyundai Galloper 2.5 Diesel (1997–2003) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S0617 replace Lucas LRS00617?

Lucas LRS00617 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S0617?

The listed details include 12V, 2.2kW power, 13 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S0617 new or remanufactured?

Check the current product condition selection for S0617. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S0617?

Compare 12V compatibility, 2.2kW power, 13 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
