S0627 12V 0.8kW Starter Motor Fits Mazda 323, Mazda 323C, Mazda 323F

Description

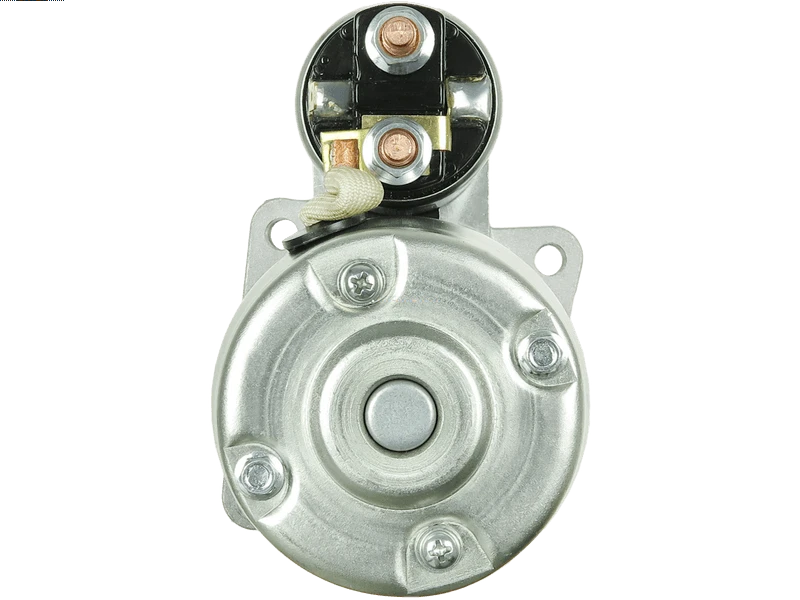

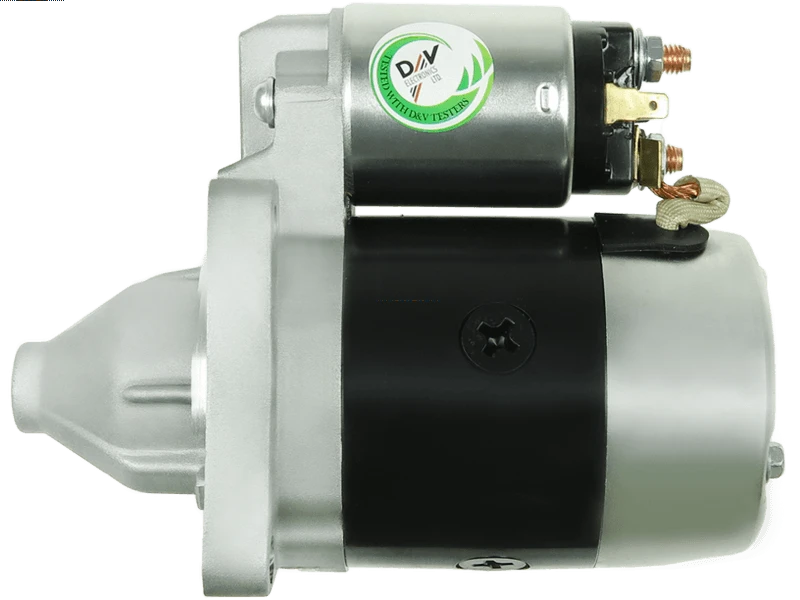

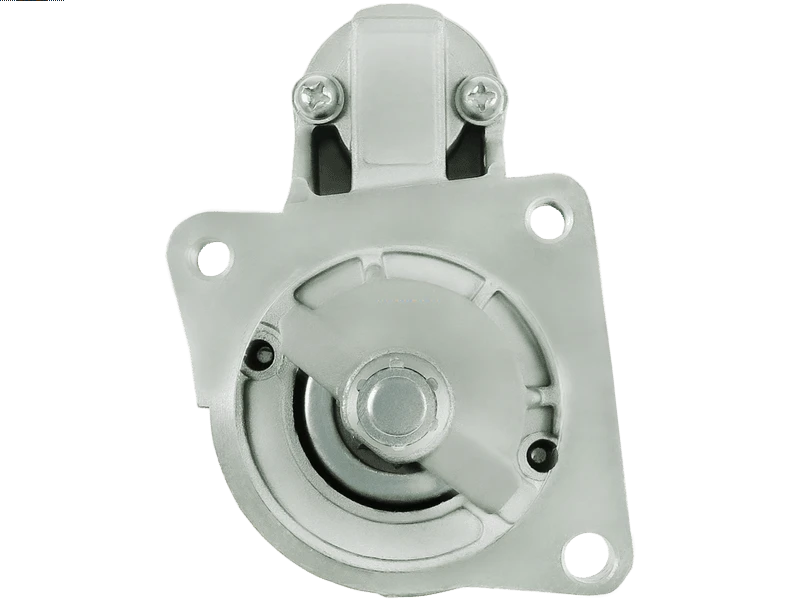

S0627 Replacement Starter Motor

Start your S0627 starter motor comparison with the linked Lucas reference LRS00627 and the specifications shown on this page. The listed electrical rating is 12V 0.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Mazda 323 1.3 Petrol variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 0.8kW power: compare the listed rating with the original starter motor.
• 8-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• M8 connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Mazda 323 1.3 Petrol – selected applications 1989–1994 (engine code B384/B385/B387/B3F4).
• Mazda 323C 1.5 Petrol – selected applications 1994–1998 (engine code Z501).
• Mazda 323F 1.5 Petrol – selected applications 1994–1998 (engine code Z501).
• Mazda 626 1.6 Petrol – selected applications 1985–1987 (engine code F603/F604/F658/F659).
• Mazda 626 Coupe 2.0 Petrol – selected applications 1987–1991 (engine code FEFJ).
• Mazda 626 Estate/Wagon 1.8 Petrol – selected applications 1988–1989 (engine code F8G7).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S0627. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

986014991, 455606, M000A0240Z, MC109028, MC109036, VS305, LRS00627, LRS00557, LRS00688, LRS01150, LRS01723, LRS02055, LRS1150, LRS1723, LRS2055, LRS557, LRS627, LRS688, M003T21874, M003T24481, M003T24482, M003T24482A, M003T24482H, M003T24482HC, M003T24482J, M003T24482K, M003T24482L, M003T24483, M003T24485, M003T24486, M003T24486A, M003T24486H, M003T24487, M003T24488, M003T30281, M003T30282, M003T30285, M003T30286, M003T30881, M003T30882, M003T33281, M003T33282, M003T33283, M003T33581, M003T33582, M003T33582A, M003T33583, M003T33585, M003T33586, M003T33586A, M003T33586D, M003T33587, M003T33588, M003T34082, M003T38881, M003T38881A, M003T38881B, M003T38881C, M003T38882, M003T38882A, M003T38882B, M003T38882C, M003T38883, M003T38884, M003T38885, M003T39385, M003T39481, M003T39981, M003T43581, M003T49381, M003T49481, M003T49581, M003T49585, M003T49781, M003Y24482, M3T21874, M3T24481, M3T24482, M3T24482A, M3T24482H, M3T24482HC, M3T24482J, M3T24482K, M3T24482L, M3T24483, M3T24485, M3T24486, M3T24486A, M3T24486H, M3T24487, M3T24488, M3T30281, M3T30282, M3T30285, M3T30286, M3T30881, M3T30882, M3T33281, M3T33282, M3T33283, M3T33581, M3T33582, M3T33582A, M3T33583, M3T33585, M3T33586, M3T33586A, M3T33586D, M3T33587, M3T33588, M3T34082, M3T38862, M3T38881, M3T38881A, M3T38881B, M3T38881C, M3T38882, M3T38882A, M3T38882B, M3T38882C, M3T38883, M3T38884, M3T38885, M3T39385, M3T39481, M3T39981, M3T43581, M3T49381, M3T49481, M3T49581, M3T49585, M3T49781, M3Y24482, MC109015, 111089, 112816, DRS3501, DRS3511, DRS4991, 66925114, 66925181, B50518400

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0627 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S0627 fit my Mazda 323?

Mazda 323 1.3 Petrol (1989–1994) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S0627 replace Lucas LRS00627?

Lucas LRS00627 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S0627?

The listed details include 12V, 0.8kW power, 8 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S0627 new or remanufactured?

Check the current product condition selection for S0627. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S0627?

Compare 12V compatibility, 0.8kW power, 8 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
