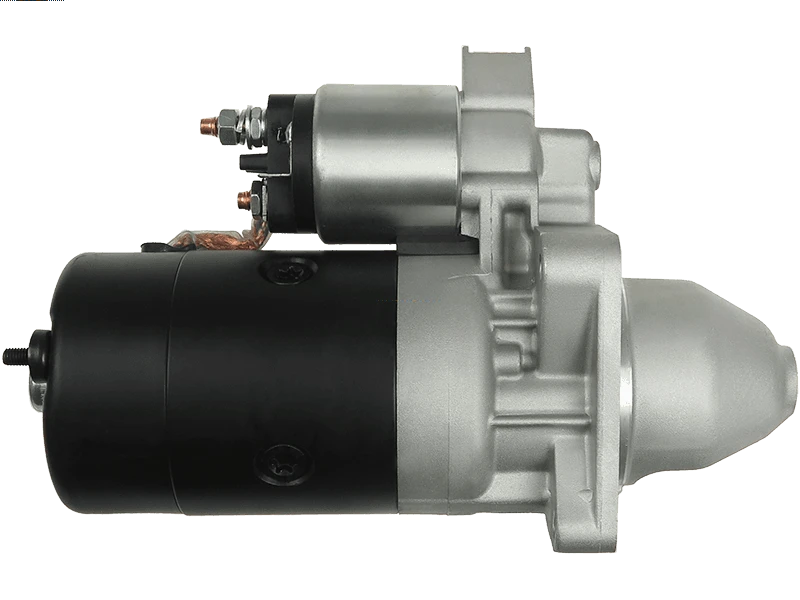

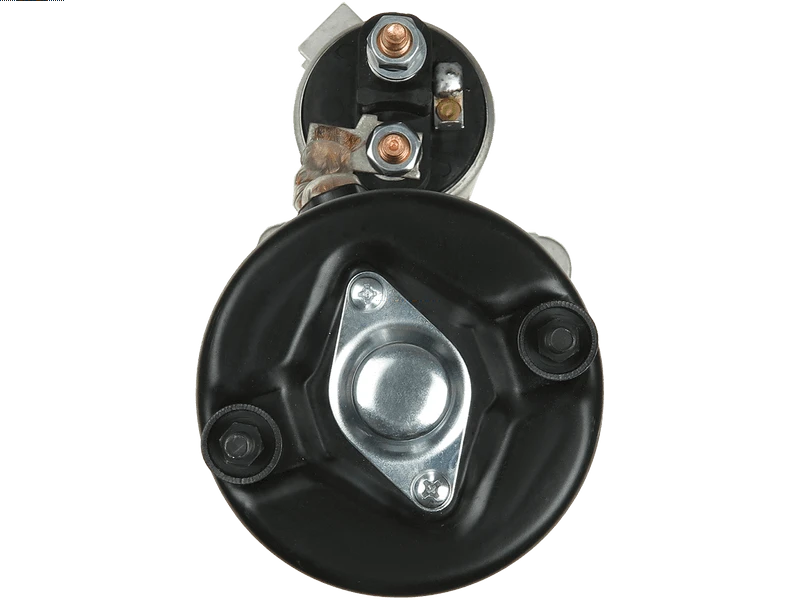

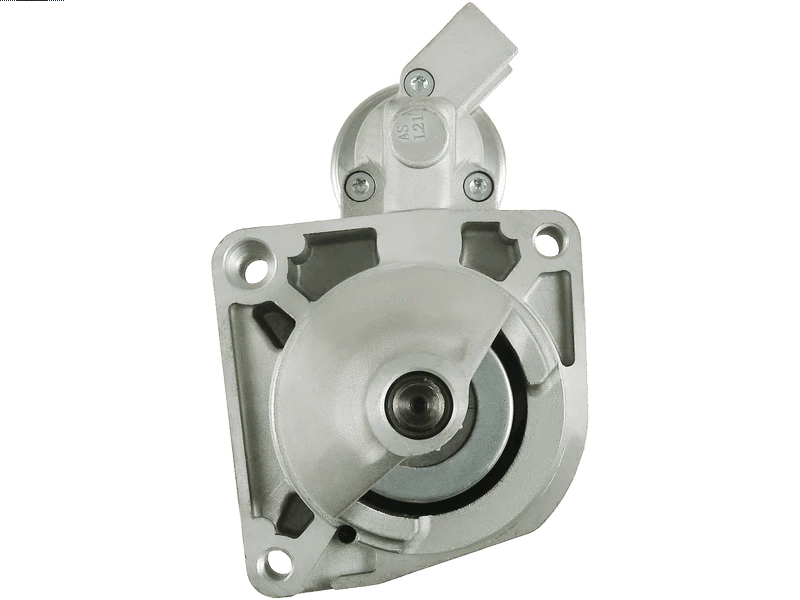

S0743 12V 2.2kW Starter Motor Fits Citroën C25, Alfa Romeo AR6
Price range: £111.50 through £133.66
Identify a replacement starter motor using Sahibs S0743, listed at 12V 2.2kW. Listed applications include selected CitroËN C25, Alfa Romeo AR6, Fiat Ducato 10, Fiat Ducato 14 models. Identification references include Lucas LRS00743, Bosch 1218141, Delco Remy DRS5930. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0743 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0743 | Dyno Electrics |
| 402650171 | Euro Car Part |
| S0422 | AS-PL |
| UD102786S | AS-PL |
| 1218141 | BOSCH |
| 1218741 | BOSCH |
| 986015930 | BOSCH |
| 111421 | CARGO |
| F032111421 | CARGO |
| DRS5930 | DELCO |
| 46231644 | FIAT |
| 71721282 | FIAT |
| 71721296 | FIAT |
| 7589005 | FIAT |
| 7589151 | FIAT |
| 75891510 | FIAT |
| 7726946 | FIAT |
| 77679430 | FIAT |
| 63222034 | MAGNETI MARELLI |
| 63222138 | MAGNETI MARELLI |
| 5802000 | PEUGEOT |
| 35258970 | PRESTOLITE |
| 35260920 | PRESTOLITE |
| STRL149 | 3EFFE |
| ANM18150X | ANDEL |
| AES7143 | AUTOELECTRO |
| STA0219R | BOVEZ |
| CST10334GS | CASCO |
| CST30117RS | CASCO |
| 3800 | CEVAM |
| 11643 | EAI |
| STR10166 | ELECTROLOG |
| STR1994 | ELECTROLOG |
| 25-1192 | ELSTOCK |
| 220183 | ERA |
| 8015930 | FRIESEN |
| GS218741-A | GPARTS |
| CS554 | HC PARTS |
| 42015930 | HERTH+BUSS |
| 10554 | KUHNER |
| 22.0554 | LAUBER |
| 330706 | LOGISTIK |
| LRS00743 | LUCAS |
| LRS743 | LUCAS |
| 5010165 | MEAT & DORIA |
| 20401433OE | REAL |
| 20404711RC | REAL |
| RNL1593 | RNL |
| 6010334 | SANDO |
| 6030117 | SANDO |
| S12BH0083A2 | SIDAT |
| MAV123340 | SIOM |
| MAV2150 | SIOM |
| SS170 | SOVEREIGN |
| STX200527 | STARDAX |
| 30743R | WAI / TRANSPO |
| UNIT BOM 120-5055 | WAI / TRANSPO |
| STR52004 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S2074 | Connection 50: Plug | Connection 50: M5 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| ALFA ROMEO | AR6 | 1.9 (1929ccm) Diesel | 160D100 | 280 | 1985 - 1989 | ||
| CITROËN | C25 | 1.9 (1929ccm) Diesel | XUD9AXT | 290 | 1991 - 1994 | ||
| CITROËN | C25 | 1.9 (1929ccm) Diesel | XUD9AXT | 280/290 | 1991 - 1994 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 149B1000 | 280A | 1987 - 1990 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 149B1000 | Panorama | 280A | 1987 - 1990 | |
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 280A1000 | 280A | 1988 - 1990 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 280A1000 | 280A | 1990 - 1990 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 280A1000 | Panorama | 280A | 1990 - 1990 | |
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 149B1000 | 290MAK | 1990 - 1994 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 149B1000 | Panorama | 290EHK | 1990 - 1994 | |
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 149B1000 | 290AK | 1990 - 1994 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 280A1000 | Panorama | 290EHX | 1990 - 1994 | |
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A2000 | 230 | 1994 - 1998 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A3000 | 230 | 1994 - 1998 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A4000 | 230 | 1994 - 1998 | ||
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A3000 | Panorama | 230 | 1994 - 1998 | |
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A2000 | Panorama | 230 | 1994 - 1998 | |
| FIAT | Ducato 10 | 1.9 (1929ccm) Diesel | 230A3000 | 230 | 1996 - 1998 | ||
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 149B1000 | 280A | 1987 - 1990 | ||
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 149B1000 | Panorama | 280A | 1987 - 1990 | |
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 280A1000 | 280A | 1988 - 1990 | ||
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 2802A1000/280A1000 | 280A | 1990 - 1990 | ||
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 280A1000 | Panorama | 280A | 1990 - 1990 | |
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 280A1000 | 290EHX | 1990 - 1994 | ||
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 230A4000 | 230 | 1994 - 1998 | ||
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 230A3000 | 230 | 1994 - 1998 | ||
| FIAT | Ducato 14 | 1.9 (1929ccm) Diesel | 230A3000 | Panorama | 230 | 1994 - 2002 | |
| FIAT | Ducato 15 | 1.9 (1929ccm) Diesel | 280A1000 | 290EHX | 1990 - 1994 | ||
| FIAT | Ducato 15 | 1.9 (1929ccm) Diesel | 280A1000 | Panorama | 290EHX | 1990 - 1994 | |
| FIAT | Ducato 18 | 1.9 (1929ccm) Diesel | 280A1000 | 290EHX | 1990 - 1994 | ||
| FIAT | Ducato 18 | 1.9 (1929ccm) Diesel | 280A1000 | Panorama | 290EHX | 1990 - 1994 | |
| FIAT | Talento | 1.9 (1929ccm) Diesel | 149B1000 | 290UKA | 1989 - 1994 | ||
| FIAT | Talento | 1.9 (1929ccm) Diesel | 149B1000 | 290UTK | 1989 - 1994 | ||
| FIAT | Talento | 1.9 (1929ccm) Diesel | 149B1000 | Combi | 290UEHK/290UKA | 1989 - 1994 |
Description
S0743 Replacement Starter Motor
The S0743 starter motor is a replacement unit identified by Lucas reference LRS00743. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected CitroËN C25 1.9 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- CitroËN C25 1.9 Diesel – selected applications 1991–1994 (engine code XUD9AXT).
- Alfa Romeo AR6 1.9 Diesel – selected applications 1985–1989 (engine code 160D100).
- Fiat Ducato 10 1.9 Diesel – selected applications 1987–1990 (engine code 149B1000).
- Fiat Ducato 14 1.9 Diesel – selected applications 1987–1990 (engine code 149B1000).
- Fiat Ducato 15 1.9 Diesel – selected applications 1990–1994 (engine code 280A1000).
- Fiat Ducato 18 1.9 Diesel – selected applications 1990–1994 (engine code 280A1000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0743. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1218141, 1218741, 986015930, LRS00743, LRS743, DRS5930, 35258970, 35260920, 5802000
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0743 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0743 fit my CitroËN C25?
CitroËN C25 1.9 Diesel (1991–1994) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0743 replace Lucas LRS00743?
Lucas LRS00743 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0743?
The listed details include 12V, 2.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0743 new or remanufactured?
Check the current product condition selection for S0743. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0743?
Compare 12V compatibility, 2.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
