S0762 12V 2.7kW Starter Motor Fits Atlas Copco ST35, Atlas Copco ST48

Description

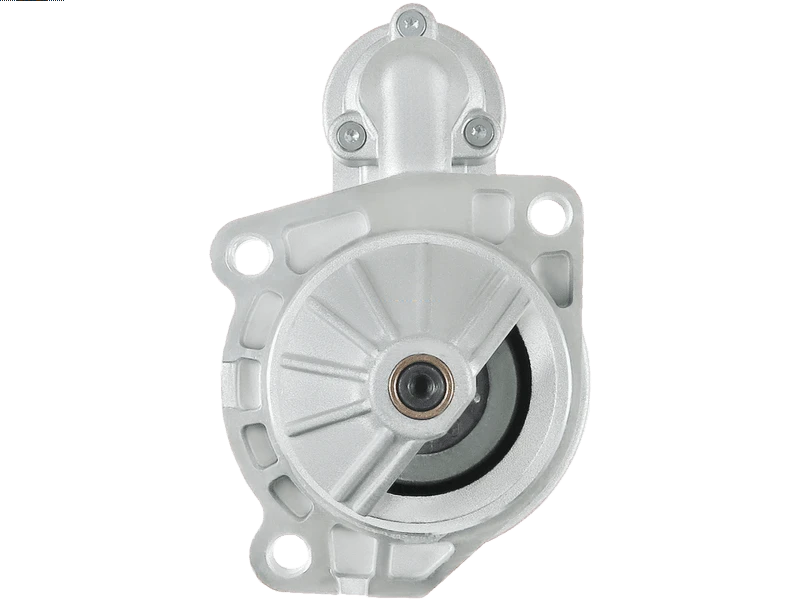

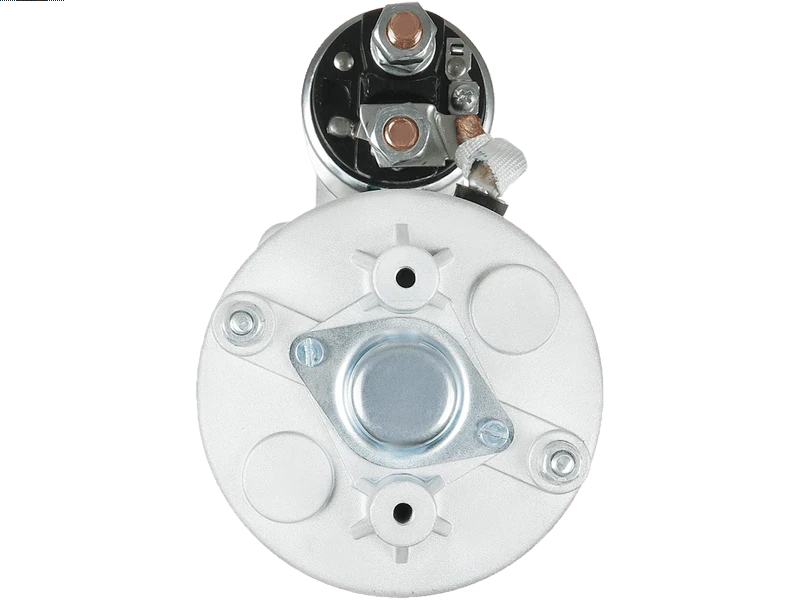

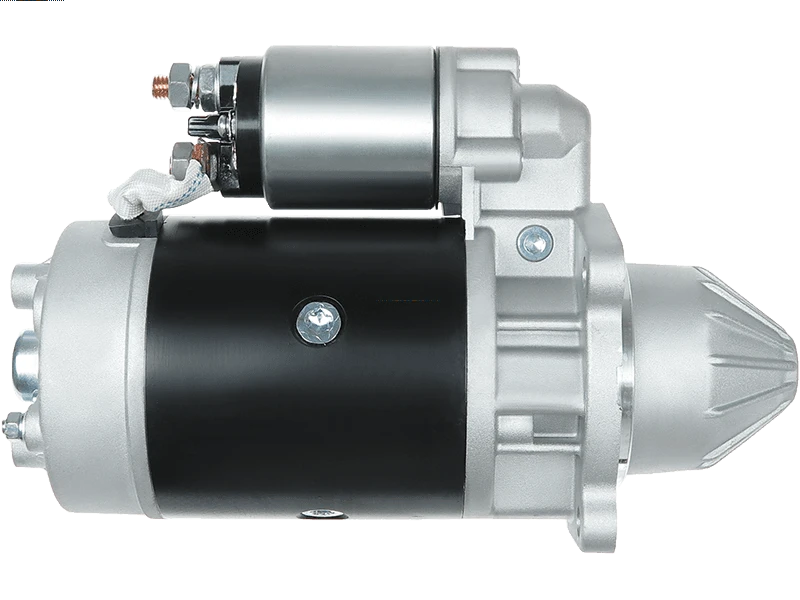

S0762 Replacement Starter Motor

The S0762 starter motor is a replacement unit identified by Lucas reference LRS00762. The listed electrical rating is 12V 2.7kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Atlas Copco ST35 2827ccm Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 2.7kW power: compare the listed rating with the original starter motor.
• 9-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• M10 connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Atlas Copco ST35 2827ccm Diesel – selected applications 1982–1986 (engine code KHD F3L912).
• Atlas Copco ST48 3770ccm Diesel – selected applications 1982–1986 (engine code KHD F4L912).
• Atlas Copco STS35 2827ccm Diesel – selected applications 1982–1986 (engine code KHD F3L912).
• Atlas Copco STS48 3770ccm Diesel – selected applications 1982–1986 (engine code KHD F4L912).
• Claas Mercator 75R 5655ccm Diesel – selected applications 1982 – (engine code KHD-F6L912).
• Deutz-Fahr D10006 5652ccm Diesel – selected applications 1970–1978 (engine code F6L912).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S0762. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

1358046, 1359003, 1362305, 1362313, 1367004, 986011140, LRS00762, LRS762, 19024252, DRS1143, DS2253, 72735905, MS277, 11.130.551, AZJ3169, IS0551, 1516667R

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0762 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S0762 fit my Atlas Copco ST35?

Atlas Copco ST35 2827ccm Diesel (1982–1986) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S0762 replace Lucas LRS00762?

Lucas LRS00762 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S0762?

The listed details include 12V, 2.7kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S0762 new or remanufactured?

Check the current product condition selection for S0762. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S0762?

Compare 12V compatibility, 2.7kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
