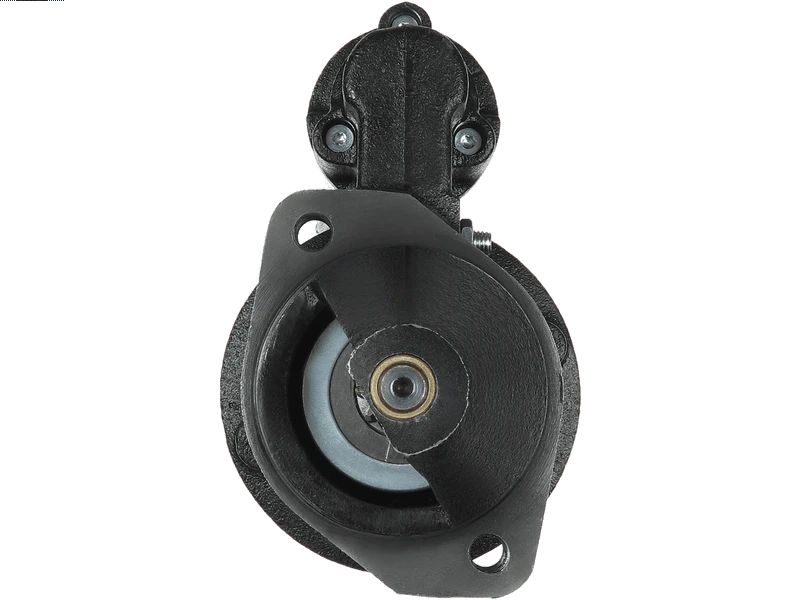

S0816 12V 2.3kW Starter Motor Fits Mercedes-Benz 200

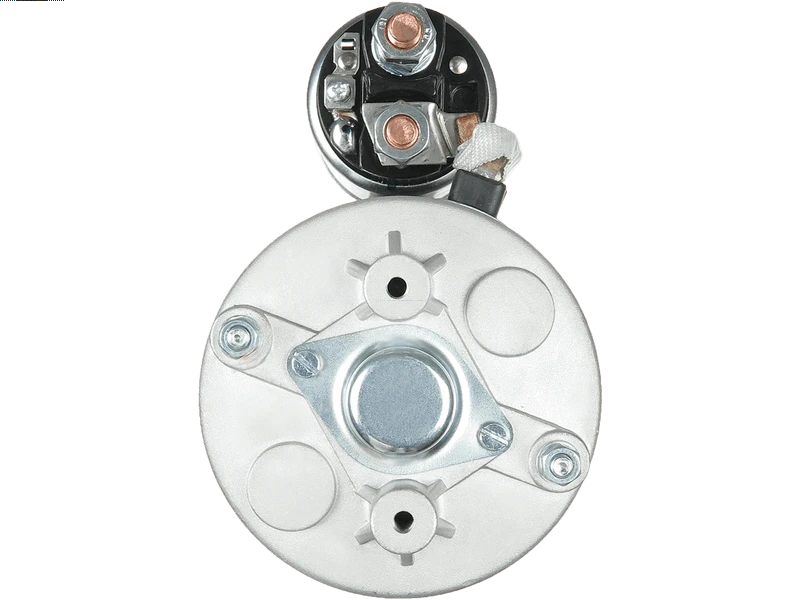

S0816 12V 2.3kW Starter Motor Fits Mercedes-Benz 200 - Image 2

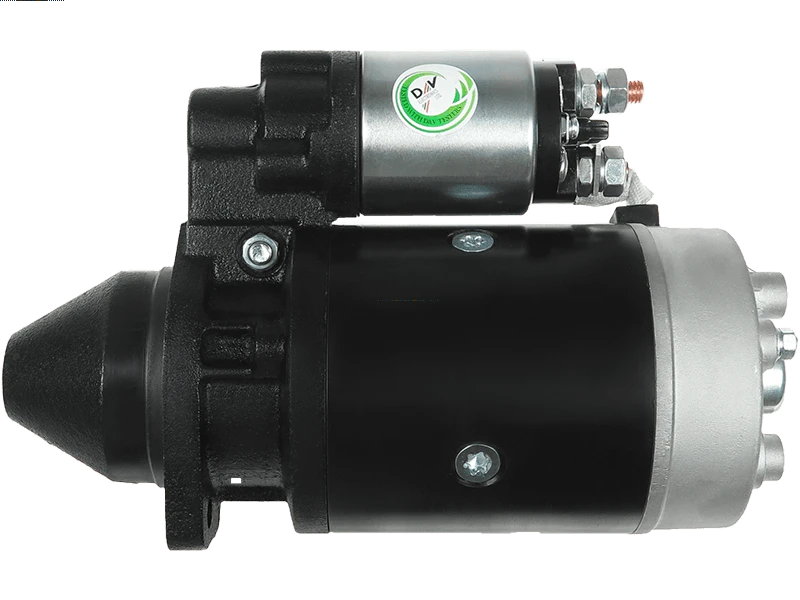

S0816 12V 2.3kW Starter Motor Fits Mercedes-Benz 200 - Image 3

S0816 12V 2.3kW Starter Motor Fits Mercedes-Benz 200

Price range: £119.50 through £143.26

Identify a replacement starter motor using Sahibs S0816, listed at 12V 2.3kW. Listed applications include selected Mercedes-Benz 200, Mercedes-Benz 207D, Mercedes-Benz 209D, Mercedes-Benz 220 models. Identification references include Lucas LRS00816, Bosch 1362001, Valeo 433294. Its listed 12V 2.3kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0816 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.

SKU: S0816 Category:

Product Specification

DescriptionValue
KW2.3 kW
Volt12 V
PlugM10
RotationClockwise
Teeth9 qty
Oil SealedNo
Insulated ReturnNo
WaterproofNo
Wet ClutchNo
Weight10.2 Kg

Cross Reference

Reference NumberBrand
DYS0816Dyno Electrics
402220041Euro Car Part
S0310AS-PL
UD15025SAS-PL
1362001BOSCH
1362002BOSCH
1362029BOSCH
1362030BOSCH
1362047BOSCH
1362600BOSCH
1362601BOSCH
1369004BOSCH
986011150BOSCH
9000143406BOSCH
9000143408BOSCH
9000331419BOSCH
110368CARGO
F032110368CARGO
1516705RDAF
1516772RDAF
19024239DELCO
19024249DELCO
3917420FIAT
8EA726020-001HELLA
11.130.300ISKRA / LETRIKA
11.130.399ISKRA / LETRIKA
11.130.885ISKRA / LETRIKA
11.130.886ISKRA / LETRIKA
AZJ3107ISKRA / LETRIKA
AZJ3311ISKRA / LETRIKA
AZJ3312ISKRA / LETRIKA
AZJ3567ISKRA / LETRIKA
9.43251E+11MAGNETI MARELLI
943252223MAGNETI MARELLI
9.43252E+11MAGNETI MARELLI
9.4428E+11MAGNETI MARELLI
MRS11150MAGNETI MARELLI
MSR425MAGNETI MARELLI
MSR516MAGNETI MARELLI
MS 323MAHLE
MS 326MAHLE
11516201MERCEDES
21506901MERCEDES
21513001MERCEDES
21515101MERCEDES
21516901MERCEDES
2151690180MERCEDES
31510701MERCEDES
3151070180MERCEDES
31511101MERCEDES
3151110180MERCEDES
31512001MERCEDES
3151200180MERCEDES
31515401MERCEDES
3151540180MERCEDES
41510901MERCEDES
4151090180MERCEDES
A0011516201MERCEDES
A0021506901MERCEDES
A0021513001MERCEDES
A0021515101MERCEDES
A0021516901MERCEDES
A002151690180MERCEDES
A0031510701MERCEDES
A003151070180MERCEDES
A0031511101MERCEDES
A003151110180MERCEDES
A0031512001MERCEDES
A003151200180MERCEDES
A0031515401MERCEDES
A003151540180MERCEDES
A0041510901MERCEDES
A004151090180MERCEDES
84043545NEW HOLLAND
20500534PRESTOLITE
35261130PRESTOLITE
433294VALEO
726108VALEO
D9R141VALEO
068911023AXVW
MD90800001VW
ND90800000VW
STRL2493EFFE
STRS0793EFFE
STRS2463EFFE
AES8116AUTOELECTRO
CST10185CASCO
CST10185ASCASCO
CST10185ESCASCO
CST10185GSCASCO
CST10185OSCASCO
CST10185RSCASCO
3467CEVAM
11830EFEL
STR1680ELECTROLOG
STR7840ELECTROLOG
STR79082ELECTROLOG
25-0188ELSTOCK
220082ERA
CS188HC PARTS
7431022000KASSBOHRER
7431028000KASSBOHRER
STB0188KRAUF
10188KUHNER
10716KUHNER
330707LOGISTIK
LRS00816LUCAS
LRS816LUCAS
88212270POWERMAX
550.009.092.010PSH
550.009.092.215PSH
550.009.092.460PSH
20401581BNREAL
6010185SANDO
MAV121850SIOM
STX200245STARDAX
STX200245RSTARDAX
STX200656STARDAX
STX200836STARDAX
16445NWAI / TRANSPO
91-15-6849WILSON
91-15-6849NWILSON
STR50243WOODAUTO

Alternative Parts

Alternative PartCurrent DescriptionAlternative DescriptionDirect Alternative
S2011Not oil- and water protectedOil- and water protectedYes
S20312.3KW Conventionel2.2KW G/RNo

Vehicle Applications

BrandModelEngineEngine CodeSeriesModel TypeTypeYear
MERCEDES-BENZ2002.0 (1988ccm) Diesel615913W1151151151972 - 1976
MERCEDES-BENZ2002.0 (1988ccm) Diesel615940W1231231201976 - 1979
MERCEDES-BENZ2002.0 (1988ccm) Diesel615940W1231231201979 - 1985
MERCEDES-BENZ207D2.4 (2399ccm) Diesel616937/616939B601601311/601312/601321/6013221977 - 1989
MERCEDES-BENZ207D2.4 (2399ccm) Diesel616937B601601361/601362/601366/6013671981 - 1989
MERCEDES-BENZ207D2.4 (2399ccm) Diesel616937B601601371/6013731982 - 1989
MERCEDES-BENZ207D2.4 (2404ccm) Diesel616917B601601311/601312/601321/6013221977 - 1981
MERCEDES-BENZ207D2.4 (2404ccm) Diesel616917B601601371/6013721977 - 1982
MERCEDES-BENZ209D3.0 (2998ccm) Diesel617913B601601411/601412/601416/601417/601418/601421/601422/601426/601427/6014281981 - 1989
MERCEDES-BENZ209D3.0 (2998ccm) Diesel617913B601601461/601462/601466/6014671981 - 1989
MERCEDES-BENZ209D3.0 (2998ccm) Diesel617913B601601476/6014771981 - 1989
MERCEDES-BENZ2202.2 (2197ccm) Diesel615912W1151151101975 - 1976
MERCEDES-BENZ2202.2 (2197ccm) Diesel615941W1231231261976 - 1979
MERCEDES-BENZ2202.2 (2197ccm) Diesel615941W1231231261977 - 1979
MERCEDES-BENZ2402.4 (2399ccm) Diesel616912W1231231231976 - 1979
MERCEDES-BENZ2402.4 (2399ccm) Diesel616912S1231231831977 - 1979
MERCEDES-BENZ2402.4 (2399ccm) Diesel616912S1231231831979 - 1985
MERCEDES-BENZ2402.4 (2399ccm) Diesel616912W1231231231979 - 1985
MERCEDES-BENZ2402.4 (2404ccm) Diesel616916W1151151051973 - 1977
MERCEDES-BENZ2403.0 (2998ccm) Diesel617910W1151151141974 - 1976
MERCEDES-BENZ240GD2.4 (2399ccm) Diesel616936/616938W4604-Matic460321/460330/4603311979 - 1987
MERCEDES-BENZ3003.0 (2998ccm) Diesel617912/617913W1231231301976 - 1980
MERCEDES-BENZ3003.0 (2998ccm) Diesel617912S1231231901977 - 1985
MERCEDES-BENZ3003.0 (2998ccm) Diesel617912W123Long1231301978 - 1985
MERCEDES-BENZ3003.0 (2998ccm) Diesel617952W1231231331979 - 1985
MERCEDES-BENZ3003.0 (2998ccm) Diesel617912S1231231901979 - 1986
MERCEDES-BENZ3003.0 (2998ccm) Diesel617952S1231231931980 - 1985
MERCEDES-BENZ300GD3.0 (2998ccm) Diesel617931W4604-Matic460332/4603331979 - 1991
MERCEDES-BENZ307D2.4 (2399ccm) Diesel616937B602602321/6023231977 - 1981
MERCEDES-BENZ307D2.4 (2399ccm) Diesel616937/616939B602602317/602361/602362/602363/602372/6023731981 - 1989
MERCEDES-BENZ309D3.0 (2998ccm) Diesel617913B602602461/602462/602463/602476/6024771981 - 1989
MERCEDES-BENZ309D3.0 (2998ccm) Diesel617913B602602411/602412/602413/6024231981 - 1989
MERCEDES-BENZMB1002.4 (2399ccm) Diesel616963W631631333/631334/6313441988 - 1990

Description

S0816 Replacement Starter Motor

Start your S0816 starter motor comparison with the linked Lucas reference LRS00816 and the specifications shown on this page. The listed electrical rating is 12V 2.3kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Mercedes-Benz 200 2.0 Diesel variants.

Key Features and Benefits

  • 12V electrical system: match the vehicle voltage before selecting a unit.
  • 2.3kW power: compare the listed rating with the original starter motor.
  • 9-tooth pinion: compare gear engagement and pinion position.
  • Clockwise rotation: check the specified direction before fitting.
  • M10 connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

  • Mercedes-Benz 200 2.0 Diesel – selected applications 1972–1976 (engine code 615913).
  • Mercedes-Benz 207D 2.4 Diesel – selected applications 1977–1989 (engine code 616937/616939).
  • Mercedes-Benz 209D 3.0 Diesel – selected applications 1981–1989 (engine code 617913).
  • Mercedes-Benz 220 2.2 Diesel – selected applications 1975–1976 (engine code 615912).
  • Mercedes-Benz 240 2.4 Diesel – selected applications 1976–1979 (engine code 616912).
  • Mercedes-Benz 240GD 2.4 Diesel – selected applications 1979–1987 (engine code 616936/616938).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S0816. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

1362001, 1362002, 1362029, 1362030, 1362047, 1362600, 1362601, 1369004, 986011150, 9000143406, 9000143408, 9000331419, 433294, 726108, D9R141, LRS00816, LRS816, 19024239, 19024249, 20500534, 35261130, MS 323, MS 326, 11.130.300, 11.130.399, 11.130.885, 11.130.886, AZJ3107, AZJ3311, AZJ3312, AZJ3567, 1516705R, 1516772R

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0816 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S0816 fit my Mercedes-Benz 200?

Mercedes-Benz 200 2.0 Diesel (1972–1976) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S0816 replace Lucas LRS00816?

Lucas LRS00816 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S0816?

The listed details include 12V, 2.3kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S0816 new or remanufactured?

Check the current product condition selection for S0816. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S0816?

Compare 12V compatibility, 2.3kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
