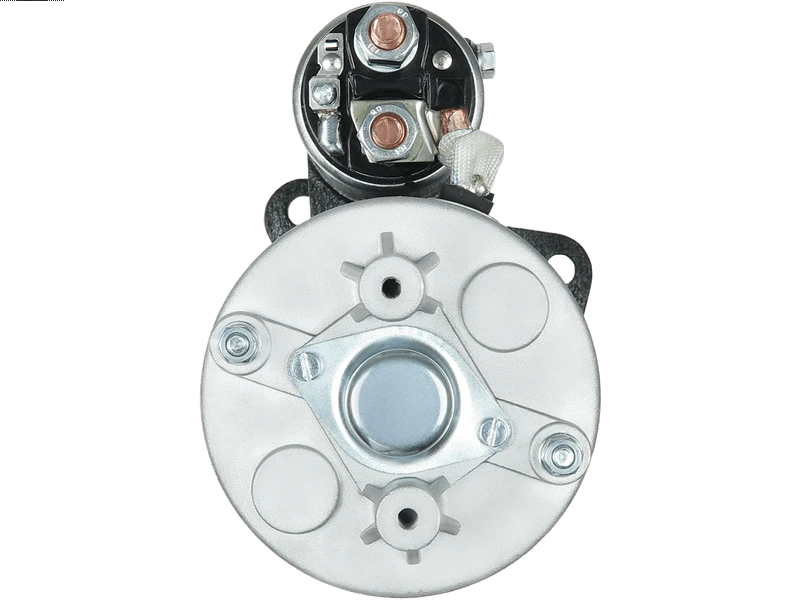

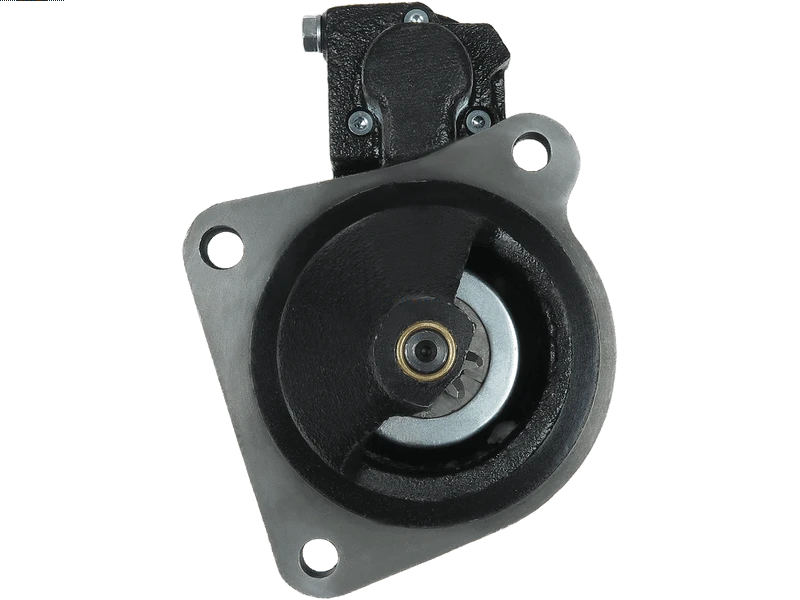

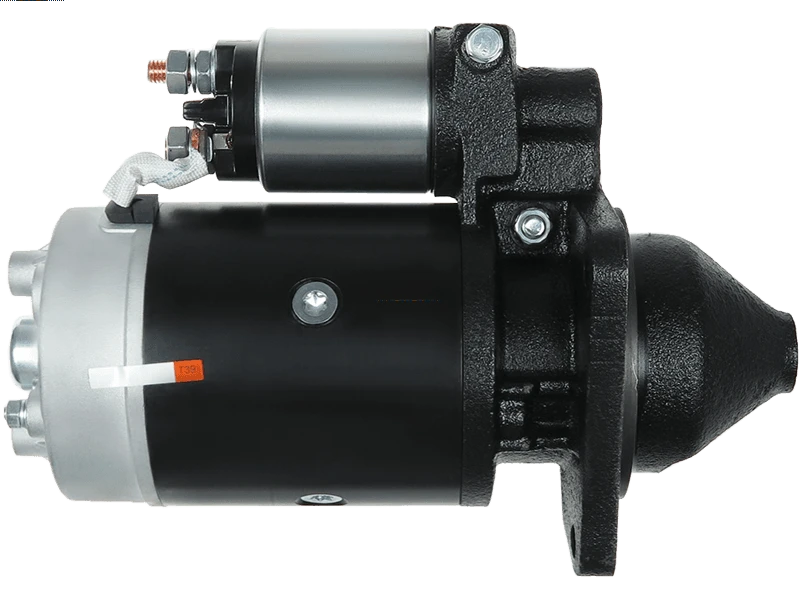

S0839 24V 3.2kW Starter Motor Fits Fiat Truck 40 NC, Fiat Truck 50 F8
Price range: £117.55 through £140.92
The S0839 24V 3.2kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Fiat Truck 40 NC, Fiat Truck 50 F8, Fiat Truck 50 NC, Fiat Truck 55 F8 models. Identification references include Lucas LRS00839, Bosch 1363101, Valeo 455520. Its listed 24V 3.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0839 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 3.2 kW |
| Volt | 24 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 10.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0839 | Dyno Electrics |
| S0317 | AS-PL |
| 1363101 | BOSCH |
| 1363111 | BOSCH |
| 986011160 | BOSCH |
| 986011161 | BOSCH |
| 110517 | CARGO |
| F032110517 | CARGO |
| 1516715R | DAF |
| 19024242 | DELCO |
| DRS1160 | DELCO |
| 42498142 | FIAT |
| 42498230 | FIAT |
| 4706931 | FIAT |
| 4752403 | FIAT |
| 6706931 | FIAT |
| 77050561 | FIAT |
| 77080560 | FIAT |
| 77080561 | FIAT |
| 929162 | FIAT |
| 8EA012586-061 | HELLA |
| 11.130.146 | ISKRA / LETRIKA |
| 11.130.216 | ISKRA / LETRIKA |
| AZJ3520 | ISKRA / LETRIKA |
| AZJ3542 | ISKRA / LETRIKA |
| IS0216 | ISKRA / LETRIKA |
| 2997051 | IVECO |
| 4744811 | IVECO |
| 4807377 | IVECO |
| 504038038 | IVECO |
| 63217226010 | MAGNETI MARELLI |
| 63217201 | MAGNETI MARELLI |
| 63217225 | MAGNETI MARELLI |
| 63217226 | MAGNETI MARELLI |
| 9.43202E+11 | MAGNETI MARELLI |
| MSN237 | MAGNETI MARELLI |
| MSRC231 | MAGNETI MARELLI |
| MT72AB | MAGNETI MARELLI |
| 72736017 | MAHLE |
| MS389 | MAHLE |
| 20500839 | PRESTOLITE |
| 455520 | VALEO |
| PRSL022 | 3EFFE |
| STRL022M | 3EFFE |
| AC-CBS0231 | ACAUTO |
| 10440166 | ALANKO |
| ANM13380 | ANDEL |
| A11160 | ATL AUTOTECHNIK |
| S100815 | BTS TURBO |
| CST10736AS | CASCO |
| CST30600AS | CASCO |
| CST30600GS | CASCO |
| CST30600OS | CASCO |
| 8651 | CEVAM |
| 33345 | EAI |
| 12080 | EFEL |
| STR90015 | ELECTROLOG |
| 45-0345 | ELSTOCK |
| 220262 | ERA |
| 103429 | FARCOM |
| 8811160 | FRIESEN |
| SG0059 | GHIBAUDI |
| SG0059RB | GHIBAUDI |
| CS231 | HC PARTS |
| 3118886 | HENKEL PARTS |
| 3118888 | HENKEL PARTS |
| 3118890 | HENKEL PARTS |
| H5110001 | HOFFER |
| 10010736AV | ITAB AUTOMOTIVE |
| 10030600AV | ITAB AUTOMOTIVE |
| 10030600OV | ITAB AUTOMOTIVE |
| 10231 | KUHNER |
| 10231M | KUHNER |
| 10231MH | KUHNER |
| LRS00839 | LUCAS |
| LRS839 | LUCAS |
| 5110001 | MEAT & DORIA |
| 430090 | MEC DIESEL |
| 430090M | MEC DIESEL |
| PTC-4194 | POWER TRUCK |
| 88212843 | POWERMAX |
| IR8224 | PROTECH |
| 501.001.093.010 | PSH |
| 501.001.093.016 | PSH |
| 501.001.093.215 | PSH |
| 501.001.093.311 | PSH |
| 20401637BN | REAL |
| 20404006BN | REAL |
| 20404006OE | REAL |
| 20404006RE | REAL |
| 011-001-000582R | REMANTE |
| 182-30301 | ROBERT'S |
| 6010736 | SANDO |
| 6030600 | SANDO |
| 6030600.1 | SANDO |
| 6030600.4 | SANDO |
| S24BH0157A2 | SIDAT |
| PL9012 | SNRA |
| STX200311 | STARDAX |
| 345ST33 | STARTCAR |
| ST02470 | TMI |
| 004691200X | UNIC-SIMCA |
| 18031N | WAI / TRANSPO |
| WG2174921 | WILMINK GROUP |
| STR22005 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT TRUCK | 40 NC | 0ccm Diesel | 8040.02.360 | 1974 - 1981 | |||
| FIAT TRUCK | 50 F8 | 0ccm Diesel | 8040.04.200 | 1978 - 1982 | |||
| FIAT TRUCK | 50 NC | 0ccm Diesel | 8040.02 | 1974 - 1979 | |||
| FIAT TRUCK | 55 F8 | 0ccm Diesel | 8040.04.200 | 1978 - 1980 | |||
| FIAT TRUCK | 55 NC | 0ccm Diesel | 8040.02 | 1974 - 1979 | |||
| FIAT TRUCK | 60 F8 | 0ccm Diesel | 8040.04.200 | 1979 - 1982 | |||
| IVECO | 50-8 | 0ccm Diesel | 8010.04.200 | 1983 - 1986 | |||
| IVECO | 50-9 | 0ccm Diesel | 5040.02.230 | 1987 - 1991 | |||
| IVECO | 60-11 | 0ccm Diesel | 8040.25.230R | 1987 - 1991 | |||
| IVECO | 60-8 | 0ccm Diesel | 8040.04.200 | 1983 - | |||
| IVECO | 65-12 | 0ccm Diesel | 8040.25.200 | 1987 - 1992 | |||
| IVECO | 65-9 | 0ccm Diesel | 8040.05.230 | 1987 - 1992 | |||
| IVECO | 79-12 | 0ccm Diesel | 8040.25.220 | 1987 - 1992 | |||
| IVECO | EuroCargo 60E10 | 3908ccm Diesel | 8040.25B.4200 | 1991 - 1996 | |||
| IVECO | EuroCargo 60E12 | 0ccm Diesel | 8040.25X.4000 | 1991 - 1996 | |||
| IVECO | EuroCargo 60E14 | 0ccm Diesel | 8040.45.4000 | 1991 - 1996 | |||
| IVECO | EuroCargo 65E10 | 3908ccm Diesel | 8040.25B.4200 | 1991 - 1996 | |||
| IVECO | EuroCargo 65E12 | 3908ccm Diesel | 8040.25X.4000 | 1991 - 1996 | |||
| IVECO | EuroCargo 65E14 | 3908ccm Diesel | 8040.45.4000 | 1991 - 1996 | |||
| IVECO | EuroCargo 75E12 | 3908ccm Diesel | 8040.25X.4000 | 1991 - 1996 | |||
| IVECO | EuroCargo 75E14 | 3908ccm Diesel | 8040.45.4000.. | 1991 - 1996 |
Description
S0839 Replacement Starter Motor
Start your S0839 starter motor comparison with the linked Lucas reference LRS00839 and the specifications shown on this page. The listed electrical rating is 24V 3.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Fiat Truck 40 NC variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 3.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Truck 40 NC – selected applications 1974–1981 (engine code 8040.02.360).
- Fiat Truck 50 F8 – selected applications 1978–1982 (engine code 8040.04.200).
- Fiat Truck 50 NC – selected applications 1974–1979 (engine code 8040.02).
- Fiat Truck 55 F8 – selected applications 1978–1980 (engine code 8040.04.200).
- Fiat Truck 55 NC – selected applications 1974–1979 (engine code 8040.02).
- Fiat Truck 60 F8 – selected applications 1979–1982 (engine code 8040.04.200).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0839. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1363101, 1363111, 986011160, 986011161, 455520, LRS00839, LRS839, 19024242, DRS1160, 20500839, 72736017, MS389, 11.130.146, 11.130.216, AZJ3520, AZJ3542, IS0216, 1516715R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0839 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0839 fit my Fiat Truck 40 NC?
Fiat Truck 40 NC (1974–1981) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0839 replace Lucas LRS00839?
Lucas LRS00839 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0839?
The listed details include 24V, 3.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0839 new or remanufactured?
Check the current product condition selection for S0839. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0839?
Compare 24V compatibility, 3.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
