S0860 24V 5.5kW Starter Motor Fits Volvo Bus B10M, Volvo Bus B10R
Price range: £176.95 through £215.30
Identify a replacement starter motor using Sahibs S0860, listed at 24V 5.5kW. Listed applications include selected Volvo Bus B10M, Volvo Bus B10R, Volvo Bus B58, Volvo Bus B58T models. Identification references include Lucas LRS00860, Bosch 1410044, Delco Remy DRS2740. Its listed 24V 5.5kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0860 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 5.5 kW |
| Volt | 24 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | Yes |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 15.85 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0860 | Dyno Electrics |
| 1410044 | BOSCH |
| 986012740 | BOSCH |
| 9000084018 | BOSCH |
| 110208 | CARGO |
| F032110208 | CARGO |
| 1516764R | DAF |
| 1516800R | DAF |
| 293020 | DAF |
| 636306 | DAF |
| DRS2740 | DELCO |
| 30051600022 | DOOSAN |
| 611.000.0 | ELMOT |
| R23-11 | ELMOT |
| 61227993 | FIAT |
| 8EA730226-001 | HELLA |
| 1161280 | KHD |
| 1161563 | KHD |
| C2R24X4H7622 | KHD |
| D2R24X6H7622 | KHD |
| 51.26201-7048 | MAN |
| 51.26201-7100 | MAN |
| 51.26201-9100 | MAN |
| 51262017034 | MAN |
| 51262019034 | MAN |
| 11512901 | MERCEDES |
| 1151290180 | MERCEDES |
| A0011512901 | MERCEDES |
| A001151290180 | MERCEDES |
| 860504GB | PRESTOLITE |
| 5000270909 | RENAULT |
| 11030906 | VOLVO |
| 1199872 | VOLVO |
| 240504 | VOLVO |
| 465929 | VOLVO |
| 469414 | VOLVO |
| 5001683 | VOLVO |
| 5003027 | VOLVO |
| 85000438 | VOLVO |
| 85000450 | VOLVO |
| 9004778060 | VOLVO |
| 9011030906 | VOLVO |
| AES8160 | AUTOELECTRO |
| IM325 | AVF |
| CST10770AS | CASCO |
| 33346 | EAI |
| 8790 | EFEL |
| STR1077 | ELECTROLOG |
| 45-0327 | ELSTOCK |
| 220251 | ERA |
| 8812740 | FRIESEN |
| CS506 | HC PARTS |
| CS710 | HC PARTS |
| 10710 | KUHNER |
| 6000733 | LIEBHERR |
| LRS00860 | LUCAS |
| LRS860 | LUCAS |
| 20401077BN | REAL |
| 6010770 | SANDO |
| 81400090003 | STEYR |
| 81500090049 | STEYR |
| 18253N | WAI / TRANSPO |
| 18380N | WAI / TRANSPO |
| STR50137 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S2149 | 5.5KW Long type | 5.4KW Short type | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| VOLVO BUS | B10M | 0ccm Diesel | THD100.. | 1979 - 1986 | |||
| VOLVO BUS | B10R | 0ccm Diesel | THD100.. | 1978 - 1983 | |||
| VOLVO BUS | B58 | 0ccm Diesel | HD100D | 1972 - 1980 | |||
| VOLVO BUS | B58T | 0ccm Diesel | THD100D | 1972 - 1980 | |||
| VOLVO BUS | B59T | 0ccm Diesel | THD100D | 1972 - 1979 |
Description
S0860 Replacement Starter Motor
The Sahibs S0860 starter motor is associated with Lucas reference LRS00860 for replacement identification. The listed electrical rating is 24V 5.5kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Volvo Bus B10M variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 5.5kW power: compare the listed rating with the original starter motor.

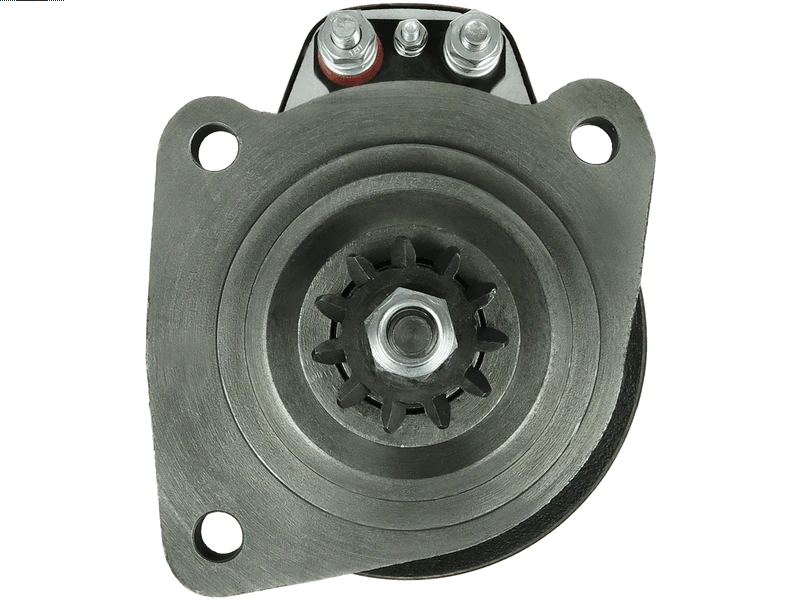

- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Volvo Bus B10M – selected applications 1979–1986 (engine code THD100..).
- Volvo Bus B10R – selected applications 1978–1983 (engine code THD100..).
- Volvo Bus B58 – selected applications 1972–1980 (engine code HD100D).
- Volvo Bus B58T – selected applications 1972–1980 (engine code THD100D).
- Volvo Bus B59T – selected applications 1972–1979 (engine code THD100D).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0860. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1410044, 986012740, 9000084018, LRS00860, LRS860, DRS2740, 860504GB, 5000270909, 1516764R, 1516800R, 293020, 636306
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0860 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0860 fit my Volvo Bus B10M?
Volvo Bus B10M (1979–1986) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0860 replace Lucas LRS00860?
Lucas LRS00860 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0860?
The listed details include 24V, 5.5kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0860 new or remanufactured?
Check the current product condition selection for S0860. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0860?
Compare 24V compatibility, 5.5kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
