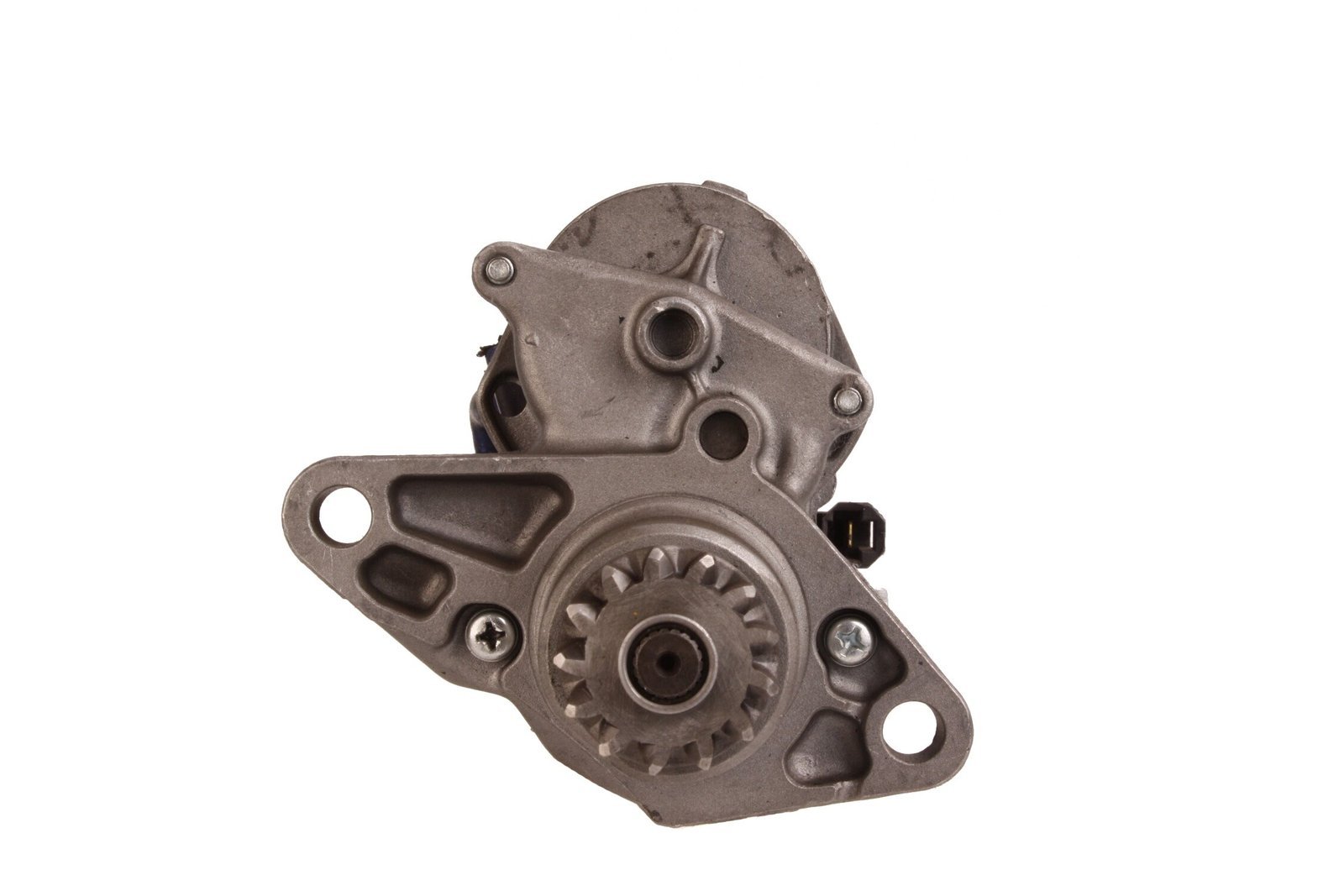

S0897 12V 1.0kW Starter Motor Fits Toyota Camry, Toyota Carina II
Price range: £97.99 through £112.57
Sahibs S0897 is a replacement starter motor with a listed 12V 1.0kW rating. Listed applications include selected Toyota Camry, Toyota Carina II, Toyota Celica models. Identification references include Lucas LRS00897, Valeo 455604, Denso 128000347. Its listed 12V 1.0kW rating provides an electrical matching point for your existing unit. Check the 13-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0897 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1 kW |
| Volt | 12 V |
| Plug | M8 |
| Teeth | 13 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0897 | Dyno Electrics |
| 402820441 | Euro Car Part |
| 986016511 | Bosch Exchange |
| 0986UN1156 | Bosch Exchange |
| 0986UR1157 | Bosch Exchange |
| 111446 | HC-Cargo |
| 128000347 | Denso |
| 1280003470 | Denso |
| 1280003471 | Denso |
| 1280003472 | Denso |
| 1280005940 | Denso |
| 1280005941 | Denso |
| 1280005942 | Denso |
| 1280008270 | Denso |
| 16893R | WAI |
| 16978R | WAI |
| 190513132 | PSH |
| 2280000420 | Denso |
| 2280003220 | Denso |
| 2810062010 | Toyota |
| 2810062011 | Toyota |
| 2.81006E+11 | Toyota |
| 2810074010 | Toyota |
| 2810074011 | Toyota |
| 2810074030 | Toyota |
| 2810074060 | Toyota |
| 2810074210 | Toyota |
| 4280007780 | Denso |
| 455604 | Valeo |
| 458480 | Valeo |
| 91295253 | Wilson |
| 91295256 | Wilson |
| ATS211 | ATK |
| ATS225 | ATK |
| DRS3378 | Delco Remy |
| JS652 | HC-Parts |
| LRS00897 | Lucas |
| LRS02058 | Lucas |
| LRS2058 | Lucas |
| LRS897 | Lucas |
| MSR1044 | Magneti Marelli |
| S26092 | Hitachi |
| SR229N | Bosch (USA) |
| SR230X | Bosch (USA) |
| TRS121 | TWA |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S2066 | 1.0KW Short type | 1.2KW Connection 50 Long type | No |
| S0726 | 1.0KW Short type | 1.4KW Long type | No |
| S1340 | 1.0KW Long type | 1.4KW Short type | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA | Camry | 2.0 (1995ccm) Petrol | 2SELC | Liftback | SV11 | 1983 - 1986 | |
| TOYOTA | Camry | 2.0 (1995ccm) Petrol | 2SELC | SV11 | 1983 - 1986 | ||
| TOYOTA | Camry | 2.0 (1998ccm) Petrol | 3SFE | SV21 | 1986 - 1993 | ||
| TOYOTA | Camry | 2.0 (1998ccm) Petrol | 3SFE | SV21 | 1986 - 1991 | ||
| TOYOTA | Camry | 2.0 (1998ccm) Petrol | 3SFE | Customwagon | SV21 | 1986 - 1991 | |
| TOYOTA | Camry | 2.0 (1998ccm) Petrol | 3SFE | Customwagon | SV21 | 1986 - 1993 | |
| TOYOTA | Camry | 2.0 (1998ccm) Petrol | 3SFE | SV25 | 1988 - 1991 | ||
| TOYOTA | Camry | 2.0 (1998ccm) Petrol | 3SFE | Customwagon | SV25 | 1988 - 1991 | |
| TOYOTA | Carina II | 2.0 (1998ccm) Petrol | 3SFE | MK V | Liftback | ST171 | 1987 - 1992 |
| TOYOTA | Carina II | 2.0 (1998ccm) Petrol | 3SFE | MK V | ST171 | 1987 - 1992 | |
| TOYOTA | Celica | 2.0 (1998ccm) Petrol | 3SGEL | Liftback | AT162 | 1985 - 1989 | |
| TOYOTA | Celica | 2.0 (1998ccm) Petrol | 3SGELC | ST162 | 1985 - 1989 |
Description
S0897 Replacement Starter Motor
Choose a replacement by comparing the S0897 starter motor and its Lucas reference, LRS00897, with your existing unit. The listed electrical rating is 12V 1.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Toyota Camry 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.0kW power: compare the listed rating with the original starter motor.
- 13-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Camry 2.0 Petrol – selected applications 1983–1986 (engine code 2SELC).
- Toyota Carina II 2.0 Petrol – selected applications 1987–1992 (engine code 3SFE).
- Toyota Celica 2.0 Petrol – selected applications 1985–1989 (engine code 3SGEL).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0897. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986016511, 0986UN1156, 0986UR1157, 455604, 458480, 128000347, 1280003470, 1280003471, 1280003472, 1280005940, 1280005941, 1280005942, 1280008270, 2280000420, 2280003220, 4280007780, LRS00897, LRS02058, LRS2058, LRS897, S26092, DRS3378
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0897 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0897 fit my Toyota Camry?
Toyota Camry 2.0 Petrol (1983–1986) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0897 replace Lucas LRS00897?
Lucas LRS00897 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0897?
The listed details include 12V, 1.0kW power, 13 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0897 new or remanufactured?
Check the current product condition selection for S0897. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0897?
Compare 12V compatibility, 1.0kW power, 13 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
