S0922 24V 5.0kW Starter Motor Fits Man EL, Man EM 192, Man F 2000

Description

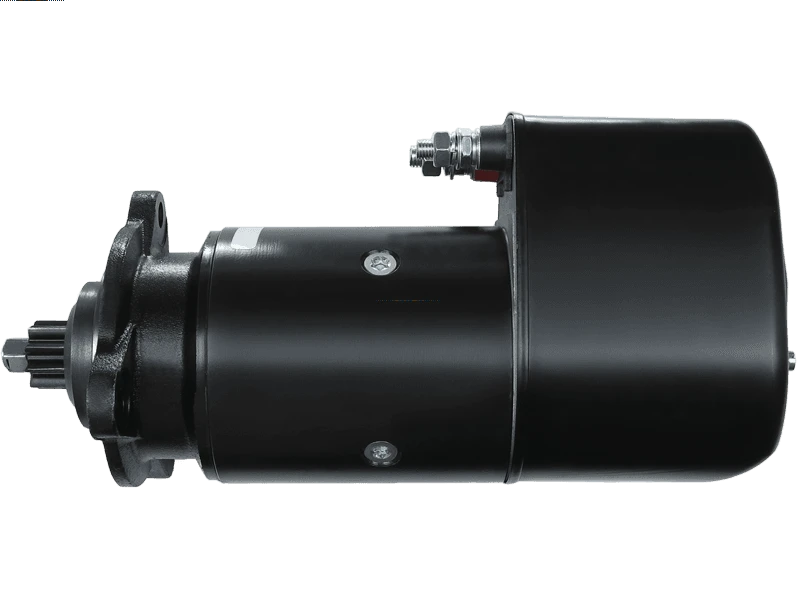

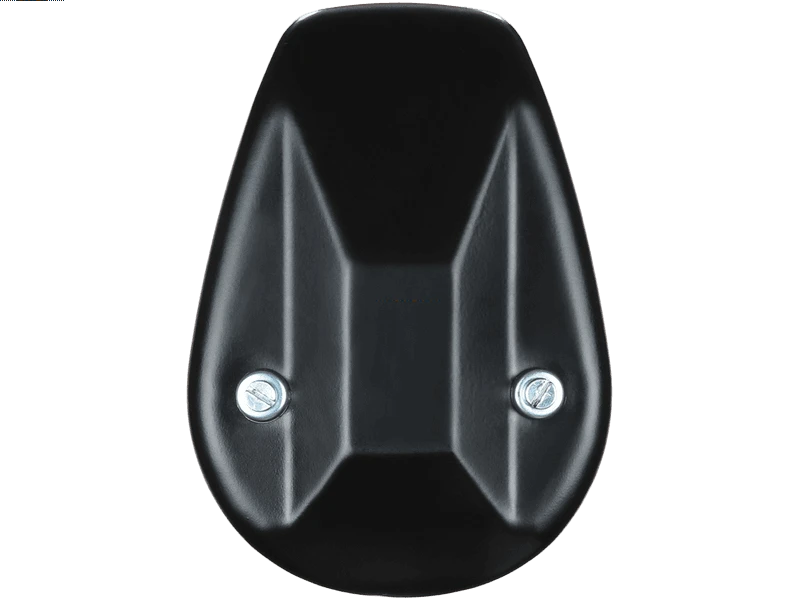

S0922 Replacement Starter Motor

The S0922 starter motor is a replacement unit identified by Lucas reference LRS00922. The listed electrical rating is 24V 5.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Man EL 6.9 Diesel variants.

Key Features and Benefits

• 24V electrical system: match the vehicle voltage before selecting a unit.
• 5.0kW power: compare the listed rating with the original starter motor.
• 9-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• M10/M12 connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Man EL 6.9 Diesel – selected applications 1994–1997 (engine code D 0826 LUH).
• Man EM 192 6.9 Diesel – selected applications 1992–1997 (engine code D0826LOH06).
• Man F 2000 12.0 Diesel – selected applications 2001 – (engine code D 2866 LF25).
• Man F2000 19.314 12.0 Diesel – selected applications 1994–2002 (engine code D2866LF34).
• Man F2000 19.364 12.0 Diesel – selected applications 1994–2002 (engine code D2866LF35).
• Man F2000 19.403 12.0 Diesel – selected applications 1994–2001 (engine code D2866LF20/D2866LF29).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S0922. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

1415001, 986011570, 986011573, F00E100021, F042002103, 455531, LRS00922, LRS922, 19024010, 19024017, 19024025, 19082013, 860508GB, 72736183, 72741790, MS 555, MS555, MS698, 11.139.041, 11.139.506, AZK5401, AZK5545, IS9035, 5000822346, 5001000061, 1516707R, 1516711R

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0922 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S0922 fit my Man EL?

Man EL 6.9 Diesel (1994–1997) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S0922 replace Lucas LRS00922?

Lucas LRS00922 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S0922?

The listed details include 24V, 5.0kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S0922 new or remanufactured?

Check the current product condition selection for S0922. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S0922?

Compare 24V compatibility, 5.0kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
