S0923 24V 4.0kW Starter Motor Fits Compair H15C, Compair H21CP Shovel
Price range: £119.42 through £143.15
Identify a replacement starter motor using Sahibs S0923, listed at 24V 4.0kW. Listed applications include selected Compair H15C, Compair H21CP Shovel, Compair H23C, Iveco 110-13 models. Identification references include Lucas LRS00923, Bosch 1231028, Mahle 72736014. Its listed 24V 4.0kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0923 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 4 kW |
| Volt | 24 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 13.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0923 | Dyno Electrics |
| UD03384S | AS-PL |
| UD03442S | AS-PL |
| UD102924S | AS-PL |
| UD11312S | AS-PL |
| 1231028 | BOSCH |
| 1360003 | BOSCH |
| 1360012 | BOSCH |
| 1360035 | BOSCH |
| 1368001 | BOSCH |
| 1368007 | BOSCH |
| 110523 | CARGO |
| F032110523 | CARGO |
| E41565EX | CASE |
| 1516768R | DAF |
| 42522942 | FIAT |
| 8EA012586-441 | HELLA |
| 11.130.491 | ISKRA / LETRIKA |
| AZJ3132 | ISKRA / LETRIKA |
| IS0491 | ISKRA / LETRIKA |
| 42498135 | IVECO |
| 42522641 | IVECO |
| 42522653 | IVECO |
| 1170053 | KHD |
| 1173820 | KHD |
| 1180804 | KHD |
| 1182235 | KHD |
| 1302023 | KHD |
| 1161422 | KHD |
| 1164995 | KHD |
| 1172099 | KHD |
| 1173241 | KHD |
| 1173560 | KHD |
| 1180999 | KHD |
| 1183243 | KHD |
| 3046537 | KHD |
| 42488477 | KHD |
| B17R24X4 | KHD |
| B29R24X4H7622 | KHD |
| B7R24X4H7622 | KHD |
| 72736014 | MAHLE |
| MS386 | MAHLE |
| 22222006 | VOLVO |
| 6209190 | VOLVO |
| 881669 | VOLVO |
| PRSF231 | 3EFFE |
| ANM13490 | ANDEL |
| 5710903 | BOMAG |
| CST10611AS | CASCO |
| CST10611ES | CASCO |
| 8660 | CEVAM |
| 260-67200 | DIXIE |
| TS-6018 | DIXIE |
| 10460 | EFEL |
| STR1070 | ELECTROLOG |
| STR7828 | ELECTROLOG |
| STR7901 | ELECTROLOG |
| STR79045 | ELECTROLOG |
| STR7934 | ELECTROLOG |
| 45-0219 | ELSTOCK |
| 11580 | ERA |
| 1701065 | FAUN |
| SG0056 | GHIBAUDI |
| CS530 | HC PARTS |
| 42368001 | HERTH+BUSS |
| STB0530 | KRAUF |
| 10530 | KUHNER |
| 6107017 | LIEBHERR |
| 6200662 | LIEBHERR |
| 330682 | LOGISTIK |
| LRS00923 | LUCAS |
| LRS923 | LUCAS |
| 5110027 | MEAT & DORIA |
| 744648 | O&K |
| E0041565 | POCLAIN |
| PTC-4037 | POWER TRUCK |
| 88212370 | POWERMAX |
| 511.001.093.010 | PSH |
| 511.001.093.016 | PSH |
| 511.001.093.311 | PSH |
| 20401116BN | REAL |
| 20401116EL | REAL |
| STM1014 | ROLLCO |
| 6010611 | SANDO |
| 6010611.3 | SANDO |
| 1115490 | SNVI |
| 17073N | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| COMPAIR | H15C | 0ccm Diesel | 1974 - 1978 | ||||
| COMPAIR | H21CP Shovel | 0ccm Diesel | 1974 - 1978 | ||||
| COMPAIR | H23C | 0ccm Diesel | 1974 - 1978 | ||||
| IVECO | 110-13 | 6128ccm Diesel | KHD-BF6L913T | 1986 - 1991 | |||
| IVECO | 110-16 | 6128ccm Diesel | KHD-BF6L913 | 1986 - 1991 | |||
| IVECO | 120-13 | 6128ccm Diesel | KHD-BF6L913T | 1983 - 1990 | |||
| IVECO | 130-13 | 6128ccm Diesel | KHD-BF6L913T | 1986 - 1989 | |||
| IVECO | 130-16 | 6128ccm Diesel | KHD-BF6L913 | 1986 - 1991 | |||
| IVECO | 60-9A | 0ccm Diesel | KHD-BF4L913T | 1985 - 1988 | |||
| IVECO | 75-9A | 0ccm Diesel | KHD-BF4L913T | 1985 - 1989 | |||
| IVECO | 80-13A | 6128ccm Diesel | KHD-BF6L913T | 1986 - 1991 | |||
| IVECO | 80-16A | 6128ccm Diesel | KHD-BF6L913 | 1986 - 1991 | |||
| IVECO | 90-13A | 6128ccm Diesel | KHD-BF6L913T | 1986 - 1991 | |||
| IVECO | M 120 13 ANW | 6.1 (6128ccm) Diesel | BF6L913T | 77711115/77711215/77731112/77731212 | 1986 - 1993 | ||
| IVECO | M 120 17 ANW | 6.1 (6128ccm) Diesel | BF6L913 | 78811132/78811232 | 1986 - 1993 | ||
| IVECO | M 160 17 AN | 6.1 (6128ccm) Diesel | BF6L913 | 78911332 | 1983 - 1993 | ||
| IVECO | M 160 17 ANW | 6.1 (6128ccm) Diesel | BF6L913 | 78831332 | 1983 - 1993 | ||
| IVECO | MK 110.13A | 6.1 (6128ccm) Diesel | BF6L913T | 37251272/37251292/37251372/37251392/37251472/37251492/37251572/37251592 | 1986 - 1991 | ||
| IVECO | MK 110.16A | 6.1 (6128ccm) Diesel | BF6L913T | 37351272/37351292/37351372/37351392/37351472/37351492/37351572/37351592/37353172/37353192 | 1986 - 1991 | ||
| IVECO | MK 130 13AN | 6.1 (6128ccm) Diesel | F6L913 | 78711215/78711315 | 1986 - 1991 | ||
| IVECO | MK 130.13A | 6.1 (6128ccm) Diesel | BF6L913T | 37271272/37271292/37271372/37271392/37271472/37271492/37273172/37273192 | 1986 - 1991 | ||
| IVECO | MK 130.16A | 6.1 (6128ccm) Diesel | BF6L913T | 37372172/37372192 | 1986 - 1991 | ||
| IVECO | MK 130.16A | 6.1 (6128ccm) Diesel | BF6L913T | 37371272/37371292/37371372/37371392/37371472/37371492/37373172/37373192 | 1986 - 1991 | ||
| IVECO | MK 75 13 AWM | 6.1 (6128ccm) Diesel | F6L913 | 87111112/87111312 | 1986 - 1991 | ||
| IVECO | MK 80.13A | 6.1 (6128ccm) Diesel | BF6L913T | 37052152/37612112/37652132 | 1986 - 1991 | ||
| IVECO | MK 80.13A | 6.1 (6128ccm) Diesel | BF6L913T | 37031212/37051252/37051352/37051452/37053152/37611112/37611212/37611312/37611412/37611512/37613112/37651132/37651212/37651232/37651312/37651332/37651412/37651432/37651532/37653112/37653132 | 1986 - 1991 | ||
| IVECO | MK 80.13AW | 6.1 (6128ccm) Diesel | BF6L913T | 87211152/87211172 | 1986 - 1991 | ||
| IVECO | MK 80.16A | 6.1 (6128ccm) Diesel | BF6L913 | 37731212/37731312/37731412 | 1986 - 1991 | ||
| IVECO | MK 80.16A | 6.1 (6128ccm) Diesel | BF6L913 | 87231312 | 1986 - 1991 | ||
| IVECO | MK 80.16A | 6.1 (6128ccm) Diesel | BF6L913T | 37731232/37731332/37731432 | 1986 - 1991 | ||
| IVECO | MK 80.16A | 6.1 (6128ccm) Diesel | BF6L913T | 87231332 | 1986 - 1991 | ||
| IVECO | MK 90.13A | 6.1 (6128ccm) Diesel | BF6L913T | 37671212/37671232/37671312/37671332/37671412/37671432/37673112/37673132 | 1986 - 1991 | ||
| KHD ENGINES | BF6L912 | 0ccm Diesel | 1973 - | ||||
| KHD ENGINES | BF6L913 | 0ccm Diesel | 1973 - 1975 | ||||
| KHD ENGINES | F3L911 | 0ccm Diesel | 1973 - | ||||
| KHD ENGINES | F3L912 | 0ccm Diesel | 1973 - 1975 | ||||
| KHD ENGINES | F4L911 | 0ccm Diesel | 1973 - | ||||
| KHD ENGINES | F4L912 | 0ccm Diesel | 1973 - 1975 | ||||
| KHD ENGINES | F5L912 | 0ccm Diesel | 1973 - 1975 | ||||
| KHD ENGINES | F6L911 | 0ccm Diesel | 1973 - | ||||
| KHD ENGINES | F6L912 | 0ccm Diesel | 1973 - 1975 | ||||
| MAGIRUS-DEUTZ | M120 R80 | 0ccm Diesel | 5655ccm F6L912 | 1975 - 1979 | |||
| MAGIRUS-DEUTZ | M90 D5.2 | 0ccm Diesel | F4L913 | 1976 - 1982 | |||
| MAGIRUS-DEUTZ | M90 D5.6 | 0ccm Diesel | F4L913 | 1976 - 1982 | |||
| MAGIRUS-DEUTZ | M90 D6.5 | 0ccm Diesel | F4L913 | 1976 - 1982 | |||
| MAGIRUS-DEUTZ | M90 D7.5 | 0ccm Diesel | F4L913 | 1976 - 1982 | |||
| O & K | G 8 | 5655ccm Diesel | KHD-F6L912 | 1974 - 1987 | |||
| O & K | L 10 | 3770ccm Diesel | KHD-F4L912 | 1974 - 1986 | |||
| O & K | L 15 | 4712ccm Diesel | KHD-F5L912 | 1974 - 1986 | |||
| O & K | MH 4 | 3770ccm Diesel | KHD-F4L912 | 1976 - 1990 | |||
| O & K | MH 6 | 4712ccm Diesel | KHD-F5L912 | 1976 - 1990 | |||
| O & K | MH 6 | 5655ccm Diesel | KHD-F6L912 | 1976 - 1990 | |||
| O & K | RH 4 | 3770ccm Diesel | KHD-F4L912 | 1976 - 1990 | |||
| O & K | RH 6 | 4712ccm Diesel | KHD-F5L912 | 1976 - 1990 | |||
| O & K | RH 6 | 5655ccm Diesel | KHD-F6L912 | 1976 - 1990 | |||
| O & K | RH 9 | 5655ccm Diesel | KHD-F6L912 | 1973 - 1990 |
Description

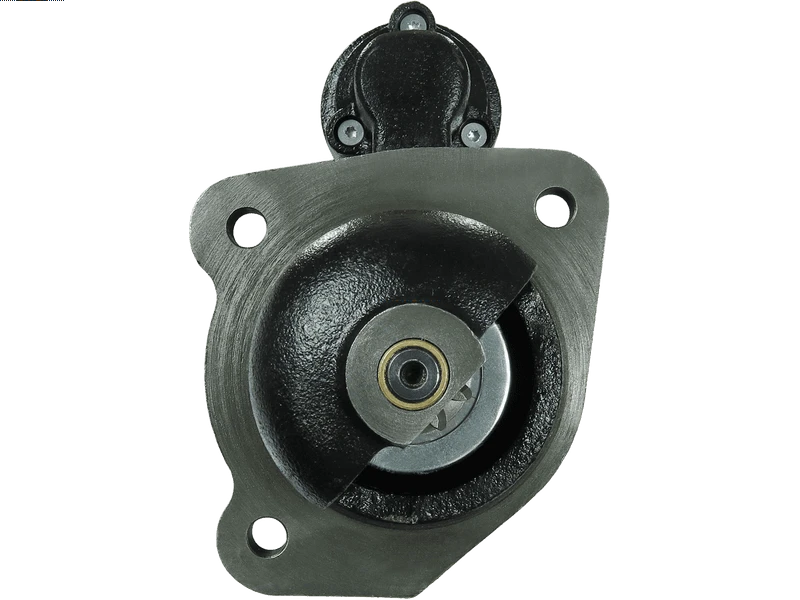

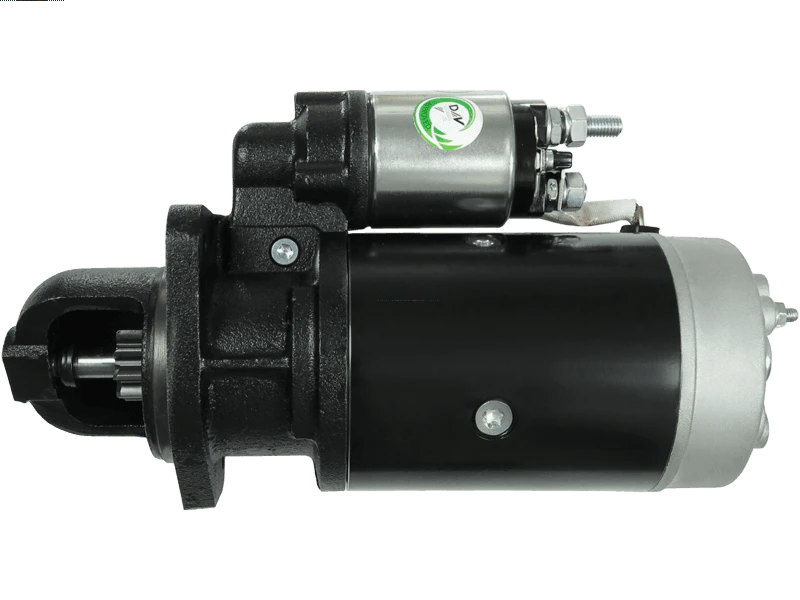

S0923 Replacement Starter Motor
Choose a replacement by comparing the S0923 starter motor and its Lucas reference, LRS00923, with your existing unit. The listed electrical rating is 24V 4.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Compair H15C variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 4.0kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Compair H15C – selected applications 1974–1978.
- Compair H21CP Shovel – selected applications 1974–1978.
- Compair H23C – selected applications 1974–1978.
- Iveco 110-13 6128ccm Diesel – selected applications 1986–1991 (engine code KHD-BF6L913T).
- Iveco 110-16 6128ccm Diesel – selected applications 1986–1991 (engine code KHD-BF6L913).
- Iveco 120-13 6128ccm Diesel – selected applications 1983–1990 (engine code KHD-BF6L913T).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0923. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1231028, 1360003, 1360012, 1360035, 1368001, 1368007, LRS00923, LRS923, 72736014, MS386, 11.130.491, AZJ3132, IS0491, 1516768R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0923 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0923 fit my Compair H15C?
Compair H15C (1974–1978) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0923 replace Lucas LRS00923?
Lucas LRS00923 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0923?
The listed details include 24V, 4.0kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0923 new or remanufactured?
Check the current product condition selection for S0923. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0923?
Compare 24V compatibility, 4.0kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
