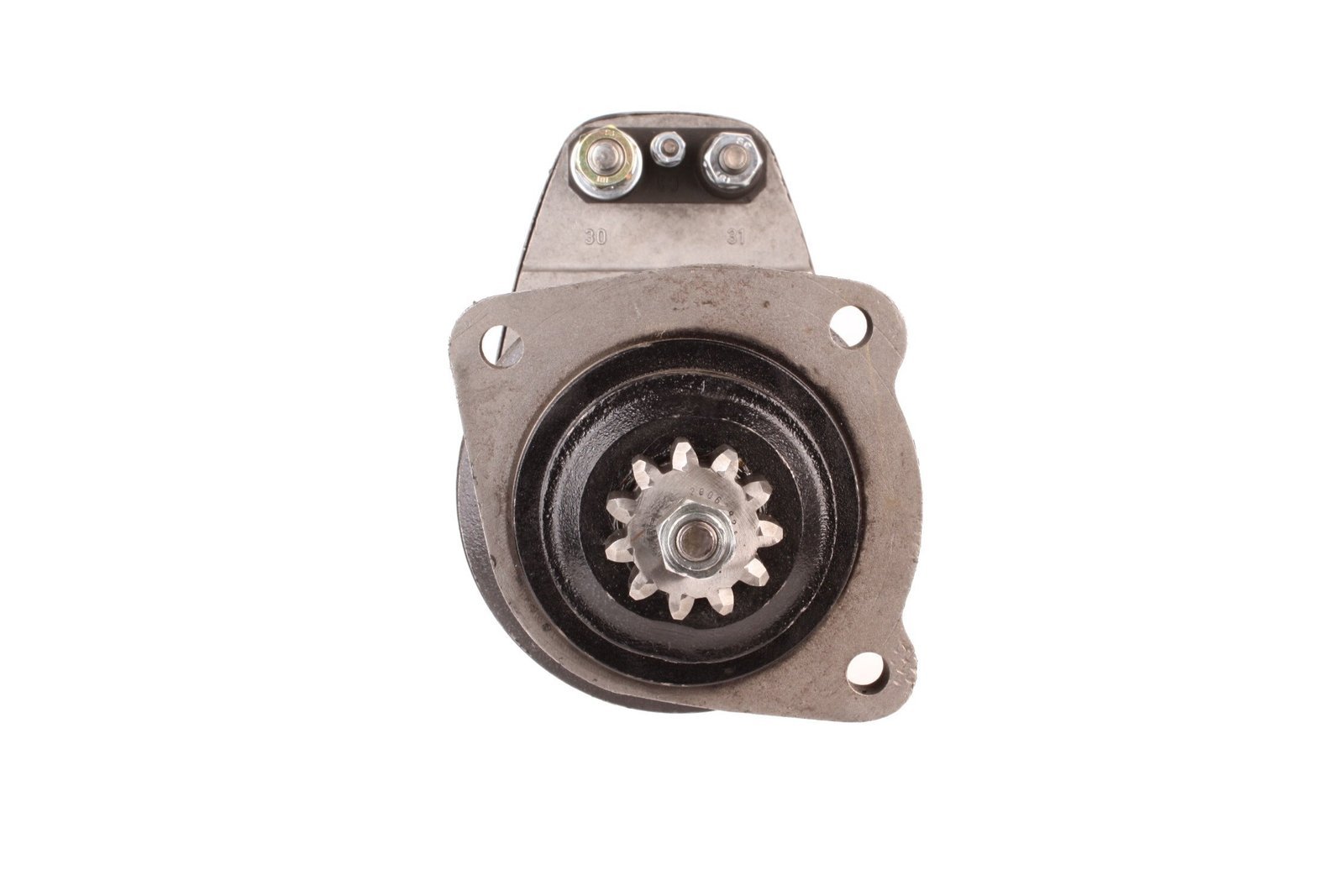

S0945 24V 5.4kW Starter Motor Fits Daf 2800, Daf 2800 ATi, Daf 2803
Price range: £191.16 through £232.60
Sahibs S0945 is a replacement starter motor with a listed 24V 5.4kW rating. Listed applications include selected DAF 2800, DAF 2800 ATi, DAF 2803, DAF 2805 models. Identification references include Lucas LRS00945, Bosch 1410067, Valeo 455526. Its listed 24V 5.4kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0945 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 5.4 kW |
| Volt | 24 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 16.17 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0945 | Dyno Electrics |
| 1410067 | Bosch |
| 1410090 | Bosch |
| 1416041 | Bosch |
| 1416043 | Bosch |
| 02393019R | DAF |
| 0293019R | DAF |
| 300582 | Cummins |
| 986011470 | Bosch Exchange |
| 986013900 | Bosch Exchange |
| 986014870 | Bosch Exchange |
| 110209 | HC-Cargo |
| 11139026 | Mahle |
| 11139511 | Mahle |
| 12130543 | AES |
| 14401B2420 | Komatsu |
| 16130543 | AES |
| 18223N | WAI |
| 19024159 | Delco Remy |
| 241707 | Scania |
| 241787 | DAF |
| 293019 | DAF |
| 455526 | Valeo |
| 455546 | Valeo |
| 72736085 | Mahle |
| 72736155 | Mahle |
| 72741794 | Mahle |
| 858883Z | Prestolite |
| 860546 | Prestolite |
| 860546GB | Prestolite |
| 860658 | Prestolite |
| 9000084008 | Bosch |
| 901203113 | PSH |
| 943252203 | Magneti Marelli |
| AZK5185 | Mahle |
| AZK5420 | Mahle |
| AZK5550 | Mahle |
| CS546 | HC-Parts |
| DRS4870 | Delco Remy |
| F032110209 | HC-Cargo |
| F042002109 | Bosch |
| F042S02109 | Bosch |
| IM322 | Delco Remy |
| IS9026 | Mahle |
| LRS00945 | Lucas |
| LRS945 | Lucas |
| MS457 | Mahle |
| MS707 | Mahle |
| MSR696 | Magneti Marelli |
| RNL410067 | RNL |
| STR22021 | Wood Auto |
| STR22041 | Wood Auto |
| STR23806 | Unipoint |
| WOOSTR22021 | Wood Auto |
| ZB2998009 | CAV |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DAF | 2800 | 0ccm Diesel | DK....1160/E | 1985 - 1991 | |||
| DAF | 2800 ATi | 0ccm Diesel | DKX-E1160 ATi | 1985 - 1991 | |||
| DAF | 2803 | 0ccm Diesel | DKS/DKTD1160 | 1985 - 1991 | |||
| DAF | 2805 | 0ccm Diesel | DK....1160/E | 1985 - 1991 | |||
| DAF | 2826 | 0ccm Diesel | DK....1160 | 1985 - 1991 | |||
| DAF | 3300 | 0ccm Diesel | DKV/DKX1160 | 1985 - 1991 | |||
| DAF | 3300 ATi | 0ccm Diesel | DKX1160 ATi | 1985 - 1991 | |||
| DAF | 3305 | 0ccm Diesel | DKX1160 | 1985 - 1991 | |||
| DAF | 3325 | 0ccm Diesel | DKX1160 | 1985 - 1991 | |||
| DAF | 3325 ATi | 0ccm Diesel | DKX1160 ATi | 1989 - 1991 | |||
| DAF | 3600 ATi | 0ccm Diesel | DKZ1160 ATi | 1985 - 1991 |
Description
S0945 Replacement Starter Motor
Choose a replacement by comparing the S0945 starter motor and its Lucas reference, LRS00945, with your existing unit. The listed electrical rating is 24V 5.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected DAF 2800 variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 5.4kW power: compare the listed rating with the original starter motor.
- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- DAF 2800 – selected applications 1985–1991 (engine code DK….1160/E).
- DAF 2800 ATi – selected applications 1985–1991 (engine code DKX-E1160 ATi).
- DAF 2803 – selected applications 1985–1991 (engine code DKS/DKTD1160).
- DAF 2805 – selected applications 1985–1991 (engine code DK….1160/E).
- DAF 2826 – selected applications 1985–1991 (engine code DK….1160).
- DAF 3300 – selected applications 1985–1991 (engine code DKV/DKX1160).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0945. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1410067, 1410090, 1416041, 1416043, 986011470, 986013900, 986014870, 9000084008, F042002109, F042S02109, 455526, 455546, LRS00945, LRS945, 19024159, DRS4870, IM322, 858883Z, 860546, 860546GB, 860658, 11139026, 11139511, 72736085, 72736155, 72741794, AZK5185, AZK5420, AZK5550, IS9026, MS457, MS707, 02393019R, 0293019R, 241787, 293019
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0945 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0945 fit my DAF 2800?
DAF 2800 (1985–1991) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0945 replace Lucas LRS00945?
Lucas LRS00945 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0945?
The listed details include 24V, 5.4kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0945 new or remanufactured?
Check the current product condition selection for S0945. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0945?
Compare 24V compatibility, 5.4kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
