S0959 24V 9.0kW Starter Motor Fits Magirus-Deutz M310 D16
Price range: £479.99 through £584.03
Compare the S0959 24V 9.0kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Magirus-Deutz M310 D16, Magirus-Deutz M310 D19 models. Identification references include Lucas LRS00959, Bosch 1510014, Delco Remy DRS1590. Its listed 24V 9.0kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0959 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 9 kW |
| Volt | 24 V |
| Plug | M12 |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 29.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0959 | Dyno Electrics |
| S0162 | AS-PL |
| 1510014 | BOSCH |
| 1510017 | BOSCH |
| 986011590 | BOSCH |
| K41593 | CASE |
| DRS1590 | DELCO |
| 11.130.287 | ISKRA / LETRIKA |
| 42522861 | IVECO |
| 1163556 | KHD |
| 1179061 | KHD |
| 3040116 | KHD |
| 3045094 | KHD |
| MSR744 | MAGNETI MARELLI |
| 861043 | PRESTOLITE |
| STRL792 | 3EFFE |
| CGB-91590 | AINDE |
| CST10678AS | CASCO |
| CST10678ES | CASCO |
| STR1111 | ELECTROLOG |
| 45-0211 | ELSTOCK |
| 220279 | ERA |
| 1701051 | FAUN |
| 254235 | KUHNER |
| 6290033 | LIEBHERR |
| 6290069 | LIEBHERR |
| 332079 | LOGISTIK |
| LRS00959 | LUCAS |
| LRS959 | LUCAS |
| 20401876BN | REAL |
| 20401876EL | REAL |
| 6010678 | SANDO |
| MAV126780 | SIOM |
| 1171204 | SNVI |
| STR50274 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MAGIRUS-DEUTZ | M310 D16 | 0ccm Diesel | F10L413 | 1975 - 1982 | |||
| MAGIRUS-DEUTZ | M310 D19 | 0ccm Diesel | F10L413 | 1975 - 1982 |
Description
S0959 Replacement Starter Motor
Start your S0959 starter motor comparison with the linked Lucas reference LRS00959 and the specifications shown on this page. The listed electrical rating is 24V 9.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Magirus-Deutz M310 D16 variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 9.0kW power: compare the listed rating with the original starter motor.

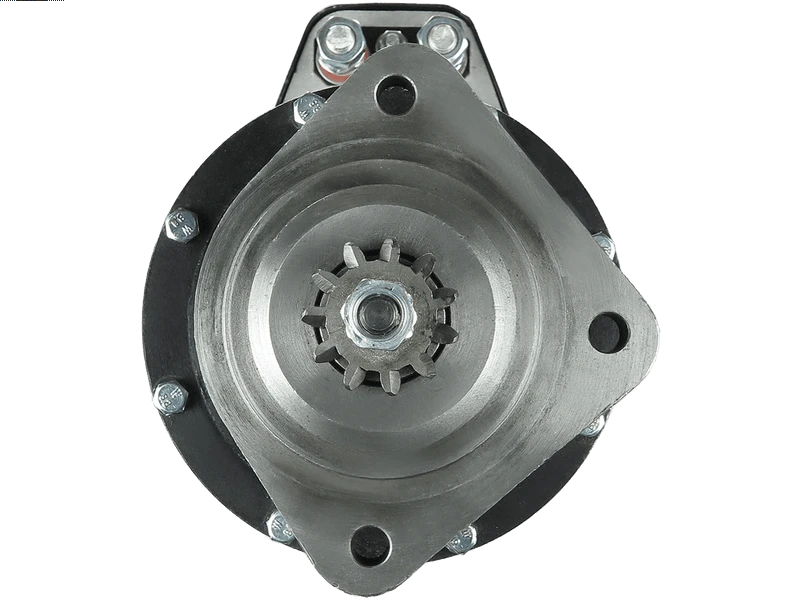

- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M12 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Magirus-Deutz M310 D16 – selected applications 1975–1982 (engine code F10L413).
- Magirus-Deutz M310 D19 – selected applications 1975–1982 (engine code F10L413).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0959. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1510014, 1510017, 986011590, LRS00959, LRS959, DRS1590, 861043, 11.130.287
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0959 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0959 fit my Magirus-Deutz M310 D16?
Magirus-Deutz M310 D16 (1975–1982) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0959 replace Lucas LRS00959?
Lucas LRS00959 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0959?
The listed details include 24V, 9.0kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0959 new or remanufactured?
Check the current product condition selection for S0959. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0959?
Compare 24V compatibility, 9.0kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
