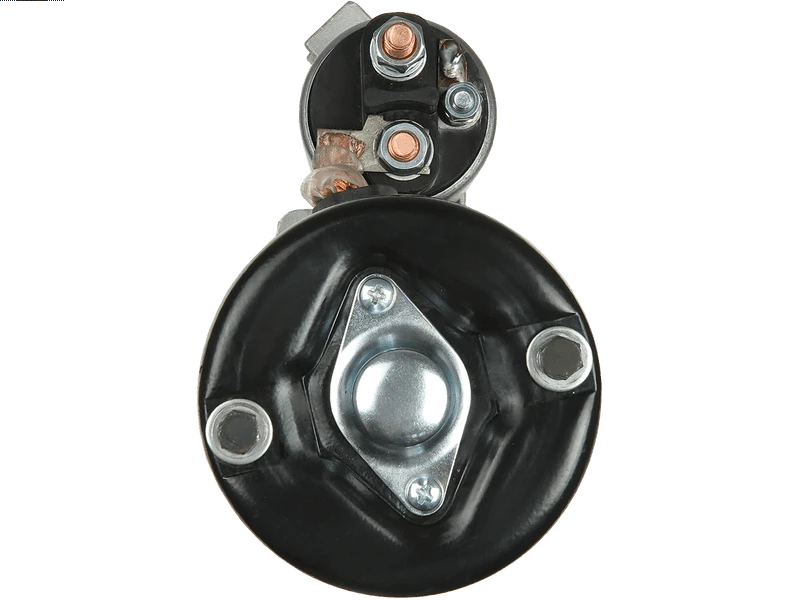

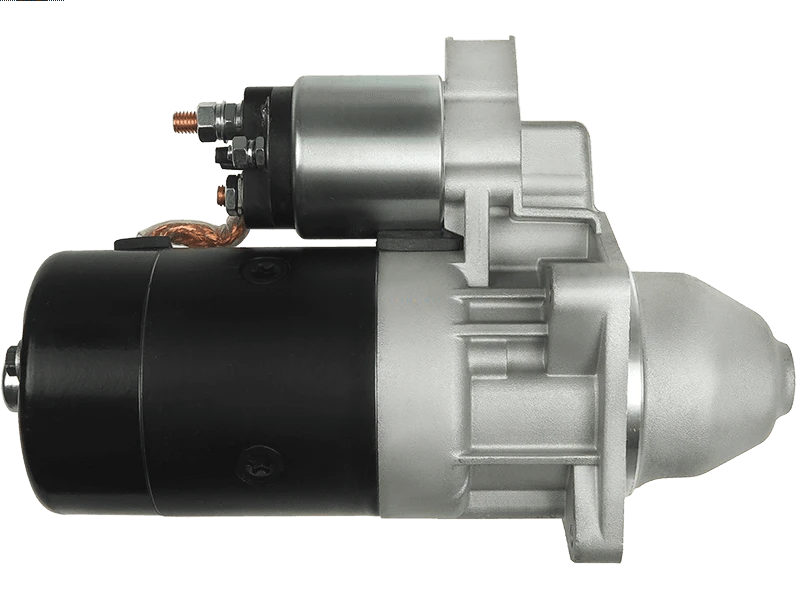

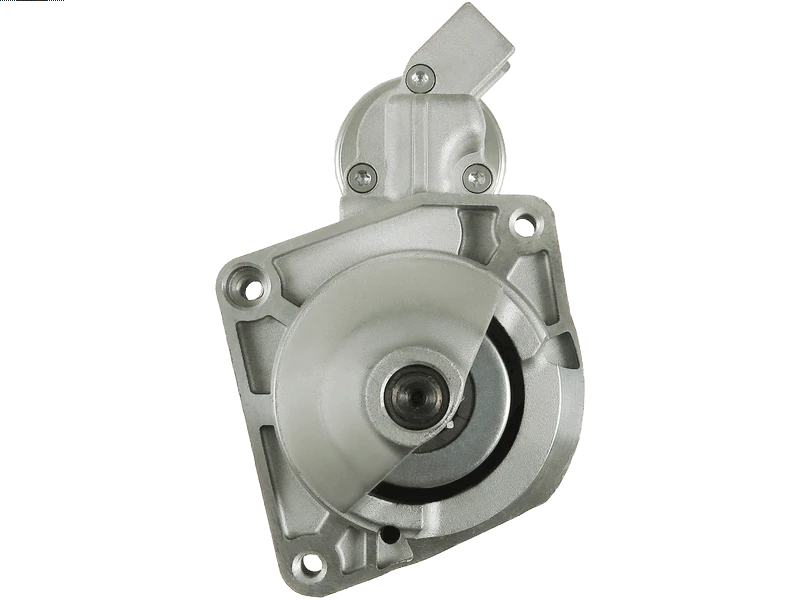

S0970 12V 2.2kW Starter Motor Fits Fiat Regata, Fiat Tempra
Price range: £137.44 through £160.19
Identify a replacement starter motor using Sahibs S0970, listed at 12V 2.2kW. Listed applications include selected Fiat Regata, Fiat Regata S.W./Weekend, Fiat Tempra, Fiat Tempra S.W./Weekend models. Identification references include Lucas LRS00970, Bosch 1218120, Delco Remy DRS5910. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0970 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.98 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0970 | Dyno Electrics |
| 1218120 | BOSCH |
| 1218133 | BOSCH |
| DRS5910 | DELCO |
| 7565057 | FIAT |
| 7642260 | FIAT |
| 7642261 | FIAT |
| 76422610 | FIAT |
| 7658554 | FIAT |
| 7680619 | FIAT |
| 7716767 | FIAT |
| 7716769 | FIAT |
| 7731823 | FIAT |
| 63222038 | MAGNETI MARELLI |
| STRS004 | 3EFFE |
| ANM18130X | ANDEL |
| AES9170 | AUTOELECTRO |
| CST10111AS | CASCO |
| CST10111RS | CASCO |
| STR1992 | ELECTROLOG |
| 25-1447 | ELSTOCK |
| 220043 | ERA |
| 10709 | KUHNER |
| 10709R | KUHNER |
| 330861 | LOGISTIK |
| LRS00970 | LUCAS |
| LRS970 | LUCAS |
| 20401111BN | REAL |
| 20401111RC | REAL |
| 6010111 | SANDO |
| 6010111.2 | SANDO |
| MAV2160 | SIOM |
| MAV3250 | SIOM |
| SS186 | SOVEREIGN |
| STX200374 | STARDAX |
| STX200374R | STARDAX |
| STX200521 | STARDAX |
| UNIT BOM 120-344 | WAI / TRANSPO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S0664 | Without thread in mountig holes | No | |
| S2075 | Connection 50: Plug | Connection 50: M6 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Regata | 1.9 (1929ccm) Diesel | 831D1000 | 138A | 1988 - 1989 | ||
| FIAT | Regata S.W./Weekend | 1.9 (1929ccm) Diesel | 831D1000 | 138A | 1988 - 1989 | ||
| FIAT | Tempra | 1.9 (1929ccm) Diesel | 160A6000/160D1000 | 159AI/159AU/159BI | 1990 - 1993 | ||
| FIAT | Tempra | 1.9 (1929ccm) Diesel | 160B6046 | 159A | 1992 - 1993 | ||
| FIAT | Tempra S.W./Weekend | 1.9 (1929ccm) Diesel | 160A6000/160D1000 | 159AI/159BI/159CU | 1990 - 1993 | ||
| FIAT | Tempra S.W./Weekend | 1.9 (1929ccm) Diesel | 160B6046 | 159A | 1992 - 1993 | ||
| FIAT | Tipo | 1.9 (1929ccm) Diesel | 160A6000/160D1000 | 160AH/160AQ/160EI/160EL/160GL | 1988 - 1991 | ||
| LANCIA | Dedra | 1.9 (1929ccm) Diesel | 160D1000/835A4000 | 835AG/835AS/835EE/835EF | 1989 - 1992 | ||
| LANCIA | Delta | 1.9 (1929ccm) Diesel | 831D1000 | 831AB | 1989 - 1989 | ||
| LANCIA | Prisma | 1.9 (1929ccm) Diesel | 831D0000 | 831AB | 1989 - 1989 | ||
| LANCIA | Prisma | 1.9 (1929ccm) Diesel | 149A100/831D1000 | 831AB | 1989 - 1989 |
Description
S0970 Replacement Starter Motor
The S0970 starter motor is a replacement unit identified by Lucas reference LRS00970. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Fiat Regata 1.9 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Regata 1.9 Diesel – selected applications 1988–1989 (engine code 831D1000).
- Fiat Regata S.W./Weekend 1.9 Diesel – selected applications 1988–1989 (engine code 831D1000).
- Fiat Tempra 1.9 Diesel – selected applications 1990–1993 (engine code 160A6000/160D1000).
- Fiat Tempra S.W./Weekend 1.9 Diesel – selected applications 1990–1993 (engine code 160A6000/160D1000).
- Fiat Tipo 1.9 Diesel – selected applications 1988–1991 (engine code 160A6000/160D1000).
- Lancia Dedra 1.9 Diesel – selected applications 1989–1992 (engine code 160D1000/835A4000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0970. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1218120, 1218133, LRS00970, LRS970, DRS5910
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0970 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0970 fit my Fiat Regata?
Fiat Regata 1.9 Diesel (1988–1989) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0970 replace Lucas LRS00970?
Lucas LRS00970 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0970?
The listed details include 12V, 2.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0970 new or remanufactured?
Check the current product condition selection for S0970. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0970?
Compare 12V compatibility, 2.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
