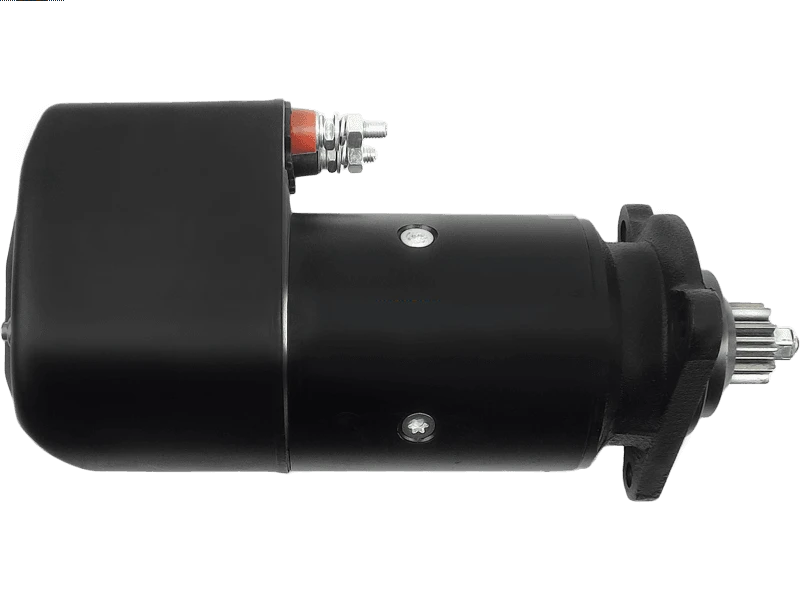

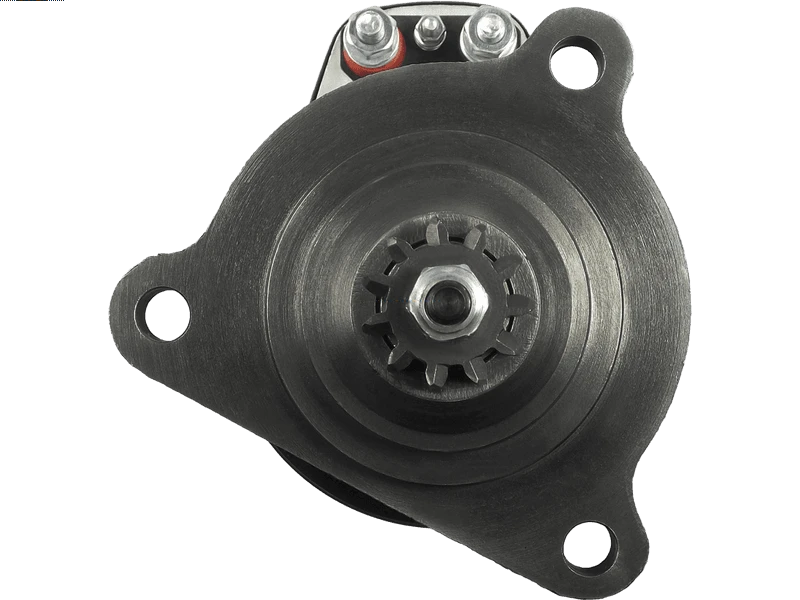

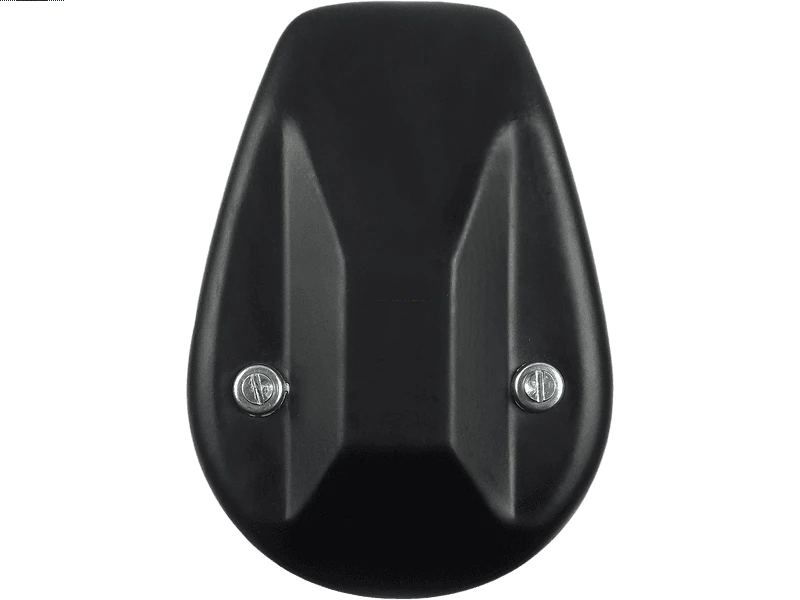

S0986 24V 5.4kW Starter Motor Fits Iveco 165-24, Iveco 180-24
Price range: £185.55 through £225.77
Identify a replacement starter motor using Sahibs S0986, listed at 24V 5.4kW. Listed applications include selected Iveco 165-24, Iveco 180-24, Iveco 190-24, Iveco 370-10.24 models. Identification references include Lucas LRS00986, Bosch 1415017, Valeo 455522. Its listed 24V 5.4kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0986 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 5.4 kW |
| Volt | 24 V |
| Plug | M10 |
| Teeth | 11 qty |
| Oil Sealed | Yes |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 16.7 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0986 | Dyno Electrics |
| S0221 | AS-PL |
| UD102942S | AS-PL |
| 1415017 | BOSCH |
| 1416011 | BOSCH |
| 1416052 | BOSCH |
| 986013420 | BOSCH |
| 986018420 | BOSCH |
| 110582 | CARGO |
| F032110582 | CARGO |
| 1516763R | DAF |
| DRS3420 | DELCO |
| DRS8420 | DELCO |
| R20K1 | ELMOT |
| 4784445 | FIAT |
| 4784745 | FIAT |
| 4784747 | FIAT |
| 61583669 | FIAT |
| 8EA726150-001 | HELLA |
| 2995116 | IVECO |
| 2997384 | IVECO |
| 42498148 | IVECO |
| 42498619 | IVECO |
| 611466642 | IVECO |
| 860516GB | PRESTOLITE |
| 455522 | VALEO |
| PRSL316 | 3EFFE |
| STRL316 | 3EFFE |
| CGB-11552 | AINDE |
| ANM15640X | ANDEL |
| AES9186 | AUTOELECTRO |
| IM511 | AVF |
| CST10622AS | CASCO |
| CST10622ES | CASCO |
| CST10622RS | CASCO |
| CST10634AS | CASCO |
| CST10634ES | CASCO |
| CST10634GS | CASCO |
| CST10634RS | CASCO |
| 8704 | CEVAM |
| 33532 | EAI |
| 10825 | EFEL |
| 22608 | EFEL |
| STR1644 | ELECTROLOG |
| 45-1368 | ELSTOCK |
| 45-2459 | ELSTOCK |
| 220022 | ERA |
| 220220 | ERA |
| 8813420 | FRIESEN |
| CS502 | HC PARTS |
| 10502 | KUHNER |
| 10502P | KUHNER |
| 28.0502 | LAUBER |
| LRS00986 | LUCAS |
| LRS986 | LUCAS |
| 5110042 | MEAT & DORIA |
| 81466052 | MONARK |
| PTC-4040 | POWER TRUCK |
| 88212396 | POWERMAX |
| 20401226BN | REAL |
| 20401226EL | REAL |
| 20401436BN | REAL |
| 20401436EL | REAL |
| 20401436RC | REAL |
| 6010622 | SANDO |
| 6010634 | SANDO |
| S24BH0039A2 | SIDAT |
| S24BH0040A2 | SIDAT |
| MAV126340 | SIOM |
| MAV1306 | SIOM |
| MAV2070 | SIOM |
| 19784N | WAI / TRANSPO |
| STR22057 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| IVECO | 165-24 | 0ccm Diesel | 8220.22.002.... | 1982 - 1986 | |||
| IVECO | 180-24 | 0ccm Diesel | 8220.22.102 | 1982 - 1986 | |||
| IVECO | 190-24 | 0ccm Diesel | 8220.22.102 | 1982 - 1986 | |||
| IVECO | 370-10.24 | 0ccm Diesel | 8220.22.70.. | 1983 - 1986 | |||
| IVECO | 370-12.24 | 0ccm Diesel | 8220.22.709 | 1983 - 1986 | |||
| IVECO | 370-S24 | 0ccm Diesel | 8460.21.7… | 1987 - 1998 | |||
| IVECO | EuroTech 190E34 | 9500ccm Diesel | 8460.41K.406 | 1992 - 2000 | |||
| IVECO | TurboTech 190-24 | 9500ccm Diesel | 8460.21.202.. | 1988 - 1998 | |||
| IVECO | TurboTech 190-26 | 9500ccm Diesel | 8460.21.102.. | 1986 - 1994 | |||
| IVECO | TurboTech 190-32 | 9500ccm Diesel | 8460.41.102 | 1988 - 1998 | |||
| IVECO | TurboTech 220-32 | 9500ccm Diesel | 8460.41.102 | 1989 - 1999 | |||
| IVECO | TurboTech 240-26 | 9500ccm Diesel | 8460.21.102 | 1990 - 2000 | |||
| IVECO | TurboTech 240-32 | 9500ccm Diesel | 8460.41.102 | 1989 - 1998 | |||
| IVECO | TurboTech 260-32 | 9500ccm Diesel | 8460.41.124 | 1990 - 2000 |
Description
S0986 Replacement Starter Motor
For a S0986 starter motor enquiry, use Lucas reference LRS00986 alongside the vehicle and original unit details. The listed electrical rating is 24V 5.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Iveco 165-24 variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 5.4kW power: compare the listed rating with the original starter motor.
- 11-tooth pinion: compare gear engagement and pinion position.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Iveco 165-24 – selected applications 1982–1986 (engine code 8220.22.002….).
- Iveco 180-24 – selected applications 1982–1986 (engine code 8220.22.102).
- Iveco 190-24 – selected applications 1982–1986 (engine code 8220.22.102).
- Iveco 370-10.24 – selected applications 1983–1986 (engine code 8220.22.70..).
- Iveco 370-12.24 – selected applications 1983–1986 (engine code 8220.22.709).
- Iveco 370-S24 – selected applications 1987–1998 (engine code 8460.21.7…).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0986. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1415017, 1416011, 1416052, 986013420, 986018420, 455522, LRS00986, LRS986, DRS3420, DRS8420, 860516GB, 1516763R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0986 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0986 fit my Iveco 165-24?
Iveco 165-24 (1982–1986) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0986 replace Lucas LRS00986?
Lucas LRS00986 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0986?
The listed details include 24V, 5.4kW power, 11 pinion teeth. Compare the complete specifications on this page with the unit being replaced.
Is S0986 new or remanufactured?
Check the current product condition selection for S0986. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0986?
Compare 24V compatibility, 5.4kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
