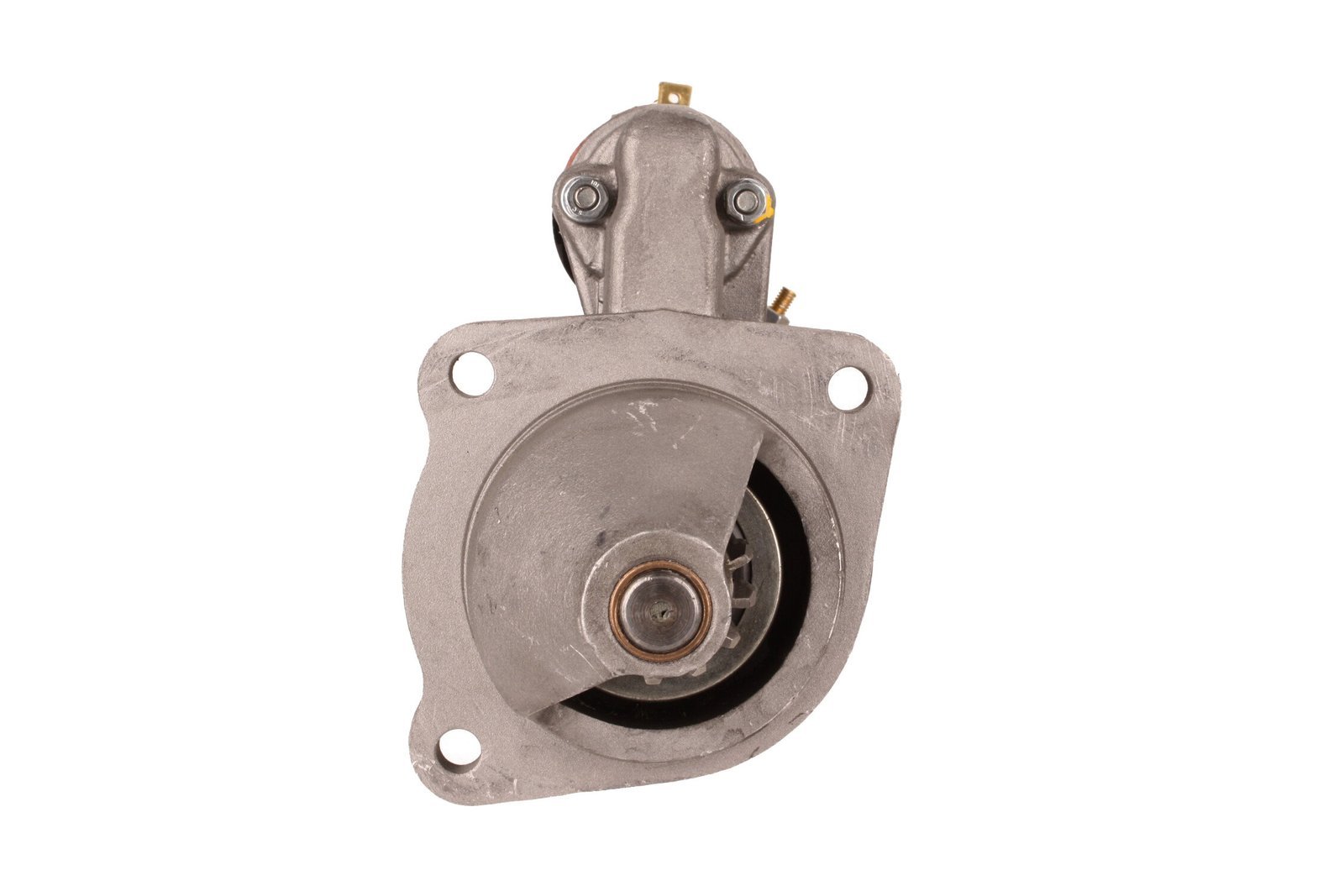

S1001 12V 2.1kW Starter Motor Fits Dronningborg D950
Price range: £156.91 through £188.09
Identify a replacement starter motor using Sahibs S1001, listed at 12V 2.1kW. Listed applications include selected Dronningborg D950 models. Identification references include Lucas LRS01001, Denso 4280027477, Delco Remy DRS0535. Its listed 12V 2.1kW rating provides an electrical matching point for your existing unit. Check the 13-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1001 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.1 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 13 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 10.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1001 | Dyno Electrics |
| 114730 | HC-Cargo |
| 26275 | Lucas |
| 26275E | Lucas |
| 26275H | Lucas |
| 26275J | Lucas |
| 26275K | Lucas |
| 27412 | Lucas |
| 27412A | Lucas |
| 27412B | Lucas |
| 27412C | Lucas |
| 27412D | Lucas |
| 27412E | Lucas |
| 27477 | Lucas |
| 27477A | Lucas |
| 27485 | Lucas |
| 27490 | Lucas |
| 2873188 | Perkins |
| 2873A013 | Perkins |
| 2873A020 | Perkins |
| 2873A101 | Perkins |
| 2873A106 | Perkins |
| 4280027477 | Denso |
| 4280274900 | Denso |
| 4917928M91 | Hanomag |
| 63227412 | Magneti Marelli |
| 63227482 | Magneti Marelli |
| 63227485 | Magneti Marelli |
| 63227485010 | Magneti Marelli |
| 63227490 | Magneti Marelli |
| 63227490010 | Magneti Marelli |
| 700017133 | PSH |
| 91178875 | Wilson |
| DRS0535 | Delco Remy |
| F032114730 | HC-Cargo |
| LES0210 | Lucas |
| LRS01001 | Lucas |
| LRS1001 | Lucas |
| MSN176 | Magneti Marelli |
| STR52033 | Wood Auto |
| STR56063 | Wood Auto |
| TS4038 | Dixie |
| WOOSTR52033 | Wood Auto |
| WOOSTR56063 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DRONNINGBORG | D950 | 2524ccm Diesel | Perkins 4.154 | 1976 - 1979 |
Description
S1001 Replacement Starter Motor
Start your S1001 starter motor comparison with the linked Lucas reference LRS01001 and the specifications shown on this page. The listed electrical rating is 12V 2.1kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Dronningborg D950 2524ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.1kW power: compare the listed rating with the original starter motor.
- 13-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Dronningborg D950 2524ccm Diesel – selected applications 1976–1979 (engine code Perkins 4.154).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1001. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
4280027477, 4280274900, LRS01001, 26275, 26275E, 26275H, 26275J, 26275K, 27412, 27412A, 27412B, 27412C, 27412D, 27412E, 27477, 27477A, 27485, 27490, LES0210, LRS1001, DRS0535, 2873188, 2873A013, 2873A020, 2873A101, 2873A106
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1001 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1001 fit my Dronningborg D950?
Dronningborg D950 2524ccm Diesel (1976–1979) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1001 replace Lucas LRS01001?
Lucas LRS01001 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1001?
The listed details include 12V, 2.1kW power, 13 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1001 new or remanufactured?
Check the current product condition selection for S1001. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1001?
Compare 12V compatibility, 2.1kW power, 13 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
