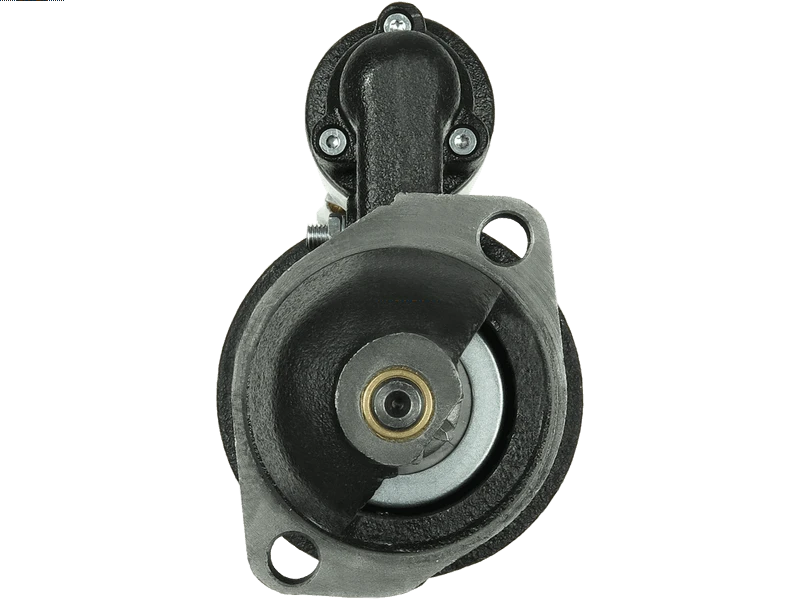

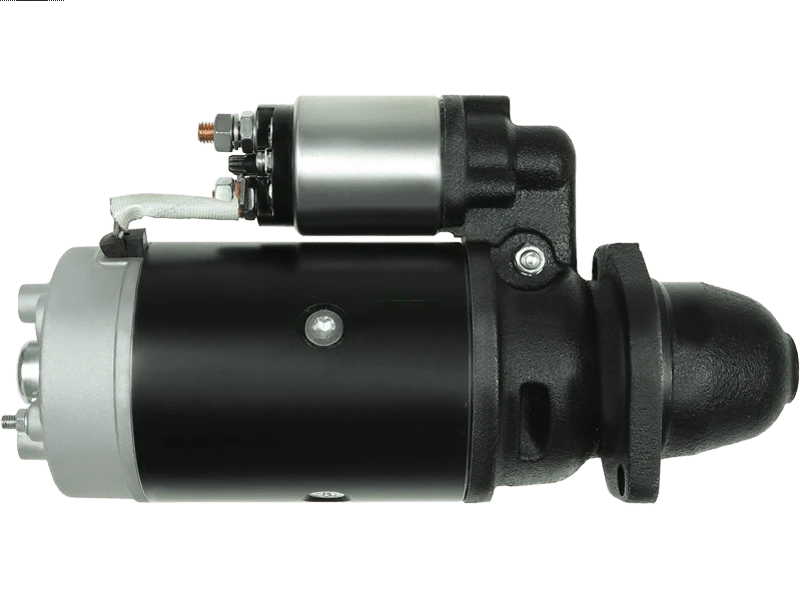

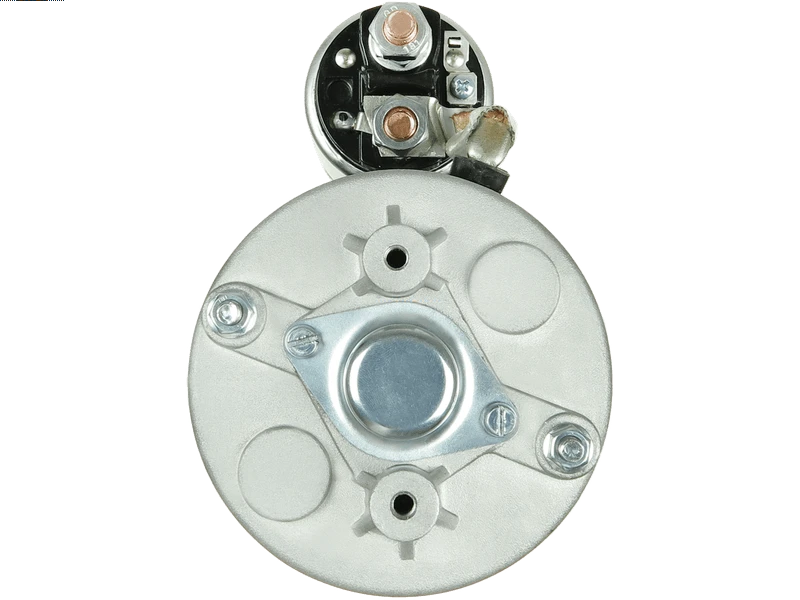

S1053 12V 3.0kW Starter Motor Fits Hürlimann HÜRLIMANN
Price range: £115.35 through £137.13
The S1053 12V 3.0kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected HÜRlimann HÜRLIMANN, Lamborghini Tractor R1065, Lamborghini Tractor R1106, Lamborghini Tractor R1306 models. Identification references include Lucas LRS01053, Bosch 1230012, Delco Remy 19024250. Its listed 12V 3.0kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1053 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 3 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 13.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1053 | Dyno Electrics |
| S0113 | AS-PL |
| 1230012 | BOSCH |
| 1359113 | BOSCH |
| 1367005 | BOSCH |
| 111001 | CARGO |
| F032111001 | CARGO |
| 1516803R | DAF |
| 19024250 | DELCO |
| DRS3326 | DELCO |
| DS4436 | DELCO |
| 11.130.898 | ISKRA / LETRIKA |
| AZF4220 | ISKRA / LETRIKA |
| AZJ3320 | ISKRA / LETRIKA |
| AZJ3557 | ISKRA / LETRIKA |
| IS0254 | ISKRA / LETRIKA |
| MT68R | MAGNETI MARELLI |
| MT68RA | MAGNETI MARELLI |
| 72735982 | MAHLE |
| MS354 | MAHLE |
| 5000589041 | RENAULT |
| 7701019038 | RENAULT |
| CST10236AS | CASCO |
| CST10236ES | CASCO |
| CST10236GS | CASCO |
| 8693 | CEVAM |
| 260-67116 | DIXIE |
| TS-6094 | DIXIE |
| 33906 | EAI |
| STR10226 | ELECTROLOG |
| STR7919 | ELECTROLOG |
| 25-0275 | ELSTOCK |
| 220281 | ERA |
| SG0046 | GHIBAUDI |
| CS718 | HC PARTS |
| STB0718 | KRAUF |
| 10718 | KUHNER |
| 10718B | KUHNER |
| 330870 | LOGISTIK |
| 332130 | LOGISTIK |
| LRS01053 | LUCAS |
| LRS1053 | LUCAS |
| 88212850 | POWERMAX |
| 760.001.092.010 | PSH |
| 20401632BN | REAL |
| 20401632EL | REAL |
| 20401632OE | REAL |
| STM1115 | ROLLCO |
| 296192300 | SAME |
| 296192900 | SAME |
| 29619390 | SAME |
| 296193900 | SAME |
| 296195600 | SAME |
| 299392950 | SAME |
| 6010236 | SANDO |
| 6010236.1 | SANDO |
| 6010236.3 | SANDO |
| S12BH0493A2 | SIDAT |
| MAV122360 | SIOM |
| 30800090001 | STEYR |
| 30800090017 | STEYR |
| 61100090002 | STEYR |
| 19666N | WAI / TRANSPO |
| 91-15-7060 | WILSON |
| STR50157 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| HÜRLIMANN | HÜRLIMANN | 0ccm Diesel | 1000.4W | 1986 - 2001 | |||
| LAMBORGHINI TRACTOR | R1065 | 0ccm Diesel | 1977 - | ||||
| LAMBORGHINI TRACTOR | R1106 | 0ccm Diesel | 916.6W | 1985 - 1991 | |||
| LAMBORGHINI TRACTOR | R1306 | 0ccm Diesel | 916.6WT | 1985 - 1991 | |||
| LAMBORGHINI TRACTOR | R1506 | 0ccm Diesel | 1985 - 1992 | ||||
| LAMBORGHINI TRACTOR | R1706 | 0ccm Diesel | 1988 - 1991 | ||||
| SAME | Antares 110 | 0ccm Diesel | 1000.6A | 1989 - 1994 | |||
| SAME | Antares 130 | 0ccm Diesel | 1000.6AT | 1989 - 1994 | |||
| SAME | Antares 150 | 0ccm Diesel | 1989 - 1994 | ||||
| SAME | Dorado 70 | 0ccm Diesel | 1000.4A | 1996 - 1998 | |||
| SAME | Explorer II 70 | 0ccm Diesel | |||||
| SAME | Explorer II 80 | 0ccm Diesel | |||||
| SAME | Explorer II 90 | 0ccm Diesel | |||||
| SAME | Galaxy 170 | 0ccm Diesel | 105.6 PTI | 1983 - 1991 | |||
| SAME | Laser 110 | 0ccm Diesel | 100.6P | ||||
| SAME | Laser 130 | 0ccm Diesel | 105.6P | ||||
| SAME | Laser 150 | 0ccm Diesel | 105.6PS | ||||
| SAME | Silver 100.4 | 0ccm Diesel | 1000.4ATL | 1995 - 1998 | |||
| SAME | Silver 100.6 | 0ccm Diesel | 1000.6AI | 1995 - | |||
| SAME | Silver 80 | 0ccm Diesel | 1000.4A4 | 1995 - | |||
| SAME | Silver 90 | 0ccm Diesel | 1000.4AT | 1995 - | |||
| STEYR TRACTOR | 8130 | 0ccm Diesel | WD611 | 1984 - |
Description
S1053 Replacement Starter Motor
For a S1053 starter motor enquiry, use Lucas reference LRS01053 alongside the vehicle and original unit details. The listed electrical rating is 12V 3.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected HÜRlimann HÜRLIMANN variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 3.0kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- HÜRlimann HÜRLIMANN – selected applications 1986–2001 (engine code 1000.4W).
- Lamborghini Tractor R1065 – selected applications 1977 -.
- Lamborghini Tractor R1106 – selected applications 1985–1991 (engine code 916.6W).
- Lamborghini Tractor R1306 – selected applications 1985–1991 (engine code 916.6WT).
- Lamborghini Tractor R1506 – selected applications 1985–1992.
- Lamborghini Tractor R1706 – selected applications 1988–1991.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1053. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1230012, 1359113, 1367005, LRS01053, LRS1053, 19024250, DRS3326, DS4436, 72735982, MS354, 11.130.898, AZF4220, AZJ3320, AZJ3557, IS0254, 5000589041, 7701019038, 1516803R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1053 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1053 fit my HÜRlimann HÜRLIMANN?
HÜRlimann HÜRLIMANN (1986–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1053 replace Lucas LRS01053?
Lucas LRS01053 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1053?
The listed details include 12V, 3.0kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1053 new or remanufactured?
Check the current product condition selection for S1053. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1053?
Compare 12V compatibility, 3.0kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
