S1060 12V 3.0kW Starter Motor Fits Mercedes Tractor 1300
Price range: £136.70 through £161.31
Compare the S1060 12V 3.0kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Mercedes Tractor 1300, Mercedes Truck Unimog U1100, Mercedes Truck Unimog U1100T, Mercedes Truck Unimog U800 models. Identification references include Lucas LRS01060, Bosch 1359111, Delco Remy 19024218. Its listed 12V 3.0kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1060 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 3 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 14.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1060 | Dyno Electrics |
| UD16590S | AS-PL |
| 1359111 | BOSCH |
| 1367039 | BOSCH |
| 986011250 | BOSCH |
| 19024218 | DELCO |
| DRS1250 | DELCO |
| DS2360 | DELCO |
| 8EA730-175-001 | HELLA |
| 11.130.751 | ISKRA / LETRIKA |
| AZJ3269 | ISKRA / LETRIKA |
| IS0751 | ISKRA / LETRIKA |
| 12270774 | KHD |
| 943252283 | MAGNETI MARELLI |
| 9.43252E+11 | MAGNETI MARELLI |
| MSR741 | MAGNETI MARELLI |
| 72735908 | MAHLE |
| MS 280 | MAHLE |
| 21515701 | MERCEDES |
| 2151570180 | MERCEDES |
| 31511401 | MERCEDES |
| 3151140180 | MERCEDES |
| 3431517001 | MERCEDES |
| A0021515701 | MERCEDES |
| A002151570180 | MERCEDES |
| A0031511401 | MERCEDES |
| A003151140180 | MERCEDES |
| A3431517001 | MERCEDES |
| 8010201 | ZM |
| ZM8010201 | ZM |
| STRL837 | 3EFFE |
| ANM13470X | ANDEL |
| CST10306 | CASCO |
| CST10306AS | CASCO |
| CST10306ES | CASCO |
| CST10306GS | CASCO |
| CST10306OS | CASCO |
| CST10306RS | CASCO |
| 8697 | CEVAM |
| 260-67135 | DIXIE |
| STR1192 | ELECTROLOG |
| STR79059 | ELECTROLOG |
| 25-0294 | ELSTOCK |
| 220252 | ERA |
| 37540 | ERA |
| CS605 | HC PARTS |
| STB0235 | KRAUF |
| 10605 | KUHNER |
| 10718 | KUHNER |
| 10718B | KUHNER |
| LRS01060 | LUCAS |
| LRS1060 | LUCAS |
| 550.011.093 | PSH |
| 20401603 | REAL |
| 120-30248 | ROBERT'S |
| STM1265 | ROLLCO |
| 296190900 | SAME |
| 6010306 | SANDO |
| MAV123060 | SIOM |
| UNIT BOM 120-6053A | WAI / TRANSPO |
| MAHMS280 | WOODAUTO |
| STR50158 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MERCEDES TRACTOR | 1300 | 0ccm Diesel | OM353.957 | 1976 - 1987 | |||
| MERCEDES TRUCK | Unimog U1100 | 0ccm Diesel | OM353.940 | 1987 - 1988 | |||
| MERCEDES TRUCK | Unimog U1100T | 0ccm Diesel | OM353.940 | 1989 - 2001 | |||
| MERCEDES TRUCK | Unimog U800 | 0ccm Diesel | OM314.917 | 1981 - 1990 | |||
| MERCEDES TRUCK | Unimog U900 | 0ccm Diesel | OM353.902 | 1988 - |
Description

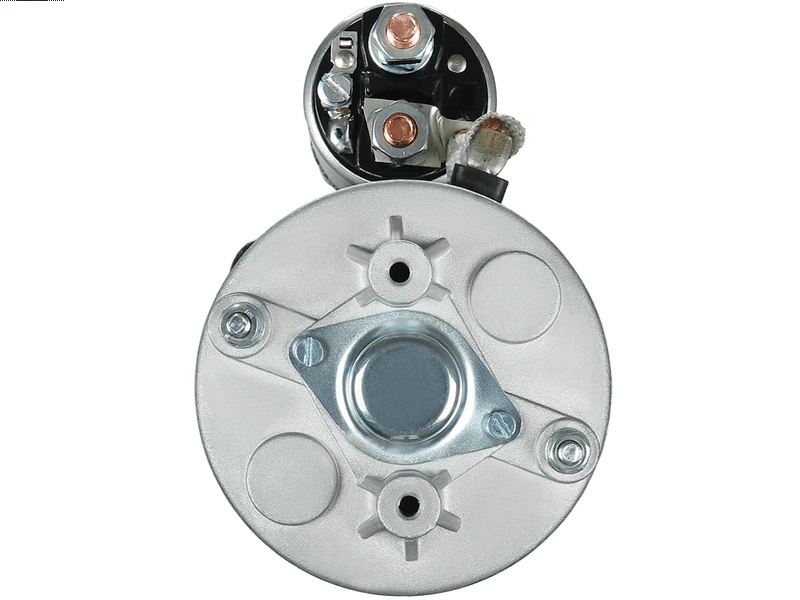

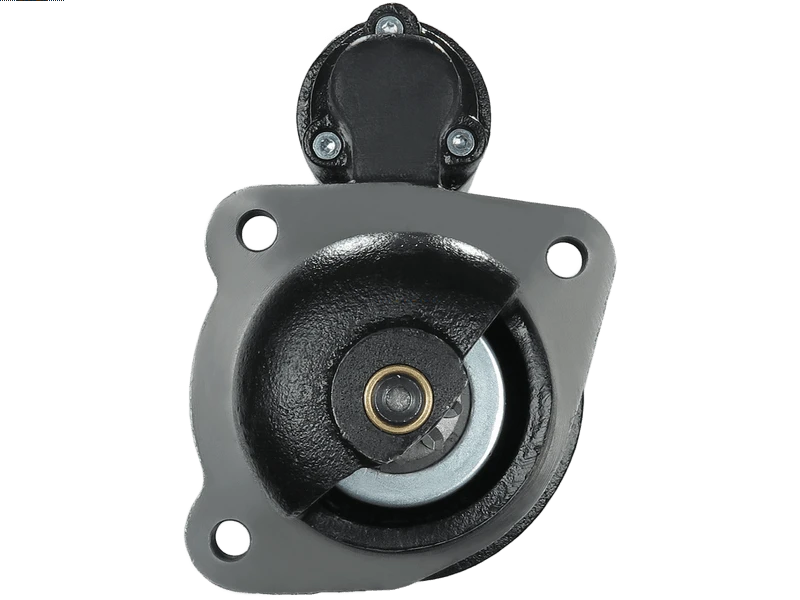

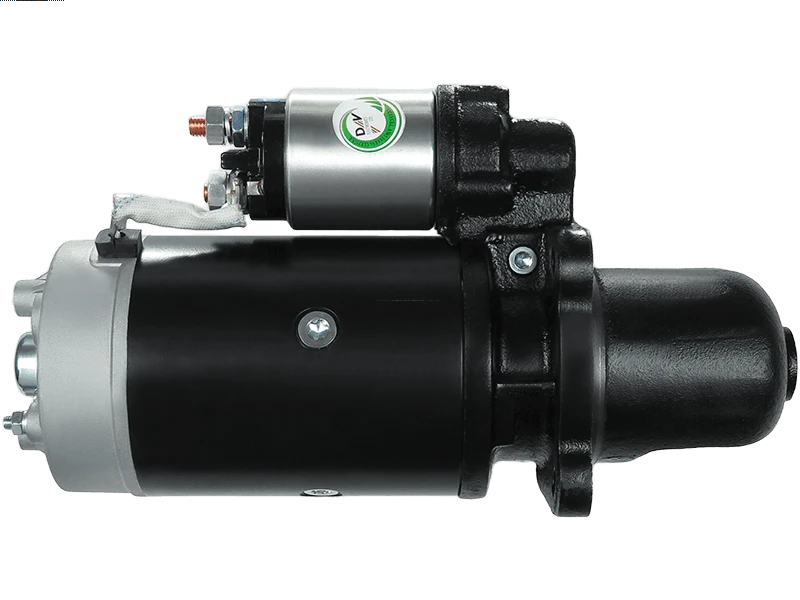

S1060 Replacement Starter Motor
The Sahibs S1060 starter motor is associated with Lucas reference LRS01060 for replacement identification. The listed electrical rating is 12V 3.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Mercedes Tractor 1300 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 3.0kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mercedes Tractor 1300 – selected applications 1976–1987 (engine code OM353.957).
- Mercedes Truck Unimog U1100 – selected applications 1987–1988 (engine code OM353.940).
- Mercedes Truck Unimog U1100T – selected applications 1989–2001 (engine code OM353.940).
- Mercedes Truck Unimog U800 – selected applications 1981–1990 (engine code OM314.917).
- Mercedes Truck Unimog U900 – selected applications 1988 – (engine code OM353.902).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1060. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1359111, 1367039, 986011250, LRS01060, LRS1060, 19024218, DRS1250, DS2360, 72735908, MS 280, MS280, 11.130.751, AZJ3269, IS0751
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1060 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1060 fit my Mercedes Tractor 1300?
Mercedes Tractor 1300 (1976–1987) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1060 replace Lucas LRS01060?
Lucas LRS01060 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1060?
The listed details include 12V, 3.0kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1060 new or remanufactured?
Check the current product condition selection for S1060. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1060?
Compare 12V compatibility, 3.0kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
