S1089 12V 2.7kW Starter Motor Fits John Deere 1032 Combine
Price range: £154.44 through £185.14

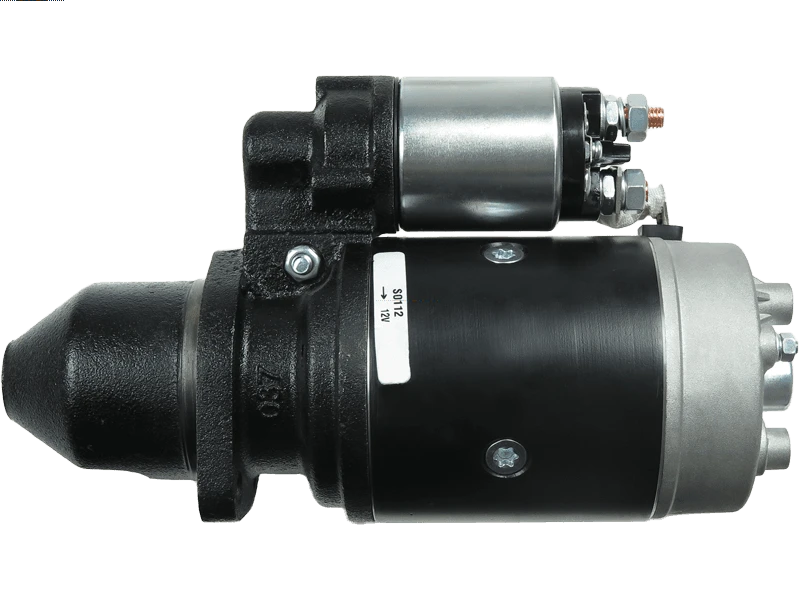

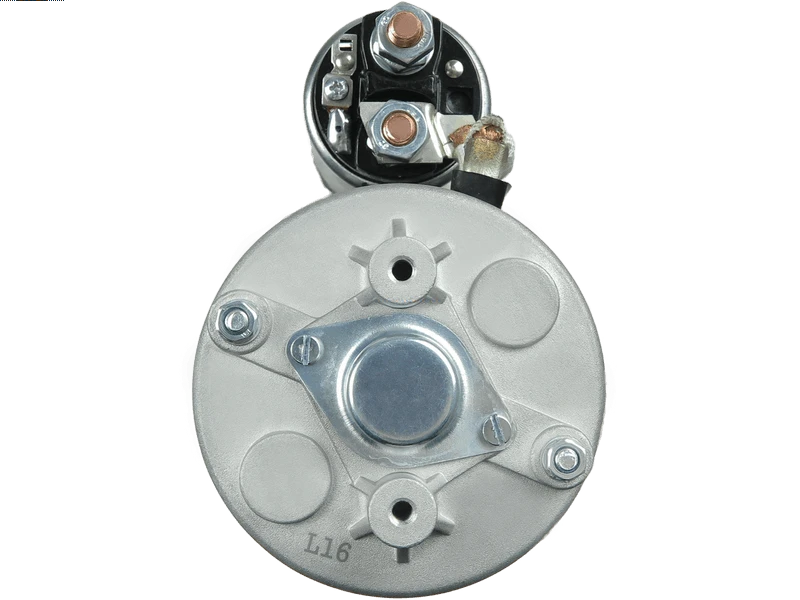

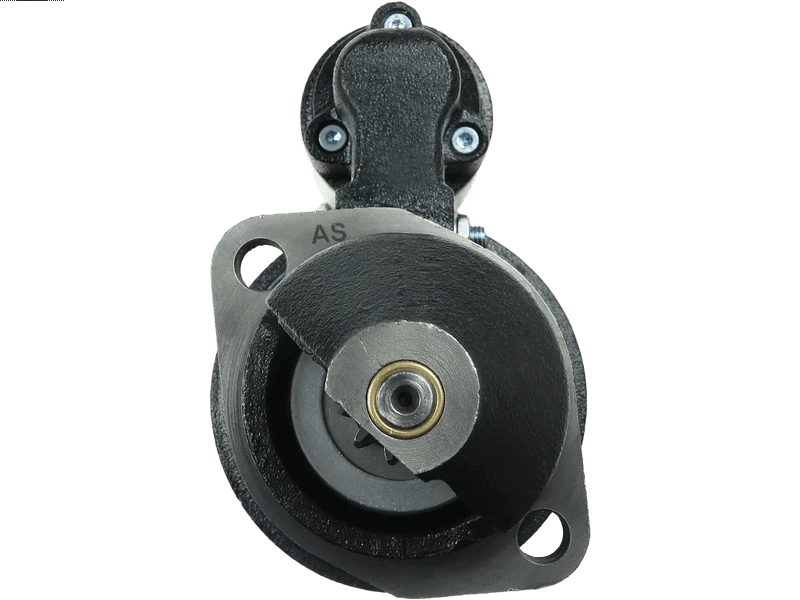

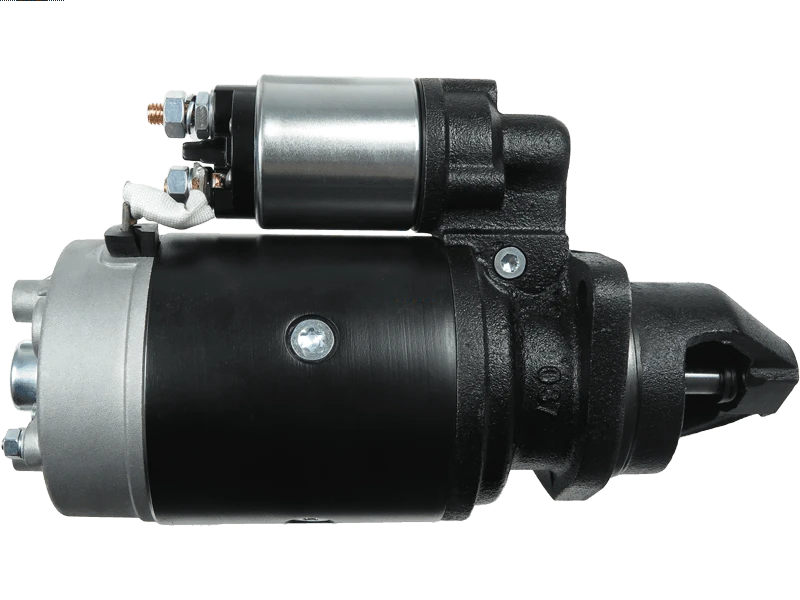

Sahibs S1089 is a replacement starter motor with a listed 12V 2.7kW rating. Listed applications include selected John Deere 1032 Combine, John Deere 1042 Combine, John Deere 1052 Combine, John Deere 1055 Combine models. Identification references include Lucas LRS01089, Bosch 1358041, Mahle 72735962. Its listed 12V 2.7kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1089 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.7 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 11.92 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1089 | Dyno Electrics |
| S0112 | AS-PL |
| 1358041 | BOSCH |
| 1362312 | BOSCH |
| 1362316 | BOSCH |
| 111755 | CARGO |
| F032111755 | CARGO |
| 11.130.533 | ISKRA / LETRIKA |
| AZJ3157 | ISKRA / LETRIKA |
| IS0533 | ISKRA / LETRIKA |
| AL110503 | JOHN DEERE |
| AL110504 | JOHN DEERE |
| AL110597 | JOHN DEERE |
| AL110598 | JOHN DEERE |
| AL11503 | JOHN DEERE |
| AL39700 | JOHN DEERE |
| AL41247 | JOHN DEERE |
| AL62690 | JOHN DEERE |
| AL62691 | JOHN DEERE |
| AL62772 | JOHN DEERE |
| AL62773 | JOHN DEERE |
| AL70850 | JOHN DEERE |
| AL78760 | JOHN DEERE |
| AR70436 | JOHN DEERE |
| AR70437 | JOHN DEERE |
| AT23401 | JOHN DEERE |
| AT25619 | JOHN DEERE |
| RE19187 | JOHN DEERE |
| RE42730 | JOHN DEERE |
| RE500733 | JOHN DEERE |
| RE50095 | JOHN DEERE |
| RE501002 | JOHN DEERE |
| RE505745 | JOHN DEERE |
| RE60384 | JOHN DEERE |
| SE501427 | JOHN DEERE |
| TY25974 | JOHN DEERE |
| TY6720 | JOHN DEERE |
| TY6726 | JOHN DEERE |
| TY6780 | JOHN DEERE |
| 72735962 | MAHLE |
| MS334 | MAHLE |
| 6005012976 | RENAULT |
| 7700044184 | RENAULT |
| CST10239AS | CASCO |
| 8687 | CEVAM |
| 33696 | EAI |
| STR1717 | ELECTROLOG |
| STR7991 | ELECTROLOG |
| 25-0432 | ELSTOCK |
| LES0475-N | GPARTS |
| CS706 | HC PARTS |
| STB0706 | KRAUF |
| 10706 | KUHNER |
| 10706I | KUHNER |
| LRS01089 | LUCAS |
| LRS1089 | LUCAS |
| 630.001.102.010 | PSH |
| 630.001.102.311 | PSH |
| 20401932BN | REAL |
| 120-30151 | ROBERT'S |
| 6010239 | SANDO |
| STX200520 | STARDAX |
| STX200520R | STARDAX |
| 16563N | WAI / TRANSPO |
| 17095N | WAI / TRANSPO |
| 91-15-6872 | WILSON |
| 91-15-6872N | WILSON |
| STR22079 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S0565 | 2.7KW | 3.0KW | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| JOHN DEERE | 1032 Combine | 0ccm Diesel | 1983 - 1992 | ||||
| JOHN DEERE | 1042 Combine | 0ccm Diesel | 1983 - 1992 | ||||
| JOHN DEERE | 1052 Combine | 0ccm Diesel | 1983 - 1992 | ||||
| JOHN DEERE | 1055 Combine | 0ccm Diesel | 1983 - 1992 | ||||
| JOHN DEERE | 1068 Hydro Combine | 0ccm Diesel | 1981 - 1992 | ||||
| JOHN DEERE | 1072 Combine | 0ccm Diesel | 1981 - 1992 | ||||
| JOHN DEERE | 2450 | 0ccm Diesel | 4.239 DLO-10 | 1985 - 1992 |
Description
S1089 Replacement Starter Motor
The Sahibs S1089 starter motor is associated with Lucas reference LRS01089 for replacement identification. The listed electrical rating is 12V 2.7kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected John Deere 1032 Combine variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.7kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- John Deere 1032 Combine – selected applications 1983–1992.
- John Deere 1042 Combine – selected applications 1983–1992.
- John Deere 1052 Combine – selected applications 1983–1992.
- John Deere 1055 Combine – selected applications 1983–1992.
- John Deere 1068 Hydro Combine – selected applications 1981–1992.
- John Deere 1072 Combine – selected applications 1981–1992.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1089. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1358041, 1362312, 1362316, LRS01089, LRS1089, 72735962, MS334, 11.130.533, AZJ3157, IS0533, 6005012976, 7700044184
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1089 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1089 fit my John Deere 1032 Combine?
John Deere 1032 Combine (1983–1992) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1089 replace Lucas LRS01089?
Lucas LRS01089 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1089?
The listed details include 12V, 2.7kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1089 new or remanufactured?
Check the current product condition selection for S1089. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1089?
Compare 12V compatibility, 2.7kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
