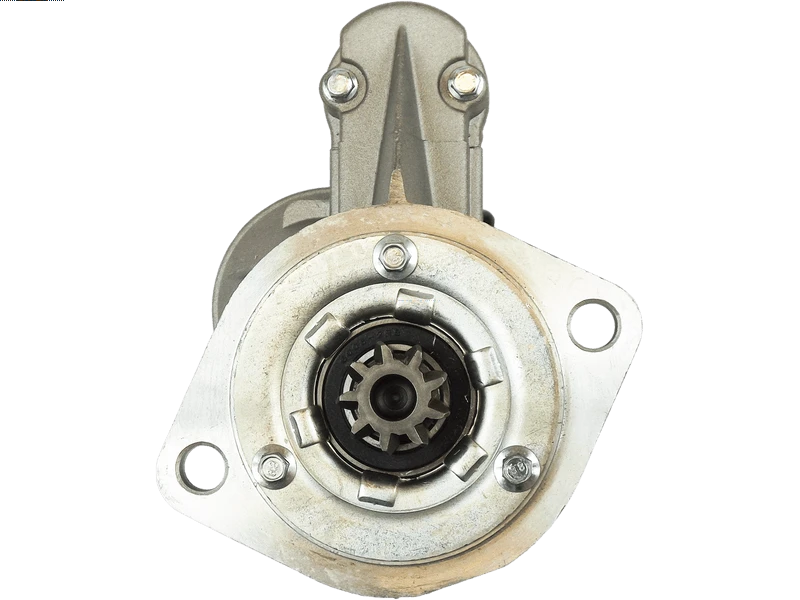

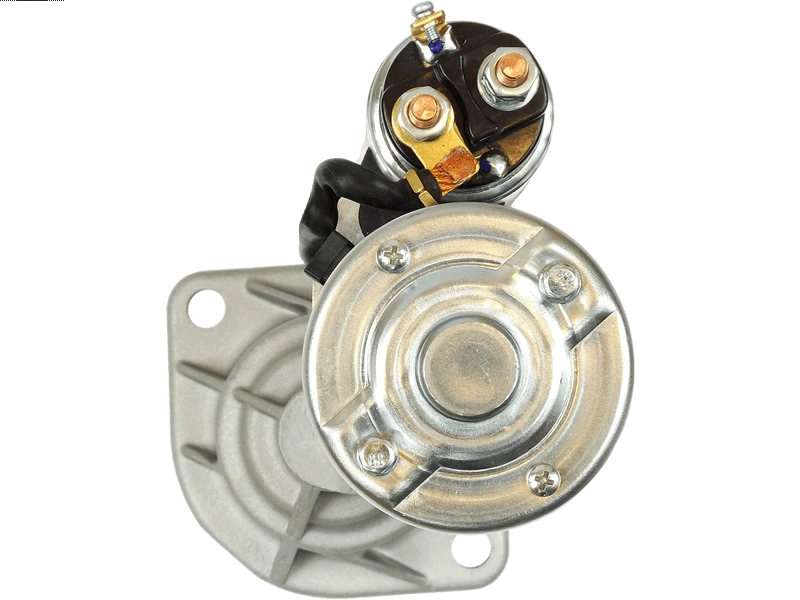

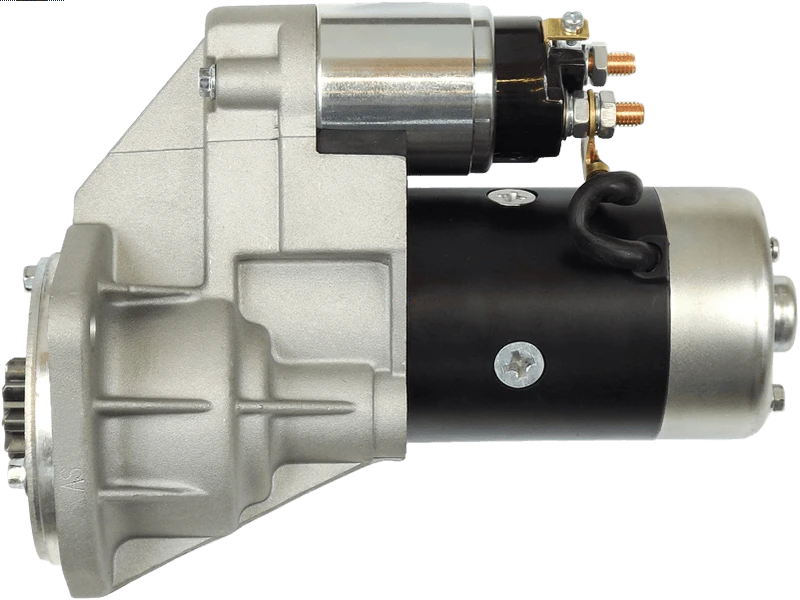

S1163 12V 2.2kW Starter Motor Fits Mustang 552 Mini Loader
Price range: £139.47 through £163.50
Compare the S1163 12V 2.2kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Mustang 552 Mini Loader, Mustang 960 models. Identification references include Lucas LRS01163, Valeo 251151, Hitachi S13-06. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1163 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.77 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1163 | Dyno Electrics |
| S2052 | AS-PL |
| UD02163S | AS-PL |
| 110412 | CARGO |
| F032110412 | CARGO |
| DRS3144 | DELCO |
| S13-06 | HITACHI |
| S13-06A | HITACHI |
| S13-111 | HITACHI |
| S13-123 | HITACHI |
| S13-136 | HITACHI |
| S13-25 | HITACHI |
| S13-27 | HITACHI |
| S13-27A | HITACHI |
| S13-28 | HITACHI |
| S13-33 | HITACHI |
| S13-33A | HITACHI |
| S13-33B | HITACHI |
| 5811000800 | ISUZU |
| 5811000801 | ISUZU |
| 5811001111 | ISUZU |
| 5811001112 | ISUZU |
| 5811001331 | ISUZU |
| 8941365070 | ISUZU |
| 8944104090 | ISUZU |
| 8970848770 | ISUZU |
| 251151 | VALEO |
| 003-U111 | ASHIKA |
| CST20233AS | CASCO |
| STR3010 | ELECTROLOG |
| 25-1151 | ELSTOCK |
| 220577 | ERA |
| JS679 | HC PARTS |
| MTU111 | JAPANPARTS |
| 3U111 | JAPKO |
| 254055 | KUHNER |
| 254824 | KUHNER |
| 18299 | LESTER |
| 336359 | LOGISTIK |
| LRS01163 | LUCAS |
| LRS1163 | LUCAS |
| 20445332BN | REAL |
| 6020233 | SANDO |
| MAV5000 | SIOM |
| MAV5190 | SIOM |
| STX200820 | STARDAX |
| 18299N | WAI / TRANSPO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1142 | 2.2KW Connection 50 spade terminal | 2.0KW Connection 50 screw terminal | No |
| S0615 | 2.2KW | 2.0KW | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MUSTANG | 552 Mini Loader | 2771ccm Diesel | Isuzu 4JB1 | 1985 - 1988 | |||
| MUSTANG | 960 | 2771ccm Diesel | Isuzu 4JB1 | 1994 - 1998 |
Description
S1163 Replacement Starter Motor
The S1163 starter motor is a replacement unit identified by Lucas reference LRS01163. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Mustang 552 Mini Loader 2771ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mustang 552 Mini Loader 2771ccm Diesel – selected applications 1985–1988 (engine code Isuzu 4JB1).
- Mustang 960 2771ccm Diesel – selected applications 1994–1998 (engine code Isuzu 4JB1).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1163. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
251151, LRS01163, LRS1163, S13-06, S13-06A, S13-111, S13-123, S13-136, S13-25, S13-27, S13-27A, S13-28, S13-33, S13-33A, S13-33B, DRS3144
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1163 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1163 fit my Mustang 552 Mini Loader?
Mustang 552 Mini Loader 2771ccm Diesel (1985–1988) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1163 replace Lucas LRS01163?
Lucas LRS01163 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1163?
The listed details include 12V, 2.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1163 new or remanufactured?
Check the current product condition selection for S1163. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1163?
Compare 12V compatibility, 2.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
