S1203 12V 2.5kW Starter Motor Fits Fiat-Agri 450, Fiat-Agri 480V
Price range: £174.99 through £262.48
Identify a replacement starter motor using Sahibs S1203, listed at 12V 2.5kW. Listed applications include selected Fiat-Agri 450, Fiat-Agri 480V, Fiat-Agri 500S, Universal 530 SI models. Identification references include Lucas LRS01203, Delco Remy DRS3405, Mahle 11130510. Its listed 12V 2.5kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1203 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.5 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 10.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1203 | Dyno Electrics |
| 11130510 | Mahle |
| 11130618 | Mahle |
| 113381 | HC-Cargo |
| 27430 | Lucas |
| 27430A | Lucas |
| 27440 | Lucas |
| 27440A | Lucas |
| 500028093 | PSH |
| 5111319 | Fiat Group |
| 6005706634 | Claas |
| 63217121 | Magneti Marelli |
| 63217121010 | Magneti Marelli |
| 72735735 | Mahle |
| AZJ3145 | Mahle |
| AZJ3195 | Mahle |
| CS795 | HC-Parts |
| CT6005706634 | Claas |
| DRS3405 | Delco Remy |
| F032113381 | HC-Cargo |
| IS0510 | Mahle |
| IS0618 | Mahle |
| LES0048 | Lucas |
| LRS00944 | Lucas |
| LRS01203 | Lucas |
| LRS1203 | Lucas |
| LRS944 | Lucas |
| MAHMS107 | Wood Auto |
| MS107 | Mahle |
| MSN226 | Magneti Marelli |
| MT71Z | Magneti Marelli |
| MT71ZA | Magneti Marelli |
| STR52050 | Wood Auto |
| WOOSTR52050 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S0847 | 2.5-2.7KW Short version | 3.0KW Long version | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT-AGRI | 450 | 0ccm Diesel | 1980 - | ||||
| FIAT-AGRI | 480V | 2.6 (0ccm) Diesel | 1976 - 1982 | ||||
| FIAT-AGRI | 500S | 2.6 (0ccm) Diesel | 1978 - 1982 | ||||
| UNIVERSAL | 530 SI | 0ccm Diesel |
Description

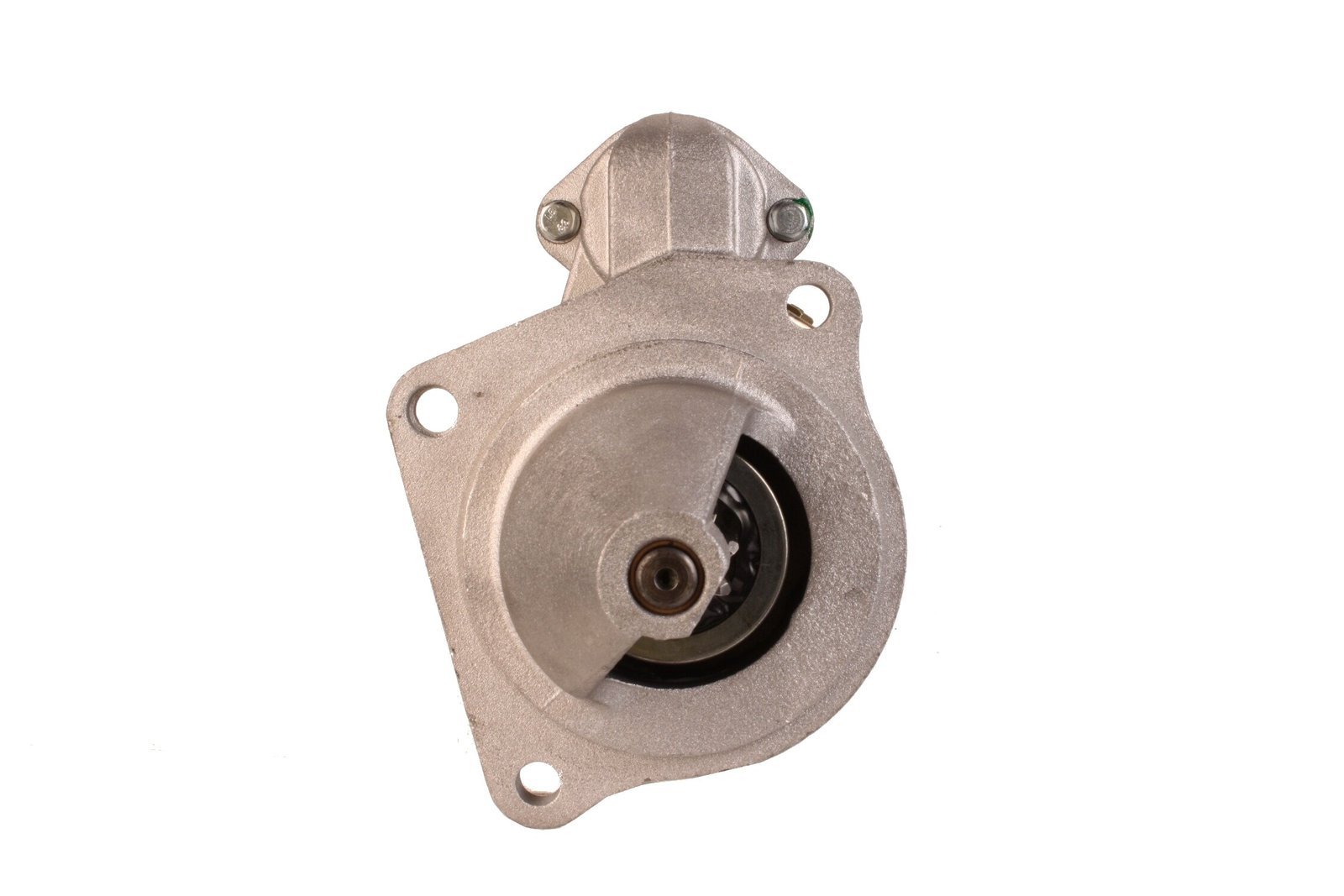

S1203 Replacement Starter Motor
The S1203 starter motor is a replacement unit identified by Lucas reference LRS01203. The listed electrical rating is 12V 2.5kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Fiat-Agri 450 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.5kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat-Agri 450 – selected applications 1980 -.
- Fiat-Agri 480V – selected applications 1976–1982.
- Fiat-Agri 500S – selected applications 1978–1982.
- Universal 530 SI.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1203. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS01203, 27430, 27430A, 27440, 27440A, LES0048, LRS00944, LRS1203, LRS944, DRS3405, 11130510, 11130618, 72735735, AZJ3145, AZJ3195, IS0510, IS0618, MS107
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1203 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1203 fit my Fiat-Agri 450?
Fiat-Agri 450 (1980 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1203 replace Lucas LRS01203?
Lucas LRS01203 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1203?
The listed details include 12V, 2.5kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1203 new or remanufactured?
Check the current product condition selection for S1203. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1203?
Compare 12V compatibility, 2.5kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
