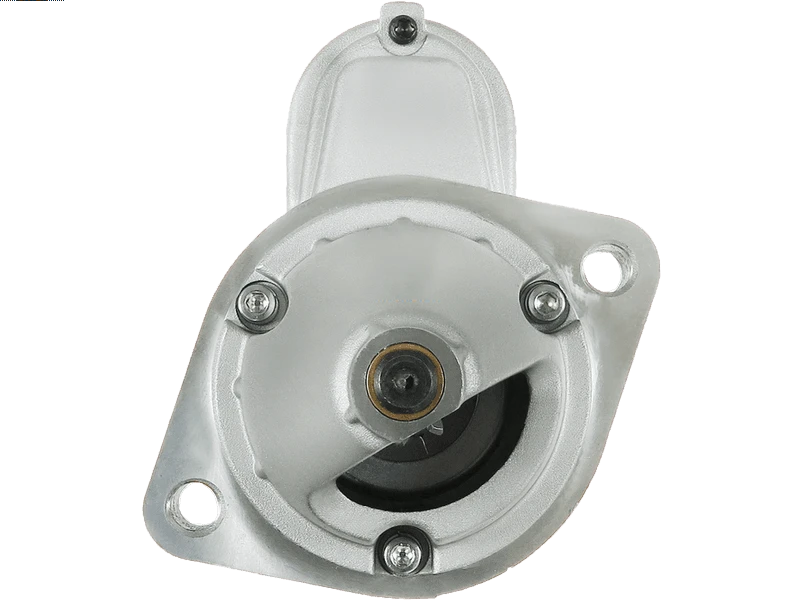

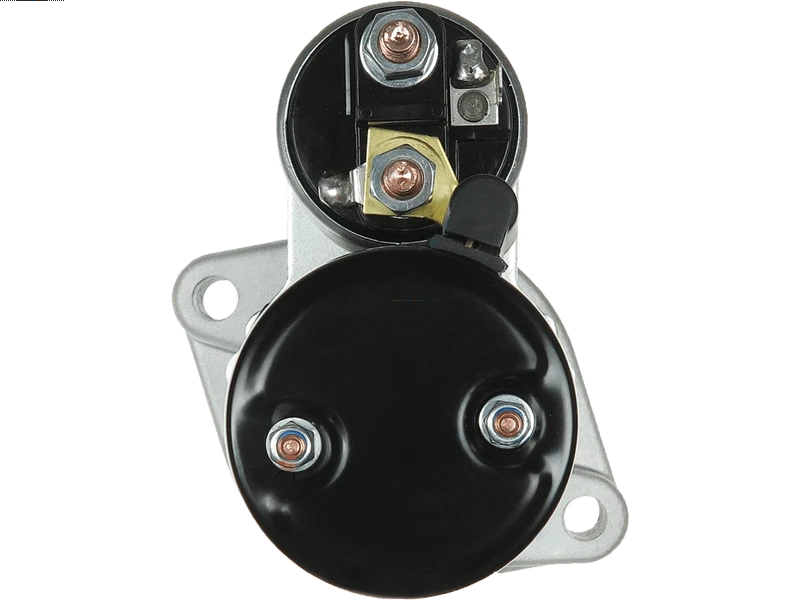

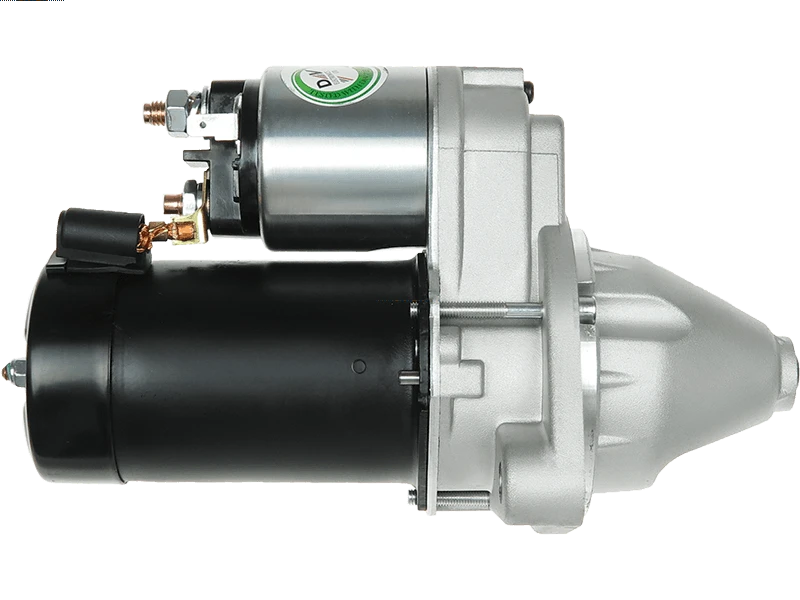

S1223 12V 1.1kW Starter Motor Fits Volvo Penta 2001, Volvo Penta 2002
Price range: £87.87 through £98.75
Sahibs S1223 is a replacement starter motor with a listed 12V 1.1kW rating. Listed applications include selected Volvo Penta 2001, Volvo Penta 2002, Volvo Penta 2003, Volvo Penta 2003 Turbo models. Identification references include Lucas LRS01223, Valeo D6RA11. Its listed 12V 1.1kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1223 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.1 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1223 | Dyno Electrics |
| S3050 | AS-PL |
| 111404 | CARGO |
| F032111404 | CARGO |
| 8EA737240-001 | HELLA |
| D6RA11 | VALEO |
| D6RA40 | VALEO |
| 859553 | VOLVO |
| 872241 | VOLVO |
| STRS185 | 3EFFE |
| CGB-23118 | AINDE |
| AEY1223 | AUTOELECTRO |
| CST15180AS | CASCO |
| CST15180GS | CASCO |
| 8174 | CEVAM |
| 33874 | EAI |
| STR00096 | ELECTROLOG |
| 25-1338 | ELSTOCK |
| CS991 | HC PARTS |
| 10991 | KUHNER |
| 331143 | LOGISTIK |
| LRS01223 | LUCAS |
| LRS1223 | LUCAS |
| 20479081BN | REAL |
| 20479081OE | REAL |
| RNLD6RA40 | RNL |
| 6015180 | SANDO |
| S12VA0506A2 | SIDAT |
| MAV171800 | SIOM |
| 17315N | WAI / TRANSPO |
| STR54064 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1229 | 1.1KW Valeo G/R | 1.4KW Hitachi Conventionel | No |
| S1223 | LRS01180 | No | |
| S2136 | 1.1KW Bosch G/R | 1.4KW Bosch G/R | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| VOLVO PENTA | 2001 | 0ccm Diesel | 1984 - 1993 | ||||
| VOLVO PENTA | 2002 | 0ccm Diesel | 1983 - 1993 | ||||
| VOLVO PENTA | 2003 | 0ccm Diesel | 1983 - 1993 | ||||
| VOLVO PENTA | 2003 Turbo | 0ccm Diesel | 1983 - 1993 | ||||
| VOLVO PENTA | AQ131 | 0ccm Diesel | 1987 - |
Description
S1223 Replacement Starter Motor
Start your S1223 starter motor comparison with the linked Lucas reference LRS01223 and the specifications shown on this page. The listed electrical rating is 12V 1.1kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Volvo Penta 2001 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.1kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Volvo Penta 2001 – selected applications 1984–1993.
- Volvo Penta 2002 – selected applications 1983–1993.
- Volvo Penta 2003 – selected applications 1983–1993.
- Volvo Penta 2003 Turbo – selected applications 1983–1993.
- Volvo Penta AQ131 – selected applications 1987 -.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1223. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
D6RA11, D6RA40, LRS01223, LRS1223
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1223 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1223 fit my Volvo Penta 2001?
Volvo Penta 2001 (1984–1993) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1223 replace Lucas LRS01223?
Lucas LRS01223 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1223?
The listed details include 12V, 1.1kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1223 new or remanufactured?
Check the current product condition selection for S1223. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1223?
Compare 12V compatibility, 1.1kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
