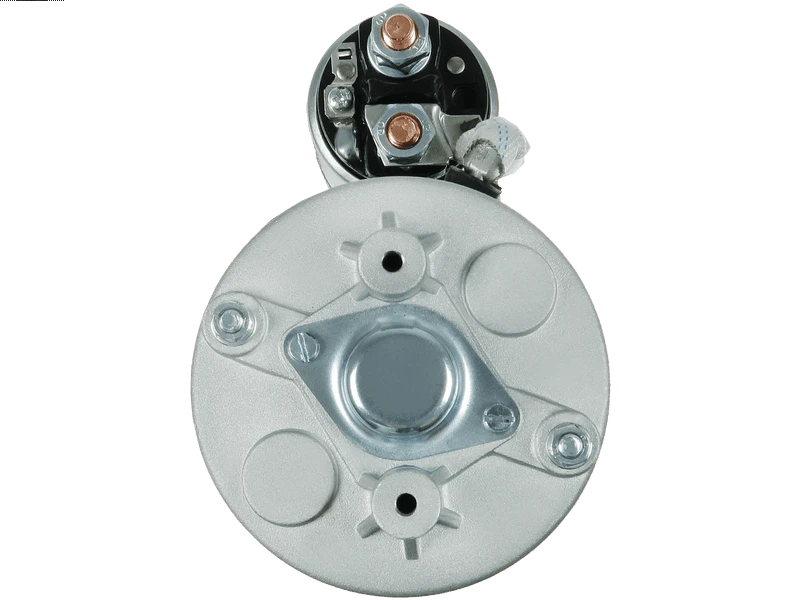

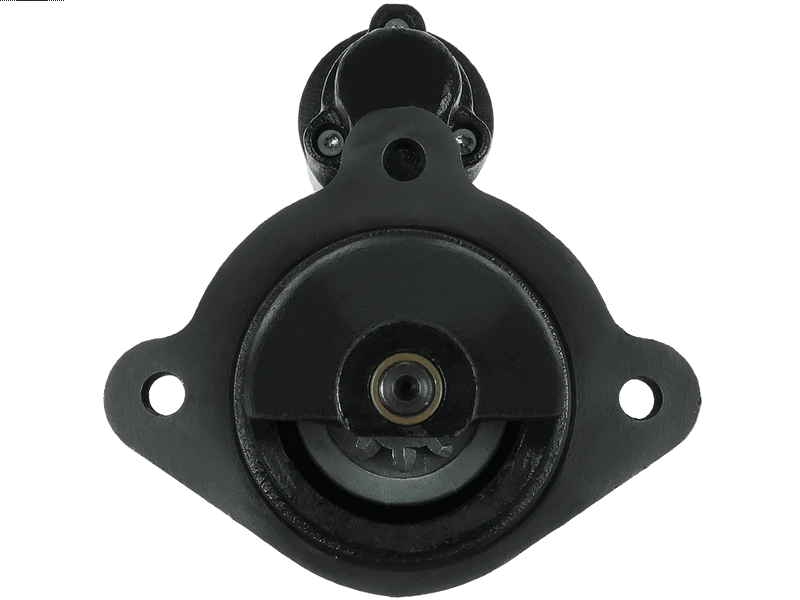

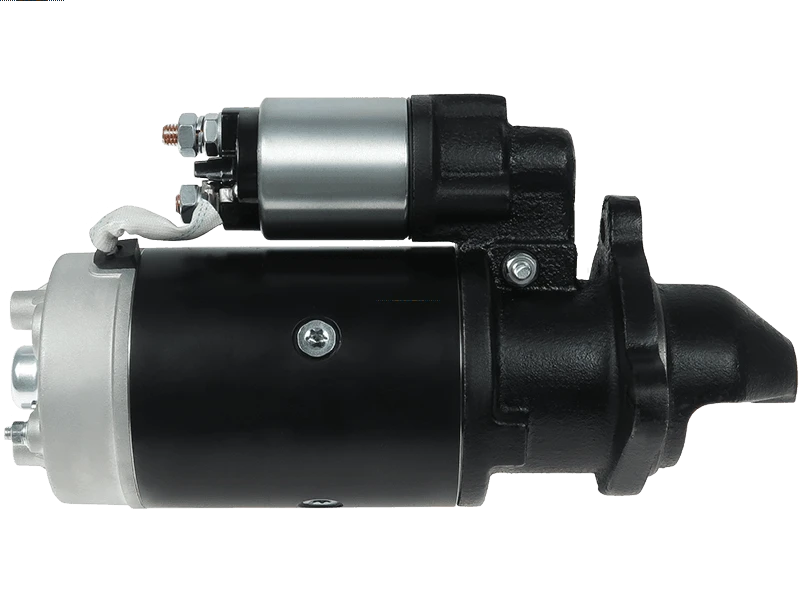

S1259 12V 2.8kW Starter Motor Fits Clark C500-Y40, Clark C500-YS60
Price range: £136.25 through £160.78
Sahibs S1259 is a replacement starter motor with a listed 12V 2.8kW rating. Listed applications include selected Clark C500-Y40, Clark C500-YS60, Clark Fork Lift Various Models models. Identification references include Lucas LRS01259, Bosch 1359042, Delco Remy 1108694. Its listed 12V 2.8kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1259 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.8 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | Yes |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 14.85 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1259 | Dyno Electrics |
| UD101233S | AS-PL |
| 1359042 | BOSCH |
| 1359054 | BOSCH |
| 1367051 | BOSCH |
| 1108694 | DELCO |
| 1109199 | DELCO |
| 1998348 | DELCO |
| 1998363 | DELCO |
| DRZ5108 | DELCO |
| DRZ5126 | DELCO |
| 8EA730297-001 | HELLA |
| PRSL179 | 3EFFE |
| STRL179 | 3EFFE |
| CGB-25126 | AINDE |
| CST60121AS | CASCO |
| 8575 | CEVAM |
| 1719166 | CLARK |
| 2385787 | CLARK |
| 2385787R | CLARK |
| 3737153R | CLARK |
| 3737235R | CLARK |
| 25-1450 | ELSTOCK |
| US815 | HC PARTS |
| US836 | HC PARTS |
| 3005414 | HYSTER |
| 3005414R | HYSTER |
| STB2789 | KRAUF |
| 60836 | KUHNER |
| 338965 | LOGISTIK |
| LRS01259 | LUCAS |
| LRS1259 | LUCAS |
| 88212904 | POWERMAX |
| 830.022.103.010 | PSH |
| 830.022.103.016 | PSH |
| 830.022.103.519 | PSH |
| 20409121OE | REAL |
| 120-30120 | ROBERT'S |
| 6060121 | SANDO |
| 91-01-4244 | WILSON |
| STR50492 | WOODAUTO |
| 220002651 | YALE |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CLARK | C500-Y40 | 3330ccm Diesel | Perkins 4.203 | 1977 - 1981 | |||
| CLARK | C500-YS60 | 3330ccm Diesel | Perkins 4.203 | 1982 - 1985 | |||
| CLARK | Fork Lift Various Models | 3330ccm Diesel | Perkins 4.203 | 1970 - |
Description
S1259 Replacement Starter Motor
Choose a replacement by comparing the S1259 starter motor and its Lucas reference, LRS01259, with your existing unit. The listed electrical rating is 12V 2.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Clark C500-Y40 3330ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.8kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Clark C500-Y40 3330ccm Diesel – selected applications 1977–1981 (engine code Perkins 4.203).
- Clark C500-YS60 3330ccm Diesel – selected applications 1982–1985 (engine code Perkins 4.203).
- Clark Fork Lift Various Models 3330ccm Diesel – selected applications 1970 – (engine code Perkins 4.203).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1259. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1359042, 1359054, 1367051, LRS01259, LRS1259, 1108694, 1109199, 1998348, 1998363, DRZ5108, DRZ5126
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1259 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1259 fit my Clark C500-Y40?
Clark C500-Y40 3330ccm Diesel (1977–1981) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1259 replace Lucas LRS01259?
Lucas LRS01259 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1259?
The listed details include 12V, 2.8kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1259 new or remanufactured?
Check the current product condition selection for S1259. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1259?
Compare 12V compatibility, 2.8kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
