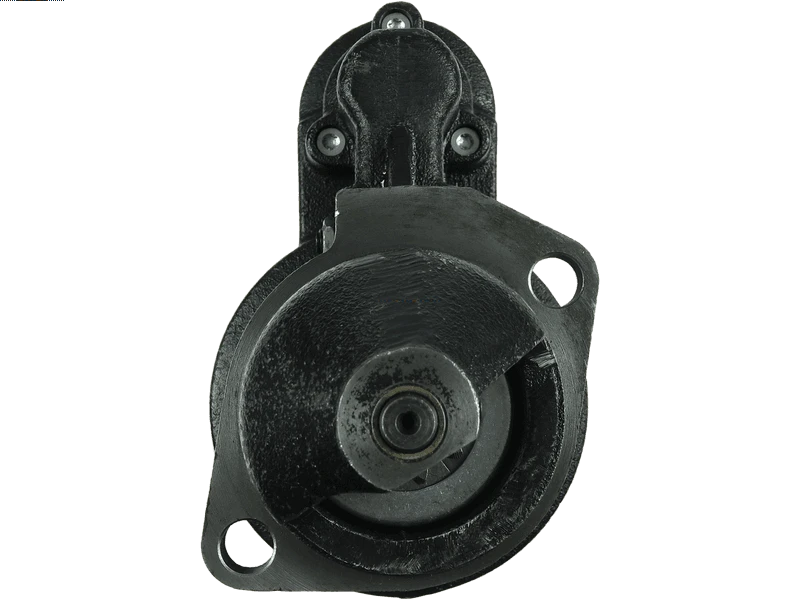

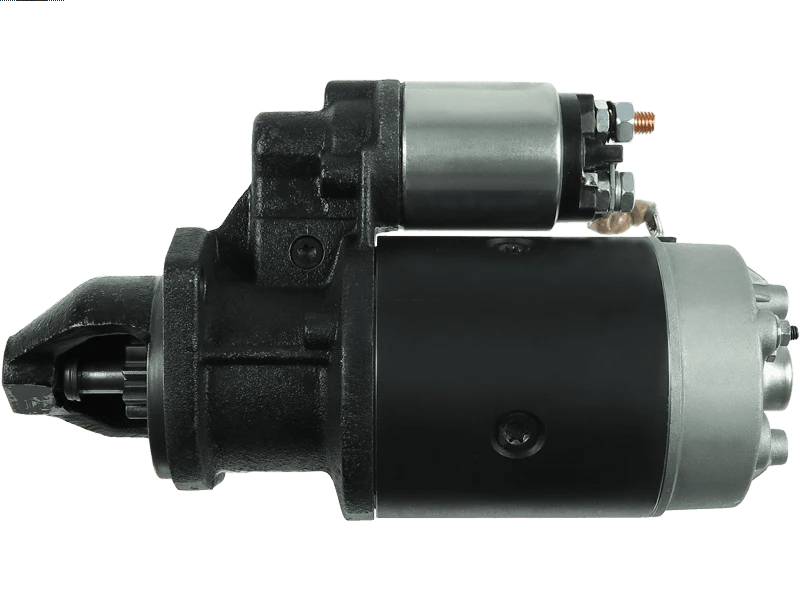

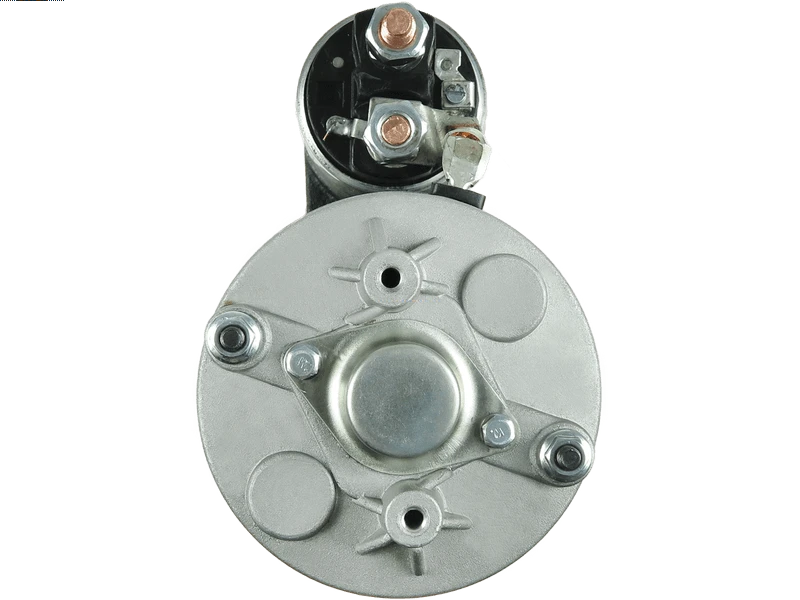

S1262 12V 2.4kW Starter Motor Fits Lombardini 4LD 640/L
Price range: £110.46 through £134.40
Compare the S1262 12V 2.4kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Lombardini 4LD 640/L, Lombardini 4LD 705, Lombardini 4LD 820/F, Lombardini L 10 models. Identification references include Lucas LRS01262, Bosch 1354007, Delco Remy DRS3329. Its listed 12V 2.4kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1262 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.4 kW |
| Volt | 12 V |
| Plug | M10 |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 12.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1262 | Dyno Electrics |
| S0563 | AS-PL |
| UD101812S | AS-PL |
| UD13032S | AS-PL |
| 1354007 | BOSCH |
| 1362058 | BOSCH |
| 1366003 | BOSCH |
| 115423 | CARGO |
| F032115423 | CARGO |
| DRS3329 | DELCO |
| 11.130.248 | ISKRA / LETRIKA |
| AZJ0102 | ISKRA / LETRIKA |
| AZJ3552 | ISKRA / LETRIKA |
| IS0248 | ISKRA / LETRIKA |
| 72736020 | MAHLE |
| MS392 | MAHLE |
| PRSS150 | 3EFFE |
| STRS150 | 3EFFE |
| CGB-91210 | AINDE |
| ANM15549X | ANDEL |
| CST21101AS | CASCO |
| CST21101GS | CASCO |
| 8755 | CEVAM |
| 260-62114 | DIXIE |
| STR10030 | ELECTROLOG |
| STR1816 | ELECTROLOG |
| STR79007 | ELECTROLOG |
| 25-1455 | ELSTOCK |
| STI0233 | KRAUF |
| 254027 | KUHNER |
| 254027M | KUHNER |
| 254092 | KUHNER |
| 254092M | KUHNER |
| 331728 | LOGISTIK |
| LRS01262 | LUCAS |
| LRS1262 | LUCAS |
| 5010423 | MEAT & DORIA |
| 690.002.092.010 | PSH |
| 690.002.092.016 | PSH |
| 690.002.092.311 | PSH |
| 20419101BN | REAL |
| 20419101OE | REAL |
| 6021101 | SANDO |
| 6021101.1 | SANDO |
| S12BH0383A2 | SIDAT |
| MAV231010 | SIOM |
| UNIT BOM 120-491 | WAI / TRANSPO |
| 91-15-7054 | WILSON |
| MAHMS392 | WOODAUTO |
| STR22097 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LOMBARDINI | 4LD 640/L | 638ccm Diesel | 1982 - | ||||
| LOMBARDINI | 4LD 705 | 707ccm Diesel | 1982 - | ||||
| LOMBARDINI | 4LD 820/F | 0ccm Diesel | 1982 - | ||||
| LOMBARDINI | L 10 | 0ccm Diesel | 1978 - 1981 | ||||
| LOMBARDINI | L 14 | 0ccm Diesel | 1978 - 1981 | ||||
| LOMBARDINI | LDA 100 | 0ccm Diesel | 1977 - | ||||
| LOMBARDINI | LDA 820 | 0ccm Diesel | 1976 - 1981 | ||||
| LOMBARDINI | LDA 96 | 683ccm Diesel | 1977 - 1981 | ||||
| LOMBARDINI | LDA 97 | 683ccm Diesel | 1977 - 1979 | ||||
| LOMBARDINI | LDAM 96 | 0ccm Diesel | 1978 - |
Description
S1262 Replacement Starter Motor
Start your S1262 starter motor comparison with the linked Lucas reference LRS01262 and the specifications shown on this page. The listed electrical rating is 12V 2.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Lombardini 4LD 640/L 638ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.4kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Lombardini 4LD 640/L 638ccm Diesel – selected applications 1982 -.
- Lombardini 4LD 705 707ccm Diesel – selected applications 1982 -.
- Lombardini 4LD 820/F – selected applications 1982 -.
- Lombardini L 10 – selected applications 1978–1981.
- Lombardini L 14 – selected applications 1978–1981.
- Lombardini LDA 100 – selected applications 1977 -.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1262. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1354007, 1362058, 1366003, LRS01262, LRS1262, DRS3329, 72736020, MS392, 11.130.248, AZJ0102, AZJ3552, IS0248
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1262 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1262 fit my Lombardini 4LD 640/L?
Lombardini 4LD 640/L 638ccm Diesel (1982 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1262 replace Lucas LRS01262?
Lucas LRS01262 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1262?
The listed details include 12V, 2.4kW power, 9 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1262 new or remanufactured?
Check the current product condition selection for S1262. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1262?
Compare 12V compatibility, 2.4kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
