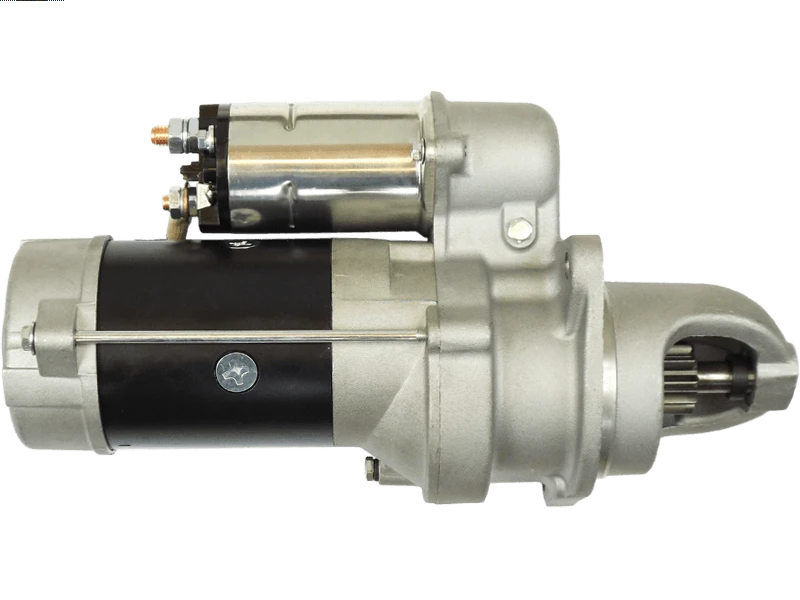

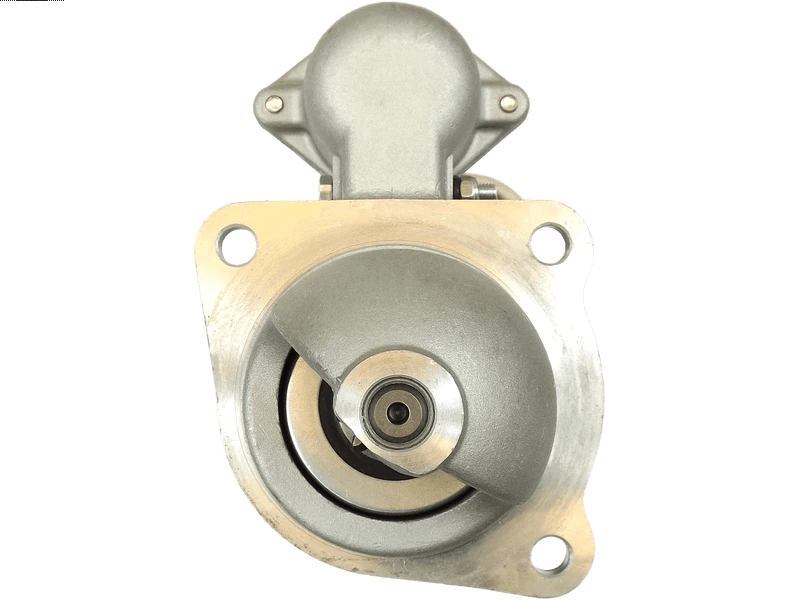

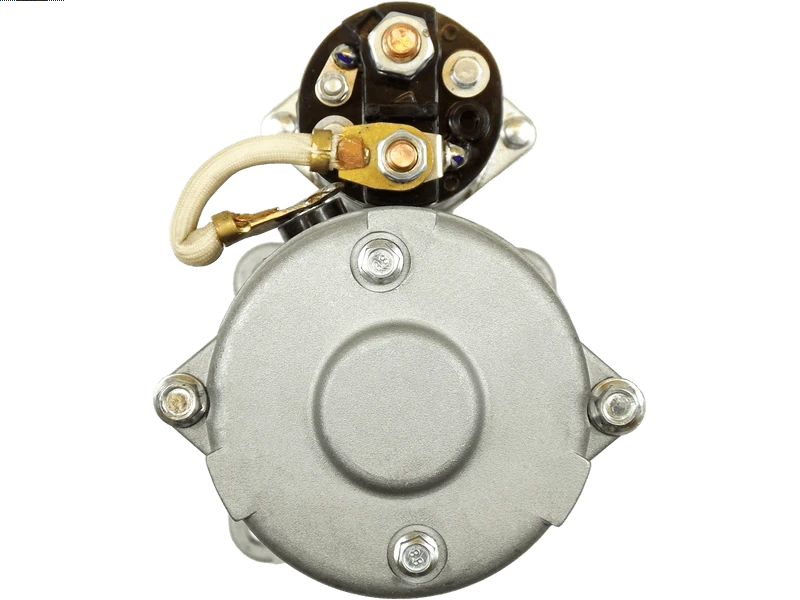

S1296 12V 2.7kW Starter Motor Fits Case 580G Loader
Price range: £144.42 through £169.31
Identify a replacement starter motor using Sahibs S1296, listed at 12V 2.7kW. Listed applications include selected Case 580G Loader, Case 580SK Loader models. Identification references include Lucas LRS01296, Bosch 1362319, Mitsubishi Electric M003T90071. Its listed 12V 2.7kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1296 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.7 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | Yes |
| Weight | 12.47 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1296 | Dyno Electrics |
| S1062 | AS-PL |
| UD02187S | AS-PL |
| UD02189S | AS-PL |
| UD12680S | AS-PL |
| 6633058 | BOBCAT |
| 1362319 | BOSCH |
| 1362321 | BOSCH |
| 1362332 | BOSCH |
| 1367079 | BOSCH |
| 110603 | CARGO |
| 112015 | CARGO |
| 112267 | CARGO |
| F032110603 | CARGO |
| F032112015 | CARGO |
| F032112267 | CARGO |
| A186180 | CASE |
| A187549 | CASE |
| 3283329 | CUMMINS |
| 3283330 | CUMMINS |
| 3604481RX | CUMMINS |
| 3604482RX | CUMMINS |
| 3604648 | CUMMINS |
| 3604648RX | CUMMINS |
| 3604654RX | CUMMINS |
| 3901365 | CUMMINS |
| 3901386 | CUMMINS |
| 3904445 | CUMMINS |
| 3905480 | CUMMINS |
| 3909913 | CUMMINS |
| 3916854 | CUMMINS |
| 3935070 | CUMMINS |
| 10461285 | DELCO |
| 10465026 | DELCO |
| 10465043 | DELCO |
| 10465149 | DELCO |
| 10465211 | DELCO |
| 10465365 | DELCO |
| 10465399 | DELCO |
| 10465407 | DELCO |
| 10479621 | DELCO |
| 10479624 | DELCO |
| 10496882 | DELCO |
| 10496883 | DELCO |
| 1107589 | DELCO |
| 1108698 | DELCO |
| 1109144 | DELCO |
| 1113276 | DELCO |
| 1113292 | DELCO |
| 1113593 | DELCO |
| 1998408 | DELCO |
| 1998423 | DELCO |
| 1998456 | DELCO |
| 1998457 | DELCO |
| 1998490 | DELCO |
| 1998522 | DELCO |
| 323-419 | DELCO |
| 323-823 | DELCO |
| 323-824 | DELCO |
| DRZ5134 | DELCO |
| E3TF11000AA | FORD |
| E3TF11001AA | FORD |
| E3TU11000AA | FORD |
| E3TZ11002B | FORD |
| E4TZ11002B | FORD |
| E4TZ11002BRM | FORD |
| E5TF11000AA | FORD |
| E5TZ11002B | FORD |
| E8TF11000AA | FORD |
| E8TZ11000AA | FORD |
| E8TZ11002A | FORD |
| F3TU11000AA | FORD |
| SA739 | FORD |
| 11.130.665 | ISKRA / LETRIKA |
| AZJ3217 | ISKRA / LETRIKA |
| 63227564 | MAGNETI MARELLI |
| M003T90071 | MITSUBISHI |
| M003T90072 | MITSUBISHI |
| M008T50171 | MITSUBISHI |
| M008T50172 | MITSUBISHI |
| M3T90071 | MITSUBISHI |
| M3T90072 | MITSUBISHI |
| M8T50171 | MITSUBISHI |
| M8T50172 | MITSUBISHI |
| 0-23000-1810 | NIKKO |
| 0-23000-1818 | NIKKO |
| 0-23000-2020 | NIKKO |
| 0-23000-2430 | NIKKO |
| 0-23000-2434 | NIKKO |
| 0-23000-2450 | NIKKO |
| 0-23000-2460 | NIKKO |
| 230001810 | NIKKO |
| 230001818 | NIKKO |
| 230002020 | NIKKO |
| 230002430 | NIKKO |
| 230002434 | NIKKO |
| 230002450 | NIKKO |
| 230002460 | NIKKO |
| 20500706 | PRESTOLITE |
| 35258940 | PRESTOLITE |
| 35259620 | PRESTOLITE |
| 3134770 | VOLVO |
| 3134773 | VOLVO |
| STRF911 | 3EFFE |
| STRS252 | 3EFFE |
| STRS641 | 3EFFE |
| STRW208 | 3EFFE |
| 31780157 | BOMAG |
| LNS2800 | BUTEC |
| CST10155 | CASCO |
| CST10155AS | CASCO |
| CST10155ES | CASCO |
| CST10155GS | CASCO |
| CST10155OS | CASCO |
| CST10155RS | CASCO |
| CST10394 | CASCO |
| CST10394AS | CASCO |
| CST10394ES | CASCO |
| CST10394GS | CASCO |
| CST10394OS | CASCO |
| CST10394RS | CASCO |
| CST60106 | CASCO |
| CST60106AS | CASCO |
| CST60106ES | CASCO |
| CST60106GS | CASCO |
| CST60106OS | CASCO |
| CST60106RS | CASCO |
| 8025 | CEVAM |
| 8625 | CEVAM |
| 201-28106 | DIXIE |
| 260-62138 | DIXIE |
| TS-1578 | DIXIE |
| 33882 | EAI |
| STR2666 | ELECTROLOG |
| 25-2030 | ELSTOCK |
| 25-2299 | ELSTOCK |
| SG9039 | GHIBAUDI |
| US845 | HC PARTS |
| 714-2590 | JCB |
| 10889 | KUHNER |
| 254236 | KUHNER |
| 60628 | KUHNER |
| 60845 | KUHNER |
| 60845N | KUHNER |
| 22.0845 | LAUBER |
| 6573 | LESTER |
| 6583 | LESTER |
| 339798 | LOGISTIK |
| LRS01296 | LUCAS |
| LRS1296 | LUCAS |
| 5050825 | MEAT & DORIA |
| 5065807 | MEAT & DORIA |
| 119-2211 | ONAN |
| 191-2346 | ONAN |
| 540.008.103 | PSH |
| 540.008.103.460 | PSH |
| 540.009.103.711 | PSH |
| 540.511.103 | PSH |
| 20409601BN | REAL |
| 20409601OE | REAL |
| 120-30270 | ROBERT'S |
| 140-28100 | ROBERT'S |
| 6010155 | SANDO |
| 6010394 | SANDO |
| 6060106 | SANDO |
| S12NK0355A2 | SIDAT |
| ALT131090 | SIOM |
| MAV621060 | SIOM |
| STX210073 | STARDAX |
| STX210182 | STARDAX |
| 17037N | WAI / TRANSPO |
| 17232N | WAI / TRANSPO |
| 50-8420 | WAI / TRANSPO |
| 6573N | WAI / TRANSPO |
| 6583N | WAI / TRANSPO |
| 71-01-6573 | WILSON |
| 91-01-4313 | WILSON |
| 91-01-4313N | WILSON |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CASE | 580G Loader | 0ccm Diesel | Cummins 4-390 | 1988 - | |||
| CASE | 580SK Loader | 0ccm Diesel | Cummins 4-390 | 1988 - 1994 |
Description
S1296 Replacement Starter Motor
The S1296 starter motor is a replacement unit identified by Lucas reference LRS01296. The listed electrical rating is 12V 2.7kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Case 580G Loader variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.7kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Case 580G Loader – selected applications 1988 – (engine code Cummins 4-390).
- Case 580SK Loader – selected applications 1988–1994 (engine code Cummins 4-390).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1296. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1362319, 1362321, 1362332, 1367079, LRS01296, LRS1296, M003T90071, M003T90072, M008T50171, M008T50172, M3T90071, M3T90072, M8T50171, M8T50172, 10461285, 10465026, 10465043, 10465149, 10465211, 10465365, 10465399, 10465407, 10479621, 10479624, 10496882, 10496883, 1107589, 1108698, 1109144, 1113276, 1113292, 1113593, 1998408, 1998423, 1998456, 1998457, 1998490, 1998522, 323-419, 323-823, 323-824, 323419, 323823, 323824, DRZ5134, 20500706, 35258940, 35259620, 11.130.665, AZJ3217, E3TF11000AA, E3TF11001AA, E3TU11000AA, E3TZ11002B, E4TZ11002B, E4TZ11002BRM, E5TF11000AA, E5TZ11002B, E8TF11000AA, E8TZ11000AA, E8TZ11002A, F3TU11000AA, SA739
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1296 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1296 fit my Case 580G Loader?
Case 580G Loader (1988 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1296 replace Lucas LRS01296?
Lucas LRS01296 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1296?
The listed details include 12V, 2.7kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1296 new or remanufactured?
Check the current product condition selection for S1296. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1296?
Compare 12V compatibility, 2.7kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
