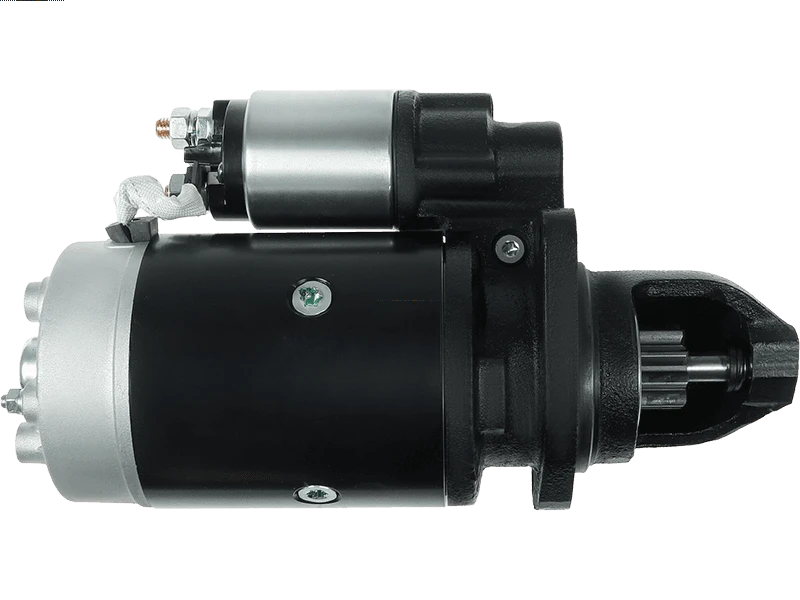

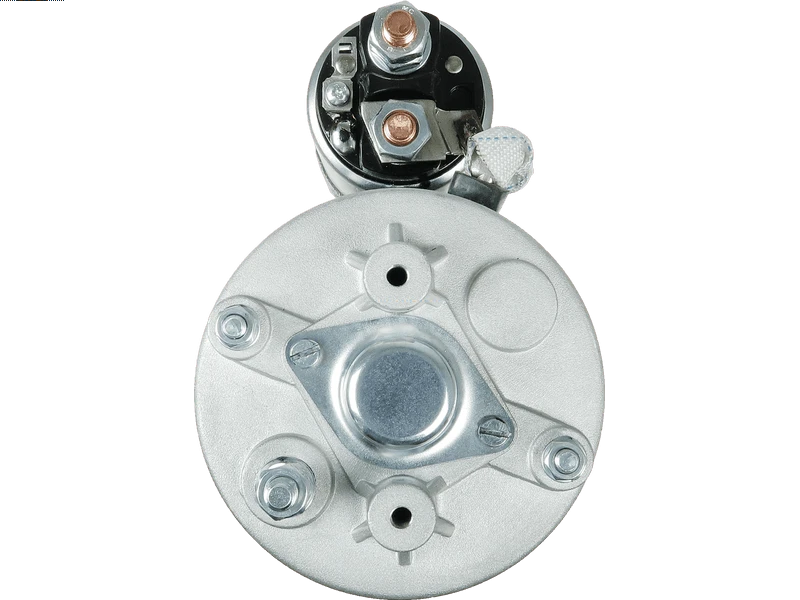

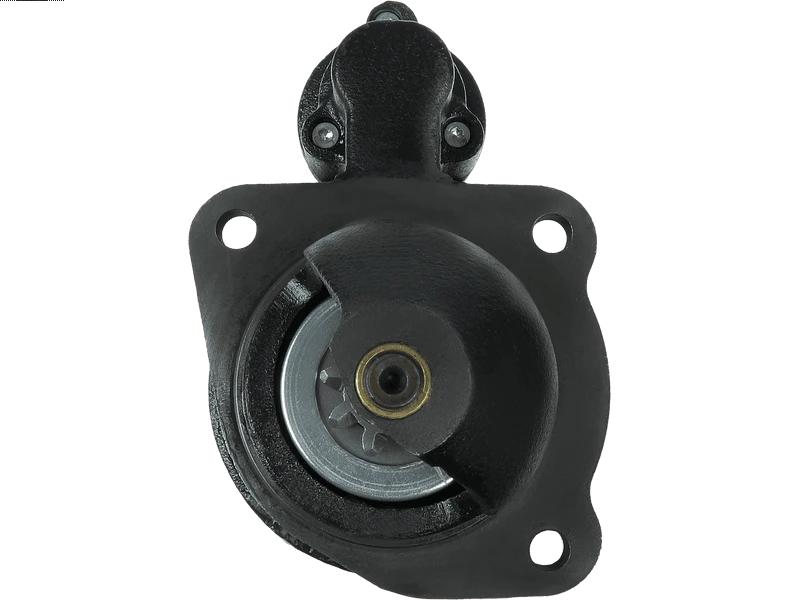

S1300 12V 3.1kW Starter Motor Fits Case I.H. 5130 Maxxum
Price range: £119.61 through £143.38
Identify a replacement starter motor using Sahibs S1300, listed at 12V 3.1kW. Listed applications include selected Case IH 5130 Maxxum, Case IH 5140 Maxxum, Case IH 5150 Maxxum models. Identification references include Lucas LRS01300, Bosch 1367019, Delco Remy DRS3947. Its listed 12V 3.1kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1300 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 3.1 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | Yes |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 13 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1300 | Dyno Electrics |
| 402990901 | Euro Car Part |
| S0631S | AS-PL |
| UD13944S | AS-PL |
| 1367019 | BOSCH |
| 1367072 | BOSCH |
| 1369007 | BOSCH |
| 1369019 | BOSCH |
| 1369025 | BOSCH |
| 111885 | CARGO |
| F032111885 | CARGO |
| 114799A1 | CASE |
| 114800A1 | CASE |
| 116928A23 | CASE |
| A186242 | CASE |
| A186247 | CASE |
| A187597 | CASE |
| A187615 | CASE |
| 3282812 | CUMMINS |
| 3283312 | CUMMINS |
| 3283812 | CUMMINS |
| 3939012 | CUMMINS |
| DRS3947 | DELCO |
| 11.130.664 | ISKRA / LETRIKA |
| 11.130.695 | ISKRA / LETRIKA |
| AZJ3236 | ISKRA / LETRIKA |
| IS0695 | ISKRA / LETRIKA |
| MS 271 | MAHLE |
| 20513045 | PRESTOLITE |
| PRSL237 | 3EFFE |
| STRL237 | 3EFFE |
| CGB-23947 | AINDE |
| ANM16167X | ANDEL |
| CST10339 | CASCO |
| CST10339AS | CASCO |
| CST10339ES | CASCO |
| CST10339GS | CASCO |
| CST10339OS | CASCO |
| CST10339RS | CASCO |
| 8479 | CEVAM |
| 260-69106 | DIXIE |
| TS-6079 | DIXIE |
| STR1638 | ELECTROLOG |
| STR7814 | ELECTROLOG |
| 25-2040 | ELSTOCK |
| CS1069 | HC PARTS |
| STB1069 | KRAUF |
| 101069 | KUHNER |
| 101069M | KUHNER |
| 331221 | LOGISTIK |
| 336285 | LOGISTIK |
| LRS01300 | LUCAS |
| LRS1300 | LUCAS |
| 88212589 | POWERMAX |
| 540.006.093 | PSH |
| 540.006.093.260 | PSH |
| 120-30175 | ROBERT'S |
| 6010339 | SANDO |
| S12BH0669A2 | SIDAT |
| MAV123390 | SIOM |
| 17307N | WAI / TRANSPO |
| 17307R | WAI / TRANSPO |
| 91-15-7058 | WILSON |
| STR22106 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CASE I.H. | 5130 Maxxum | 5883ccm Diesel | B6-590 | 1990 - 1996 | |||
| CASE I.H. | 5140 Maxxum | 5883ccm Diesel | B6T-590 | 1990 - 1996 | |||
| CASE I.H. | 5150 Maxxum | 5883ccm Diesel | B6T-590 | 1990 - 1996 |
Description
S1300 Replacement Starter Motor
Start your S1300 starter motor comparison with the linked Lucas reference LRS01300 and the specifications shown on this page. The listed electrical rating is 12V 3.1kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Case IH 5130 Maxxum 5883ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 3.1kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Case IH 5130 Maxxum 5883ccm Diesel – selected applications 1990–1996 (engine code B6-590).
- Case IH 5140 Maxxum 5883ccm Diesel – selected applications 1990–1996 (engine code B6T-590).
- Case IH 5150 Maxxum 5883ccm Diesel – selected applications 1990–1996 (engine code B6T-590).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1300. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1367019, 1367072, 1369007, 1369019, 1369025, LRS01300, LRS1300, DRS3947, 20513045, MS 271, MS271, 11.130.664, 11.130.695, AZJ3236, IS0695
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1300 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1300 fit my Case IH 5130 Maxxum?
Case IH 5130 Maxxum 5883ccm Diesel (1990–1996) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1300 replace Lucas LRS01300?
Lucas LRS01300 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1300?
The listed details include 12V, 3.1kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1300 new or remanufactured?
Check the current product condition selection for S1300. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1300?
Compare 12V compatibility, 3.1kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
