S1321 12V 1.2kW Starter Motor Fits Ford Tractor 1910 Compact Tractor
Price range: £92.73 through £107.50
Compare the S1321 12V 1.2kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Ford Tractor 1910 Compact Tractor, Pel-Job EB 506 models. Identification references include Lucas LRS01321, Bosch 1107078, Hitachi S114-381. Its listed 12V 1.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1321 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1321 | Dyno Electrics |
| 402770611 | Euro Car Part |
| S2081S | AS-PL |
| UD20467S | AS-PL |
| 1107078 | BOSCH |
| 986022480 | BOSCH |
| 110552 | CARGO |
| 112293 | CARGO |
| F032110552 | CARGO |
| F032112293 | CARGO |
| 1387454 | CATERPILLAR |
| DRS3703 | DELCO |
| DS4813 | DELCO |
| 185086321 | FORD |
| 185086610 | FORD |
| 8EA730278-001 | HELLA |
| S114-381 | HITACHI |
| 63521070780 | MAGNETI MARELLI |
| MSN2016 | MAGNETI MARELLI |
| 18508661 | PERKINS |
| 18508662 | PERKINS |
| U5MK8259 | PERKINS |
| 20513015 | PRESTOLITE |
| 3582514 | VOLVO |
| PRSS031 | 3EFFE |
| STRS031 | 3EFFE |
| CGB-43810 | AINDE |
| AEY1321 | AUTOELECTRO |
| CST20115 | CASCO |
| CST20115AS | CASCO |
| CST20115ES | CASCO |
| CST20115GS | CASCO |
| CST20115OS | CASCO |
| CST20115RS | CASCO |
| 8746 | CEVAM |
| 243-12120 | DIXIE |
| S-8328 | DIXIE |
| STR3262 | ELECTROLOG |
| 25-2094 | ELSTOCK |
| 220090 | ERA |
| SG0366 | GHIBAUDI |
| JS737 | HC PARTS |
| 2630500 | JCB |
| 714/36700 | JCB |
| 71436700 | JCB |
| STB0737 | KRAUF |
| STH0737 | KRAUF |
| STN0737 | KRAUF |
| 20737 | KUHNER |
| 20737B | KUHNER |
| LRS01321 | LUCAS |
| LRS1321 | LUCAS |
| 185-2166 | ONAN |
| 88213145 | POWERMAX |
| 700.502.092 | PSH |
| 20445511 | REAL |
| 104-10197 | ROBERT'S |
| STM557 | ROLLCO |
| 6020115 | SANDO |
| S12BH0794A2 | SIDAT |
| MAV122630 | SIOM |
| MAV221150 | SIOM |
| 17300N | WAI / TRANSPO |
| 17300R | WAI / TRANSPO |
| 91-25-1077 | WILSON |
| 91-25-1077N | WILSON |
| STR23007 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S2412 | 1.2KW Hitachi Conventional Length 152MM | 1.4KW Bosch G/R Length 169MM | No |
| S2328 | 1.2KW Hitachi Conventional | 1.1KW Bosch G/R | No |
| S3810 | 1.2KW Hitachi Conventional Length 152MM Pin 50 6.4 spade terminal | 1.4kKW Denso G/R Length 157MM Pin 50 plug 85 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FORD TRACTOR | 1910 Compact Tractor | 0ccm Diesel | Shibaura | 1984 - 1988 | |||
| PEL-JOB | EB 506 | 0ccm Diesel | Perkins | 1993 - |
Description

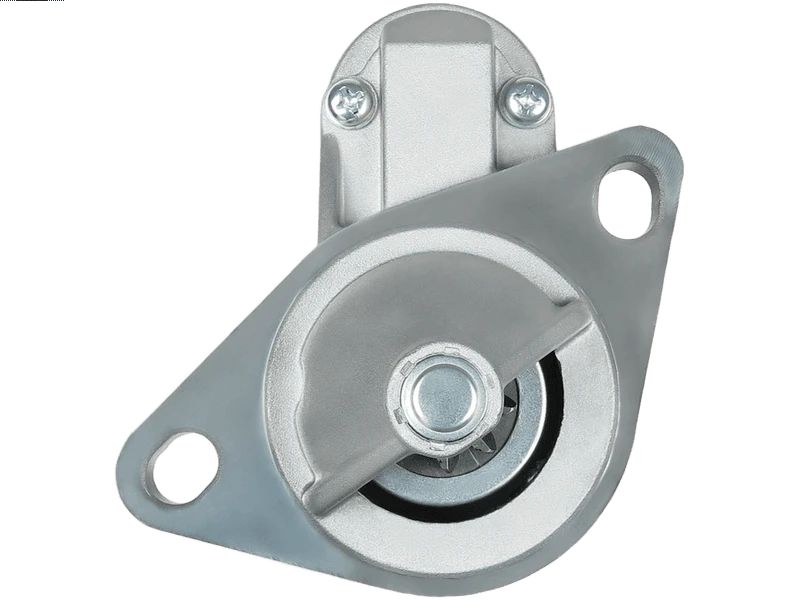

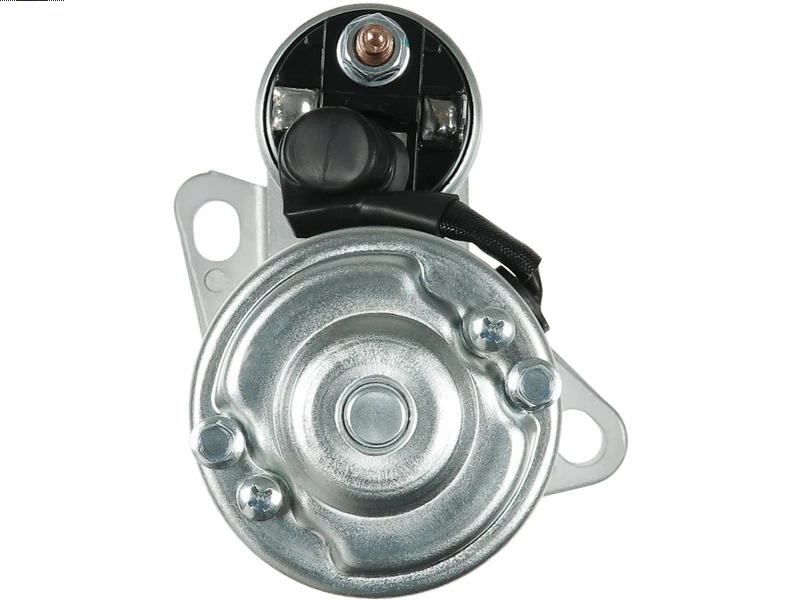

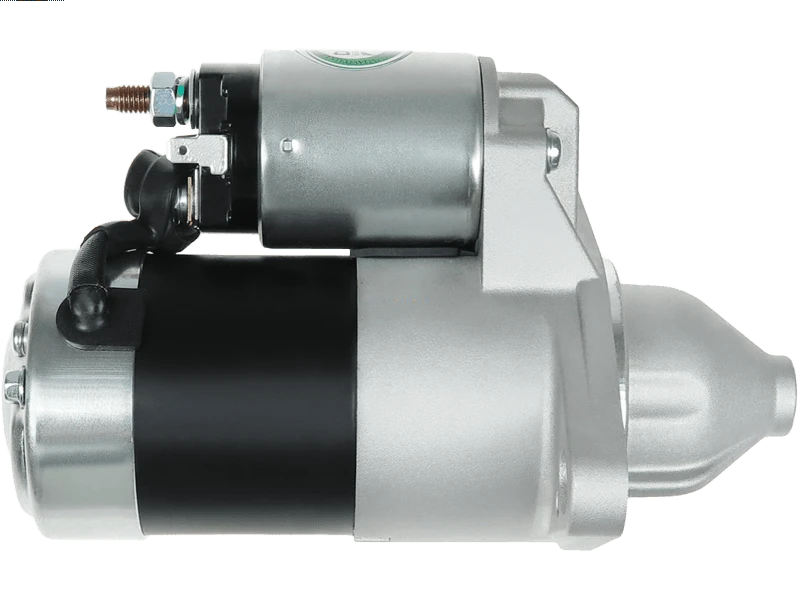

S1321 Replacement Starter Motor
The S1321 starter motor is a replacement unit identified by Lucas reference LRS01321. The listed electrical rating is 12V 1.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Ford Tractor 1910 Compact Tractor variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Ford Tractor 1910 Compact Tractor – selected applications 1984–1988 (engine code Shibaura).
- Pel-Job EB 506 – selected applications 1993 – (engine code Perkins).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1321. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1107078, 986022480, LRS01321, LRS1321, S114-381, DRS3703, DS4813, 20513015, 185086321, 185086610, 18508661, 18508662, U5MK8259
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1321 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1321 fit my Ford Tractor 1910 Compact Tractor?
Ford Tractor 1910 Compact Tractor (1984–1988) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1321 replace Lucas LRS01321?
Lucas LRS01321 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1321?
The listed details include 12V, 1.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1321 new or remanufactured?
Check the current product condition selection for S1321. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1321?
Compare 12V compatibility, 1.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
