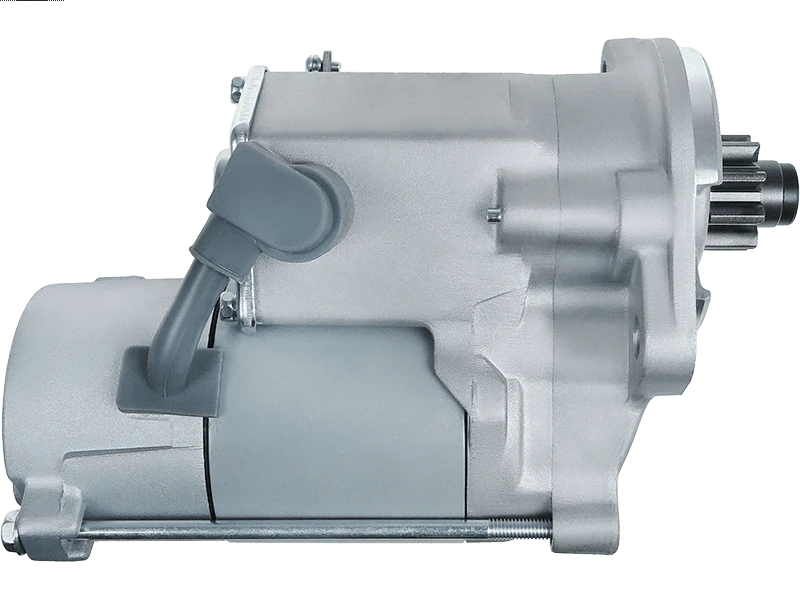

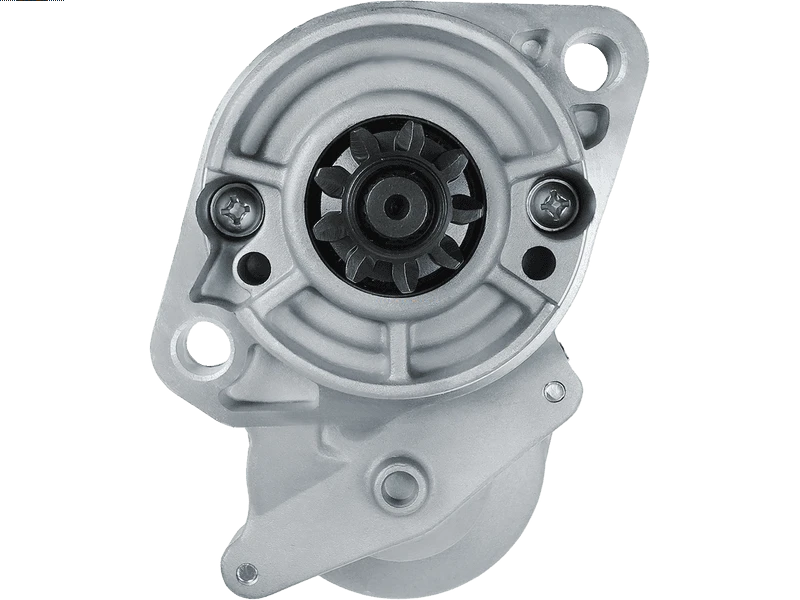

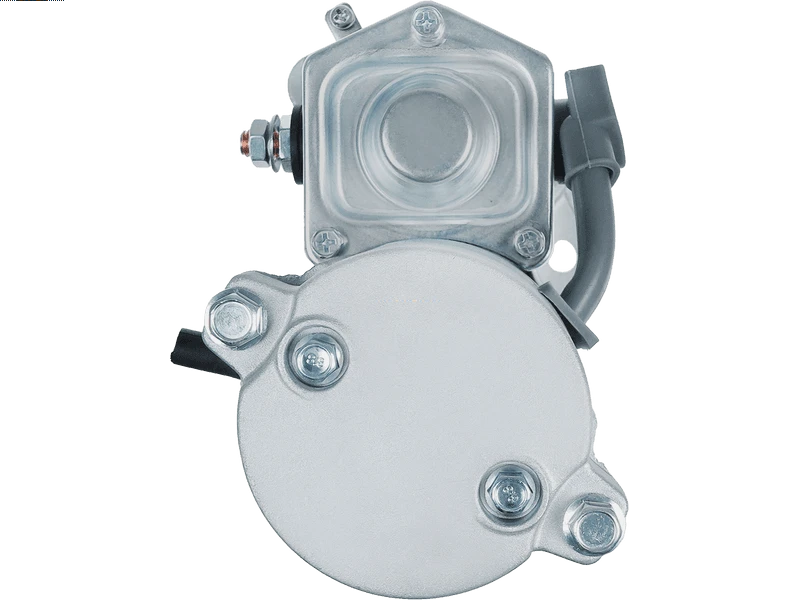

S1325 12V 2.0kW Starter Motor Fits Kioti Daedong CK25, Kubota L5040
Price range: £104.97 through £124.78
Compare the S1325 12V 2.0kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Kioti Daedong CK25, Kioti Daedong Cub Cadet 8354, Kioti Daedong DK35, Kioti Daedong DK40 models. Identification references include Lucas LRS01325, Denso 028000-9030, Delco Remy DRS0496. Its listed 12V 2.0kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1325 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.91 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1325 | Dyno Electrics |
| S6096 | AS-PL |
| 111197 | CARGO |
| F032111197 | CARGO |
| 126895A1 | CASE |
| DRS0496 | DELCO |
| 028000-9030 | DENSO |
| 028000-9031 | DENSO |
| 028000-9032 | DENSO |
| 228000-0691 | DENSO |
| 228000-4570 | DENSO |
| 228000-4571 | DENSO |
| 228000-4572 | DENSO |
| 228000-4750 | DENSO |
| 228000-5270 | DENSO |
| 228000-5273 | DENSO |
| 428000-2030 | DENSO |
| 15425-63010 | KUBOTA |
| 15425-63011 | KUBOTA |
| 15425-63012 | KUBOTA |
| 15425-63013 | KUBOTA |
| 15425-63014 | KUBOTA |
| 15425-63016 | KUBOTA |
| 16652-63012 | KUBOTA |
| 16652-63013 | KUBOTA |
| 17121-63010 | KUBOTA |
| 17123-63013 | KUBOTA |
| 17331-63014 | KUBOTA |
| 17331-63016 | KUBOTA |
| 17490-63014 | KUBOTA |
| 1K371-63010 | KUBOTA |
| 20513033 | PRESTOLITE |
| ANM12716 | ANDEL |
| ANM12716X | ANDEL |
| A77720 | ATL AUTOTECHNIK |
| AEY1325 | AUTOELECTRO |
| CST40129AS | CASCO |
| CST40180AS | CASCO |
| 8158 | CEVAM |
| 8753 | CEVAM |
| 683025092 | DRI |
| STR6023 | ELECTROLOG |
| 25-2109 | ELSTOCK |
| 336277 | LOGISTIK |
| LRS01325 | LUCAS |
| LRS1325 | LUCAS |
| 5040563 | MEAT & DORIA |
| 5040564 | MEAT & DORIA |
| 20432921BN | REAL |
| RNL4570 | RNL |
| 6040129 | SANDO |
| 6040180 | SANDO |
| 6040311 | SANDO |
| S12DE0295A2 | SIDAT |
| S12DE0296A2 | SIDAT |
| MAV421290 | SIOM |
| STX210077 | STARDAX |
| ST00781 | TMI |
| 18004N | WAI / TRANSPO |
| 18154N | WAI / TRANSPO |
| STR30035 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S4077 | OSGR Vercion | PLGR Vercion | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| KIOTI DAEDONG | CK25 | 1300ccm Diesel | TD1300F-1 | 2004 - | |||
| KIOTI DAEDONG | Cub Cadet 8354 | 1600ccm Diesel | 3A165 | 2004 - 2007 | |||
| KIOTI DAEDONG | DK35 | 1600ccm Diesel | 3A165 | 2001 - 2007 | |||
| KIOTI DAEDONG | DK40 | 1600ccm Diesel | 3A165 | 2001 - 2007 | |||
| KIOTI DAEDONG | DK45 | 2200ccm Diesel | 4A220LXH | 2001 - 2007 | |||
| KIOTI DAEDONG | DK50 | 2000ccm Diesel | 4A200T | 2001 - 2005 | |||
| KIOTI DAEDONG | DK50C | 2000ccm Diesel | 4A200T | 2001 - 2005 | |||
| KIOTI DAEDONG | LK2554 | 1300ccm Diesel | TD1300F-1 | 1994 - 2005 | |||
| KIOTI DAEDONG | LK3054 | 1400ccm Diesel | TD1400 | 1993 - 2004 | |||
| KUBOTA | L5040 | 2434ccm Diesel | V2403MTEZ | 2007 - | |||
| KUBOTA | L5740 | 0ccm Diesel | V2403 E-TVCS | 2007 - | |||
| KUBOTA | L5740 | 2434ccm Diesel | V2403MTEZ | 2007 - 2008 | |||
| KUBOTA | L5740HST | 2434ccm Diesel | V2403MTEZ | 2007 - 2008 | |||
| KUBOTA ENGINES | V1902B | 1861ccm Diesel | 1995 - | ||||
| SCHÄFFER | 2033S | 1647ccm Diesel | Kubota D1703 | 2005 - |
Description
S1325 Replacement Starter Motor
Start your S1325 starter motor comparison with the linked Lucas reference LRS01325 and the specifications shown on this page. The listed electrical rating is 12V 2.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Kioti Daedong CK25 1300ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.0kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Kioti Daedong CK25 1300ccm Diesel – selected applications 2004 – (engine code TD1300F-1).
- Kioti Daedong Cub Cadet 8354 1600ccm Diesel – selected applications 2004–2007 (engine code 3A165).
- Kioti Daedong DK35 1600ccm Diesel – selected applications 2001–2007 (engine code 3A165).
- Kioti Daedong DK40 1600ccm Diesel – selected applications 2001–2007 (engine code 3A165).
- Kioti Daedong DK45 2200ccm Diesel – selected applications 2001–2007 (engine code 4A220LXH).
- Kioti Daedong DK50 2000ccm Diesel – selected applications 2001–2005 (engine code 4A200T).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1325. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
028000-9030, 028000-9031, 028000-9032, 228000-0691, 228000-4570, 228000-4571, 228000-4572, 228000-4750, 228000-5270, 228000-5273, 428000-2030, LRS01325, LRS1325, DRS0496, 20513033
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1325 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1325 fit my Kioti Daedong CK25?
Kioti Daedong CK25 1300ccm Diesel (2004 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1325 replace Lucas LRS01325?
Lucas LRS01325 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1325?
The listed details include 12V, 2.0kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1325 new or remanufactured?
Check the current product condition selection for S1325. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1325?
Compare 12V compatibility, 2.0kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
