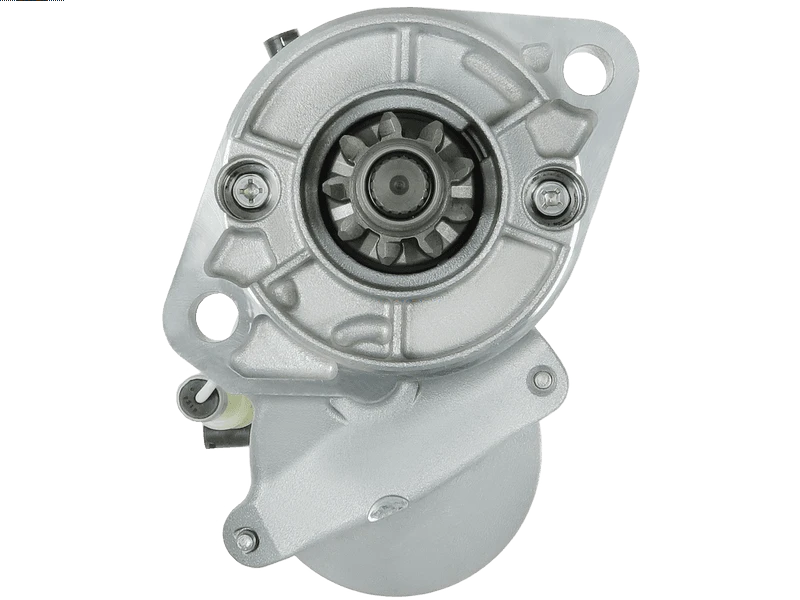

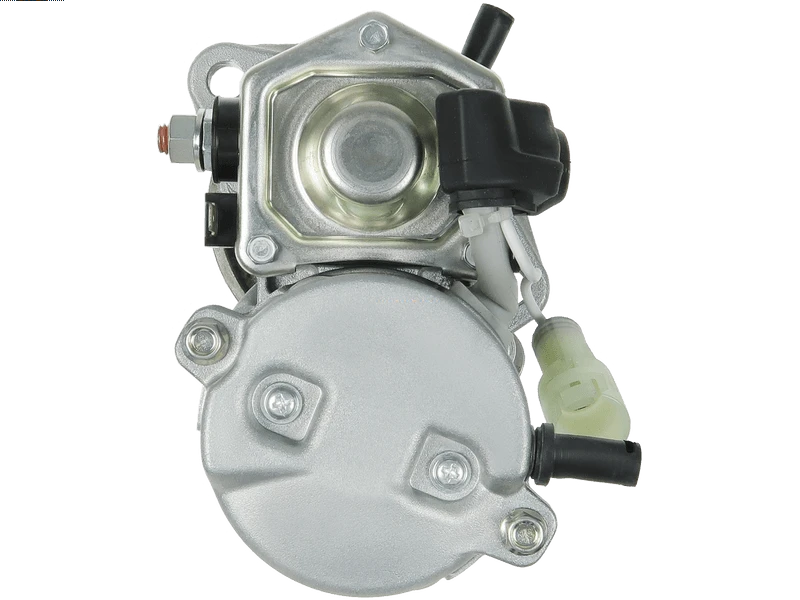

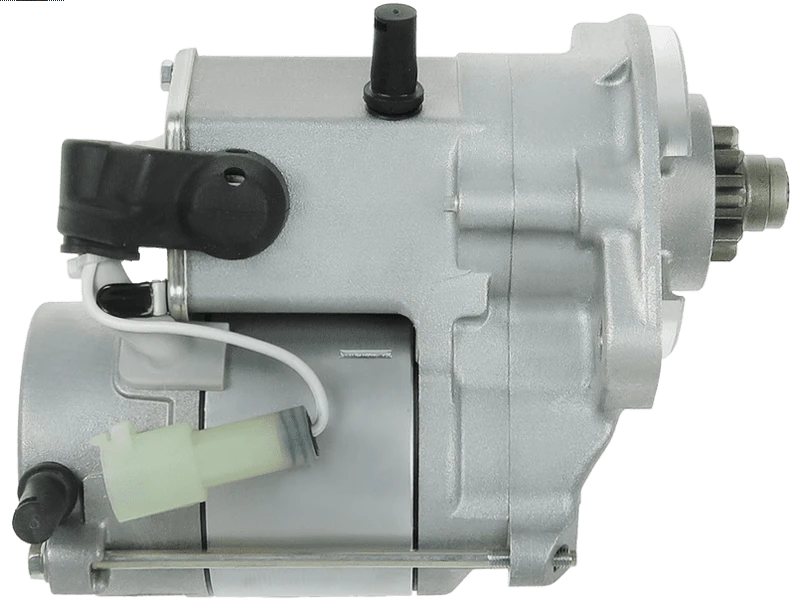

S1332 12V 1.4kW Starter Motor Fits Frigiking Carrier Phoenix Ultra
Price range: £112.33 through £132.56
Identify a replacement starter motor using Sahibs S1332, listed at 12V 1.4kW. Listed applications include selected Frigiking Carrier Phoenix Ultra models. Identification references include Lucas LRS01332, Denso 228000-0660, Delco Remy 10465531. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1332 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1332 | Dyno Electrics |
| UD819295(DENSO)S | AS-PL |
| 6653920 | BOBCAT |
| 6662323 | BOBCAT |
| 111299 | CARGO |
| F032111299 | CARGO |
| 10465531 | DELCO |
| 93588 | DELCO |
| 228000-0660 | DENSO |
| 228000-0661 | DENSO |
| 228000-0662 | DENSO |
| 228000-0663 | DENSO |
| 228000-0664 | DENSO |
| 228000-1050 | DENSO |
| 228000-1051 | DENSO |
| 228000-1052 | DENSO |
| DSN2151 | DENSO |
| 8EA015642-241 | HELLA |
| 9722809066 | ISUZU |
| 14297-63011 | KUBOTA |
| 16661-63011 | KUBOTA |
| 16661-63012 | KUBOTA |
| 16661-63013 | KUBOTA |
| 16661-63015 | KUBOTA |
| 1920263011 | KUBOTA |
| 1982163011 | KUBOTA |
| 25-39135 | CARRIER |
| 25-39135-00 | CARRIER |
| 25-39135-00RM | CARRIER |
| CST40179AS | CASCO |
| 246-14120 | DIXIE |
| S-8675 | DIXIE |
| STR6718 | ELECTROLOG |
| 25-2126 | ELSTOCK |
| 3001017 | HYSTER |
| LRS01332 | LUCAS |
| LRS1332 | LUCAS |
| 690.562.092.050 | PSH |
| 690.562.092.261 | PSH |
| 20432971BN | REAL |
| 190-20101 | ROBERT'S |
| 6040179 | SANDO |
| MAV421790 | SIOM |
| 18277N | WAI / TRANSPO |
| 18277R | WAI / TRANSPO |
| 91-29-5405 | WILSON |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1333 | Placing ar drains | Placing of drains | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FRIGIKING CARRIER | Phoenix Ultra | 0ccm Diesel | Kubota | 1986 - |
Description
S1332 Replacement Starter Motor
Choose a replacement by comparing the S1332 starter motor and its Lucas reference, LRS01332, with your existing unit. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Frigiking Carrier Phoenix Ultra variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Frigiking Carrier Phoenix Ultra – selected applications 1986 – (engine code Kubota).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1332. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
228000-0660, 228000-0661, 228000-0662, 228000-0663, 228000-0664, 228000-1050, 228000-1051, 228000-1052, DSN2151, LRS01332, LRS1332, 10465531, 93588
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1332 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1332 fit my Frigiking Carrier Phoenix Ultra?
Frigiking Carrier Phoenix Ultra (1986 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1332 replace Lucas LRS01332?
Lucas LRS01332 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1332?
The listed details include 12V, 1.4kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1332 new or remanufactured?
Check the current product condition selection for S1332. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1332?
Compare 12V compatibility, 1.4kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
