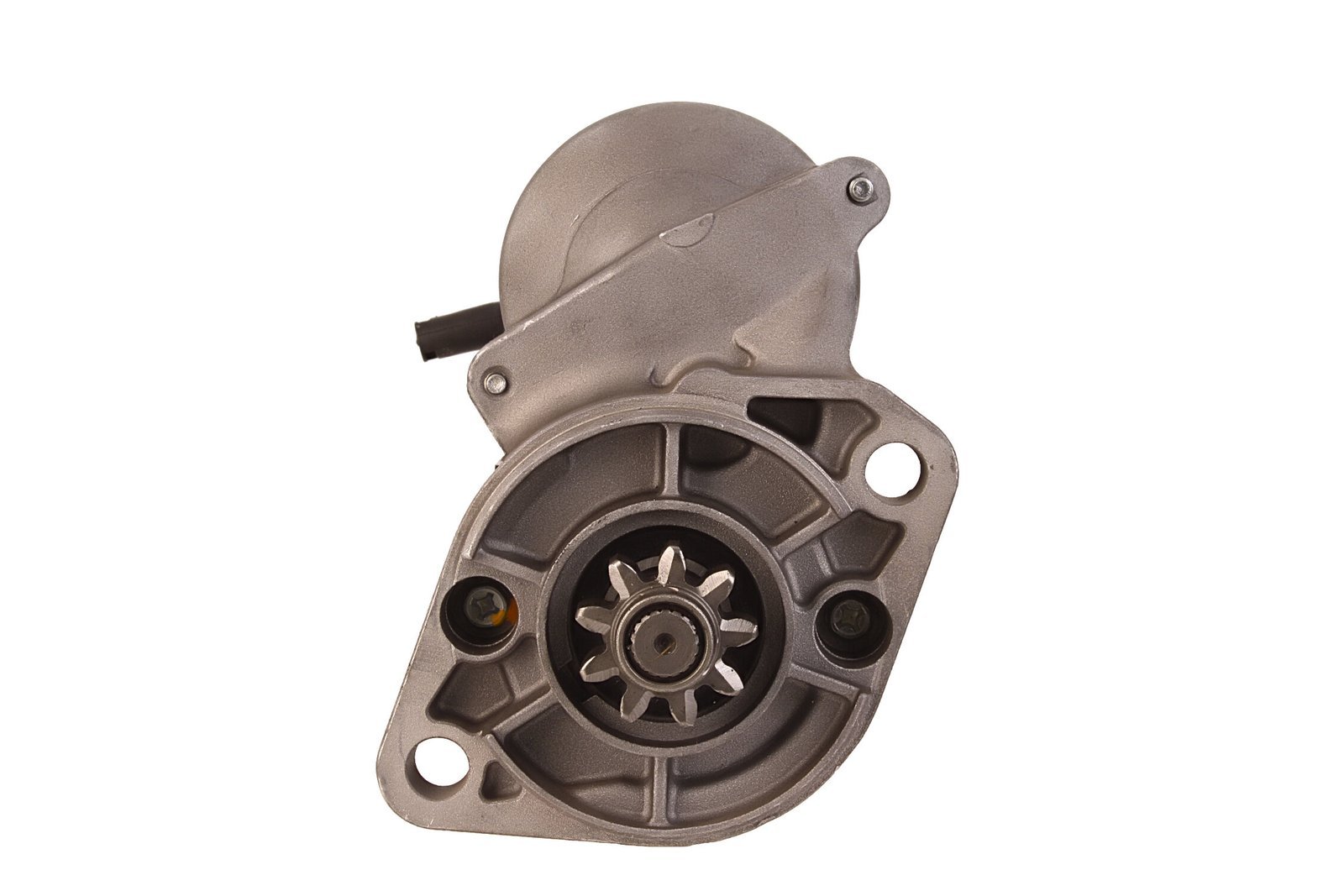

S1333 12V 1.4kW Starter Motor Fits Giant 6001T, Kubota Engines V1502
Price range: £89.44 through £108.83
Compare the S1333 12V 1.4kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Giant 6001T, Kubota Engines V1502, SchÄFfer 332, SchÄFfer 4050ZS models. Identification references include Lucas LRS01333, Bosch F042000149, Denso 280004200. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1333 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1333 | Dyno Electrics |
| 280004200 | Denso |
| 280004201 | Denso |
| 280004990 | Denso |
| 280004991 | Denso |
| 280004992 | Denso |
| 280004993 | Denso |
| 280006240 | Denso |
| 280006260 | Denso |
| 280006261 | Denso |
| 280006262 | Denso |
| 280006263 | Denso |
| 5741402 | Bomag |
| 986024270 | Bosch Exchange |
| 0986UR1995 | Bosch Exchange |
| 110356 | HC-Cargo |
| 110720 | HC-Cargo |
| 110938 | HC-Cargo |
| 111299 | HC-Cargo |
| 11139262 | Mahle |
| 113966 | HC-Cargo |
| 1280000170 | Denso |
| 1280000171 | Denso |
| 1280000172 | Denso |
| 1280000173 | Denso |
| 1280000180 | Denso |
| 1280000181 | Denso |
| 1280001020 | Denso |
| 1280001022 | Denso |
| 1280002130 | Denso |
| 1280002131 | Denso |
| 1280002132 | Denso |
| 1280002133 | Denso |
| 1280006640 | Denso |
| 1429763011 | Kubota |
| 1533163010 | Kubota |
| 1540163010 | Kubota |
| 1540163011 | Kubota |
| 1540163012 | Kubota |
| 1546163010 | Kubota |
| 1546163011 | Kubota |
| 1546163012 | Kubota |
| 1546163013 | Kubota |
| 1546163014 | Kubota |
| 1546163015 | Kubota |
| 1546163016 | Kubota |
| 1546363011 | Kubota |
| 1547163011 | Kubota |
| 1551163011 | Kubota |
| 1552163010 | Kubota |
| 1552163011 | Kubota |
| 1552163012 | Kubota |
| 16650R | WAI |
| 1712363010 | Kubota |
| 172986301 | Kubota |
| 1729863010 | Kubota |
| 1729863011 | Kubota |
| 1729863012 | Kubota |
| 1729863013 | Kubota |
| 1734163010 | Kubota |
| 1734163011 | Kubota |
| 1734163013 | Kubota |
| 1734163014 | Kubota |
| 1734163015 | Kubota |
| 18144N | WAI |
| 18144R | WAI |
| 18146N | WAI |
| 19130130 | AES |
| 1920263011 | Kubota |
| 1961663010 | Kubota |
| 1961663011 | Kubota |
| 1961663012 | Kubota |
| 1961663014 | Kubota |
| 1982163011 | Kubota |
| 20130127 | AES |
| 22107ND | WAI |
| 2280001020 | Denso |
| 2280001021 | Denso |
| 2280001022 | Denso |
| 2280001023 | Denso |
| 2280001030 | Denso |
| 2280001031 | Denso |
| 2280001050 | Denso |
| 2280001051 | Denso |
| 2280001052 | Denso |
| 2280001080 | Denso |
| 2280001081 | Denso |
| 2280001082 | Denso |
| 2280004880 | Denso |
| 2280004920 | Denso |
| 2280004921 | Denso |
| 2280004922 | Denso |
| 2280006260 | Denso |
| 2280008431 | Denso |
| 2280008432 | Denso |
| 2280801082 | Denso |
| 662323 | Bobcat |
| 6653920 | Bobcat |
| 6662323 | Bobcat |
| 690504092 | PSH |
| 7000073460 | Kubota |
| 72561063 | Mahle |
| 91295120 | Wilson |
| 91295210 | Wilson |
| 91295212 | Wilson |
| 91295333 | Wilson |
| 91295338 | Wilson |
| 91295405 | Wilson |
| 9712809664 | Denso |
| 9722809102 | Denso |
| 9722809105 | Denso |
| 9722809108 | Denso |
| 9722809492 | Denso |
| AKS982 | ATK |
| AZD2151 | Mahle |
| DENDSN2084 | Wood Auto |
| DRS3226 | Delco Remy |
| DRS3233 | Delco Remy |
| DSN2084 | Denso |
| F032110356 | HC-Cargo |
| F032110720 | HC-Cargo |
| F032110938 | HC-Cargo |
| F032111299 | HC-Cargo |
| F032113966 | HC-Cargo |
| F042000149 | Bosch |
| F042S00149 | Bosch |
| HJS734 | HC-Parts |
| IS9583 | Mahle |
| JS678 | HC-Parts |
| JS734 | HC-Parts |
| KEARS15461 | Kubota |
| KEARS17298 | Kubota |
| LES0179 | Lucas |
| LRS01129 | Lucas |
| LRS01137 | Lucas |
| LRS01225 | Lucas |
| LRS01333 | Lucas |
| LRS1129 | Lucas |
| LRS1137 | Lucas |
| LRS1225 | Lucas |
| LRS1333 | Lucas |
| MS1169 | Mahle |
| RNL2280001020 | RNL |
| RNL734JS | RNL |
| S8813 | Dixie |
| SR9949X | Bosch (USA) |
| STR70208 | Wood Auto |
| STR70516 | Wood Auto |
| STR8019 | Wood Auto |
| STR8019AN | Wood Auto |
| TRS096 | TWA |
| WOOSTR70208 | Wood Auto |
| WOOSTR70516 | Wood Auto |
| WOOSTR8019 | Wood Auto |
| WOOSTR8019AN | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1332 | Placing of drains | Placing of drains | No |
| S1225 | Length 155MM | Length 190MM | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| GIANT | 6001T | 1999ccm Diesel | Kubota V2003M-T | ||||
| KUBOTA ENGINES | V1502 | 1487ccm Diesel | 1992 - | ||||
| SCHÄFFER | 332 | 0ccm Diesel | Kubota D1403-E | ||||
| SCHÄFFER | 4050ZS | 1999ccm Diesel | Kubota V2003-TE47 | 2004 - | |||
| SCHÄFFER | 442 | 0ccm Diesel | Kubota V1903-E | ||||
| SCHÄFFER | 550T | 1999ccm Diesel | Kubota V2003-EU1 | 2001 - | |||
| SCHÄFFER | Plus PRO 33 | 1499ccm Diesel | Kubota D1503 | 2006 - | |||
| TORO | Groundmaster 4500.D | 1999ccm Diesel | Kubota V2003 | 2005 - | |||
| TORO | Reelmaster 4240.D | 2197ccm Diesel | Kubota V2203-E1 | 2008 - |
Description
S1333 Replacement Starter Motor
For a S1333 starter motor enquiry, use Lucas reference LRS01333 alongside the vehicle and original unit details. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Giant 6001T 1999ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Giant 6001T 1999ccm Diesel (engine code Kubota V2003M-T).
- Kubota Engines V1502 1487ccm Diesel – selected applications 1992 -.
- SchÄFfer 332 (engine code Kubota D1403-E).
- SchÄFfer 4050ZS 1999ccm Diesel – selected applications 2004 – (engine code Kubota V2003-TE47).
- SchÄFfer 442 (engine code Kubota V1903-E).
- SchÄFfer 550T 1999ccm Diesel – selected applications 2001 – (engine code Kubota V2003-EU1).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1333. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986024270, 0986UR1995, F042000149, F042S00149, 280004200, 280004201, 280004990, 280004991, 280004992, 280004993, 280006240, 280006260, 280006261, 280006262, 280006263, 1280000170, 1280000171, 1280000172, 1280000173, 1280000180, 1280000181, 1280001020, 1280001022, 1280002130, 1280002131, 1280002132, 1280002133, 1280006640, 2280001020, 2280001021, 2280001022, 2280001023, 2280001030, 2280001031, 2280001050, 2280001051, 2280001052, 2280001080, 2280001081, 2280001082, 2280004880, 2280004920, 2280004921, 2280004922, 2280006260, 2280008431, 2280008432, 2280801082, 9712809664, 9722809102, 9722809105, 9722809108, 9722809492, DSN2084, LRS01333, LES0179, LRS01129, LRS01137, LRS01225, LRS1129, LRS1137, LRS1225, LRS1333, DRS3226, DRS3233, 11139262, 72561063, AZD2151, IS9583, MS1169
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1333 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1333 fit my Giant 6001T?
Giant 6001T 1999ccm Diesel is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1333 replace Lucas LRS01333?
Lucas LRS01333 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1333?
The listed details include 12V, 1.4kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1333 new or remanufactured?
Check the current product condition selection for S1333. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1333?
Compare 12V compatibility, 1.4kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
