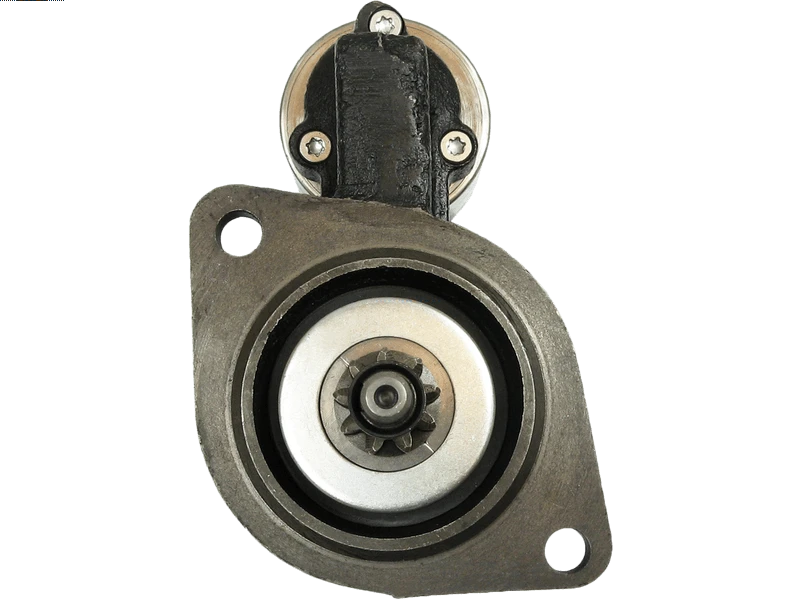

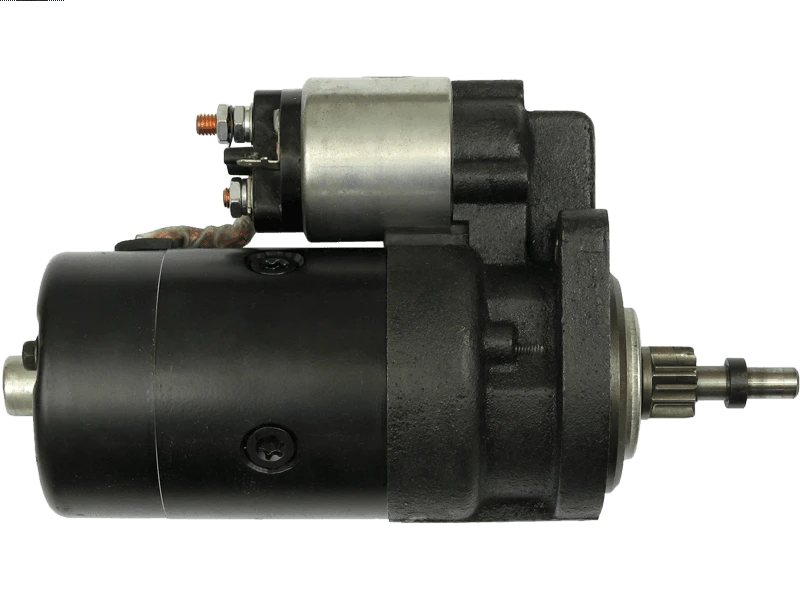

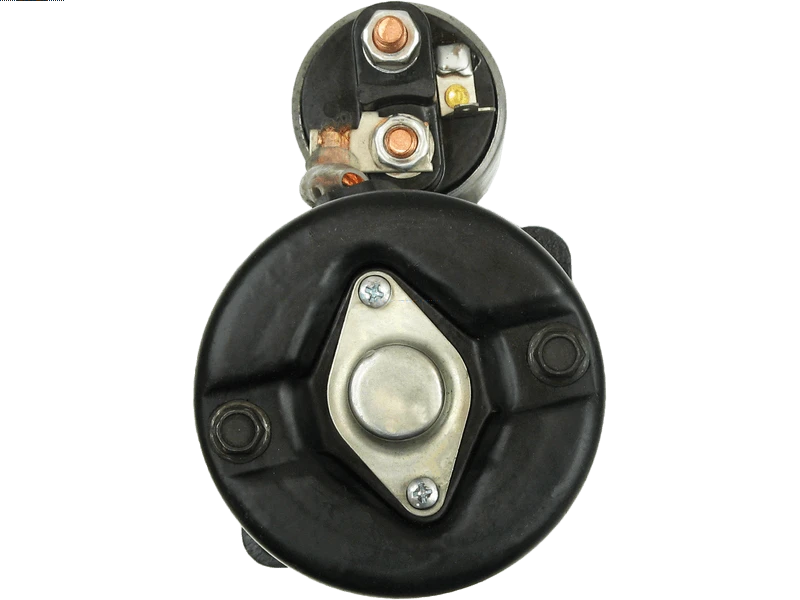

S1392 12V 2.2kW Starter Motor Fits VW Campmobile, VW Caravelle
Price range: £125.88 through £150.90
Identify a replacement starter motor using Sahibs S1392, listed at 12V 2.2kW. Listed applications include selected VW Campmobile, VW Caravelle, VW Multivan, VW Transporter models. Identification references include Lucas LRS01392, Bosch 1218148, Delco Remy DRS5970. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1392 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1392 | Dyno Electrics |
| UD00011S | AS-PL |
| 1218148 | BOSCH |
| 1218149 | BOSCH |
| DRS5970 | DELCO |
| 35259250 | PRESTOLITE |
| M1209H | PRESTOLITE |
| M1210G | PRESTOLITE |
| 020911023B | VW |
| 068911023T | VW |
| 068911023TX | VW |
| 098911023A | VW |
| 098911023B | VW |
| ANM18190X | ANDEL |
| STR10156 | ELECTROLOG |
| 25-2273 | ELSTOCK |
| 220131 | ERA |
| 220388 | ERA |
| 10713 | KUHNER |
| LRS01392 | LUCAS |
| LRS1392 | LUCAS |
| MAV3020 | SIOM |
| STX200038 | STARDAX |
| STX200169 | STARDAX |
| STX200169R | STARDAX |
| 17030N | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| VW | Campmobile | 2.4 (2370ccm) Diesel | AAB | T4 | California | 70B/70J/7DC/7DK | 1990 - 1998 |
| VW | Caravelle | 2.4 (2370ccm) Diesel | AAB | T4 | 70C/70K/7DC | 1990 - 1998 | |
| VW | Multivan | 2.4 (2370ccm) Diesel | AAB | T4 | 70B/7DC | 1992 - 1998 | |
| VW | Transporter | 2.4 (2370ccm) Diesel | AAB | T4 | 70E/70L/70M/7DE/7DL/7DM | 1990 - 1999 | |
| VW | Transporter | 2.4 (2370ccm) Diesel | AAB | T4 | 70A/70H/7DA/7DH | 1990 - 1998 | |
| VW | Transporter | 2.4 (2370ccm) Diesel | AAB | T4 | 70J/7DB/7DJ | 1990 - 1998 |
Description
S1392 Replacement Starter Motor
Choose a replacement by comparing the S1392 starter motor and its Lucas reference, LRS01392, with your existing unit. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected VW Campmobile 2.4 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- VW Campmobile 2.4 Diesel – selected applications 1990–1998 (engine code AAB).
- VW Caravelle 2.4 Diesel – selected applications 1990–1998 (engine code AAB).
- VW Multivan 2.4 Diesel – selected applications 1992–1998 (engine code AAB).
- VW Transporter 2.4 Diesel – selected applications 1990–1999 (engine code AAB).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1392. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1218148, 1218149, LRS01392, LRS1392, DRS5970, 35259250, M1209H, M1210G
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1392 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1392 fit my VW Campmobile?
VW Campmobile 2.4 Diesel (1990–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1392 replace Lucas LRS01392?
Lucas LRS01392 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1392?
The listed details include 12V, 2.2kW power, 9 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1392 new or remanufactured?
Check the current product condition selection for S1392. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1392?
Compare 12V compatibility, 2.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
