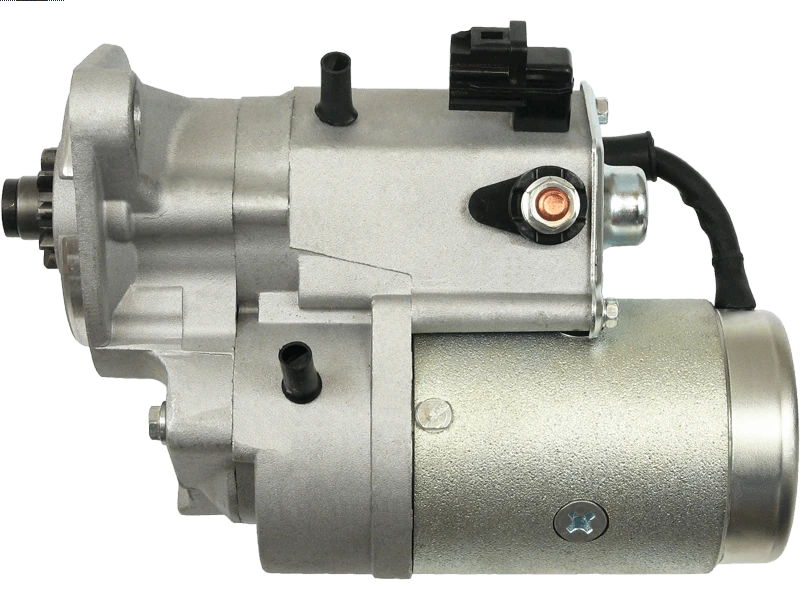

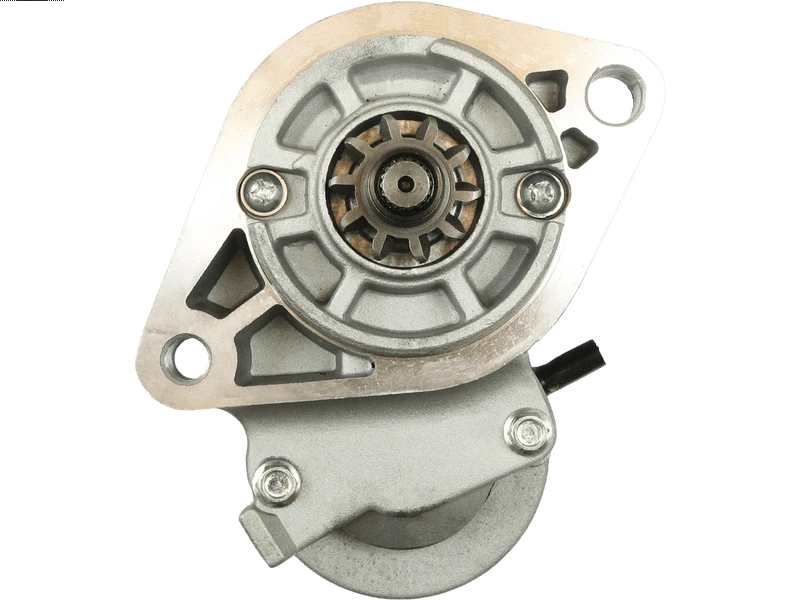

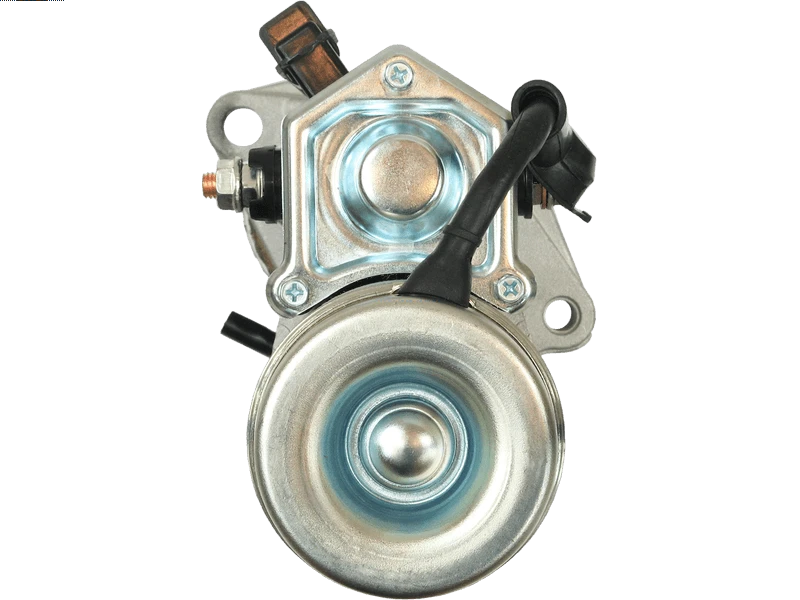

S1414 12V 2.2kW Starter Motor Fits Toyota 4 Runner
Price range: £122.65 through £142.19
Sahibs S1414 is a replacement starter motor with a listed 12V 2.2kW rating. Listed applications include selected Toyota 4 Runner, Toyota Land Cruiser, Toyota Land Cruiser 90, Toyota Land Cruiser Colorado models. Identification references include Lucas LRS01414, Bosch 986020601, Denso 228000-5020. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1414 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 6.06 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1414 | Dyno Electrics |
| 402820591 | Euro Car Part |
| S6011 | AS-PL |
| 986020601 | BOSCH |
| 113757 | CARGO |
| F032113757 | CARGO |
| DRS3855 | DELCO |
| 228000-5020 | DENSO |
| 228000-5021 | DENSO |
| 228000-5022 | DENSO |
| 228000-5023 | DENSO |
| 428000-0260 | DENSO |
| DSN1211 | DENSO |
| 8EA011610-651 | HELLA |
| 8EA737711-001 | HELLA |
| 8EA737744-001 | HELLA |
| 28100-0L040 | TOYOTA |
| 28100-0L041 | TOYOTA |
| 28100-0L042 | TOYOTA |
| 28100-0L080 | TOYOTA |
| 28100-30060 | TOYOTA |
| 28100-67030 | TOYOTA |
| 28100-67030-84 | TOYOTA |
| 28100-67050 | TOYOTA |
| 28100-67051 | TOYOTA |
| 28100-67052 | TOYOTA |
| 28100067050 | TOYOTA |
| 2.81007E+11 | TOYOTA |
| STRL060 | 3EFFE |
| ANM16075X | ANDEL |
| ASM1601 | APEC |
| DXS555 | ASHDOWN INGRAM |
| 003-T909 | ASHIKA |
| AET1154 | AUTOELECTRO |
| CST40103AS | CASCO |
| CST40103GS | CASCO |
| 9725 | CEVAM |
| 70-8578 | CIVIC/DA PARTS |
| 12119 | EAI |
| STR6032 | ELECTROLOG |
| 25-2311 | ELSTOCK |
| 220361 | ERA |
| 8020601 | FRIESEN |
| GSSN1211-A | GPARTS |
| JS1154 | HC PARTS |
| MTT909 | JAPANPARTS |
| 3T909 | JAPKO |
| 201154 | KUHNER |
| 201154D | KUHNER |
| 22.1154 | LAUBER |
| 22.1154M | LAUBER |
| LRS01414 | LUCAS |
| LRS1414 | LUCAS |
| NPANSM1601 | NAPA |
| 8213089 | POWERMAX |
| 88213089 | POWERMAX |
| 190.539.102.050 | PSH |
| 190.539.102.260 | PSH |
| 20432301BN | REAL |
| 20432301OE | REAL |
| RNL1154JS | RNL |
| 6040103 | SANDO |
| S12DE0135 | SIDAT |
| S12DE0135A2 | SIDAT |
| MAV5950 | SIOM |
| SS488 | SOVEREIGN |
| STX201000 | STARDAX |
| STX210244 | STARDAX |
| STX210244R | STARDAX |
| STX210245 | STARDAX |
| STX210245R | STARDAX |
| STX210248 | STARDAX |
| STX210248R | STARDAX |
| 32415N | WAI / TRANSPO |
| STR70015 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1497 | 2.2KW M8 B+ M5 "50" WITH OUT M10 MOUNTING BOLT | 2.2 KW, M8 B+ 7.4MM "50" WITH M10 MOUNTING BOLT | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA | 4 Runner | 3.0 (2982ccm) Diesel | 1KZT | II | KZN130 | 1993 - 1996 | |
| TOYOTA | Land Cruiser | 3.0 (2982ccm) Diesel | 1KZT | KZJ70/KZJ73/KZJ77 | 1993 - 1996 | ||
| TOYOTA | Land Cruiser 90 | 3.0 (2982ccm) Diesel | 1KZTE | KZJ90/KZJ95 | 1996 - 1999 | ||
| TOYOTA | Land Cruiser Colorado | 3.0 (2982ccm) Diesel | 1KZTE | KZJ90/KZJ95 | 1996 - 1999 | ||
| TOYOTA | Land Cruiser Prado | 3.0 (2982ccm) Diesel | 1KZTE | KZJ90/KZJ95 | 1996 - 1999 |
Description
S1414 Replacement Starter Motor
The Sahibs S1414 starter motor is associated with Lucas reference LRS01414 for replacement identification. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Toyota 4 Runner 3.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota 4 Runner 3.0 Diesel – selected applications 1993–1996 (engine code 1KZT).
- Toyota Land Cruiser 3.0 Diesel – selected applications 1993–1996 (engine code 1KZT).
- Toyota Land Cruiser 90 3.0 Diesel – selected applications 1996–1999 (engine code 1KZTE).
- Toyota Land Cruiser Colorado 3.0 Diesel – selected applications 1996–1999 (engine code 1KZTE).
- Toyota Land Cruiser Prado 3.0 Diesel – selected applications 1996–1999 (engine code 1KZTE).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1414. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986020601, 228000-5020, 228000-5021, 228000-5022, 228000-5023, 428000-0260, DSN1211, LRS01414, LRS1414, DRS3855
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1414 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1414 fit my Toyota 4 Runner?
Toyota 4 Runner 3.0 Diesel (1993–1996) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1414 replace Lucas LRS01414?
Lucas LRS01414 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1414?
The listed details include 12V, 2.2kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1414 new or remanufactured?
Check the current product condition selection for S1414. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1414?
Compare 12V compatibility, 2.2kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
