S1434 12V 1.5kW Starter Motor Fits Hatz 1D60 Industrial Engine
Price range: £106.74 through £121.70
Sahibs S1434 is a replacement starter motor with a listed 12V 1.5kW rating. Listed applications include selected Hatz 1D60 Industrial Engine, Hatz 1D80 Industrial Engine, Hatz HATZ models. Identification references include Lucas LRS01434, Bosch 1109363, Delco Remy DRS8080. Its listed 12V 1.5kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1434 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.5 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 7.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1434 | Dyno Electrics |
| UD04251(SEG)S | AS-PL |
| 1109363 | BOSCH |
| 0001109363-R | BOSCH |
| 1109442 | BOSCH |
| 1314047 | BOSCH |
| 986018080 | BOSCH |
| 1986S00753 | BOSCH |
| 112040 | CARGO |
| 116333 | CARGO |
| F032112040 | CARGO |
| F032116333 | CARGO |
| DRS8080 | DELCO |
| 8EA738258-051 | HELLA |
| PRSS530 | 3EFFE |
| STRS530 | 3EFFE |
| AC-CBS1340 | ACAUTO |
| CGB-28080 | AINDE |
| 10440742 | ALANKO |
| ANM10300 | ANDEL |
| ANM10300X | ANDEL |
| A18080 | ATL AUTOTECHNIK |
| S100246 | BTS TURBO |
| S100247 | BTS TURBO |
| BREF032116333 | CARWOOD GROUP |
| CST10314AS | CASCO |
| CST10314RS | CASCO |
| 8475 | CEVAM |
| 260-15101 | DIXIE |
| TS-6176 | DIXIE |
| 680006102 | DRI |
| STR10171 | ELECTROLOG |
| 25-2347 | ELSTOCK |
| 50353420 | HATZ |
| CS1340 | HC PARTS |
| 10010314RV | ITAB AUTOMOTIVE |
| STB1340 | KRAUF |
| LRS01434 | LUCAS |
| LRS1434 | LUCAS |
| 730.501.102.011 | PSH |
| 730.501.102.210 | PSH |
| 730.501.102.280 | PSH |
| 20401413BN | REAL |
| 20401413RC | REAL |
| 6010314 | SANDO |
| 6010314.2 | SANDO |
| S12BH0389 | SIDAT |
| S12BH0389A2 | SIDAT |
| ST00976 | TMI |
| BOS0001109363 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| HATZ | 1D60 Industrial Engine | 517ccm Diesel | 1990 - 1991 | ||||
| HATZ | 1D80 Industrial Engine | 667ccm Diesel | 1990 - 1991 | ||||
| HATZ | HATZ | 517ccm Diesel | 1990 - 1991 | ||||
| HATZ | HATZ | 667ccm Diesel | 1990 - 1991 |
Description

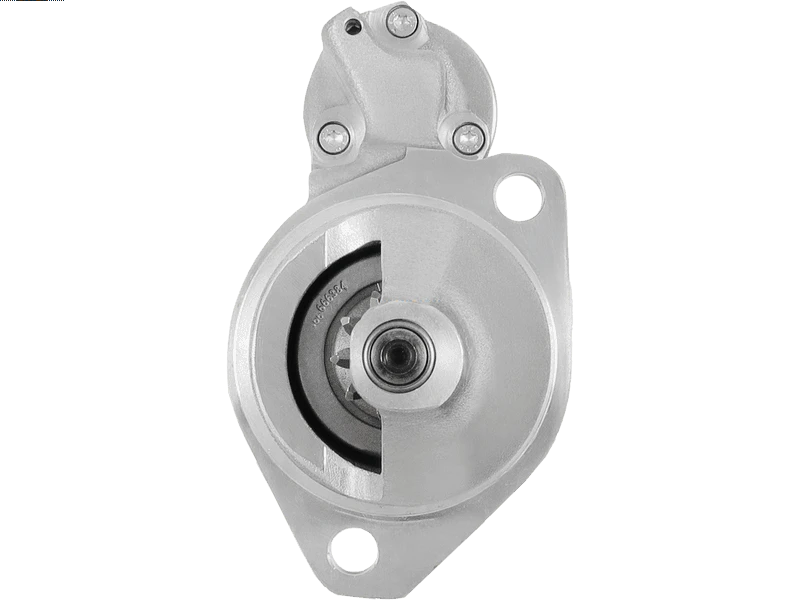

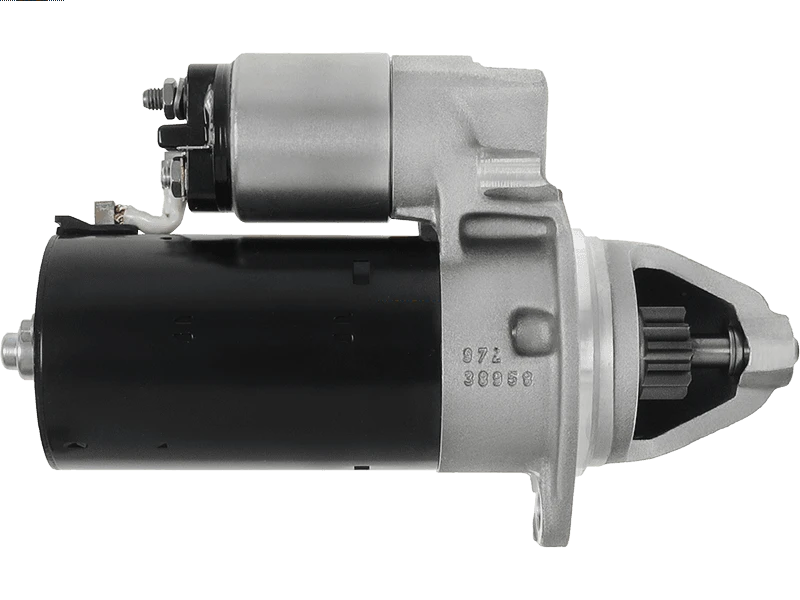

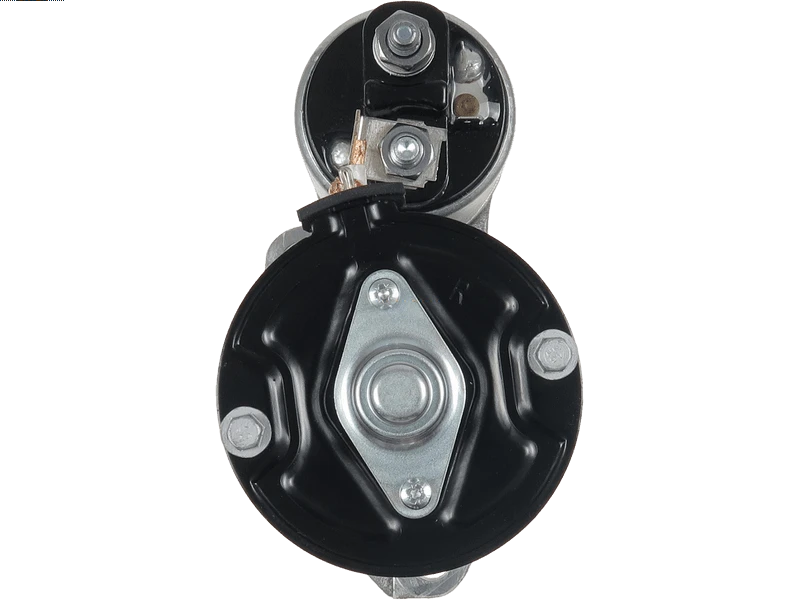

S1434 Replacement Starter Motor
The Sahibs S1434 starter motor is associated with Lucas reference LRS01434 for replacement identification. The listed electrical rating is 12V 1.5kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Hatz 1D60 Industrial Engine 517ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.5kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Hatz 1D60 Industrial Engine 517ccm Diesel – selected applications 1990–1991.
- Hatz 1D80 Industrial Engine 667ccm Diesel – selected applications 1990–1991.
- Hatz HATZ 517ccm Diesel – selected applications 1990–1991.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1434. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1109363, 0001109363-R, 1109442, 1314047, 986018080, 1986S00753, LRS01434, LRS1434, DRS8080
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1434 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1434 fit my Hatz 1D60 Industrial Engine?
Hatz 1D60 Industrial Engine 517ccm Diesel (1990–1991) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1434 replace Lucas LRS01434?
Lucas LRS01434 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1434?
The listed details include 12V, 1.5kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1434 new or remanufactured?
Check the current product condition selection for S1434. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1434?
Compare 12V compatibility, 1.5kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
