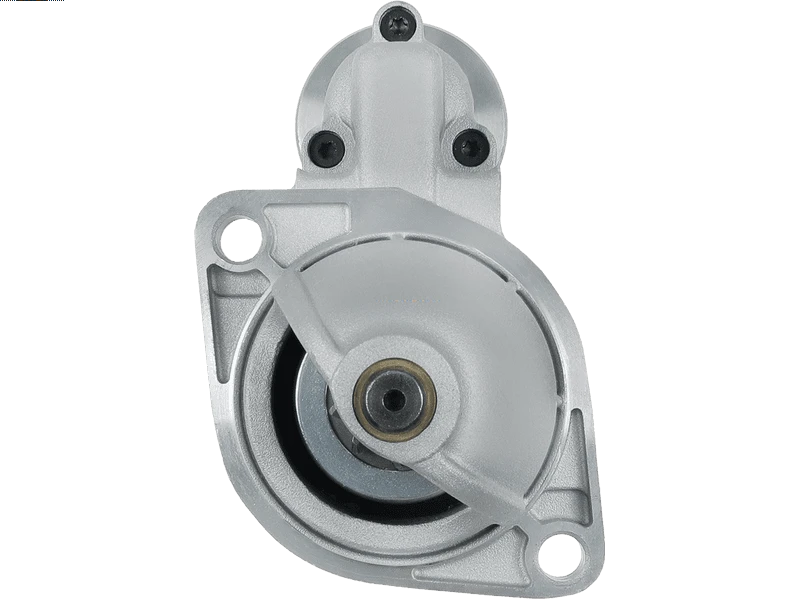

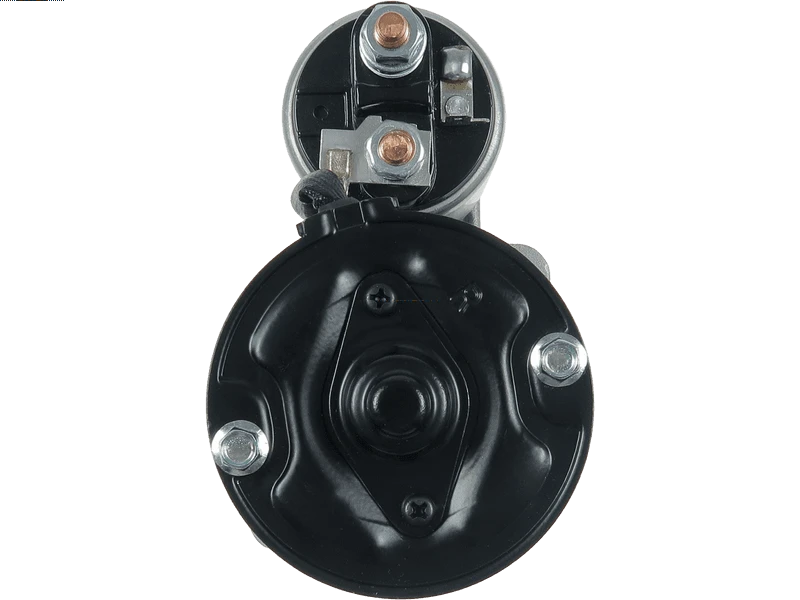

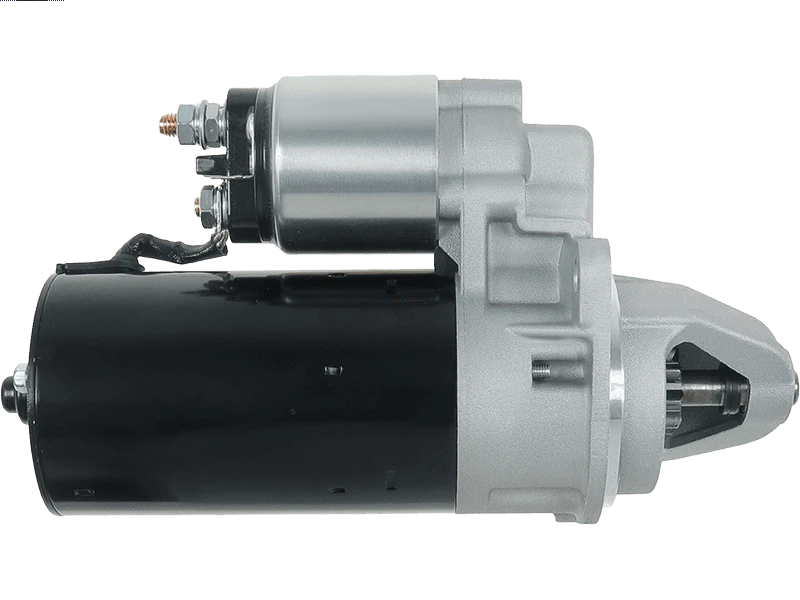

S1439 12V 1.6kW Starter Motor Fits Ammann RX1510-CI, Bcs Victor 300
Price range: £102.86 through £118.68
The S1439 12V 1.6kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Ammann RX1510-CI, Bcs Victor 300, Bcs Vivid 400, Lombardini 7LD 665F models. Identification references include Lucas LRS01439, Bosch 1109009, Delco Remy DRS3876. Its listed 12V 1.6kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1439 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.6 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.99 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1439 | Dyno Electrics |
| S0411 | AS-PL |
| UD102871S | AS-PL |
| 1109009 | BOSCH |
| 1110042 | BOSCH |
| 1115034 | BOSCH |
| 1115035 | BOSCH |
| 1314001 | BOSCH |
| 986022500 | BOSCH |
| 1986S00762 | BOSCH |
| F002G70047 | BOSCH |
| 115816 | CARGO |
| F032115816 | CARGO |
| A1016373 | CASE |
| DRS3876 | DELCO |
| VOE9002901237 | VOLVO |
| PRSL070 | 3EFFE |
| STRL070 | 3EFFE |
| CGB-23876 | AINDE |
| 10439777 | ALANKO |
| ANM16096X | ANDEL |
| ASM1765 | APEC |
| A22500 | ATL AUTOTECHNIK |
| SBO143 | AUTOTEAM |
| SBO143A | AUTOTEAM |
| S510486 | BTS TURBO |
| CST10143AS | CASCO |
| CST10143GS | CASCO |
| 681012092 | CEVAM |
| CMA-621041 | COMLINE |
| S-22070 | DTS |
| STR10256 | ELECTROLOG |
| 25-2357 | ELSTOCK |
| 220913 | ERA |
| 220913A | ERA |
| 11022500 | EUROTEC |
| 2-0030 | EXACT |
| 103696 | FARCOM |
| 8014890 | FRIESEN |
| SG2041 | GHIBAUDI |
| GS115035-A | GPARTS |
| GS115035B-CX | GPARTS |
| GS115035B-R | GPARTS |
| SS115035-A | GPARTS |
| SS115035B-R | GPARTS |
| CS1545 | HC PARTS |
| 3124616 | HENKEL PARTS |
| 3124617 | HENKEL PARTS |
| H5010367 | HOFFER |
| STB0515 | KRAUF |
| 254005 | KUHNER |
| 254005B | KUHNER |
| 330667 | LOGISTIK |
| 1005821194 | LOMBARDINI |
| 5340147 | LOMBARDINI |
| 5840081 | LOMBARDINI |
| 5840147 | LOMBARDINI |
| 58401470 | LOMBARDINI |
| 5840224 | LOMBARDINI |
| 58402240 | LOMBARDINI |
| ED0058402240-S | LOMBARDINI |
| LRS01439 | LUCAS |
| LRS1439 | LUCAS |
| 5010367 | MEAT & DORIA |
| NPANSM1765 | NAPA |
| 850051 | PIAGGIO |
| 88212785 | POWERMAX |
| IR9030 | PROTECH |
| 690.501.092.011 | PSH |
| 690.501.092.280 | PSH |
| 690.501.092.460 | PSH |
| 20401341BN | REAL |
| 20401341OE | REAL |
| 011-001-000038R | REMANTE |
| RNL2250 | RNL |
| 120-10109 | ROBERT'S |
| 120-10109NOE | ROBERT'S |
| 6010143 | SANDO |
| 6010143.1 | SANDO |
| S12BH0103A2 | SIDAT |
| MAV6570 | SIOM |
| ST00984 | TMI |
| 18365N | WAI / TRANSPO |
| WG2013481 | WILMINK GROUP |
| WG2013482 | WILMINK GROUP |
| 91-15-7076 | WILSON |
| BOS0001115034 | WOODAUTO |
| BOS0001115035 | WOODAUTO |
| SEG0001115034 | WOODAUTO |
| SEG0001115035 | WOODAUTO |
| STR22070 | WOODAUTO |
| STR50541 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S4007 | 1.6KW | 1.4KW | No |
| S1379 | 1.6/1.7KW G/R (Small body) | 1.5/1.6KW Conv. (Large body) | No |
| T0161 | Connection 50 plug | Connection 50 M6 Ignition by pass | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| AMMANN | RX1510-CI | 1028ccm Diesel | Lombardini LDW1003 | 2008 - | |||
| BCS | Victor 300 | 1029ccm Diesel | Lombardini LDW1003 | 2005 - | |||
| BCS | Vivid 400 | 1371ccm Diesel | Lombardini LDW1404 | 2005 - | |||
| LOMBARDINI | 7LD 665F | 666ccm Diesel | 1992 - | ||||
| LOMBARDINI | 7LD 740F | 738ccm Diesel | 1992 - | ||||
| LOMBARDINI | 8LD 740.2 | 738ccm Diesel | 1992 - | ||||
| LOMBARDINI | 904 | 1196ccm Diesel | 1995 - | ||||
| LOMBARDINI | 9LD 561.2 | 1120ccm Diesel | 1992 - | ||||
| LOMBARDINI | 9LD 561.2/2W | 1120ccm Diesel | 1992 - | ||||
| LOMBARDINI | 9LD 561.2L | 1120ccm Diesel | 1992 - | ||||
| LOMBARDINI | 9LD 625.2 | 1248ccm Diesel | 1992 - | ||||
| LOMBARDINI | LDW 1003 | 1028ccm Diesel | |||||
| LOMBARDINI | LDW 702 | 686ccm Diesel | |||||
| LYDERSEN | Combi VI 11 | 1028ccm Diesel | Lombardini LDW1003 | 2002 - | |||
| LYDERSEN | FS320 | 686ccm Diesel | Lombardini LDW702 | 2002 - | |||
| TP | 160 | 1372ccm Diesel | Lombardini LDW1404 | 2008 - | |||
| VOLVO CONSTRUCTION EQUIPMENT | ZL302C | 1370ccm Diesel | Deutz F4M1008 |
Description
S1439 Replacement Starter Motor
The Sahibs S1439 starter motor is associated with Lucas reference LRS01439 for replacement identification. The listed electrical rating is 12V 1.6kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Ammann RX1510-CI 1028ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.6kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Ammann RX1510-CI 1028ccm Diesel – selected applications 2008 – (engine code Lombardini LDW1003).
- Bcs Victor 300 1029ccm Diesel – selected applications 2005 – (engine code Lombardini LDW1003).
- Bcs Vivid 400 1371ccm Diesel – selected applications 2005 – (engine code Lombardini LDW1404).
- Lombardini 7LD 665F 666ccm Diesel – selected applications 1992 -.
- Lombardini 7LD 740F 738ccm Diesel – selected applications 1992 -.
- Lombardini 8LD 740.2 738ccm Diesel – selected applications 1992 -.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1439. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1109009, 1110042, 1115034, 1115035, 1314001, 986022500, 1986S00762, F002G70047, LRS01439, LRS1439, DRS3876
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1439 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1439 fit my Ammann RX1510-CI?
Ammann RX1510-CI 1028ccm Diesel (2008 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1439 replace Lucas LRS01439?
Lucas LRS01439 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1439?
The listed details include 12V, 1.6kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1439 new or remanufactured?
Check the current product condition selection for S1439. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1439?
Compare 12V compatibility, 1.6kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
