S1450 12V 3.3kW Starter Motor Fits Zetor 10520, Zetor 10540
Price range: £159.77 through £191.52
Sahibs S1450 is a replacement starter motor with a listed 12V 3.3kW rating. Listed applications include selected Zetor 10520, Zetor 10540, Zetor 7520, Zetor 7540 models. Identification references include Lucas LRS01450, Mahle 11130863. Its listed 12V 3.3kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1450 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 3.3 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 13.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1450 | Dyno Electrics |
| 11130863 | Mahle |
| 16359974 | Zetor |
| 18481N | WAI |
| 4.43115E+11 | Magneton |
| 580002093 | PSH |
| 72735909 | Mahle |
| 75207540 | Zetor |
| 78350925 | Zetor |
| 85208540 | Zetor |
| 91369501 | Wilson |
| 9142763 | Magneton |
| 9144763 | Magneton |
| AZJ3301 | Mahle |
| IS0863 | Mahle |
| LETIS0863 | Wood Auto |
| LRS01450 | Lucas |
| LRS1450 | Lucas |
| MAHMS281 | Wood Auto |
| MGN9142763 | Wood Auto |
| MN16359974 | Zetor |
| MS281 | Mahle |
| MSL76300 | Magneton |
| RNL11130863 | RNL |
| STR31004 | Wood Auto |
| STR60414 | Wood Auto |
| WOOSTR60414 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| ZETOR | 10520 | 0ccm Diesel | 1301 | 1994 - 1998 | |||
| ZETOR | 10540 | 0ccm Diesel | 1301 | 1994 - 1998 | |||
| ZETOR | 7520 | 0ccm Diesel | 7801 | 1995 - 1998 | |||
| ZETOR | 7540 | 0ccm Diesel | 7801 | 1995 - 1998 | |||
| ZETOR | 8520 | 4156ccm Diesel | 4T | 1991 - 1999 | |||
| ZETOR | 8540 | 4156ccm Diesel | 4T | 1994 - 1999 | |||
| ZETOR | 9520 | 0ccm Diesel | 1001 | 1991 - 2000 | |||
| ZETOR | 9540 | 0ccm Diesel | 1001 | 1991 - 1998 |
Description

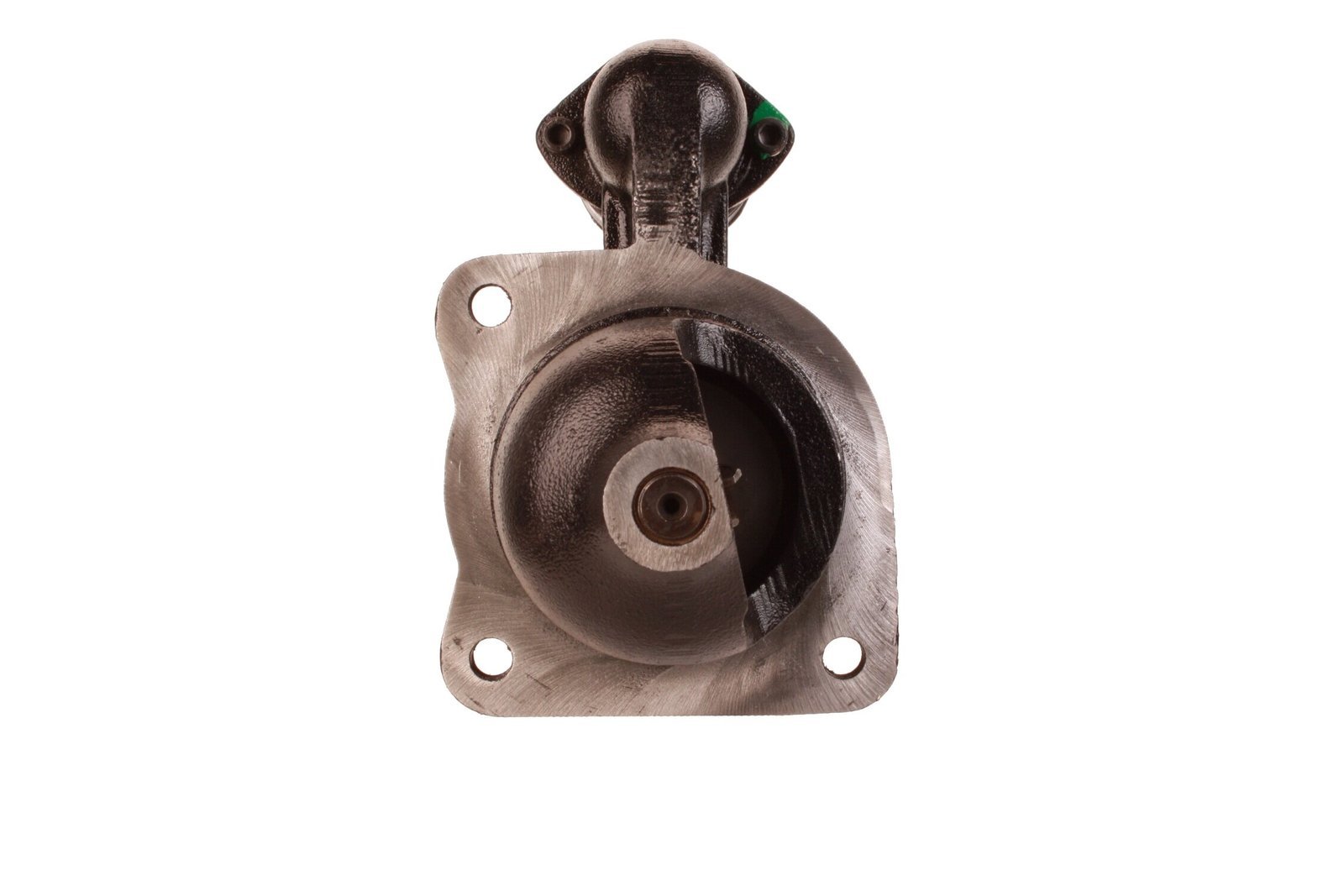

S1450 Replacement Starter Motor
Start your S1450 starter motor comparison with the linked Lucas reference LRS01450 and the specifications shown on this page. The listed electrical rating is 12V 3.3kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Zetor 10520 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 3.3kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Zetor 10520 – selected applications 1994–1998 (engine code 1301).
- Zetor 10540 – selected applications 1994–1998 (engine code 1301).
- Zetor 7520 – selected applications 1995–1998 (engine code 7801).
- Zetor 7540 – selected applications 1995–1998 (engine code 7801).
- Zetor 8520 4156ccm Diesel – selected applications 1991–1999 (engine code 4T).
- Zetor 8540 4156ccm Diesel – selected applications 1994–1999 (engine code 4T).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1450. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS01450, LRS1450, 11130863, 72735909, AZJ3301, IS0863, MS281
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1450 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1450 fit my Zetor 10520?
Zetor 10520 (1994–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1450 replace Lucas LRS01450?
Lucas LRS01450 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1450?
The listed details include 12V, 3.3kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1450 new or remanufactured?
Check the current product condition selection for S1450. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1450?
Compare 12V compatibility, 3.3kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
