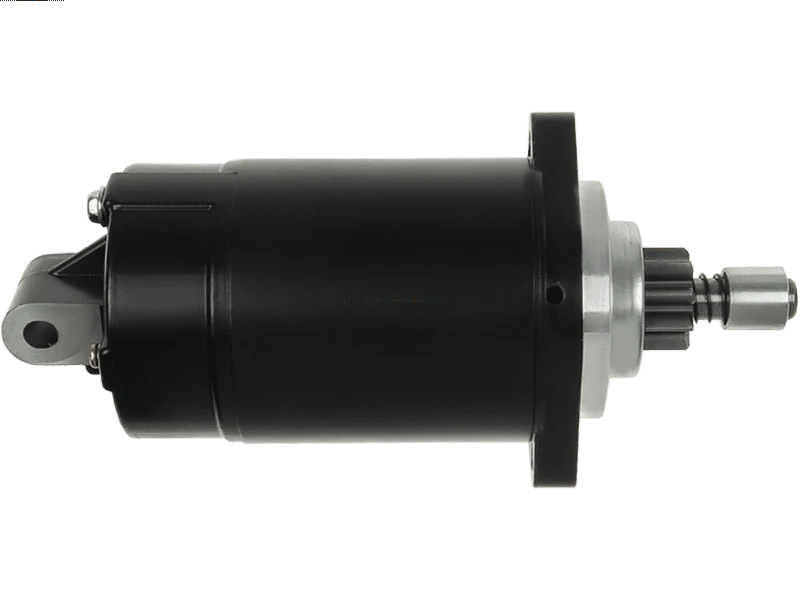

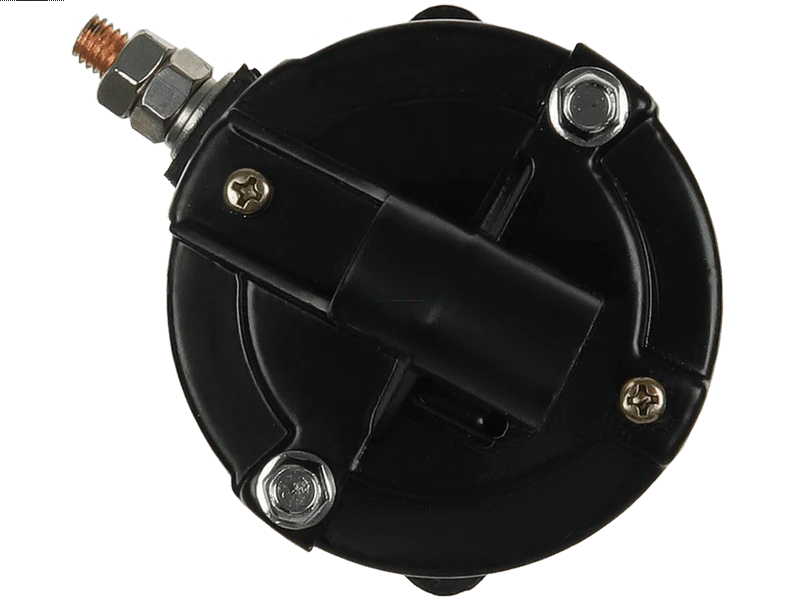

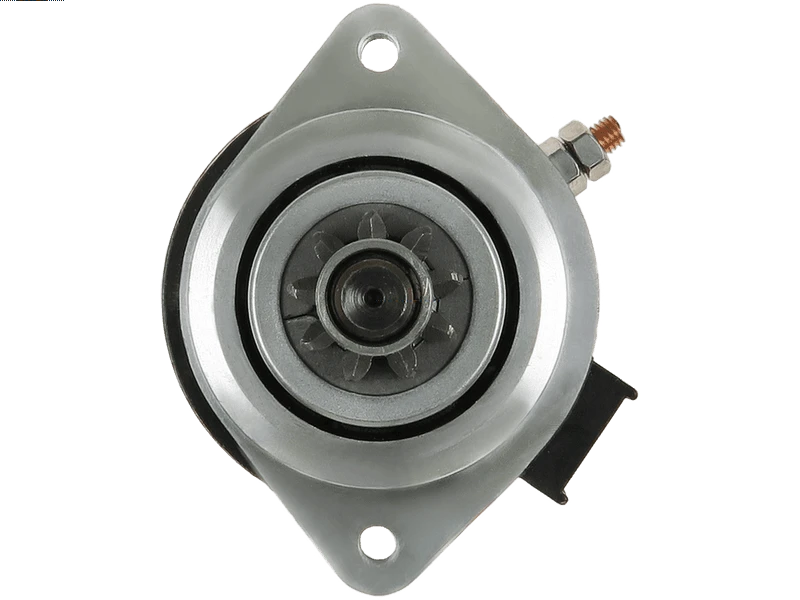

S1469 12V 1.1kW Starter Motor Fits Yamaha Marine 115 HP
Price range: £59.18 through £72.01
Compare the S1469 12V 1.1kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Yamaha Marine 115 HP, Yamaha Marine 130 HP, Yamaha Marine 150 HP, Yamaha Marine 175 HP models. Identification references include Lucas LRS01469, Hitachi S114-323, Delco Remy RS41143. Its listed 12V 1.1kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1469 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.1 kW |
| Volt | 12 V |
| Plug | M8 |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 2.94 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1469 | Dyno Electrics |
| UD19193S | AS-PL |
| 111766 | CARGO |
| F032111766 | CARGO |
| RS41143 | DELCO |
| S114-323 | HITACHI |
| S114-323A | HITACHI |
| S114-323B | HITACHI |
| S114-323C | HITACHI |
| 20513554TBA | PRESTOLITE |
| PRSL771 | 3EFFE |
| STRL771 | 3EFFE |
| 10440644 | ALANKO |
| 11440644 | ALANKO |
| SHI0031 | ARROWHEAD |
| SHI164 | AUTOTEAM |
| CST20164GS | CASCO |
| CST20164RS | CASCO |
| CMA-623448 | COMLINE |
| 240-10104 | DIXIE |
| 600202112 | DRI |
| 25-2407 | ELSTOCK |
| 104457 | FARCOM |
| 3117805 | HENKEL PARTS |
| 10020164OV | ITAB AUTOMOTIVE |
| 410-44006 | J&N |
| STH1766 | KRAUF |
| 254736 | KUHNER |
| 18314 | LESTER |
| 335973 | LOGISTIK |
| 336356 | LOGISTIK |
| LRS01469 | LUCAS |
| LRS1469 | LUCAS |
| 88213826 | POWERMAX |
| 400.037.092.200 | PSH |
| 20445461OE | REAL |
| 20445461RC | REAL |
| 6020164.1 | SANDO |
| 6020164.2 | SANDO |
| MAV221640 | SIOM |
| ST01021 | TMI |
| 18314N | WAI / TRANSPO |
| 2-2167-HI | WAI / TRANSPO |
| 71-25-18314 | WILSON |
| 91-25-1129 | WILSON |
| STR72078 | WOODAUTO |
| WOOSTR72078 | WOODAUTO |
| 6E5-81800-10 | YAMAHA |
| 6E5-81800-11 | YAMAHA |
| 6E5-81800-12 | YAMAHA |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| YAMAHA MARINE | 115 HP | 1741ccm Diesel | 1984 - 1996 | ||||
| YAMAHA MARINE | 130 HP | 0ccm Diesel | 1988 - 1996 | ||||
| YAMAHA MARINE | 150 HP | 0ccm Diesel | 1984 - 1996 | ||||
| YAMAHA MARINE | 175 HP | 0ccm Diesel | 1984 - 1996 | ||||
| YAMAHA MARINE | 200 HP | 0ccm Diesel | 1984 - 1996 | ||||
| YAMAHA MARINE | F40 | 0ccm Diesel | 4-takt | 1999 - 2000 |
Description
S1469 Replacement Starter Motor
The Sahibs S1469 starter motor is associated with Lucas reference LRS01469 for replacement identification. The listed electrical rating is 12V 1.1kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Yamaha Marine 115 HP 1741ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.1kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Yamaha Marine 115 HP 1741ccm Diesel – selected applications 1984–1996.
- Yamaha Marine 130 HP – selected applications 1988–1996.
- Yamaha Marine 150 HP – selected applications 1984–1996.
- Yamaha Marine 175 HP – selected applications 1984–1996.
- Yamaha Marine 200 HP – selected applications 1984–1996.
- Yamaha Marine F40 – selected applications 1999–2000 (engine code 4-takt).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1469. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS01469, LRS1469, S114-323, S114-323A, S114-323B, S114-323C, RS41143, 20513554TBA
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1469 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1469 fit my Yamaha Marine 115 HP?
Yamaha Marine 115 HP 1741ccm Diesel (1984–1996) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1469 replace Lucas LRS01469?
Lucas LRS01469 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1469?
The listed details include 12V, 1.1kW power, 9 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1469 new or remanufactured?
Check the current product condition selection for S1469. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1469?
Compare 12V compatibility, 1.1kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
