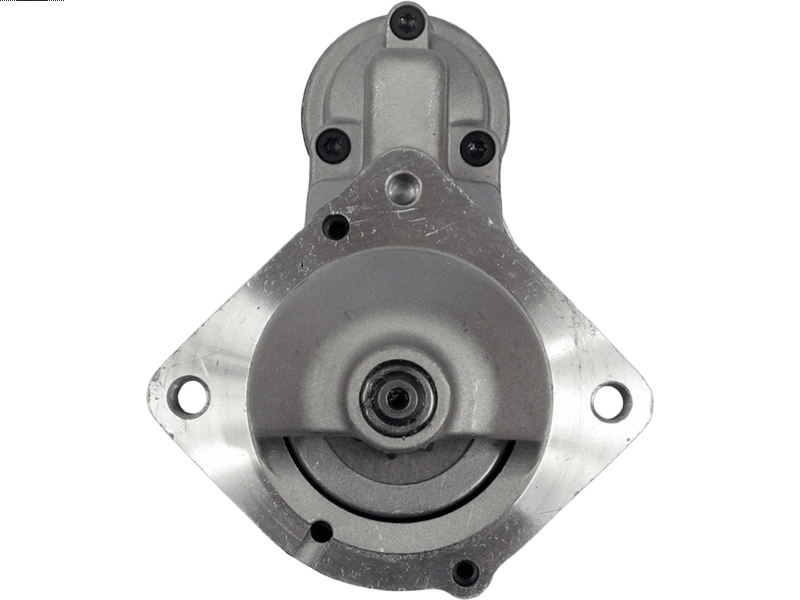

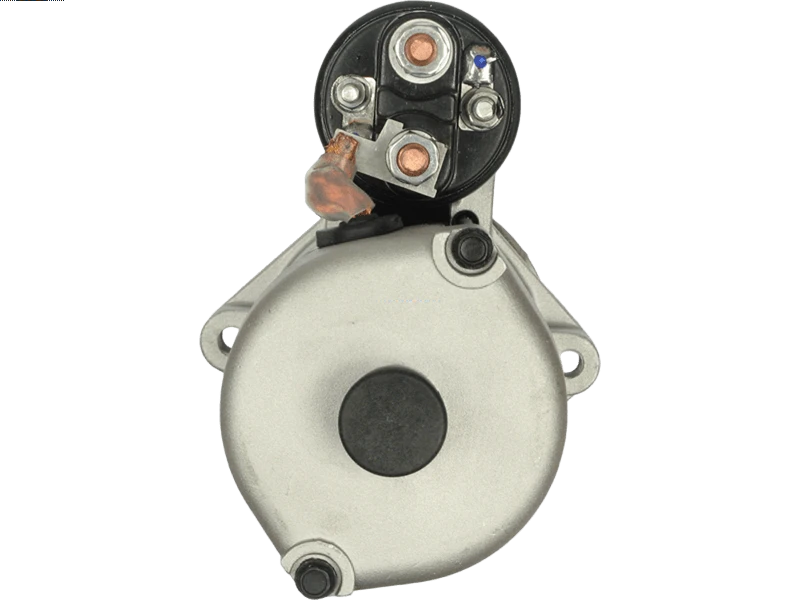

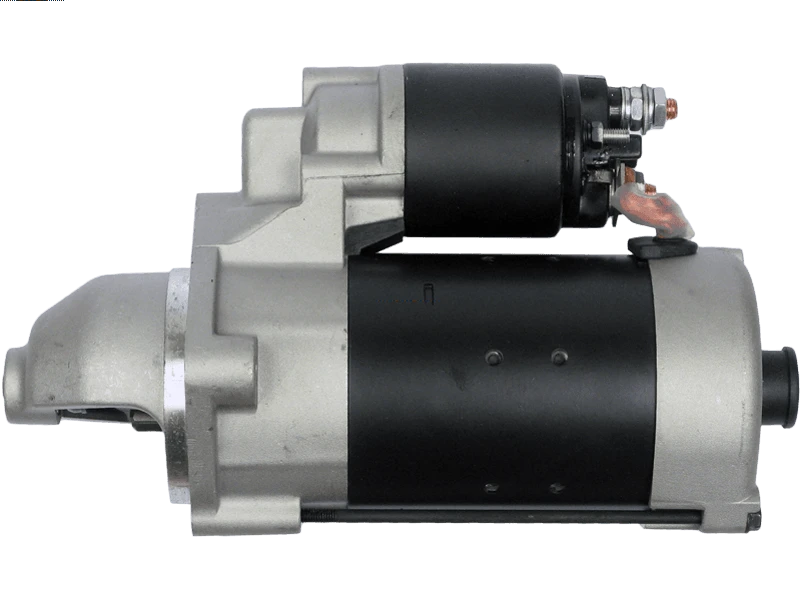

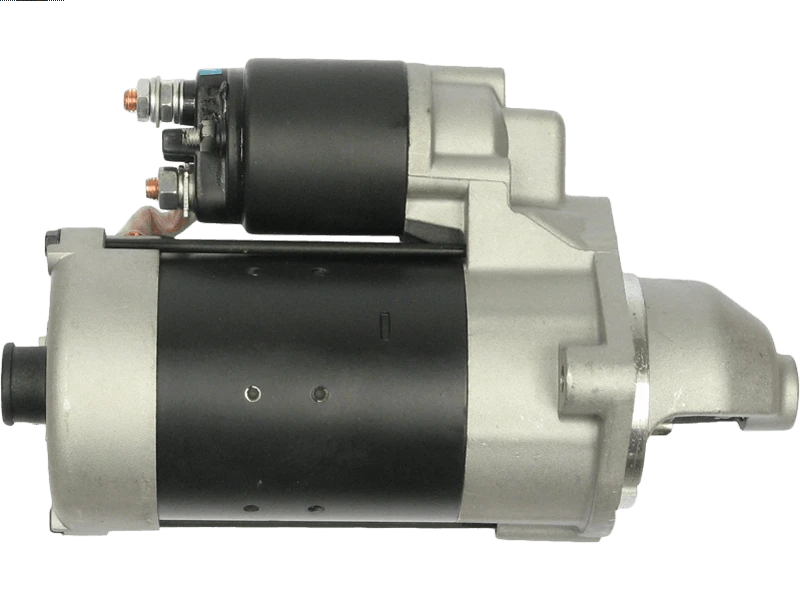

S1475 12V 2.2kW Starter Motor Fits Land Rover Range Rover, BMW 330d
Price range: £138.01 through £160.85
The S1475 12V 2.2kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Land Rover Range Rover, BMW 330d, BMW 530d, BMW 730d models. Identification references include Lucas LRS01475, Bosch 986022710, Valeo 458386. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1475 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1475 | Dyno Electrics |
| 402110171 | Euro Car Part |
| S4035 | AS-PL |
| 12411466345 | BMW |
| 12412179676 | BMW |
| 12412246570 | BMW |
| 12412246571 | BMW |
| 12412246574 | BMW |
| 12412247391 | BMW |
| 12412247492 | BMW |
| 12412288166 | BMW |
| 12412344240 | BMW |
| 12412446570 | BMW |
| 12414371646 | BMW |
| 12417785691 | BMW |
| 12417785715 | BMW |
| 12417787925 | BMW |
| 12419069808 | BMW |
| 12422242231 | BMW |
| 2246570 | BMW |
| 2246571 | BMW |
| 224739 | BMW |
| 2247391 | BMW |
| 2344240 | BMW |
| 7785691 | BMW |
| 7785715 | BMW |
| 7787925 | BMW |
| 9069808 | BMW |
| 986022710 | BOSCH |
| 113446 | CARGO |
| F032113446 | CARGO |
| DRS3684 | DELCO |
| DSN587 | DENSO |
| 8EA011611-151 | HELLA |
| 8EA737706-001 | HELLA |
| 63114017 | MAGNETI MARELLI |
| 63222005 | MAGNETI MARELLI |
| 9.44281E+11 | MAGNETI MARELLI |
| 1202141 | OPEL |
| 1202168 | OPEL |
| 24454172 | OPEL |
| 6202017 | OPEL |
| 6202054 | OPEL |
| 90465731 | OPEL |
| 90542412 | OPEL |
| 93171945 | OPEL |
| 93175889 | OPEL |
| 93175907 | OPEL |
| 9512771 | OPEL |
| R1040037 | OPEL |
| R1540015 | OPEL |
| 20513030 | PRESTOLITE |
| NAD000090 | ROVER |
| NAD000090E | ROVER |
| 458386 | VALEO |
| 458496 | VALEO |
| 726157 | VALEO |
| PRSL106 | 3EFFE |
| STRL106 | 3EFFE |
| CGB-52417 | AINDE |
| RH-420025 | AINDE |
| ANM15904X | ANDEL |
| ASM1607 | APEC |
| AEU1171 | AUTOELECTRO |
| CST30114GS | CASCO |
| CST30163AS | CASCO |
| CST30163GS | CASCO |
| CST30163RS | CASCO |
| 3182 | CEVAM |
| 11848 | EAI |
| STR9050 | ELECTROLOG |
| 25-2417 | ELSTOCK |
| 220607 | ERA |
| 8080061 | FRIESEN |
| CS1171 | HC PARTS |
| 42632920 | HERTH+BUSS |
| 101171 | KUHNER |
| 22.1171 | LAUBER |
| 22.1171M | LAUBER |
| 331136 | LOGISTIK |
| LRS01475 | LUCAS |
| LRS1475 | LUCAS |
| 5010248 | MEAT & DORIA |
| NPANSM1607 | NAPA |
| 88212650 | POWERMAX |
| 210.521.093.010 | PSH |
| 210.521.093.058 | PSH |
| 210.521.093.265 | PSH |
| 210.521.093.605 | PSH |
| 20404361BN | REAL |
| 20404361OE | REAL |
| 20404361RC | REAL |
| 20404411OE | REAL |
| RNL1171CS | RNL |
| 6030114.1 | SANDO |
| 6030163 | SANDO |
| 6030163.1 | SANDO |
| 6030163.2 | SANDO |
| MAV2400 | SIOM |
| SS055 | SOVEREIGN |
| STX200028 | STARDAX |
| STX200073 | STARDAX |
| STX200141 | STARDAX |
| STX200141R | STARDAX |
| STX200166 | STARDAX |
| 32475R | WAI / TRANSPO |
| STR52024 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1382 | 2.2KW Big version | 2.0KW Small version | No |
| T0170 | 2.2kw With 2 x M10 x 1.5 thread in front housing | 2.2KW Without thread in front housing | No |
| S1801 | Without ignition by pass | With ignition by pass | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| BMW | 330d | 3.0 (2926ccm) Diesel | M57D306D1 | E46 | X | 1999 - 2003 | |
| BMW | 330d | 3.0 (2926ccm) Diesel | M57D306D1 | E46 | Touring | 1999 - 2003 | |
| BMW | 330d | 3.0 (2926ccm) Diesel | M57D306D1 | E46 | 1999 - 2003 | ||
| BMW | 330d | 3.0 (2926ccm) Diesel | M57D306D1 | E46 | X Touring | 2000 - 2003 | |
| BMW | 530d | 3.0 (2926ccm) Diesel | M57D306D1 | E39 | Touring | 1998 - 2004 | |
| BMW | 530d | 3.0 (2926ccm) Diesel | M57D306D1 | E39 | Touring | 1998 - 2000 | |
| BMW | 530d | 3.0 (2926ccm) Diesel | M57D306D1 | E39 | 1998 - 2000 | ||
| BMW | 530d | 3.0 (2926ccm) Diesel | M57D306D1 | E39 | 2000 - 2003 | ||
| BMW | 730d | 3.0 (2926ccm) Diesel | M57D306D1 | E38 | 1998 - 1999 | ||
| BMW | 730d | 3.0 (2926ccm) Diesel | M57D306D1 | E38 | 1999 - 2002 | ||
| BMW | X5 | 3.0 (2926ccm) Diesel | M57D306D1 | E53 | X | 2001 - 2003 | |
| LAND ROVER | Range Rover | 3.0 (2926ccm) Diesel | 306D1(M57D30) | MK III | L322 | 2002 - 2009 |
Description
S1475 Replacement Starter Motor
Start your S1475 starter motor comparison with the linked Lucas reference LRS01475 and the specifications shown on this page. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Land Rover Range Rover 3.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Land Rover Range Rover 3.0 Diesel – selected applications 2002–2009 (engine code 306D1(M57D30)).
- BMW 330d 3.0 Diesel – selected applications 1999–2003 (engine code M57D306D1).
- BMW 530d 3.0 Diesel – selected applications 1998–2004 (engine code M57D306D1).
- BMW 730d 3.0 Diesel – selected applications 1998–1999 (engine code M57D306D1).
- BMW X5 3.0 Diesel – selected applications 2001–2003 (engine code M57D306D1).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1475. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986022710, 458386, 458496, 726157, DSN587, LRS01475, LRS1475, DRS3684, 20513030, NAD000090, NAD000090E
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1475 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1475 fit my Land Rover Range Rover?
Land Rover Range Rover 3.0 Diesel (2002–2009) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1475 replace Lucas LRS01475?
Lucas LRS01475 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1475?
The listed details include 12V, 2.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1475 new or remanufactured?
Check the current product condition selection for S1475. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1475?
Compare 12V compatibility, 2.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
