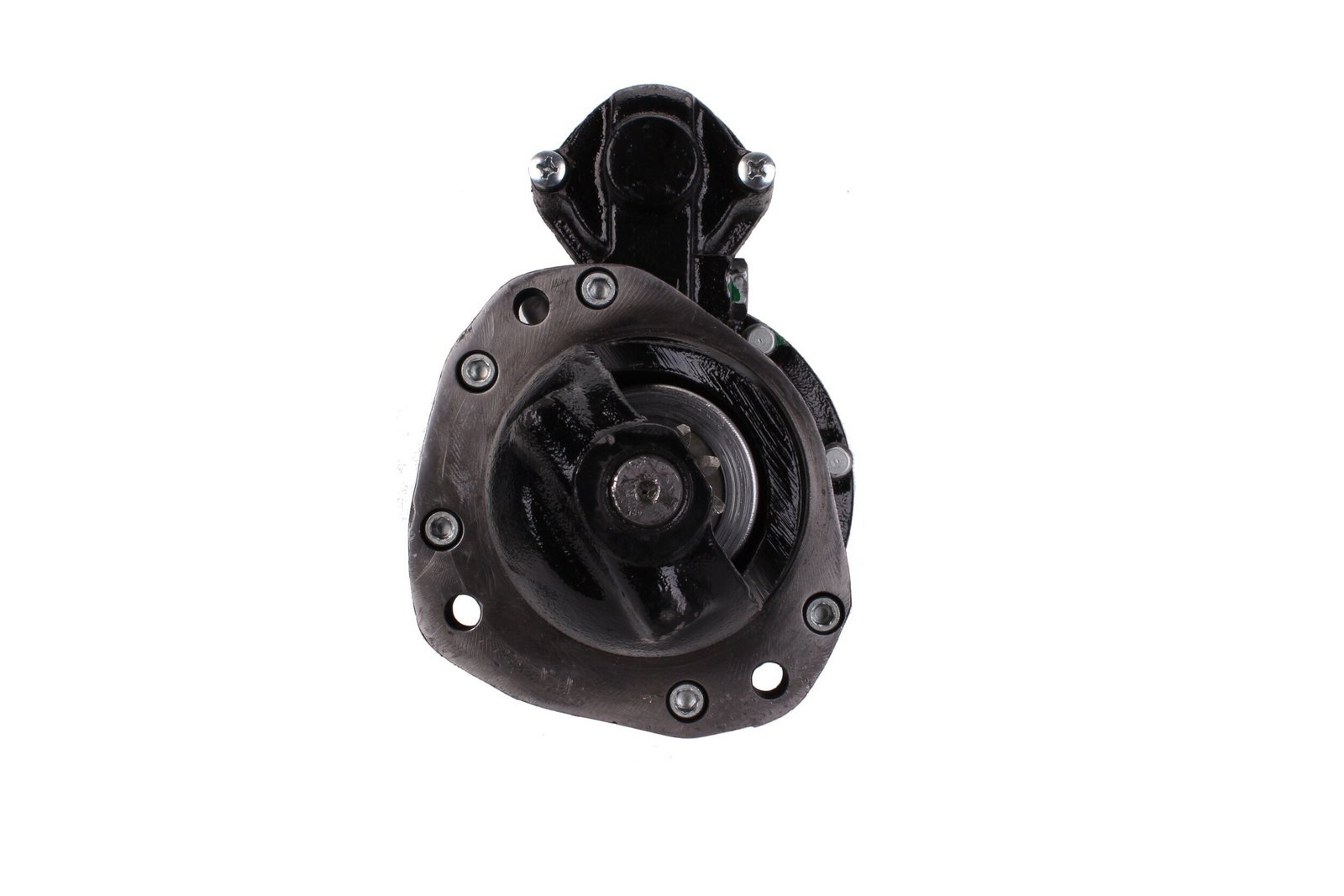

S1476 12V 4.0kW Starter Motor Fits Caterpillar 910, Caterpillar 931
Price range: £174.99 through £262.48
Identify a replacement starter motor using Sahibs S1476, listed at 12V 4.0kW. Listed applications include selected Caterpillar 910, Caterpillar 931 models. Identification references include Lucas LRS01476, Denso 280003650, Delco Remy DRS0333. Its listed 12V 4.0kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1476 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 4 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 21.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1476 | Dyno Electrics |
| 280003650 | Denso |
| 280005960 | Denso |
| 280005961 | Denso |
| 114309 | HC-Cargo |
| 4N0241 | Caterpillar |
| 4N241 | Caterpillar |
| 4N2410 | Caterpillar |
| 640537103 | PSH |
| 6.40537E+11 | Wood Auto |
| 91295039 | Wilson |
| 91295413 | Wilson |
| 9X0354 | Caterpillar |
| DEN0280005961 | Wood Auto |
| DRS0333 | Delco Remy |
| F032114309 | HC-Cargo |
| LRS01476 | Lucas |
| LRS1476 | Lucas |
| S8092 | Dixie |
| S8388 | Accutek |
| S8396 | Accutek |
| S9963 | Lucas |
| STR70019 | Wood Auto |
| WOOSTR70019 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CATERPILLAR | 910 | 0ccm Diesel | Caterpillar 3204 | 1978 - | |||
| CATERPILLAR | 931 | 0ccm Diesel | Caterpillar 3204 | 1978 - |
Description
S1476 Replacement Starter Motor
The S1476 starter motor is a replacement unit identified by Lucas reference LRS01476. The listed electrical rating is 12V 4.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Caterpillar 910 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 4.0kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Caterpillar 910 – selected applications 1978 – (engine code Caterpillar 3204).
- Caterpillar 931 – selected applications 1978 – (engine code Caterpillar 3204).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1476. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
280003650, 280005960, 280005961, LRS01476, LRS1476, S9963, DRS0333
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1476 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1476 fit my Caterpillar 910?
Caterpillar 910 (1978 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1476 replace Lucas LRS01476?
Lucas LRS01476 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1476?
The listed details include 12V, 4.0kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1476 new or remanufactured?
Check the current product condition selection for S1476. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1476?
Compare 12V compatibility, 4.0kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
