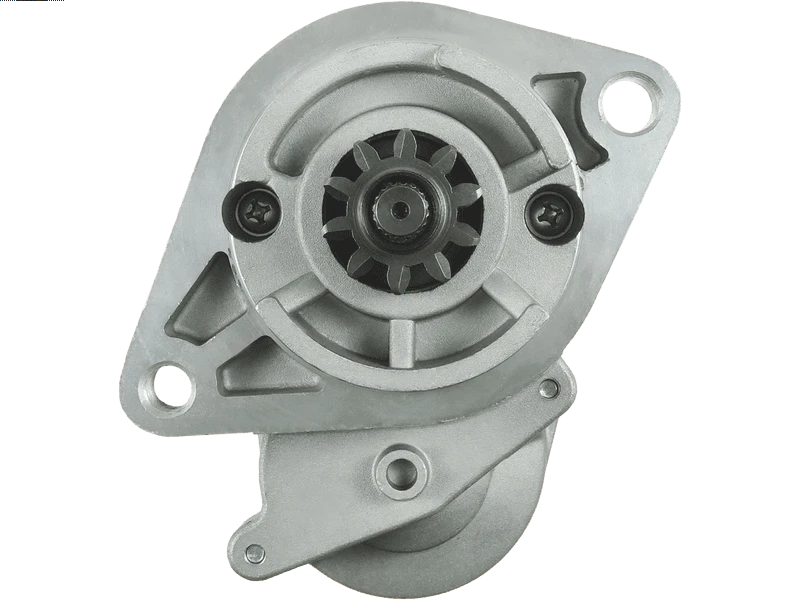

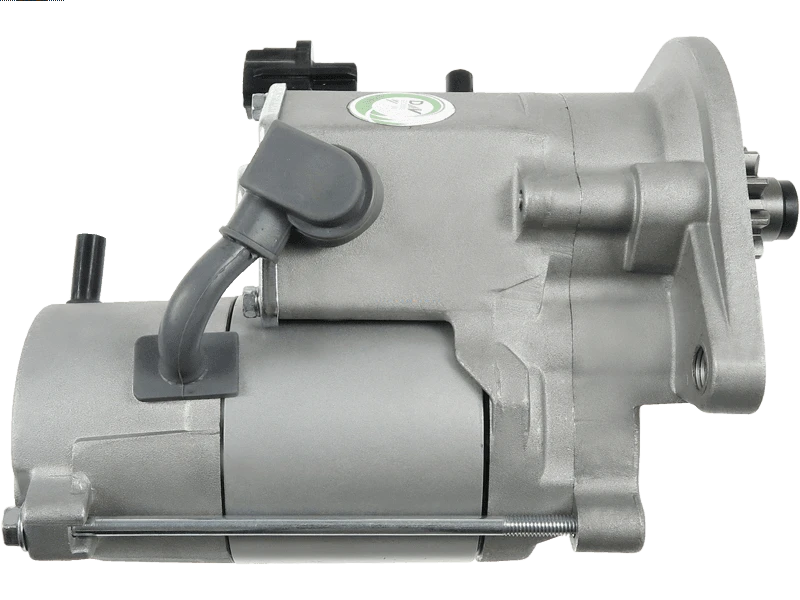

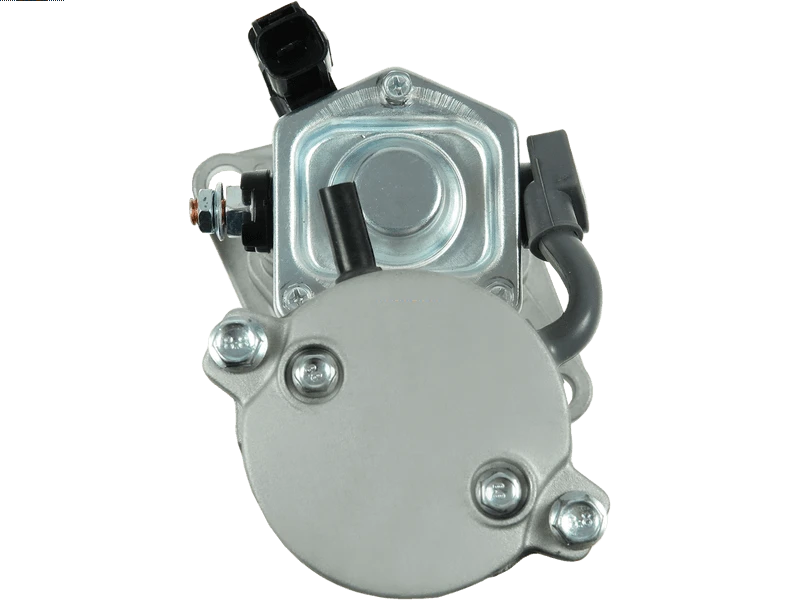

S1497 12V 2.2kW Starter Motor Fits Toyota 4 Runner, Toyota Dyna

Description

S1497 Replacement Starter Motor

Choose a replacement by comparing the S1497 starter motor and its Lucas reference, LRS01497, with your existing unit. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Toyota 4 Runner 3.0 Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 2.2kW power: compare the listed rating with the original starter motor.
• 10/11|||10/11-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• Pin "30" M8 B+ connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Toyota 4 Runner 3.0 Diesel – selected applications 1993–1996 (engine code 1KZT).
• Toyota Dyna 2.5 Diesel – selected applications 2001–2006 (engine code 2KDFTV).
• Toyota Dyna 100 3.0 Diesel – selected applications 2009 – (engine code 1KDFTV).
• Toyota Dyna 150 2.5 Diesel – selected applications 2001–2006 (engine code 2KDFTV).
• Toyota Dyna 350 2.5 Diesel – selected applications 2001–2006 (engine code 2KDFTV).
• Toyota Hiace 2.5 Diesel – selected applications 2001–2006 (engine code 2KDFTV).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S1497. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

228000-0290, 228000-5020, 228000-5021, 228000-5022, 228000-5023, 228000-5024, 428000-0250, 428000-0260, 428000-2311, DSN1001, LRS01497, LRS1497, DRS3855, DS4965

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1497 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S1497 fit my Toyota 4 Runner?

Toyota 4 Runner 3.0 Diesel (1993–1996) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S1497 replace Lucas LRS01497?

Lucas LRS01497 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S1497?

The listed details include 12V, 2.2kW power, 10/11|||10/11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S1497 new or remanufactured?

Check the current product condition selection for S1497. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S1497?

Compare 12V compatibility, 2.2kW power, 10/11|||10/11 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
